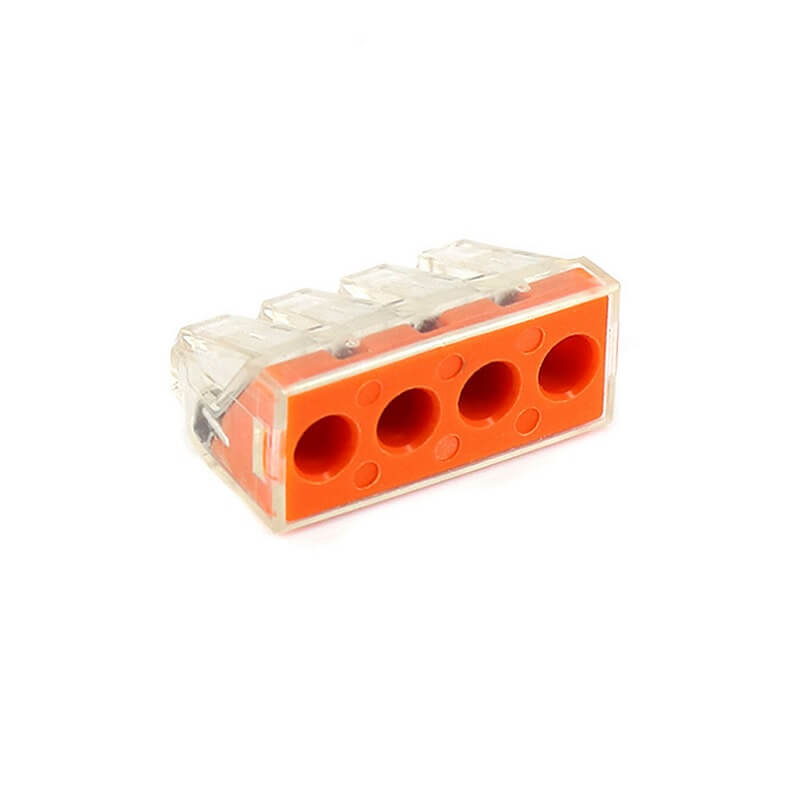

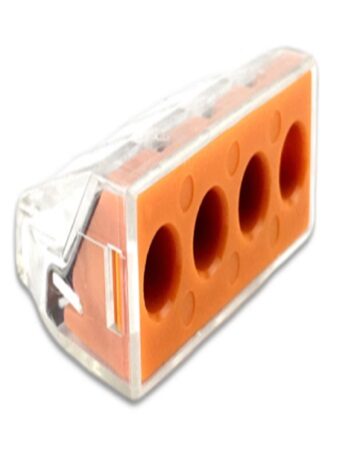

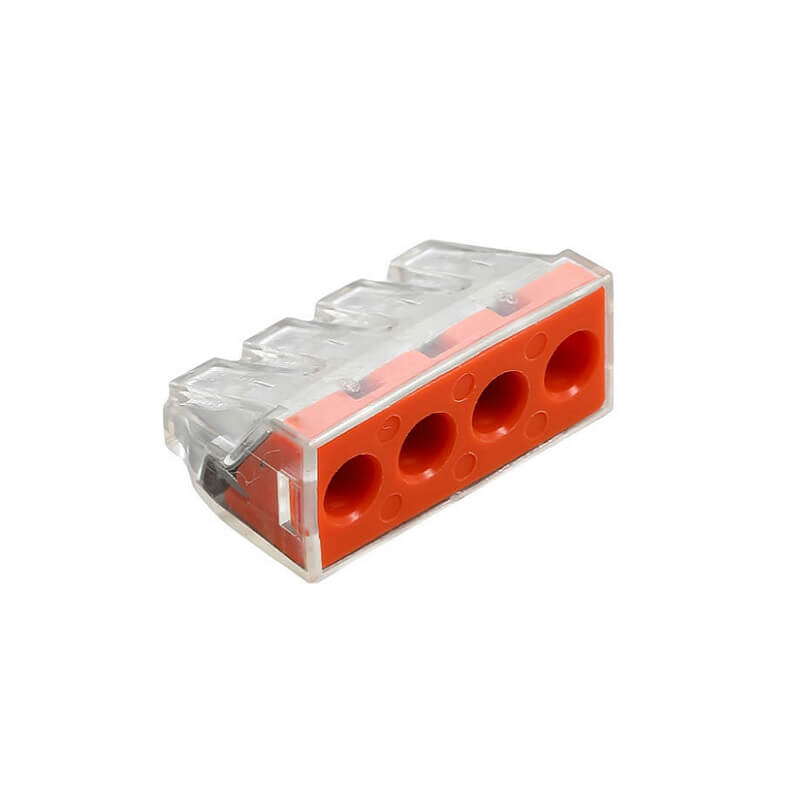

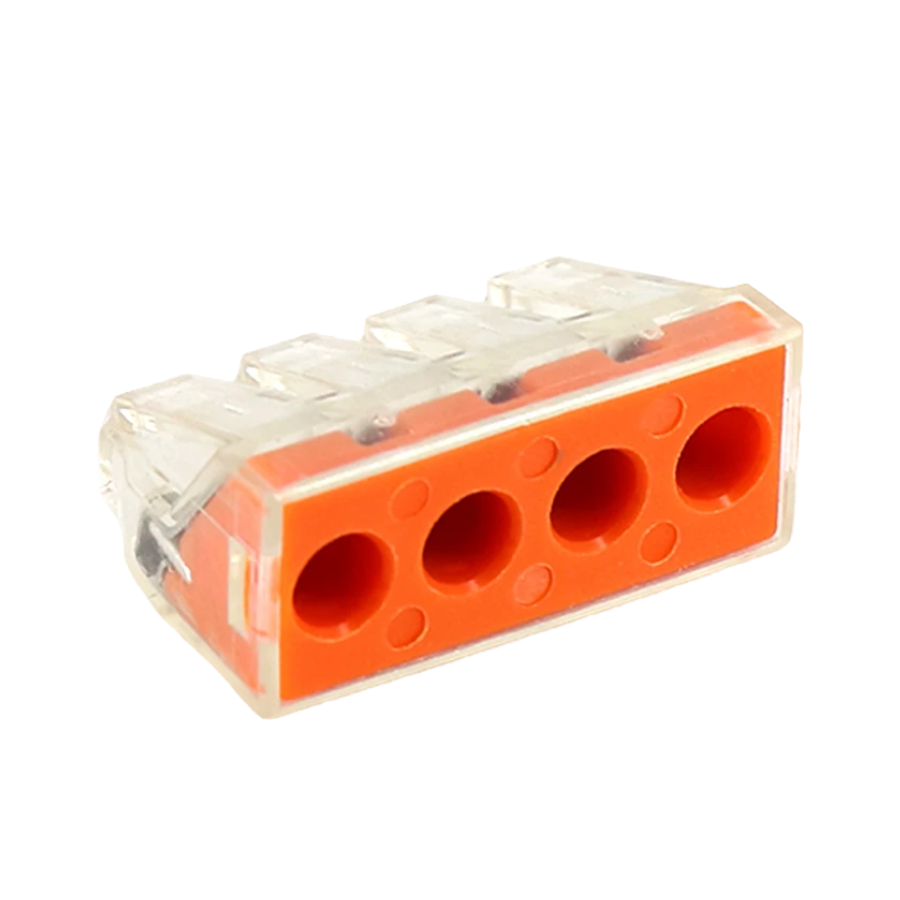

PCT-104D Quick Connection Terminal
The PCT-104D Wire Connector Terminal Block is designed for secure and reliable wire connections, ensuring safety in electrical installations. It supports wires with a cross-sectional area of 0.75-6mm² for solid wires and 1.5-6mm² for stranded conductors, offering flexibility for a wide range of wiring configurations.
Features:
- Wire Compatibility: Suitable for wire cross-sections of 0.75-6mm² for single laid wire and 1.5-6mm² for stranded conductor, ensuring compatibility with a wide range of wire types and sizes.
- Rated Voltage/Current: With a rated voltage/current of 400V/40A, this terminal block delivers efficient power distribution and can handle high electrical loads with ease.
- Rated Impulse Voltage: Features a rated impulse voltage of 9KV, providing reliable insulation and protection against voltage spikes.
- Strip Length: The strip length of 12mm allows for easy and precise wire stripping, facilitating quick and hassle-free connections.
- Insulation Material: Constructed with PA66 insulation material, known for its high mechanical strength and excellent electrical properties.
- Anti-Fire Grade: The terminal block has an anti-fire grade of V-0 or V-2, ensuring safety and protection against fire hazards.
- Contact Material: Made of copper alloy with tin coating on the contact points, ensuring optimal conductivity and corrosion resistance.
Specifications:
| Specification | Details |
|---|---|
| Wire Cross Section | 0.75-6mm² (Single Laid Wire), 1.5-6mm² (Stranded Conductor) |
| Rated Voltage/Current | 400V/40A |
| Rated Impulse Voltage | 9KV |
| Strip Length | 12mm |
| Insulation Material | PA66 |
| Anti-Fire Grade | V-0 or V-2 |
| Contact Material | Copper Alloy |
| Color | Red |
| Voltage | 400V |
| Material | Copper alloy |
| Current Rating | 40A |
| Number of Pins | 4 |
Upgrade your wire connections with the reliability and efficiency of the PCT-104D Quick Connection Terminal, ensuring secure and hassle-free electrical installations in various applications.
Product Include:
1 X PCT-104D Quick Connection Terminal
Technical Specifications
| Model | PCT-104D |
|---|---|
| SKU | AI3035 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The PCT-104D Quick Connection Terminal is a versatile pct and dc power connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
