This is the 5V variant of the CJMCU-MINI USB 5V/3.3V Socket USB DC Power Socket AMS1117 Module in USB Interface Module. Available at ₹76.70 (₹65.00 + GST) with free shipping across India.
Description:
This CJMCU-MINI USB 5V/3.3V Socket USB DC Power Socket AMS1117 Module is equipped with a dual input port:
- Mini USB supporting DC 5V input
- 5.5 × 2.1mm port supporting DC 5–12V input
It provides DC 5V and 3.3V voltage output, making it a perfect power supply module for your Arduino projects.
Specifications:
| MINI USB interface Input | 5V |
|---|---|
| Type | CJMCU MINI USB AMS1117. |
| MINI USB outputs | 5V and 3.3V |
| DC power socket interfaces Input | 5 – 12V |
| Length (mm): | 24 |
| Width (mm): | 24 |
| Height (mm): | 13 |

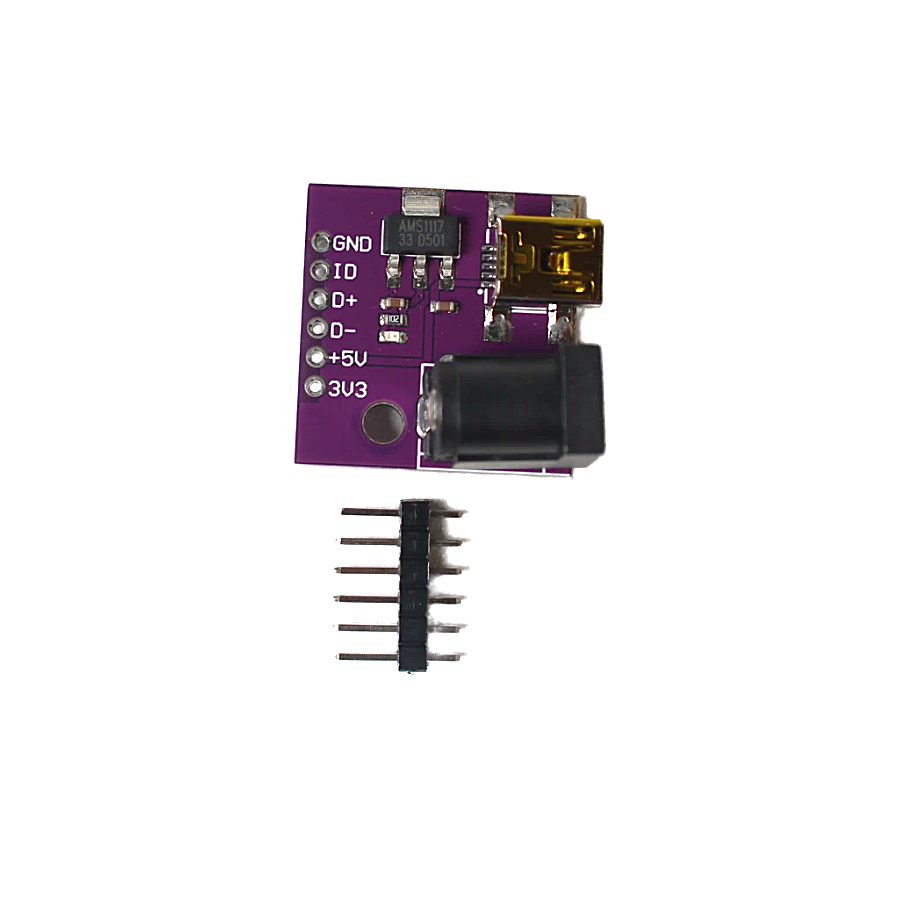

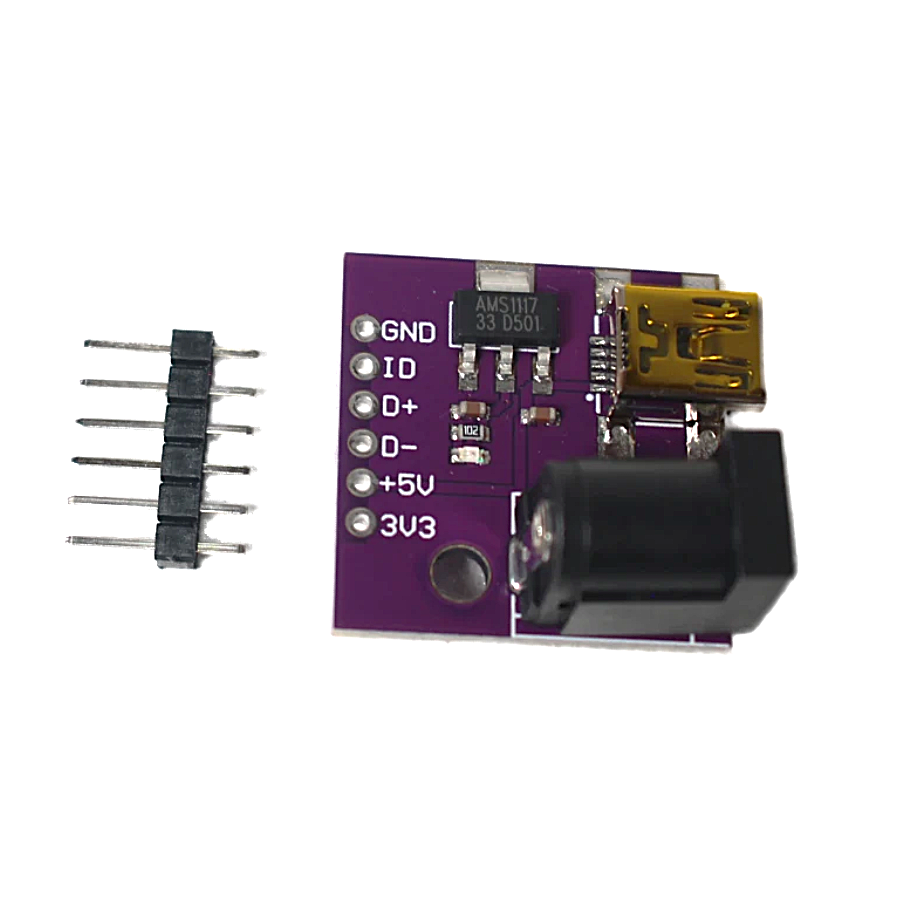

Package Includes:
- 1 x CJMCU-MINI USB 5V Socket USB DC Power Socket Module.
- 1 x Header set.
CJMCU-MINI USB 5V/3.3V Socket USB DC Power Socket AMS1117 Overview

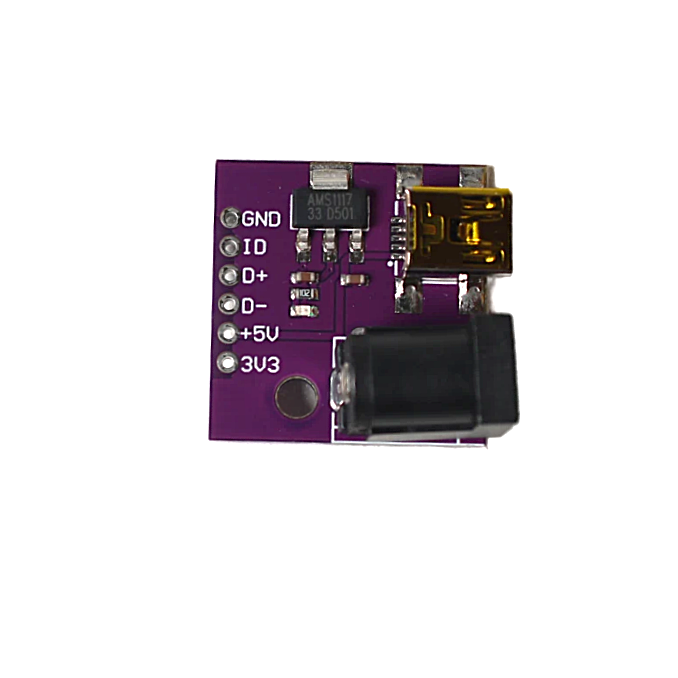

The CJMCU-MINI USB AMS1117 is a compact power module featuring both a mini USB port (5V input) and a 5.5×2.1 mm DC jack (5–12V input). It uses dual onboard AMS1117 regulators to deliver stable 5V and 3.3V outputs, making it ideal for powering Arduino and other microcontroller projects.
Key Features of CJMCU-MINI USB 5V/3.3V Socket USB DC Power Socket AMS1117
- Dual input ports: mini USB for 5V and 5.5×2.1 mm DC socket for 5–12V
- Dual output rails: regulated 5V and 3.3V via onboard AMS1117 chips
- Compact 24×24×13 mm PCB fits into tight project enclosures
- Includes solderable header set for breadboard and PCB mounting
- Reliable power supply for Arduino, ESP, Raspberry Pi Zero, and sensor modules
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Powering Arduino Uno, Nano, and Pro Mini boards
- Supplying 3.3V to ESP8266/ESP32 Wi-Fi modules
- Providing stable 5V to Raspberry Pi Zero via USB connector
- Portable bench power for sensor, LED, and small circuit testing
- Embedded robotics controllers requiring dual-voltage rails
- DIY battery pack power management for field experiments
How to Use CJMCU-MINI USB 5V/3.3V Socket USB DC Power Socket AMS1117
Solder the provided header pins to the module’s pads, then connect your input source—either a 5V mini USB cable or a 5–12V supply into the DC jack. Attach your load leads to the 5V and 3.3V output pins to power microcontrollers or peripheral boards safely.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What power inputs does the CJMCU-MINI USB AMS1117 module accept?
It accepts 5V through the mini USB port or a 5–12V supply via the 5.5×2.1 mm DC jack.
Can I get both 5V and 3.3V outputs simultaneously?
Yes, the onboard AMS1117 regulators provide both 5V and 3.3V outputs at the same time from either input source.
Is a header set included for mounting?
Yes, the package includes a compatible header set for soldering onto your project board or breadboard placement.
Technical Specifications
| Voltage Range | 3.3V - 5V |
|---|---|
| Interface / Protocol | USB |
| Connector Type | Mini USB |
| SKU | AI0649 |
| Weight | 0.00585 kg |
| Availability | In Stock |
Applications & Use Cases
The CJMCU-MINI USB 5V/3.3V Socket USB DC Power Socket AMS1117 Module is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
