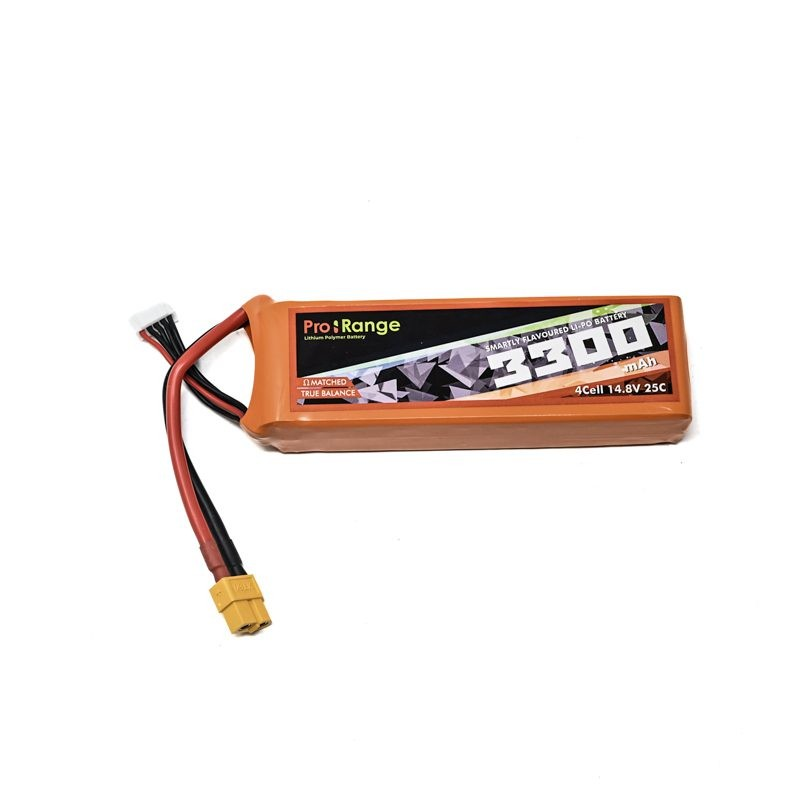

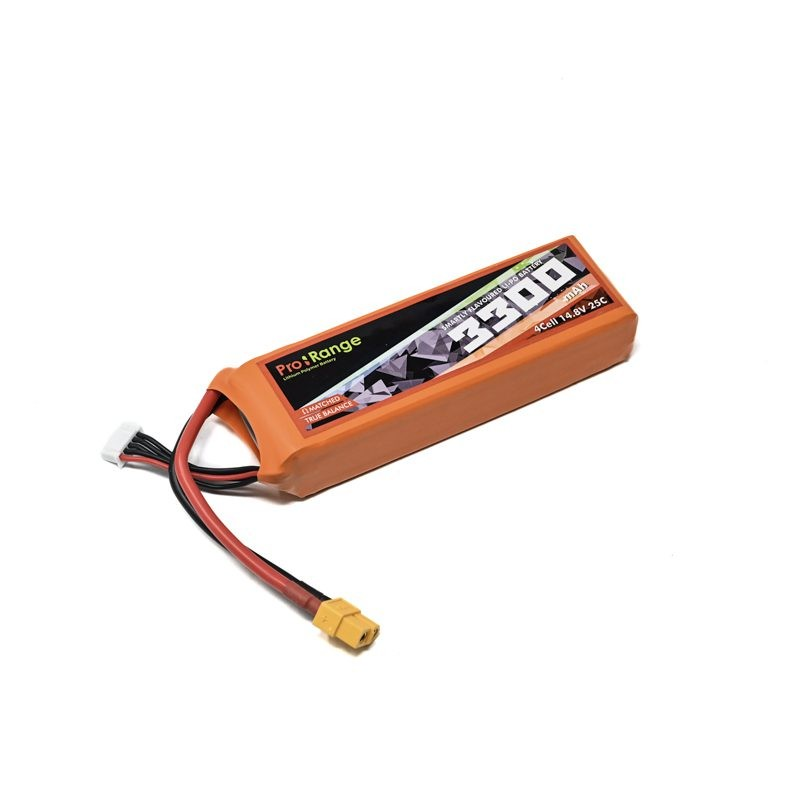

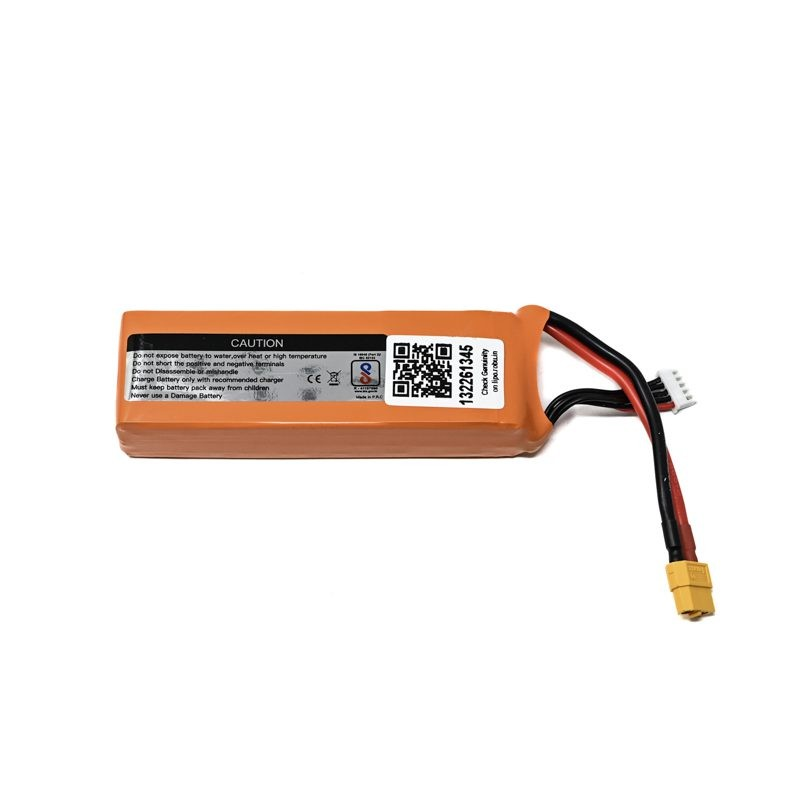

This is the Orange variant of the Orange 14.8V 3300mAh 25C 4S Lithium Polymer Battery Pack in 4 cell Lipo (14.8V ~ 16.8V), Batteries, Chargers and Accessories, LiPo Battery. Available at ₹3,725.52 (₹3,157.22 + GST) with free shipping across India.
Looking for 14.8v Battery? Orange 14.8V 3300mAh 25C 4S Lithium Polymer Battery Pack is available at Zbotic with fast shipping across India.
14.8v Battery – Description:
Orange 14.8V 3300mAh 25C 4S Lithium Polymer Battery Pack are known for performance, reliability, and price. It?s no surprise to us that Orange?Lithium polymer packs are the go-to pack for those in the know. The Orange?batteries deliver the full rated capacity at a price everyone can afford.
Orange 3300mAh 4S 25C/50C Lithium polymer battery Pack (LiPo) batteries are equipped with heavy-duty discharge leads to minimize resistance and sustain high current loads. Orange batteries stand up to the punishing extremes of aerobatic flight and RC vehicles. Each pack is equipped with gold-plated connectors and JST-XH style balance connectors. All Orange Lithium Polymer battery packs are assembled using IR match cells.
You won’t find a better deal than this in Lithium Polymer batteries anywhere!
Features:
- Product Type: Lithium Polymer?Battery Pack
- The Pro-Range LiPo battery has matched resistance.
- Good Temperature Control.
- Minimum weight in Class
Safety Precautions:
- Avoid over-charging or over-discharge batteries
- Do not put it besides the high-temperature condition
- Don’t directly expose it into the fire
- Avoid the contact of water.
- Do not Short Circuit the battery Terminals
Specification:
| Nominal Voltage (V): | 14.8 |
|---|---|
| Nominal Capacity (mAh): | 3300 |
| Discharge Current: | 25C |
| Battery Cell Composition: | 4S |
| Model No.: | 3300mAh 4S 25C (14.8V) |
| Capacity (mAh): | 3300 |
| Weight (g): | 292 |
| Output Voltage (V): | 14.8 |
| Charge Rate (C) | 1 ~ 3 |
| Discharge Plug | XT-60 |
| Balance Plug | JST-XH |
| Length (mm): | 133 |
| Width (mm): | 40 |
| Height (mm): | 25 |
| Max. Burst Discharge (C) | 60C (144A for 10 Seconds) |
| Max. Charge Rate | 5 C |
| Max. Continuous Discharge | 30C (70A) |
Package Includes:
- 1 x Orange 14.8V 3300mAh 25C 4S Lithium Polymer Battery Pack
Orange 14.8V 3300mAh 25C 4S Lithium Polymer Battery Pack Overview
The Orange 14.8V 3300mAh 25C 4S Lithium Polymer Battery Pack is a high-performance power source designed for demanding RC applications. Its 4-cell configuration delivers consistent voltage and current for multirotor drones, fixed-wing aircraft, and other electric models.
Key Features of Orange 14.8V 3300mAh 25C 4S Lithium Polymer Battery Pack
- 3300 mAh capacity provides extended runtime for RC planes, drones, cars, and boats
- 14.8 V nominal voltage (4S) ensures strong throttle response and stable power output
- 25 C continuous and 50 C burst discharge ratings handle high-current demands
- Equipped with XT60 discharge connector and JST-XH balance plug for secure, low-resistance connections
- Compact dimensions (133 × 40 × 25 mm) and lightweight design (292 g) fit tight installations
- Genuine Orange brand battery—fast shipping across India from Zbotic
Applications and Use Cases
- Multirotor and racing drones (250 g–450 g class)
- Fixed-wing RC aircraft and gliders
- Electric RC cars, trucks, and buggies
- Electric boats and marine models
- FPV freestyle flying setups
- DIY robotics and custom electric projects
How to Use Orange 14.8V 3300mAh 25C 4S Lithium Polymer Battery Pack
Always charge this 4S LiPo pack with a compatible LiPo charger set to 14.8 V (4S) and enable the balance function via the JST-XH lead. Connect the XT60 plug to your ESC or power distribution board, secure the battery in your model, and monitor temperature during operation. Store at ~50 % charge when not in use to prolong lifespan.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I properly charge the Orange 4S 3300mAh LiPo pack?
Use a dedicated LiPo charger with a 4S balance port. Connect the XT60 discharge lead to the main output and the JST-XH balance lead to the charger’s balance port. Select 4S (14.8 V) mode, start charging at a rate no higher than 1C (3.3 A), and monitor cell voltages until full.
What flight time can I expect on a 3300mAh 4S pack?
Flight time depends on your setup and throttle usage. Typical 250–450 g class quadcopters achieve 4–8 minutes at moderate throttle. Racing or heavy-lift builds will see shorter runtimes, while lighter models may run longer.
Can this battery handle rapid throttle changes in aerobatic flight?
Yes. Its 25 C continuous and 50 C burst ratings handle sudden current spikes common in aerobatic maneuvers. Always inspect the pack after high-stress flights and follow safe discharge and storage practices.
Power Factor Meter: Measure and Display PF with Arduino
A power factor meter measures the phase relationship between voltage and current in AC circuits, revealing how efficiently...
Read More →
Battery Fuel Gauge: Monitor Remaining Capacity with Arduino
Table of ContentsVoltage Alone Is Unreliable Coulomb Counting Explained INA219 Current and Voltage Sensor Arduino Fuel Gauge Circuit...
Read More →
Nickel Strip Spot Welder: Build Your Own for Battery Packs
Table of ContentsWhy Spot Welding for Battery Packs How Spot Welding Works Components for a DIY Spot Welder...
Read More →Technical Specifications
| Operating Voltage | 14.8V |
|---|---|
| Battery Capacity | 3300mAh |
| Cell Configuration | 4S |
| Discharge Rate | 25C |
| Color | Orange |
| SKU | AI7219 |
| Availability | Out of Stock |
Applications & Use Cases
The Orange 14.8V 3300mAh 25C 4S Lithium Polymer Battery Pack is a versatile 4 cell lipo (14.8v ~ 16.8v) used across a wide range of applications including FPV drones, RC vehicles, portable electronics, robotics, and airsoft guns.
Common use cases:
- Powering an FPV racing drone
- Running a high-current RC car
- Portable power for field robotics
This product is ideal for drone pilots, RC enthusiasts, and robotics builders.
Technical Tip: Never discharge below 3.5V per cell. Store at 3.8V per cell. Always use a balance charger and never leave charging unattended. Use a LiPo bag for safety.
