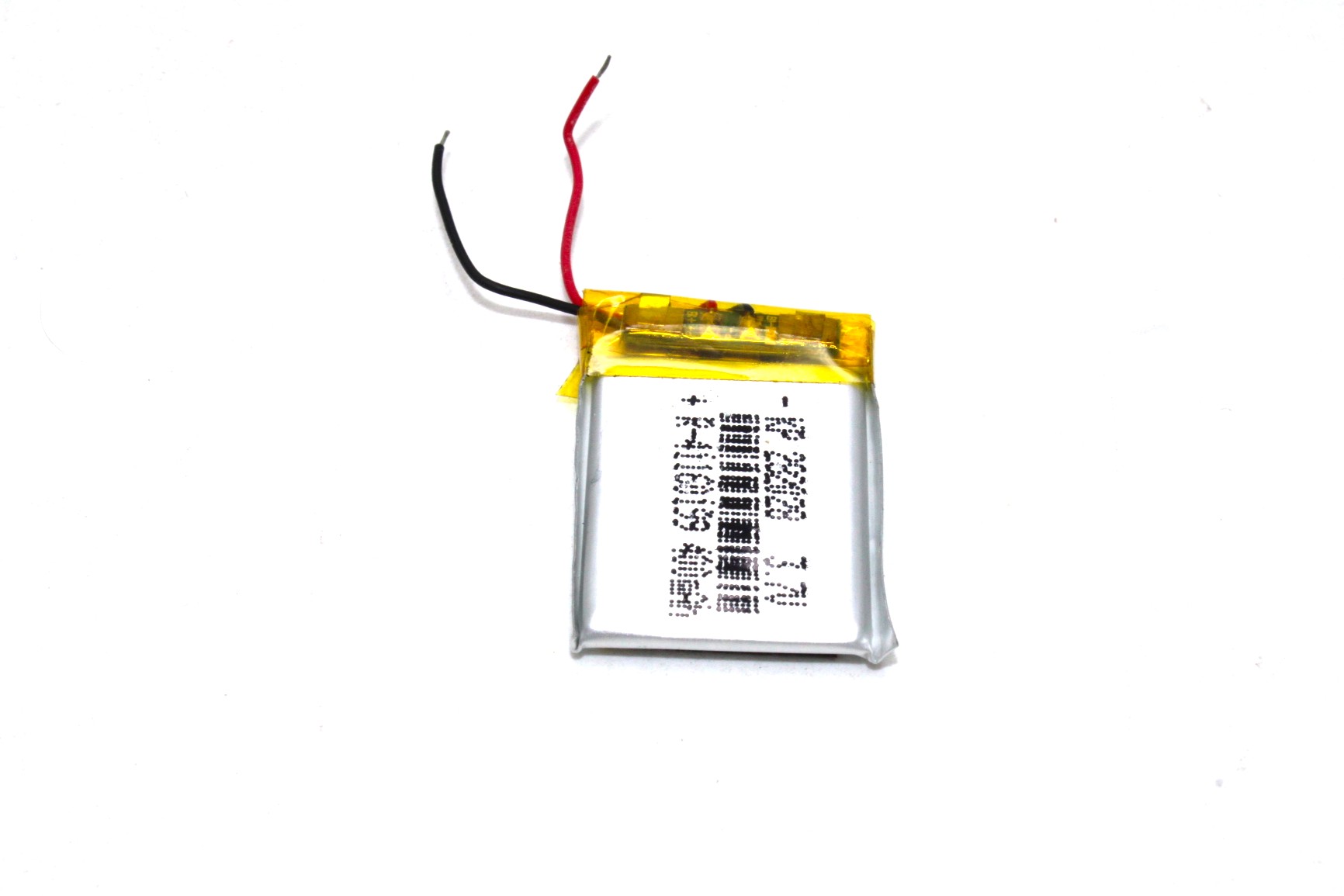

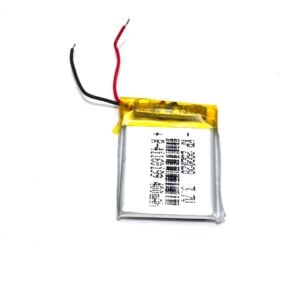

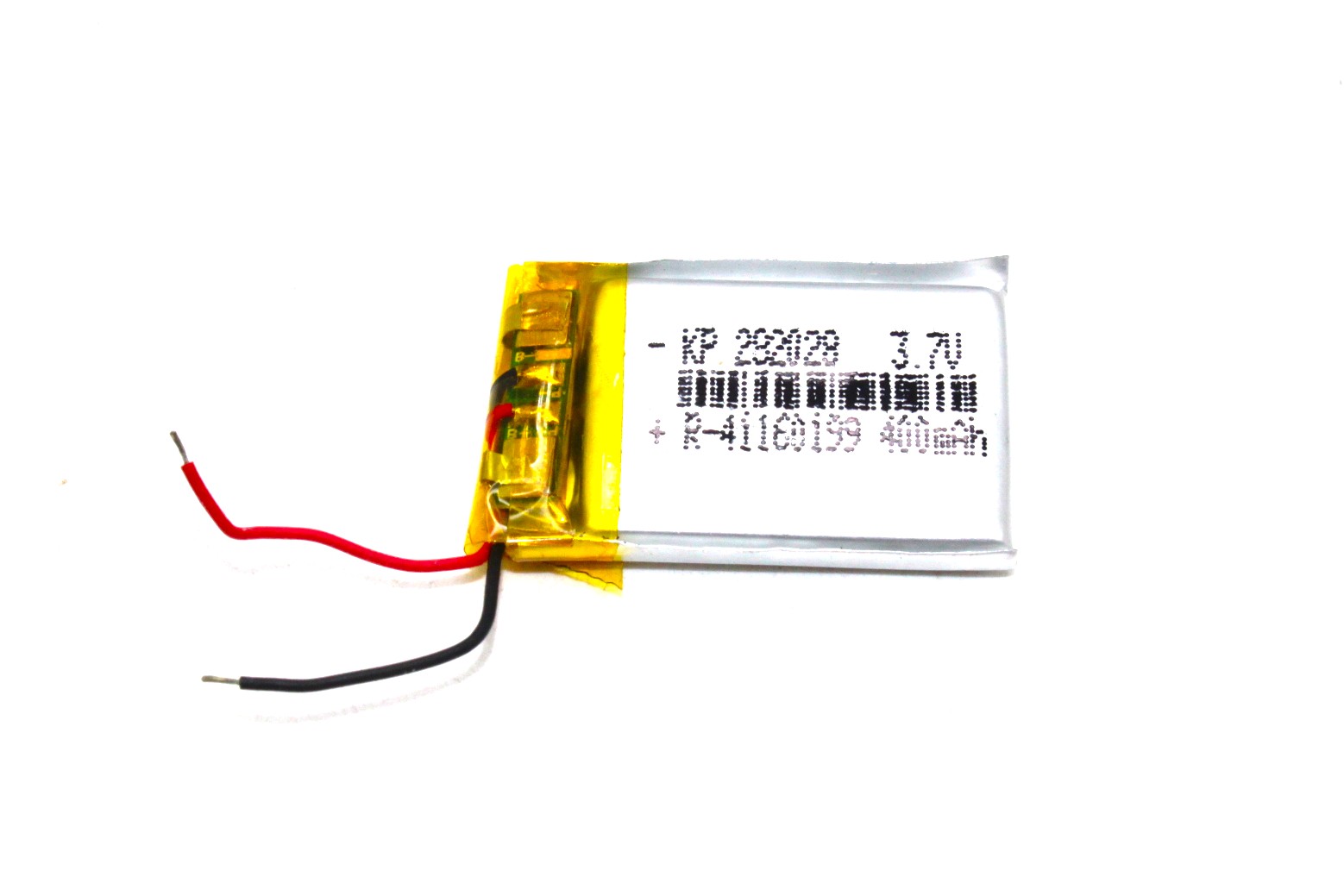

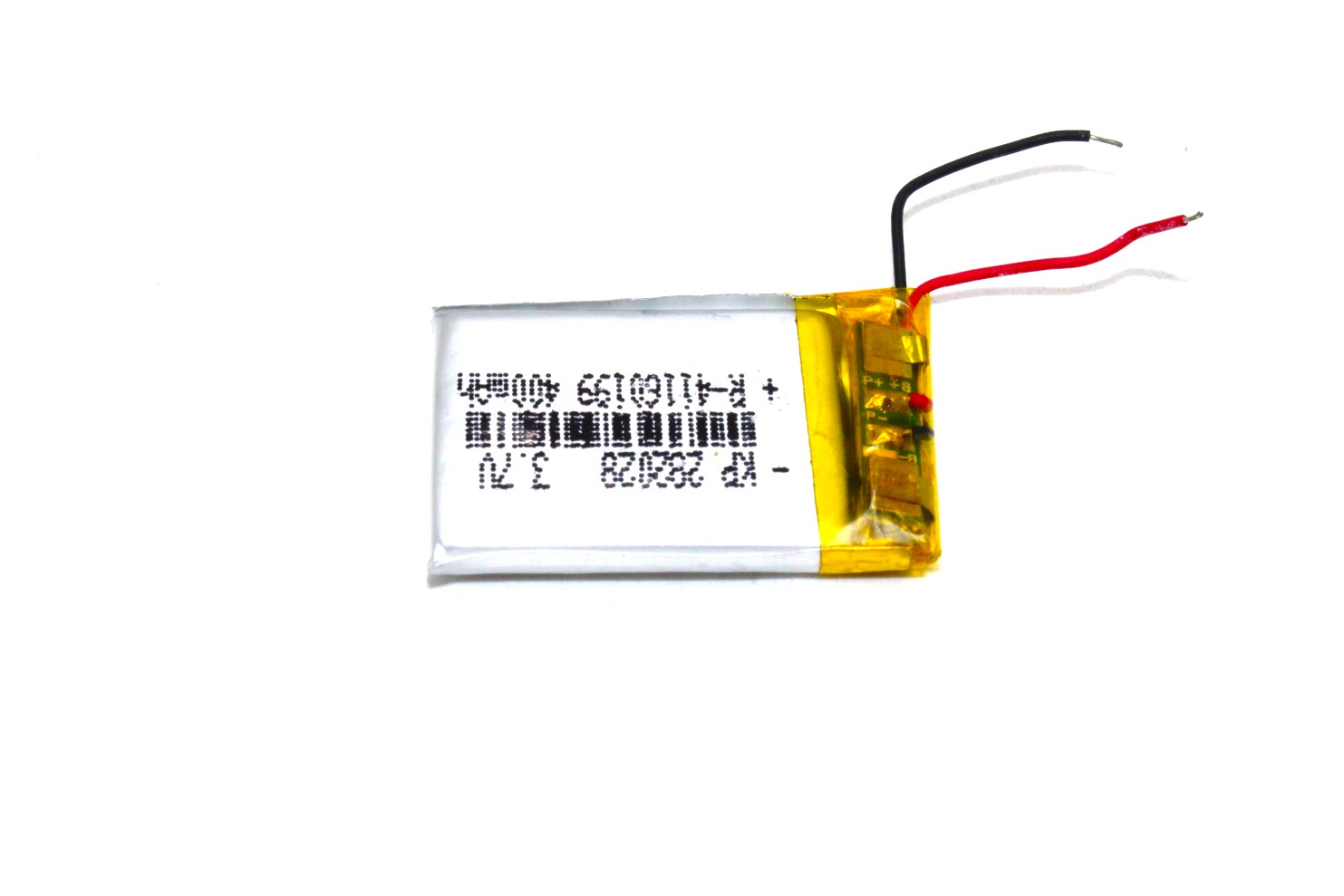

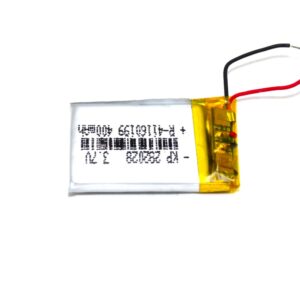

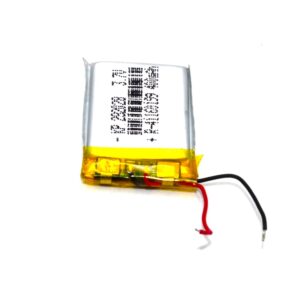

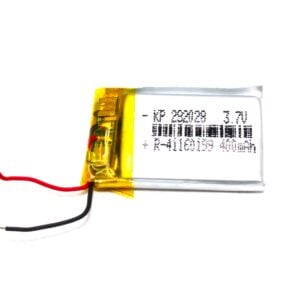

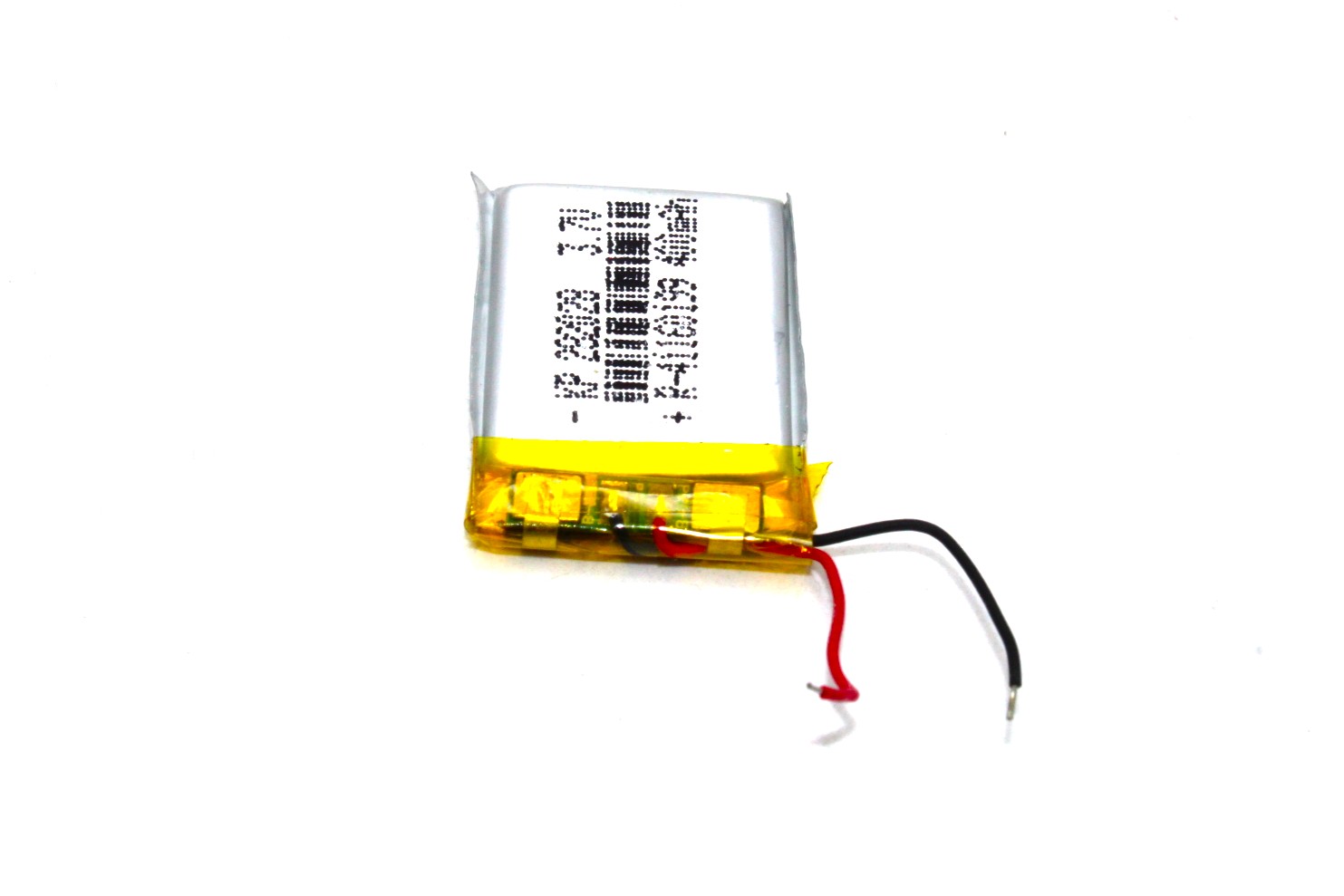

KP Original 282028 400mAh 3.7Vsingle cell Rechargeable LiPo Battery

282028 3.7V 400mAh Lithium Polymer (LiPo) Rechargeable Battery

Product Description:

Introducing the 282028 3.7V Lithium Polymer (LiPo) rechargeable battery, designed to deliver reliable and efficient energy solutions for your compact electronic devices. With a capacity of 400mAh, this lightweight and compact battery is ideal for applications such as wearables, Bluetooth devices, remote controls, and other portable electronics. Experience consistent performance and safety with the 282028 LiPo battery, making it a great choice for engineers, hobbyists, and manufacturers.

Technical Specifications:

• Model Number: 282028
• Type: Lithium Polymer (LiPo)
• Nominal Voltage: 3.7V
• Capacity: 400mAh
• Dimensions:
  • Length: 28 mm
  • Width: 20 mm
  • Height: 28 mm (thickness)
• Weight: Approximately 10 grams
• Discharge Rate: 1C (maximum continuous)
• Charge Rate: Up to 1C (maximum)
• Charging Voltage: 4.2V ± 0.05V
• Discharge Cut-off Voltage: 3.0V
• Cycle Life: Approximately 300-500 cycles (dependent on charge/discharge practices)
• Connector Type: JST connector (custom options available upon request)
• Operating Temperature Range:
  • Charge: 0°C to 45°C
  • Discharge: -20°C to 60°C
• Storage Conditions: Store at 40-60% charge in a cool, dry place to ensure maximum lifespan.
• Safety Features:
  • Overcharge protection
  • Over-discharge protection
  • Short-circuit protection
  • Thermal protection systems

Application Areas:

• Wearable devices (smartwatches, fitness trackers)
• Bluetooth accessories (headsets, speakers)
• Portable electronics (cameras, LED lights)
• Remote control systems
• IoT devices and prototypes

Package Includes:

• 1 x 282028 400mAh 3.7V LiPo Battery
