Looking for Of05zat Sensor? OF05ZAT G1/2 DN15 Water Flow Sensor (Sea) Milk Gasoline Oil Diesel Flow Rate Sensor is available at Zbotic with fast shipping across India.
Product Description

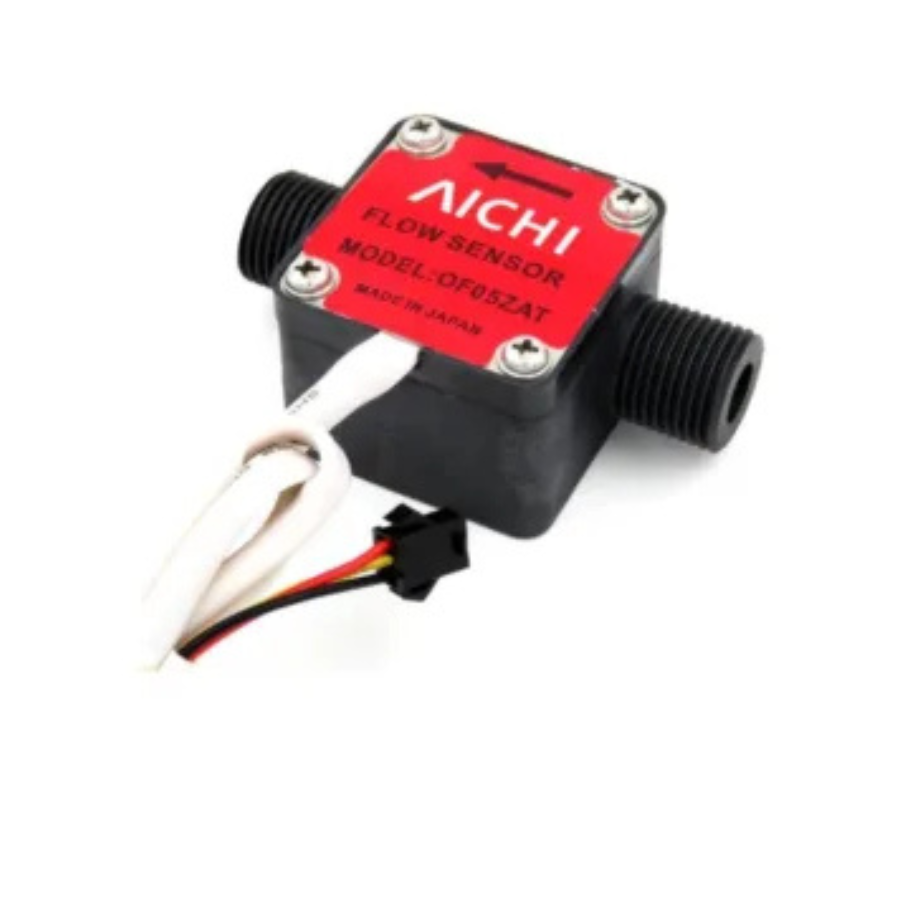

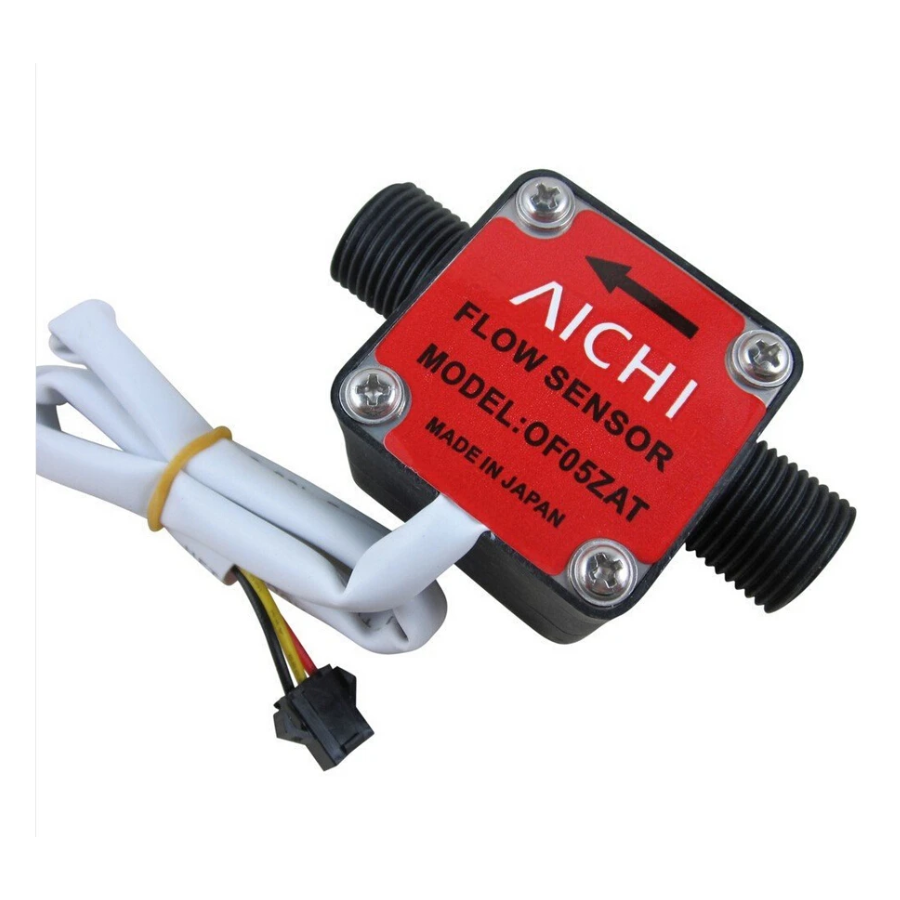

This product is a water flow sensor that can measure the flow rate of water, milk, gasoline, oil, and diesel. It consists of a plastic body, an oval gear rotor, and a hall-effect sensor with a PCB electronics board. The rotor spins when the liquid passes through it, and its speed varies with the flow rate. The hall-effect sensor detects the magnetic rotor and produces a pulse signal accordingly.
Features:
- Accuracy: – 1%
- Working environmental: milk, liquid, light oil, diesel
- Material: RoHs, no-toxic
Specification:
| Flow Rate (ml/min) | 5-300L/Hour |
|---|---|
| Max Current (A) | 15mA |
| Min Dual Supply Voltage (V) | DC 4.5V |
| Input Voltage (V) | DC 3.5V~12V |
| Load Current Max (mA) | 10 mA |
| Pressure Range (MPa) | < 1.75Mpa |
| Shipping Weight | 0.136 kg |
| Shipping Dimensions | 15 × 11 × 5 cm |
Package Includes:
1 x OF05ZAT G1/2 DN15 Water Flow Sensor (Sea) Milk Gasoline Oil Diesel Flow Rate Sensor
Datasheet:
OF05ZAT G1/2 DN15 Water Flow Sensor (Sea) Milk Gasoline Oil Overview
The OF05ZAT G1/2 DN15 flow sensor is an inline meter with male 1/2″ threads designed to monitor liquid flow in real time. It features an oval-gear rotor and hall-effect pickup that outputs pulse signals proportional to the flow rate, making it ideal for water, milk, gasoline, oil and diesel measurement.
Key Features of OF05ZAT G1/2 DN15 Water Flow Sensor (Sea) Milk Gasoline Oil
- Flow range 5 – 300 L/hour with start-up pressure under 1.75 MPa
- High accuracy of ±1% across specified liquids
- Integrated hall-effect sensor and oval-gear rotor for reliable pulse output
- Wide operating temperature from –25 °C to +70 °C
- Male G1/2″ (DN15) plastic body with RoHS-compliant, non-toxic material
- Fast shipping from Zbotic across India
Applications and Use Cases
- Fuel consumption monitoring on generators or vehicles using gasoline or diesel
- Dairy processing lines for measuring milk throughput
- Marine bilge water flow measurement and leak detection
- Oil filtration and lubrication systems in industrial machinery
- Calibration of flow meters in laboratory setups
- Water treatment and distribution network monitoring
How to Use OF05ZAT G1/2 DN15 Water Flow Sensor (Sea) Milk Gasoline Oil
Install the sensor inline using G1/2″ male fittings with thread sealant tape to prevent leaks. Connect the red wire to a 3.5–12 V DC supply, black to ground, and the pulse output wire to a digital input on your controller. Measure pulse frequency (F = 2.5 ml/pulse) to calculate real-time flow rate and total volume.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can the OF05ZAT sensor handle corrosive or high-viscosity liquids?
This model is specified for water, milk, light oil, gasoline and diesel. Extremely viscous or highly corrosive fluids may impair rotor movement or damage the plastic body.
How do I calculate flow rate from the pulse output?
Count pulses over a fixed interval and apply the formula Flow (ml) = Pulse Count × 2.5 ml. Convert to L/hour by multiplying by (3600 / measurement interval in seconds) and dividing by 1000.
What wiring connections are required for this sensor?
Use three wires: red for DC 3.5–12 V supply, black for ground, and the signal wire to a digital input pin. Ensure stable voltage and proper grounding to avoid false pulses.
