PRODUCT DESCRIPTION
The principle of silicon controlled phase shifting triggering is adopted to adjust the time and the current to achieve welding. With a digital display, you can directly see the time and current. Optocoupler isolates the strong and weak electricity, making the operation safer. Using a high-precision single potentiometer to ensure reliable and convenient input. The design of a reliable zero-crossing detection circuit ensures the SCR phase shift accuracy. Made of high-quality PCB, the control board is long-lasting. The module is 8cm long, 6cm wide and 2cm high. It is developed for DIY or simple resistance welding.
Connection Diagram:
Features:
| Material | Plastic+Metal |
|---|---|
| Current Input | (30-99%), |
| SCR. | 40A |
| Shipping Weight | 0.053 kg |
| Shipping Dimensions | 14 × 7 × 3 cm |
Package Includes:

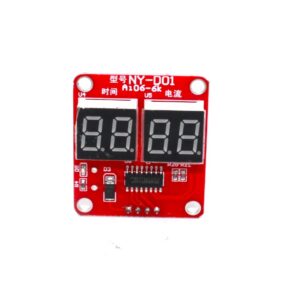

1 x NY-D01 40A Digital Display Spot Welding Controller Board
Technical Specifications
| Model | NY-D01 |
|---|---|
| Current Rating | 40A |
| SKU | AI2949 |
| Weight | 0.06 kg |
| Availability | In Stock |
