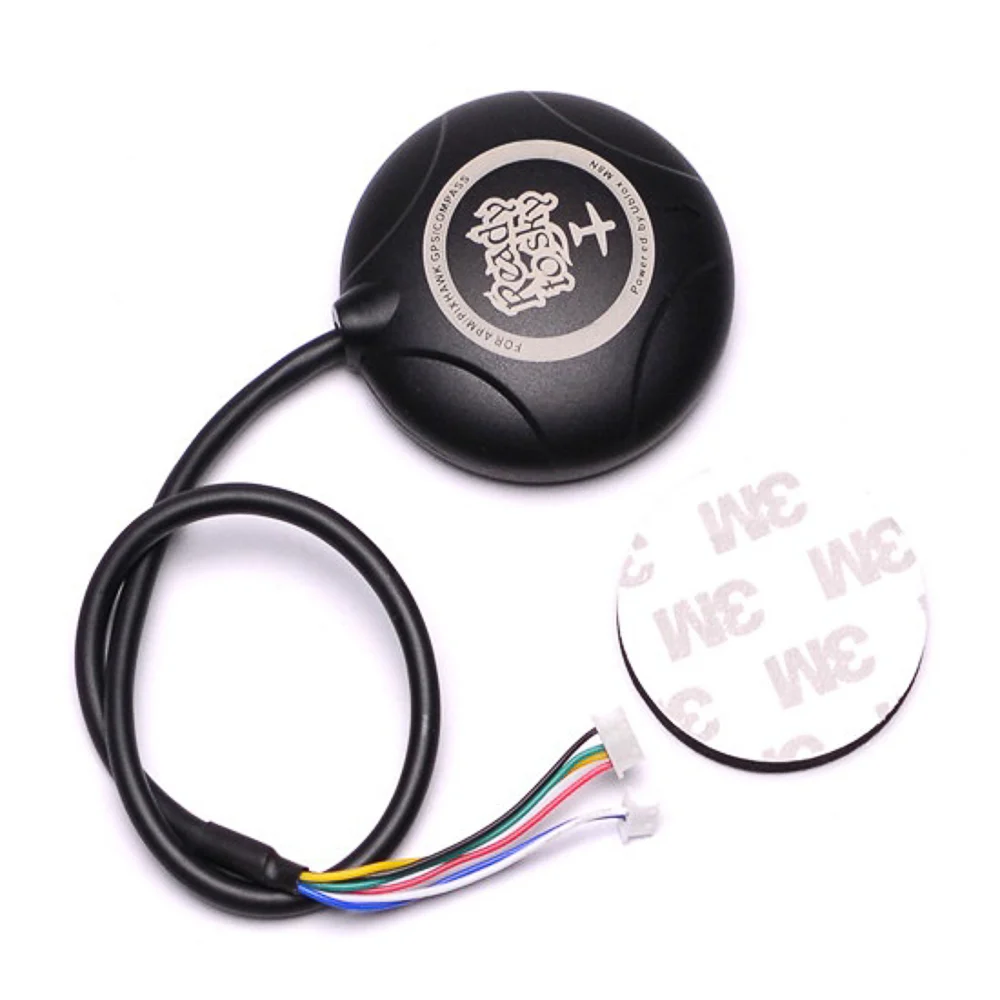

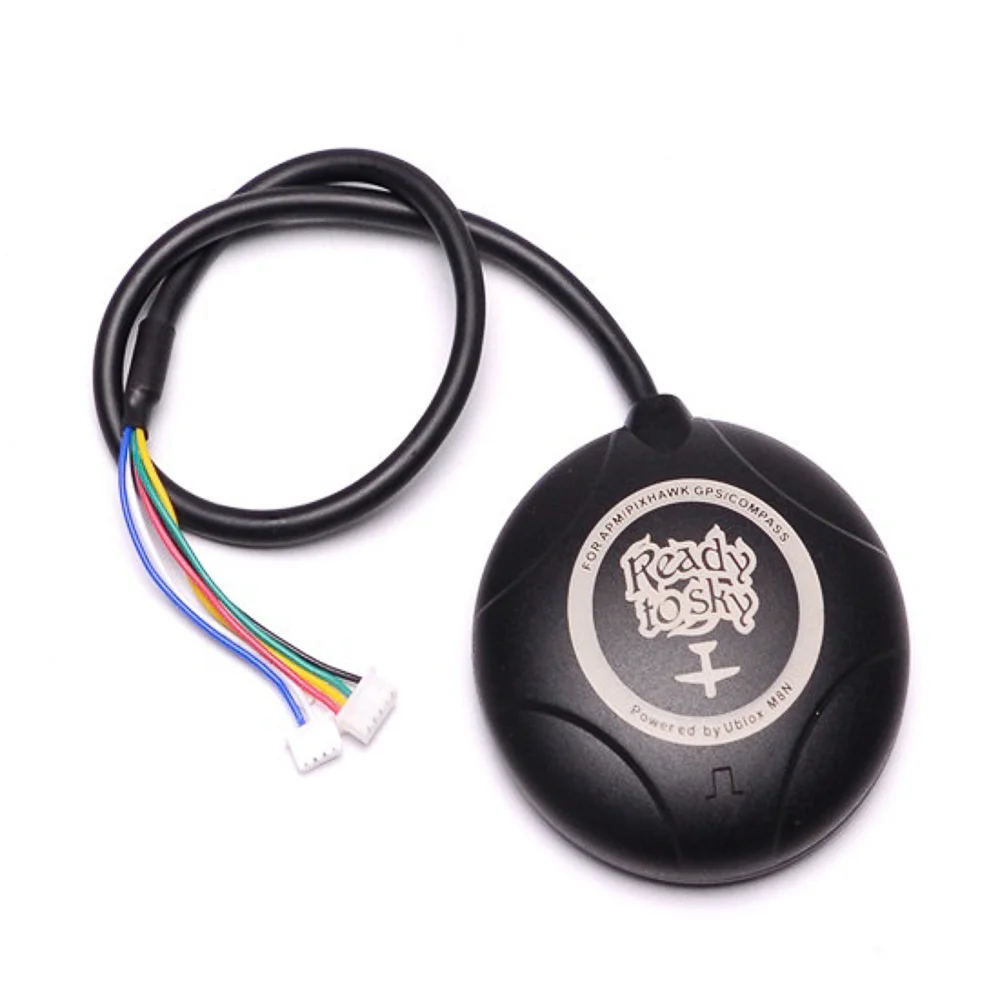

The NEO-M8N High Precision GPS Module is designed for PIXHAWK and APM Flight Controllers, offering built-in compass, low power consumption, and high precision. It boasts an accuracy of 0.6 to 0.9 meters, significantly better than the previous NEO-7N model. It supports GPS/QZSS L1 C/A, GLONASS L10F, and BeiDou B1 protocols.
You can connect it to an APM Flight Controller by swapping the extra 5-pin connector included in the package. This module is ideal for GPS telemetry in FPV flying or camera ships, with fast satellite acquisition (around ten seconds to locate up to six satellites) and a built-in compass with a 10Hz refresh rate.
The NEO-M8N offers excellent RF integration, robustness, and flexible connectivity options. It includes internal Flash for firmware upgrades to support additional GNSS systems. The module also comes with a case and GPS antenna mount to prevent electromagnetic interference.
Features:
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
- SBAS L1 C/A: WAAS, EGNOS, MSAS
- Galileo-ready E1B/C (NEO-M8N)
- Onboard Compass
- Assistance AssistNow GNSS Online
- AssistNow GNSS Offline (up to 35 days)
- AssistNow Autonomous (up to 6 days)
- OMA SUPL & 3GPP compliant
- Oscillator TCXO (NEO-M8N/Q),
- Crystal (NEO-M8M)
- RTC crystal Built-In
- Noise figure On-chip LNA (NEO-M8M). Extra LNA for
- lowest noise figure (NEO-M8N/Q)
- Anti-jamming Active CW detection and removal. Extra
- onboard SAW bandpass filter (NEO-M8N/Q)
- Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
- Supported antennas Active and passive
- Odometer Travelled distance
- Data-logger For position, velocity, and time (NEO-M8N)
Specification-
| Model | Ublox NEO-M8N |
|---|---|
| Receiver Type | 72-channel Ublox M8 engine. |
| Main Chip | Ublox NEO-M8N |
| Input Supply Voltage (VDC) | 0.5 ~ 3.6 |
| Sensitivity (dBm) | Tracking & Navigation: -161 dBm |
| Position Accuracy (Meter) | 2, 2.5 |
| Acceleration (g) | <4 |
| Navigation Update Rate | up to 18 HZ. |
| Operating Temperature Range (°C) | -45 to 105 |
| Tracking Sensitivity (dBm) | -161 dBm |
| Co-Ordinate System | WGS-84 |
| Capture Time | 0.1s Average |
| Avg Cold Start Time (s) | 30 |
| Warm Start Time (s) | 1 |
| Boot Time | 1S |
| Maximum Altitude (m) | 18000 |
| Dimensions (mm) LxWxH | 54 x 22 (Dia x W) |
| Weight (gm) | 23 |
| Cable Length (cm) | 20 |
| Shipping Weight | 0.06 kg |
| Shipping Dimensions | 7 × 6 × 6 cm |
Package Includes:
1 x NEO M8N GPS for Pixhawk and APM flight controller

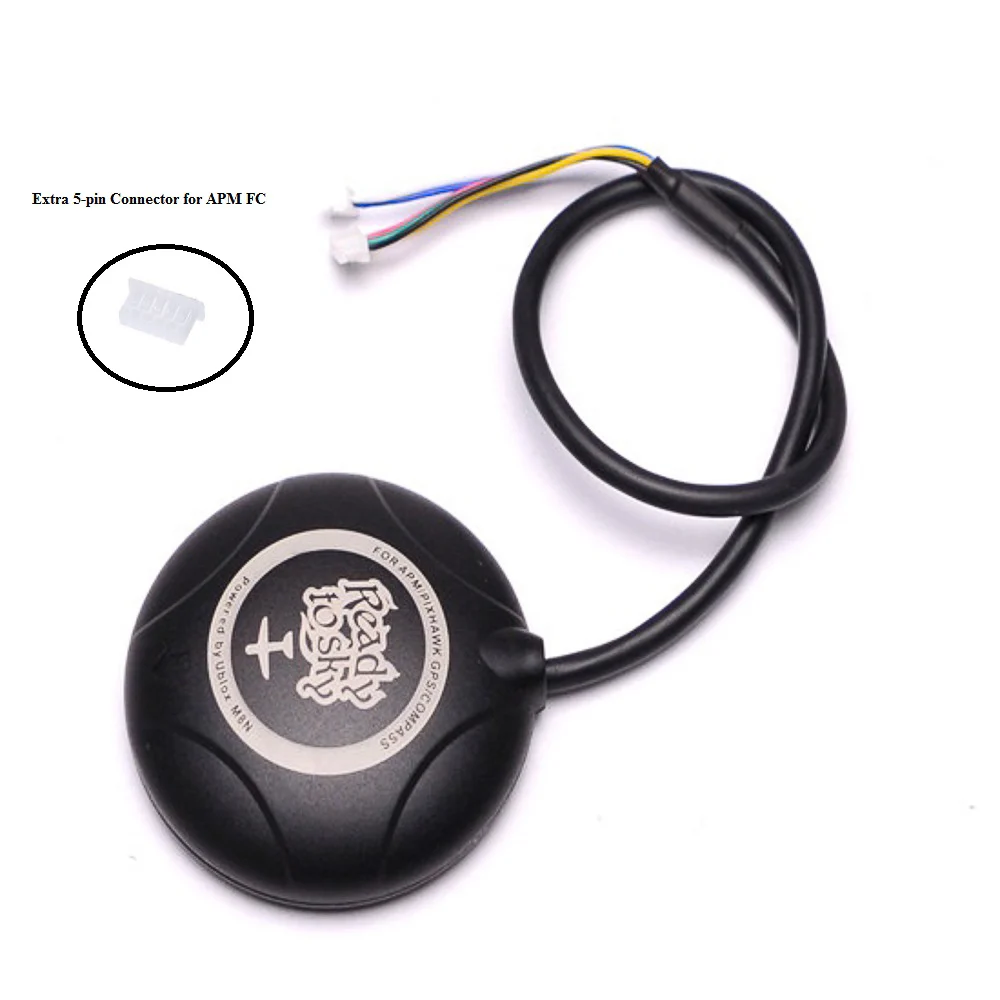

1 x Extra 5-pin Connector for APM FC
NEO-M8N GPS with Compass for Pixhawk with extra connector Overview
The NEO-M8N GPS with Compass for Pixhawk with extra connector is a high-precision GNSS module tailored for Pixhawk and APM flight controllers. It delivers fast satellite acquisition and onboard compass data, providing accurate positioning and heading information for unmanned aerial vehicles and robotics platforms.
Key Features of NEO-M8N GPS with Compass for Pixhawk with extra connector
- 72-channel u-blox M8 engine with support for GPS/QZSS L1 C/A, GLONASS L1OF, BeiDou B1 and Galileo E1B/C
- High positioning accuracy of 0.6–0.9 meters and a navigation update rate up to 18 Hz
- Fast cold start acquisition in approximately 26 seconds and satellite lock in about 10 seconds
- Built-in 3-axis compass with a 10 Hz refresh rate for reliable heading data
- Ready-to-connect 6-pin connector for Pixhawk and extra 5-pin connector provided for APM integration
- Low power consumption and compact form factor ideal for FPV drones and autonomous systems
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Precision positioning and telemetry on FPV racing or long-range drones
- Autonomous waypoint navigation for mapping and surveying UAVs
- Camera gimbal stabilization with accurate heading feedback
- Outdoor robotics and UGVs requiring reliable compass-assisted localization
- Marine and boat guidance systems with multi-GNSS support
How to Use NEO-M8N GPS with Compass for Pixhawk with extra connector
Mount the module away from magnetic interference and connect the 6-pin cable directly to your Pixhawk flight controller. For APM controllers, swap in the included 5-pin connector. Power up the system, configure your flight software to enable GPS and compass inputs, and verify satellite lock and heading calibration before flight or operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is this module directly compatible with Pixhawk and APM controllers?
Yes, the module includes a pre-wired 6-pin connector for Pixhawk and an extra 5-pin connector that can be swapped in to connect to APM flight controllers without soldering.
What update rates does the NEO-M8N support?
The GNSS position can update up to 18 Hz, while the onboard 3-axis compass provides heading data at 10 Hz, ensuring smooth and responsive navigation.
How quickly does the GPS acquire satellites?
In a cold start scenario, the NEO-M8N typically acquires a first fix in around 26 seconds and can lock onto up to six satellites in about 10 seconds under open-sky conditions.
GPS Return to Home: Setup on Betaflight and iNav
Table of Contents Understanding GPS Return to Home Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
Racing vs Freestyle vs Photography Drone: Which to Build
Understanding the different types of FPV drones helps you build the right machine for your flying style. Racing,...
Read More →
X-Class Drone Build: Giant Racing Quad Guide
Table of Contents Understanding X-Class Drone Build Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Brand | Pixhawk |
|---|---|
| Model | NEO-M8N |
| SKU | AI4637 |
| Weight | 0.0455 kg |
| Availability | Out of Stock |
Applications & Use Cases
The NEO-M8N GPS with Compass for Pixhawk with extra connector for APM is a versatile gps modules used across a wide range of applications including drone navigation, asset tracking, fleet management, precision agriculture, and hiking/outdoor gadgets.
Common use cases:
- Adding GPS waypoint navigation to a drone
- Building a vehicle tracker
- Precision positioning for surveying
This product is ideal for drone builders, fleet managers, and outdoor electronics developers.
Technical Tip: Multi-constellation receivers (GPS + GLONASS + BeiDou) provide faster and more accurate fixes. RTK modules offer centimeter-level precision.
