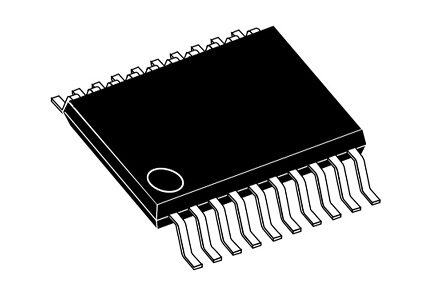

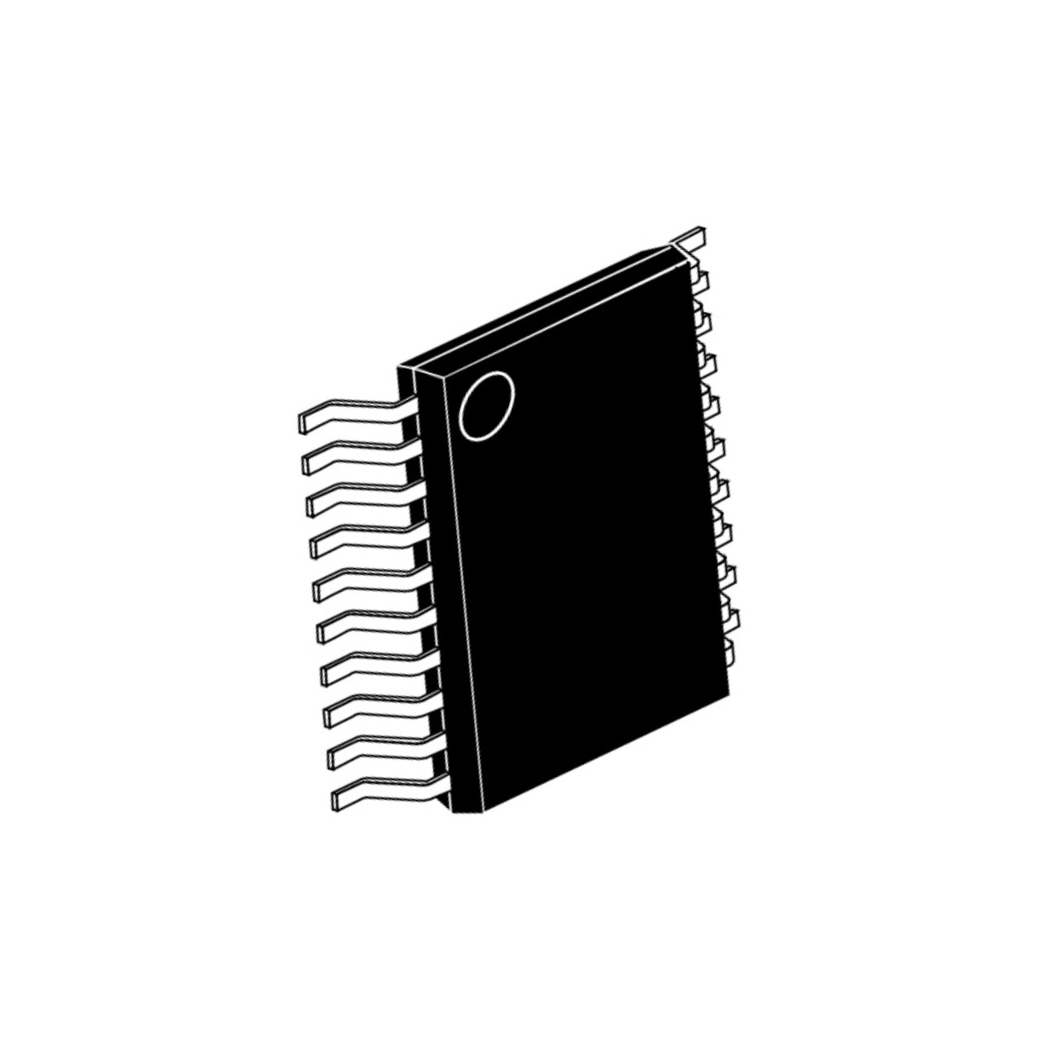

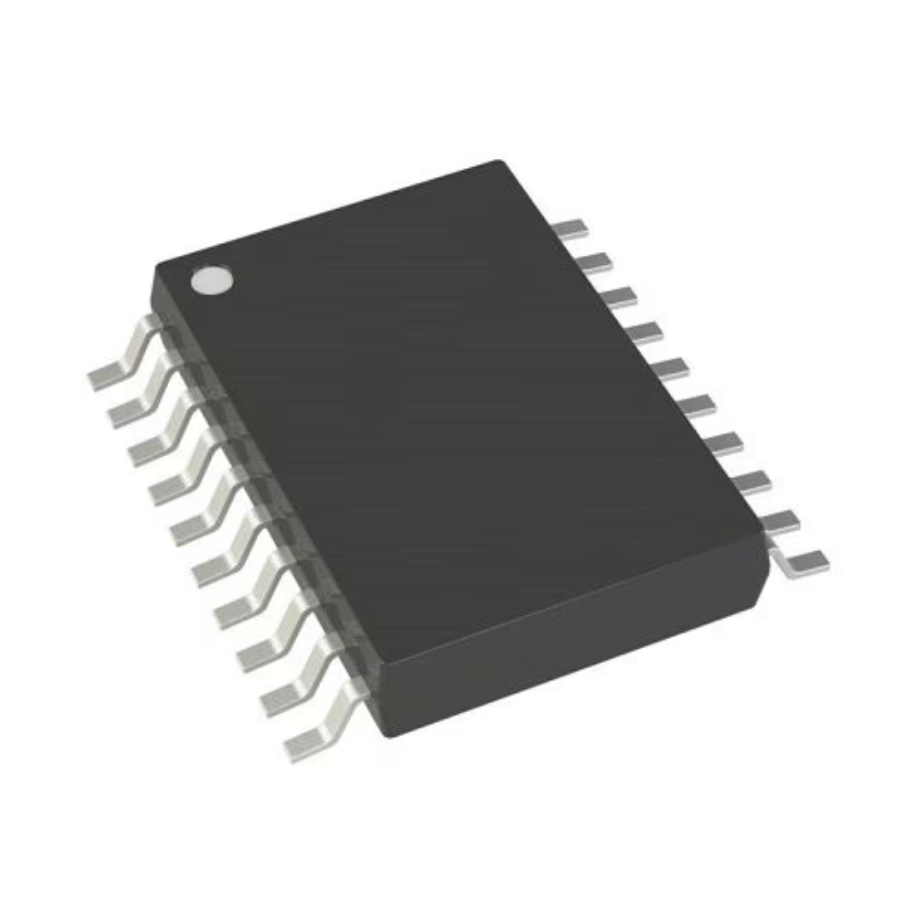

N76E003AT20 – 8bit 8051 Microcontroller 18Kb Flash 1Kb SRAM 16MHz 20Pin TSSOP
The N76E003 is a high-performance, flash-type embedded microcontroller that features an 8-bit architecture. It is part of the 8051 family and employs a 1T (one-transistor) core. The instruction set of this microcontroller is fully compatible with the standard 80C51 and includes integrated performance enhancements.
This microcontroller comes with up to 18K Bytes of main Flash memory, known as APROM, where the user’s code is stored. Moreover, the N76E003 flash offers In-Application-Programming (IAP) capability, allowing for on-chip firmware updates which streamline the maintenance and upgrading of the device’s functions.
- Core
– 1T 8051 processor
– Max frequency up to 16 MHz
– Wide operating voltage: 2.4V to 5.5V
– Temperature range: -40C to 105C - Memory
– 18 KB of Flash memory
– 1 KB of SRAM
– Supports configurable Data Flash - PWM
– Up to 6-ch PWM
– Programmable dead-zone generator - ADC
– 12-bit 8-ch ADC
– Runs up to 500 kSPS - Connectivity
– Two UARTs up to 115200 bps
– One SPI up to 8 MHz
– One I2C up to 400 kHz - Clock Control
– < 2% deviation16 MHz Internal RC oscillator
– 10 kHz Internal RC oscillator
Specification:
Number of Pins-20
Flash Memory Size-18 kB.
Frequency-16 MHz
RAM Size-1 kB
Package Includes:
1 x N76E003AT20 – 8bit 8051 Microcontroller 18Kb Flash 1Kb SRAM 16MHz 20Pin TSSOP
Datasheet:
N76E003AT20 – 8bit 8051 Microcontroller 18Kb Flash 1Kb SRAM Overview
The N76E003AT20 is a high-performance, flash-based 8-bit microcontroller in the 8051 family, packaged in a 20-pin TSSOP. Running up to 16 MHz, it’s designed for compact embedded systems that require fast execution and reliable in-application programming.
Key Features of N76E003AT20 – 8bit 8051 Microcontroller 18Kb Flash 1Kb SRAM
- 18 Kb of main Flash memory (APROM) with In-Application-Programming (IAP) support
- 1 Kb internal SRAM for data storage and stack operations
- Fully compatible 8051 instruction set with 1T core for faster instruction execution
- Up to 16 MHz operating frequency for responsive real-time control
- Compact 20-pin TSSOP package for space-constrained layouts
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Sensor data acquisition and simple signal processing
- Small motor control and PWM generation in consumer devices
- Educational kits and 8051 learning platforms
- Custom automation tasks in home or industrial gadgets
- Prototype development for embedded product proof-of-concept
- Firmware experiments requiring reliable in-system updates
How to Use N76E003AT20 – 8bit 8051 Microcontroller 18Kb Flash 1Kb SRAM
Begin by soldering the 20-pin TSSOP package onto your PCB or breakout board, then connect power and ground rails. Use a compatible ISP programmer or Nuvoton’s official tool to load your 8051 code into the APROM via IAP. Develop and compile firmware with an 8051-aware IDE (such as Keil uVision or SDCC), then verify operation by toggling I/O pins or running your control routines at the configured 16 MHz clock.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I program the N76E003AT20?
Use a compatible ISP programmer or Nuvoton’s ISP utility to perform In-Application-Programming over the dedicated programming pins. Connect VCC, GND, and the ISP signals, then upload your compiled 8051 firmware.
Can I use standard 8051 development tools?
Yes, the N76E003 core is fully compatible with the standard 80C51 instruction set. You can develop code in Keil uVision, SDCC or other 8051-aware IDEs and toolchains.
What package and pin count does this microcontroller have?
The device comes in a space-saving 20-pin TSSOP package, ideal for compact circuit layouts while still offering multiple I/O lines and power pins.
Technical Specifications
| Model | N76E003AT20 |
|---|---|
| Pin Count | 20-pin |
| Frequency | 16MHz |
| SKU | AI1150 |
| Weight | 0.002 kg |
| Availability | Out of Stock |
