The MT8870 is a device that can receive and decode DTMF signals. It has two parts: a filter section and a decoder section. The filter section uses a method called switched capacitor to separate the high and low frequency groups of the DTMF tones. The decoder section uses a method called digital counting to identify and convert all 16 DTMF combinations into a 4-bit code.

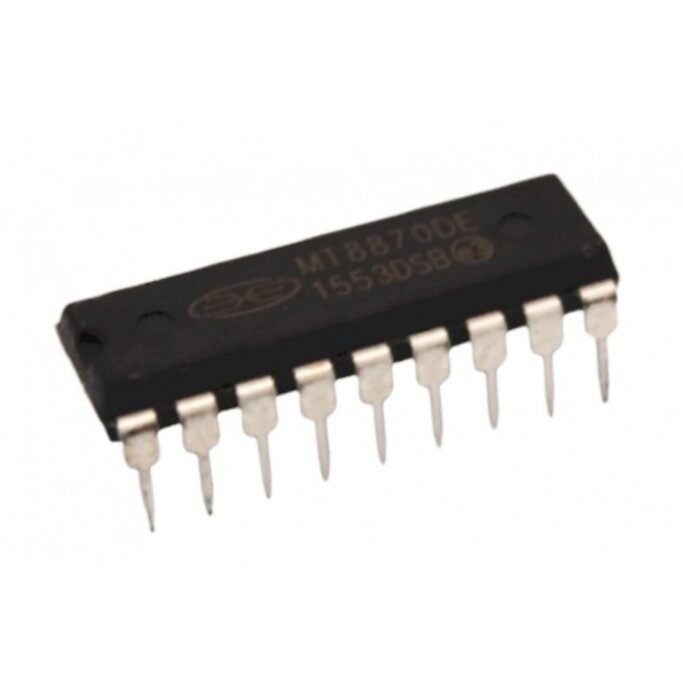

The MT8870 IC is a dedicated dual‐section DTMF receiver and decoder designed to detect touch‐tone dialling signals and convert them into digital output codes. Ideal for telecom interfaces and remote control systems, it processes both high and low frequency tone groups and delivers a 4‐bit binary representation for each of the 16 standard DTMF keys.
Key Features of MT8870 IC – DTMF Decoder IC
Complete on‐chip DTMF receiver and decoder for reliable tone detection
Low power consumption suitable for battery‐powered and portable designs
Built‐in gain setting amplifier with adjustable sensitivity
Configurable guard time for noise immunity and false‐tone rejection
Power‐down and inhibit modes to minimise current draw when idle
Backward compatible with MT8870C/MT8870C‐1 versions
Fast shipping from Zbotic across India
Applications and Use Cases
Telephone dial‐up interfaces for PBX and landline adaptors
Remote control systems using DTMF tone signalling
Security and alarm systems triggered via touch‐tone codes
Interactive voice response (IVR) and automated menu navigation
Home automation modules controlled over telephone lines
DTMF‐based data entry and telemetry systems
How to Use MT8870 IC – DTMF Decoder IC
To integrate the MT8870 IC, provide a regulated 5V–7V supply, route the audio input containing DTMF tones into the signal input pin, and configure the gain and guard time via external resistors. Once powered, the IC filters and decodes incoming tones, presenting a stable 4‐bit binary output on the data pins. Use the enable/inhibit pin to control decoding and the power‐down pin to reduce standby current.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What supply voltage does the MT8870 IC require?
The MT8870 IC operates from a single 5V to 7V DC supply, with 5V being the typical recommended voltage for optimal performance.
How do I adjust the guard time on this decoder?
You can set the guard time by selecting the appropriate resistor value between the guard time pin and ground, allowing you to fine‐tune tone recognition and noise immunity.
Can I power down the MT8870 to save energy?
Yes. The IC features a dedicated power‐down mode pin; pulling it low disables internal circuits and reduces current consumption to microampere levels.
The MT8870 IC - DTMF Decoder IC is a versatile bluetooth, wifi and trans-receiver ics used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
