This is the 12V variant of the MINI560 DC-DC 12V 5A, Step-Down Stabilized, voltage source module in Buck Converter. Available at ₹93.22 (₹79.00 + GST) with free shipping across India.
MINI560 DC-DC 12V 5A, Step-Down Stabilized, voltage source module

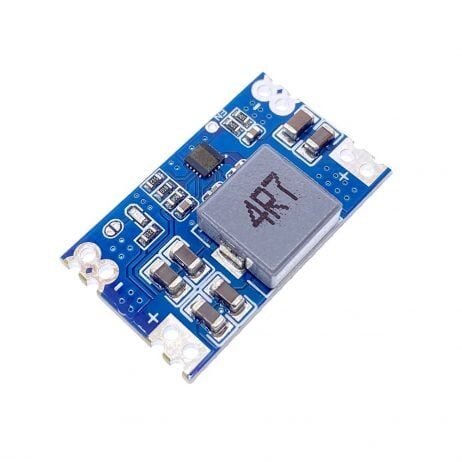

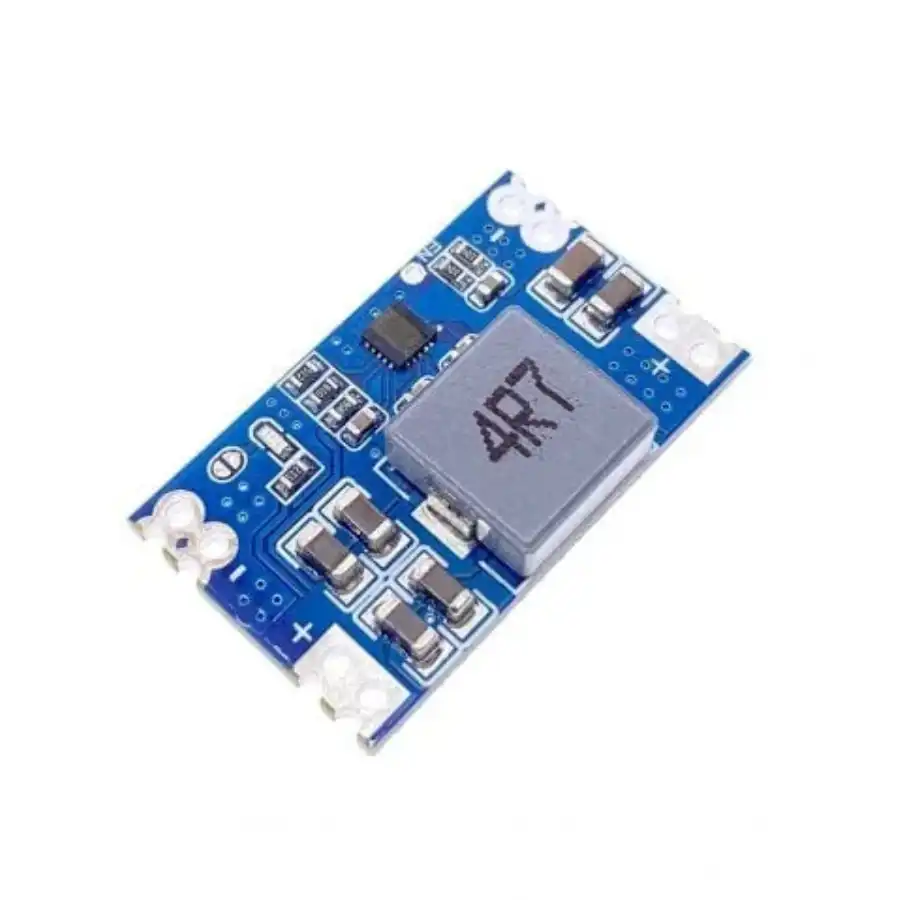

The MINI 560 DC Step-Down Converter Power Module features an integrally molded power inductor and synchronous rectifier control chip, resulting in a smaller and more efficient design. This versatile module serves a wide range of applications, including DIY mobile power, monitor power supply, power for buggies and cameras, as well as in cars and communication equipment.
Its compact size and lightweight construction make it suitable for demanding applications, such as aviation models and more. Whether for hobbyist projects or professional applications, this power module offers reliable performance and efficient power conversion.
Features:
- Made of high-quality materials, good quality and long use time.
- Good stability, easy to use, can effectively reduce pressure.
- Different specifications meet different usage needs.
Specification:
- Model: MINI560
- Type: Power Module
- Power supply current: 5A
- Power supply voltage: 12V
- colour: as shown
- Material: PCB
- Size: 2.9×1.8×0.54cm
Package Includes:
1 x MINI560 DC 12V 5A, Step-Down Stabilized Module
MINI560 DC-DC 12V 5A, Step-Down Stabilized, voltage source Overview
The MINI560 DC-DC 12V 5A Step-Down Stabilized voltage source module is a compact power converter designed to deliver a steady 12 V output at up to 5 A. It integrates a molded power inductor and synchronous rectifier control chip for high efficiency in a small PCB form factor, making it ideal for space-constrained electronics projects.
Key Features of MINI560 DC-DC 12V 5A, Step-Down Stabilized, voltage source
- Stable 12 V output at up to 5 A continuous current
- Integrated power inductor and synchronous rectifier for high conversion efficiency
- Compact PCB size (2.9 × 1.8 × 0.54 cm) and lightweight design
- Durable construction with high-quality PCB material for long service life
- Ideal for automotive, communication, and portable power supplies
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Powering 12 V CCTV cameras, LED strips, and monitor displays
- Onboard electronics in buggies, drones, and RC models
- Stabilized supply for car dashcams, radios, and communication gear
- Portable power packs and DIY mobile charging stations
- Embedded systems and small robotics requiring 12 V rail
How to Use MINI560 DC-DC 12V 5A, Step-Down Stabilized, voltage source

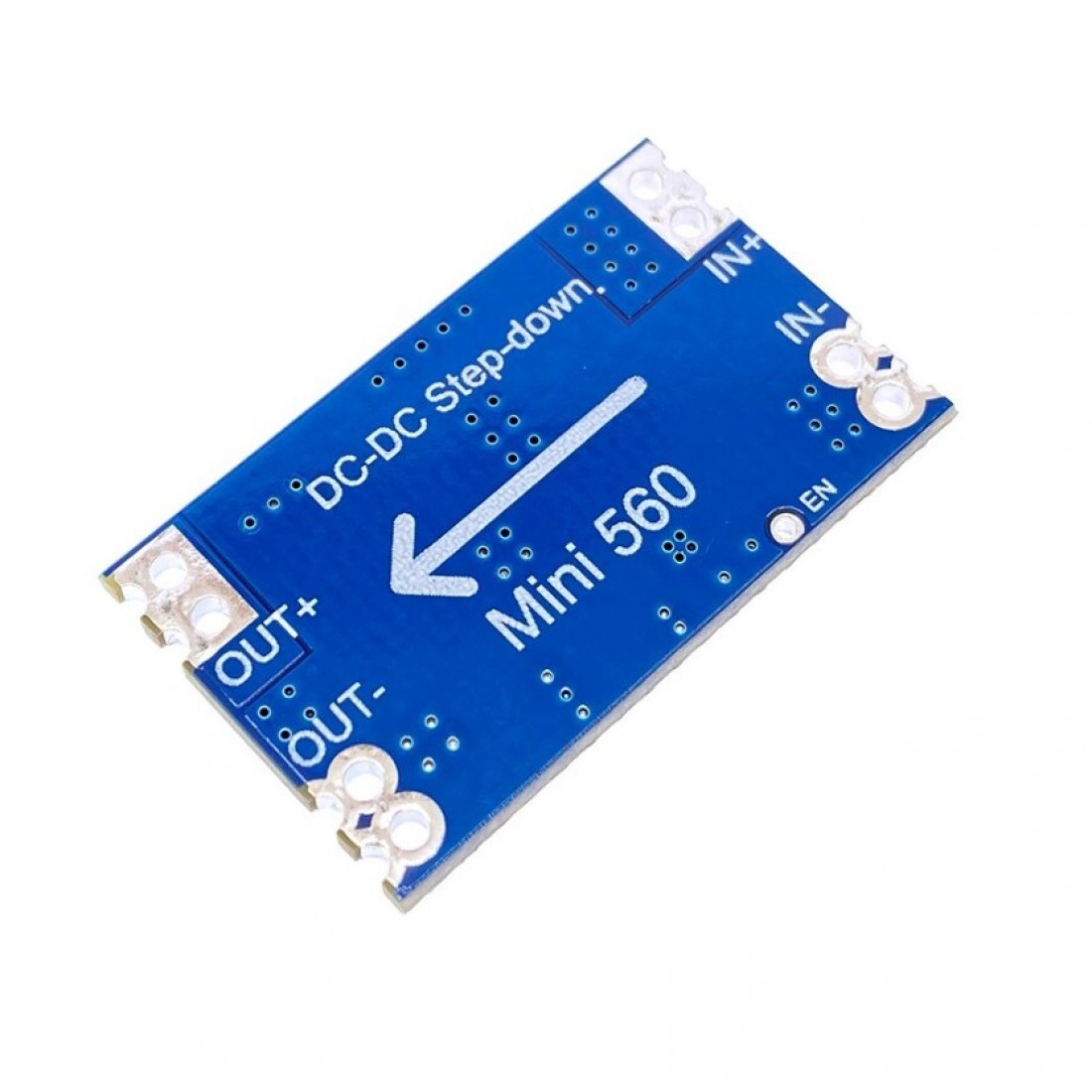

Connect a suitable DC input (above 12 V) to the module’s input pads, observing correct polarity. Secure the module on a non-conductive surface or heat-dissipating plate, then attach your 12 V load to the output pads. Ensure proper wiring and adequate airflow for reliable 5 A operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the output voltage adjustable?
The MINI560 module provides a fixed 12 V output and does not include an onboard adjustment potentiometer. It’s optimized for reliable, stabilized 12 V delivery up to 5 A.
Can I install the module in an automotive environment?
Yes, the MINI560 can be powered from a standard 12 V car battery or vehicle electrical system. Ensure the input stays within the module’s voltage tolerance and maintain secure connections to handle automotive vibrations.
Do I need a heatsink when running at full load?
At currents approaching 5 A, the module will generate heat. For continuous high-current use, mount it on a metal plate or attach a small heatsink and ensure good airflow to maintain optimal performance.
Technical Specifications
| Model | MINI560 |
|---|---|
| Operating Voltage | 12V |
| Current Rating | 5A |
| SKU | AI2537 |
| Weight | 0.00715 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MINI560 DC-DC 12V 5A, Step-Down Stabilized, voltage source module is a versatile buck converter used across a wide range of applications including voltage step-down for electronics, battery-powered projects, LED driver circuits, microcontroller power supply, and solar power regulation.
Common use cases:
- Converting 12V car battery to 5V for USB devices
- Powering a Raspberry Pi from a drone battery
- Regulating solar panel output for charging
This product is ideal for electronics hobbyists, IoT developers, and power supply designers.
Technical Tip: Buck converters are more efficient than linear regulators (LM7805). Choose one rated for at least 1.5x your required current. Ensure input voltage is at least 2V above output.
