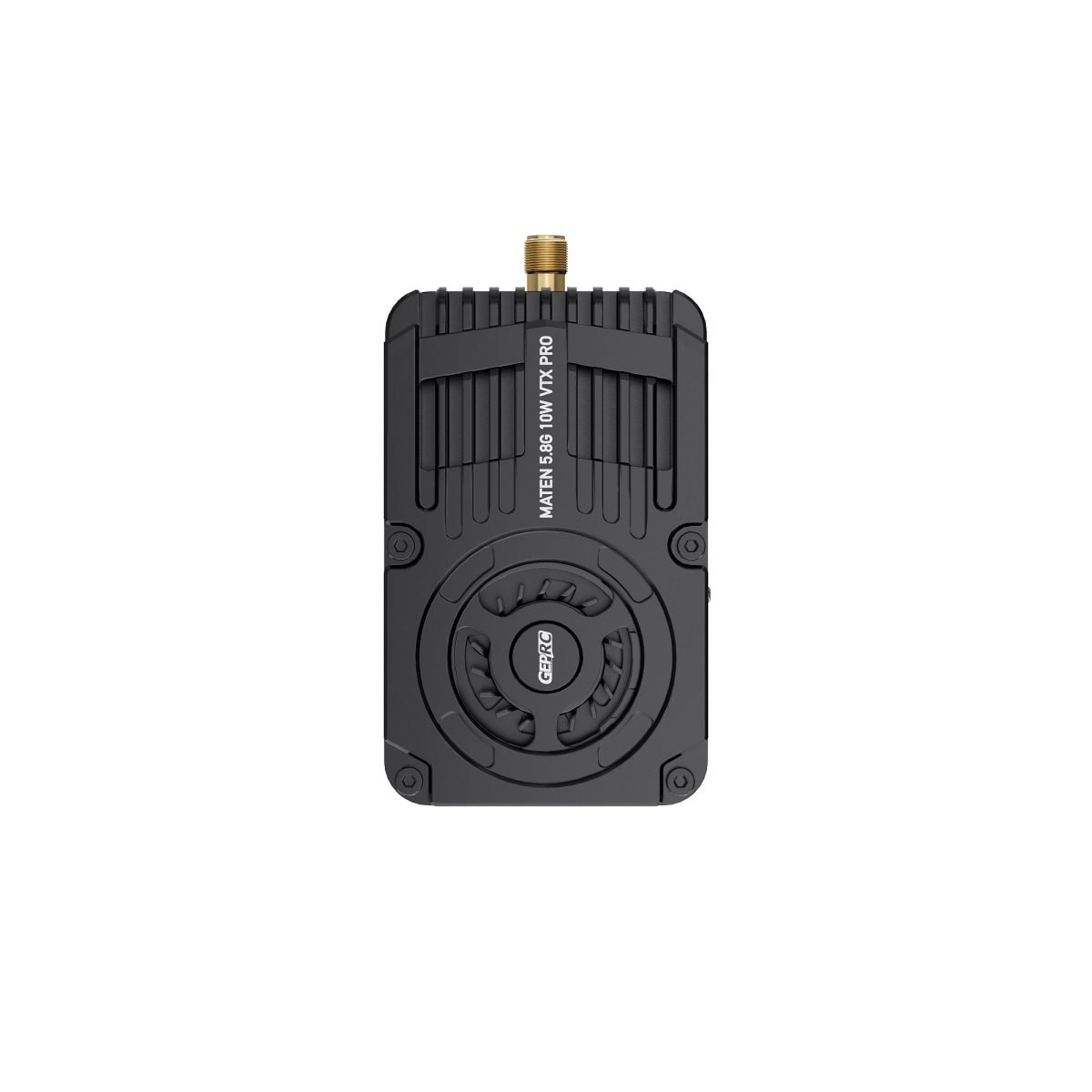

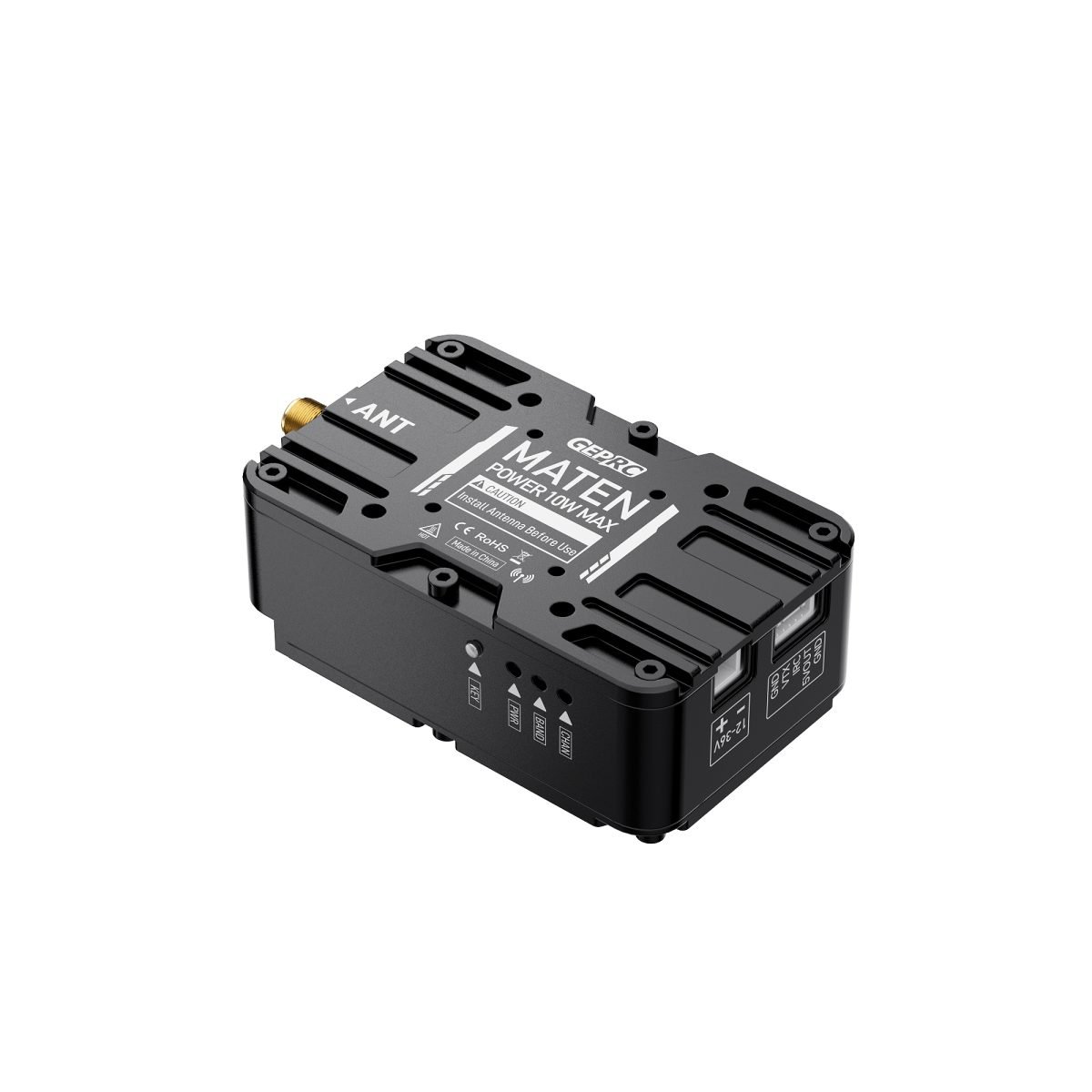

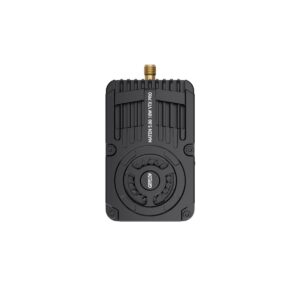

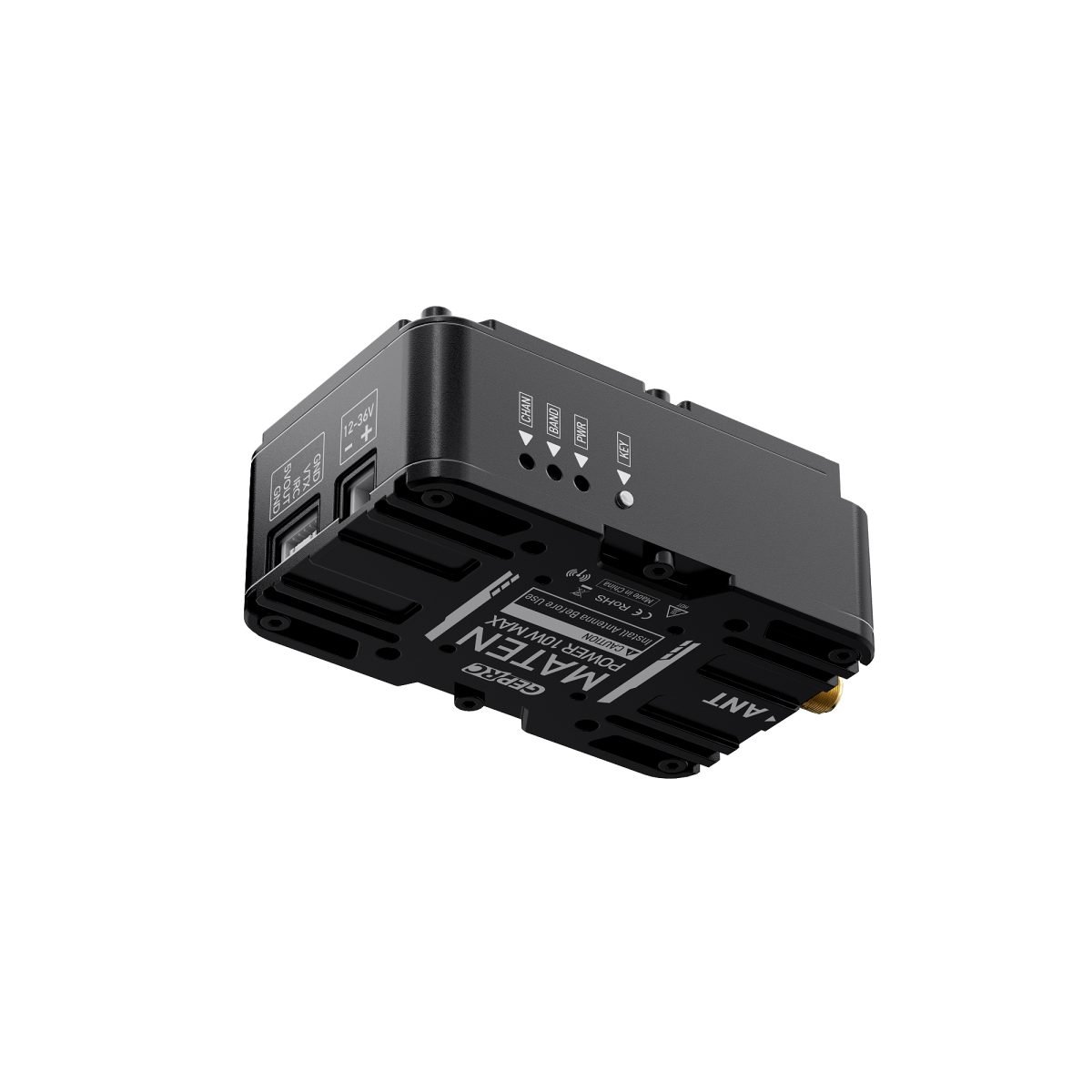

GEPRC MATEN 5.8G 10W VTX PRO

GEPRC MATEN 5.8G 10W VTX PRO

Description:

Feature:

• Four adjustable power levels, up to 10W, ideal for long-range flights.
• The high-strength CNC aluminum alloy shell aids in heat dissipation.

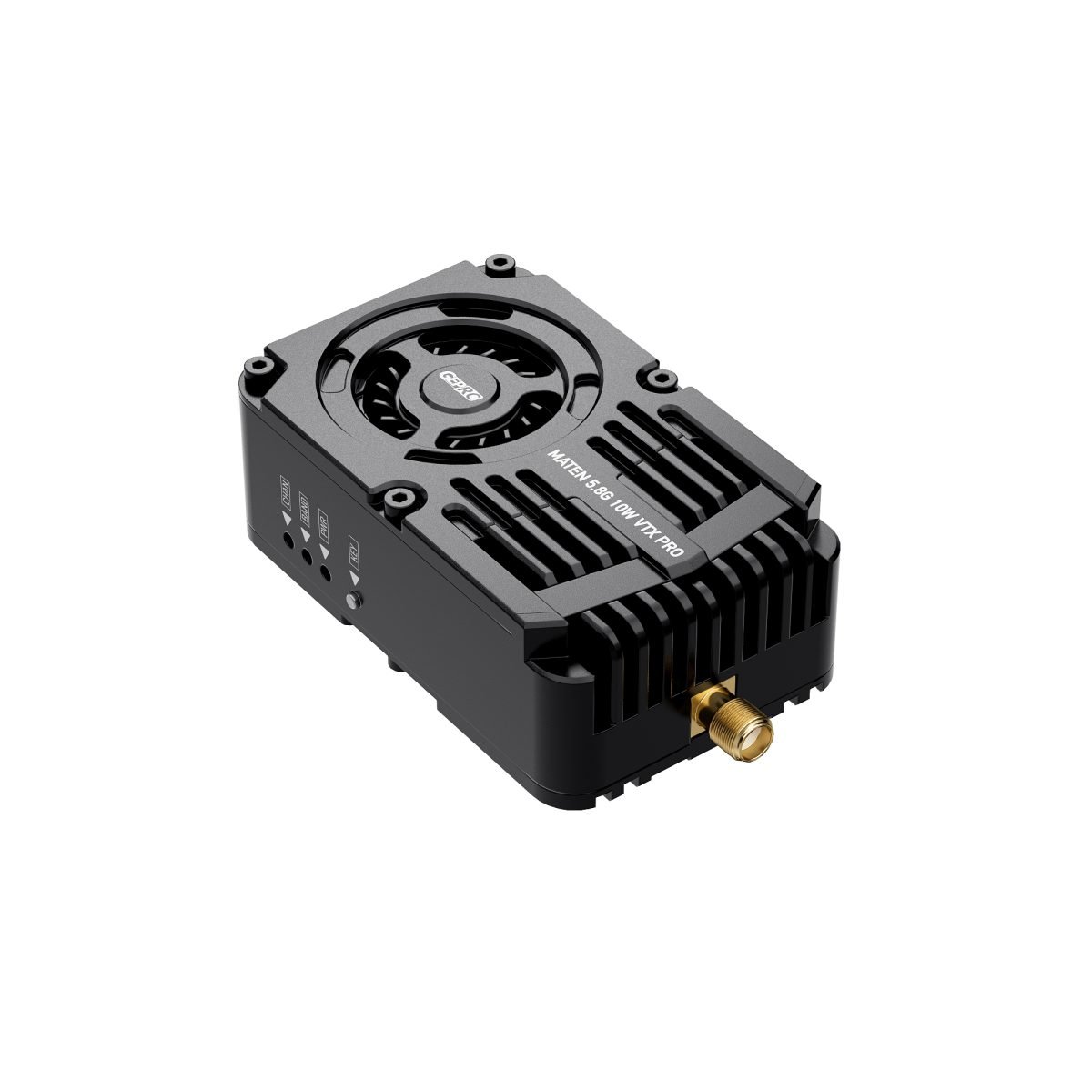

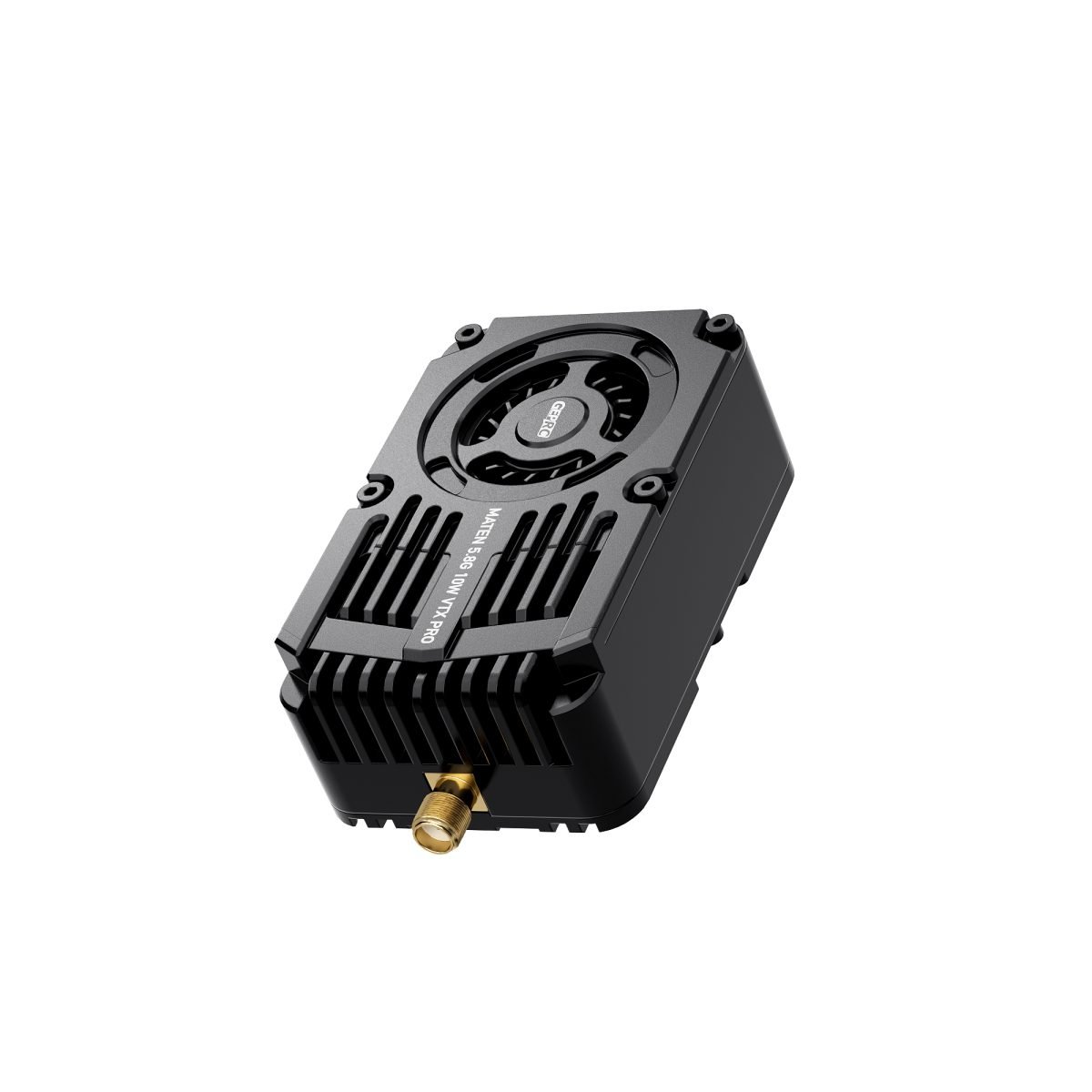

• The built-in micro turbofan actively dissipates heat.
• Wide voltage input range, supporting 12V-36V.

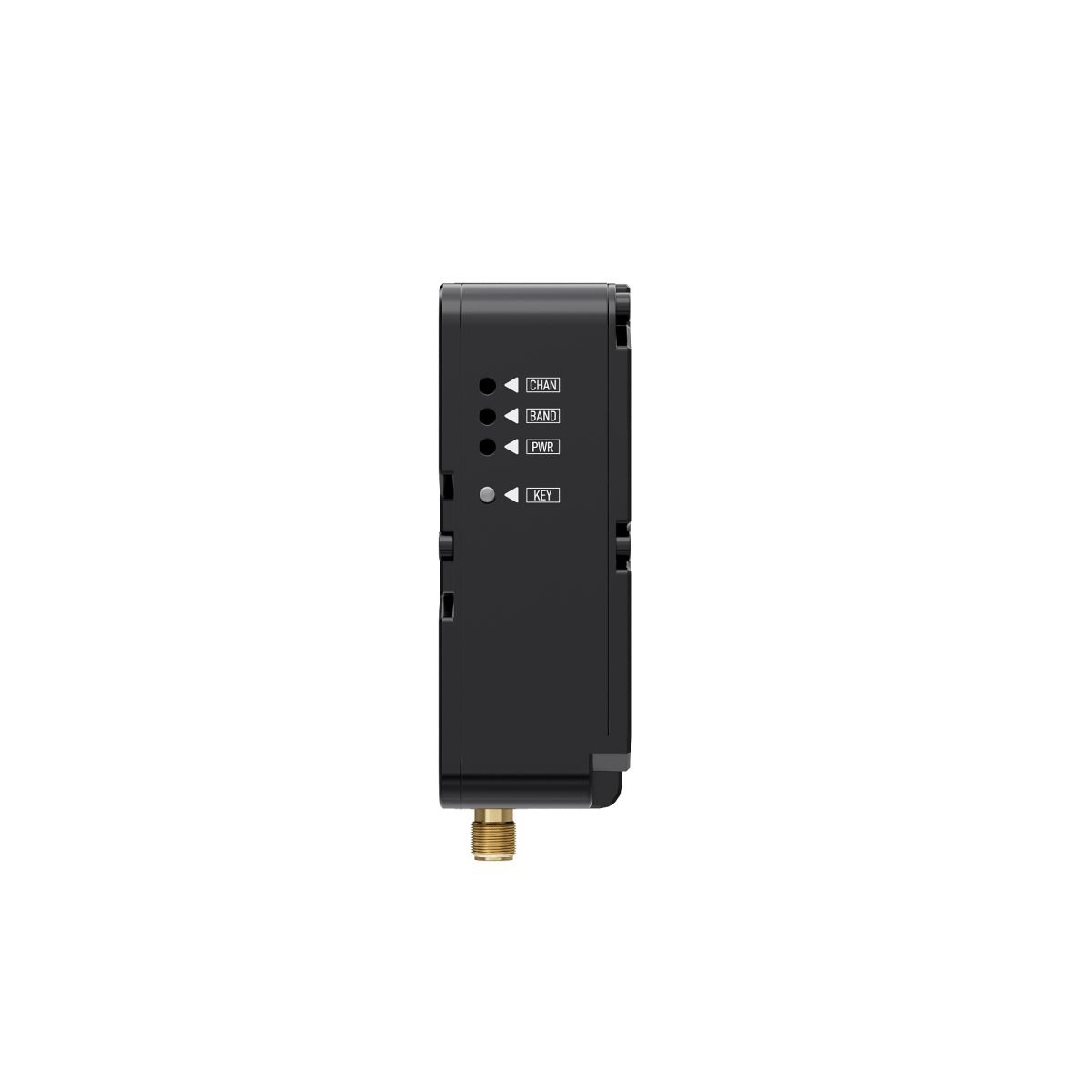

• One function adjustment button and three indicator lights for easy operation.
• Supports the IRC Tramp VTX control protocol for OSD parameter adjustment.
• Temperature protection function prevents overheating.
• Supports 104 transmission channels.
• Supports enter frequency directly in the configurator.
• Compatible with 20x20mm (M2) and 30.5×30.5mm(M3) mounting hole sizes.

Specifications :

• Model: GEPRC MATEN 5.8G 10W VTX PRO
• Dimension: 78.5×43.6×25.3mm
• Mounting Hole Size:20x20mm(M2),30.5×30.5mm(M3)
• Output Power: 25mW/2.5W/5W/10W/Pit mode
• Frequency：4884-6184MHz
• Channels: 104CH
• Enter Frequency Directly: Support
• Protocol: IRC Tramp
• Input Voltage: DC12-36V（3-8S Battery）
• Peak Operating Current：3.5A
• Output Voltage: 5V@600mA
• Antenna Connector: SMA
• Cable Connector:PH2.0 2pin,GH1.25 5pin
• Weight: 110g（VTX only）

Notes :

• Installing antenna before use.
• Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
• The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.

Package Includes :

1 x MATEN 5.8G 10W VTX PRO

1 x Power cable(PH1.25 2pin 150mm)

1 x FC cable(GH1.25 5pin 150mm)

6 x M2*5 screw

6 x M3*5 screw

1 x Manual
