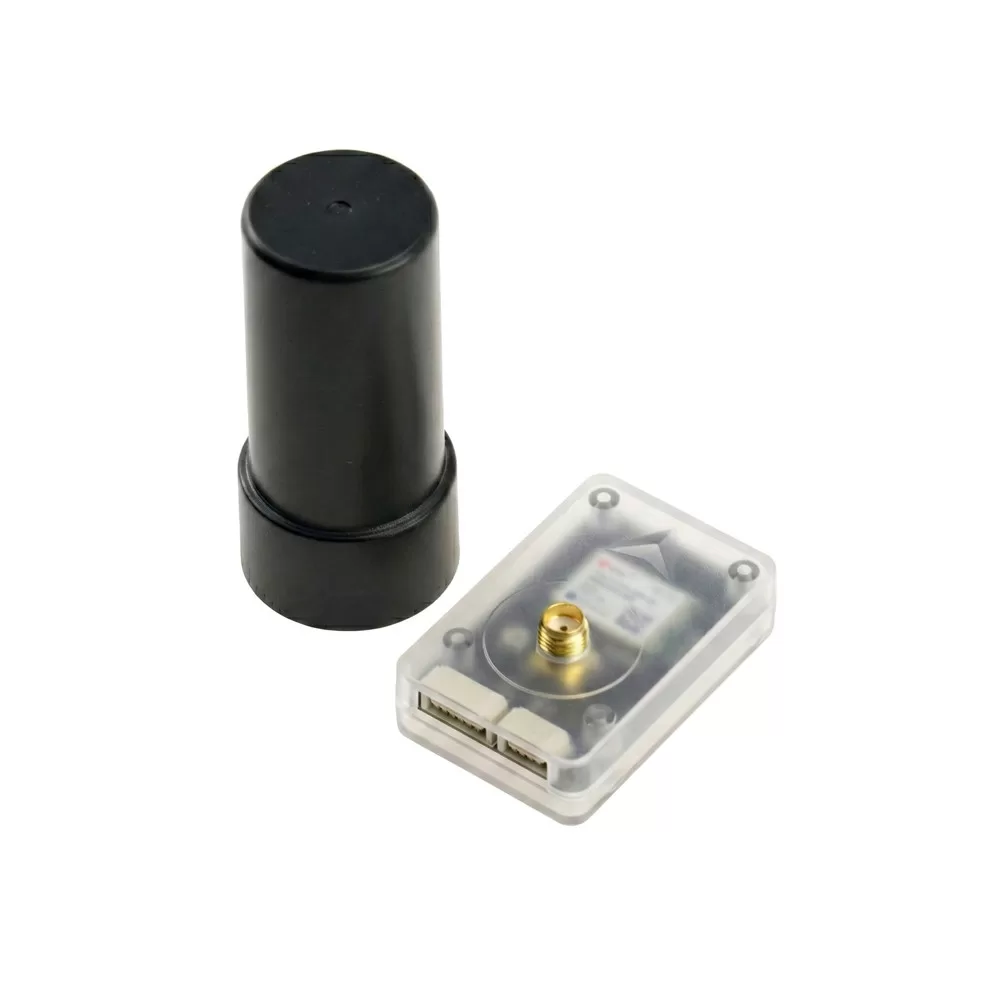

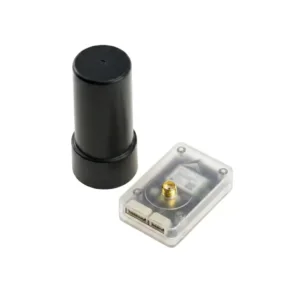

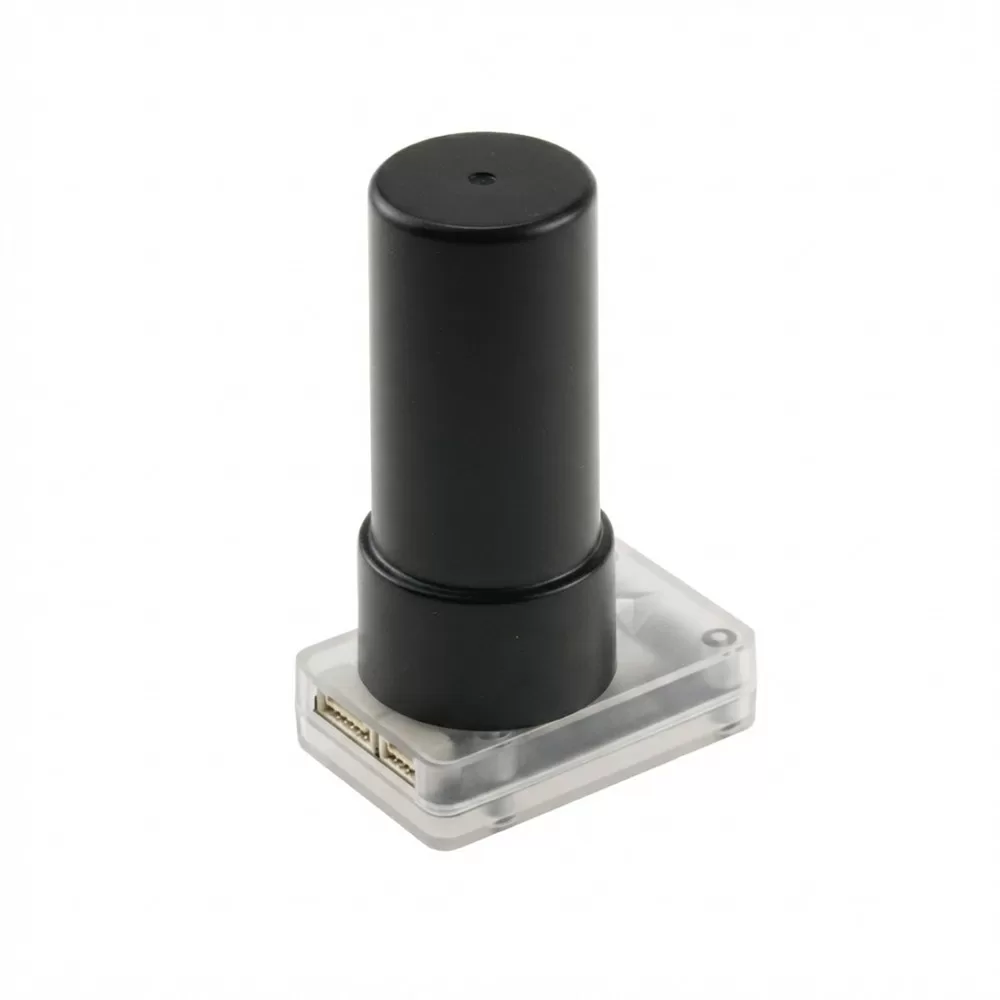

MicoAir MG-F10-C UAV GNSS GPS Module with Compass
Description :
The MicoAir MG-F10-C is a GNSS positioning module designed for UAV and drone navigation. It combines satellite-based positioning with an integrated compass to provide location and heading information to compatible flight controllers. It is suitable for autonomous flight, waypoint navigation, aerial mapping, and other UAV applications.
Features :
-
GNSS Positioning: Provides satellite-based location information for UAV navigation.
-
Integrated Compass: Supplies heading information to support directional awareness.
-
Autonomous Navigation: Suitable for waypoint missions and automated flight.
-
Flight Controller Integration: Designed for use with compatible UAV flight control systems.
-
UAV Applications: Suitable for multirotor drones, mapping, and aerial surveying.
-
Compact Design: Intended for integration into drone navigation systems.

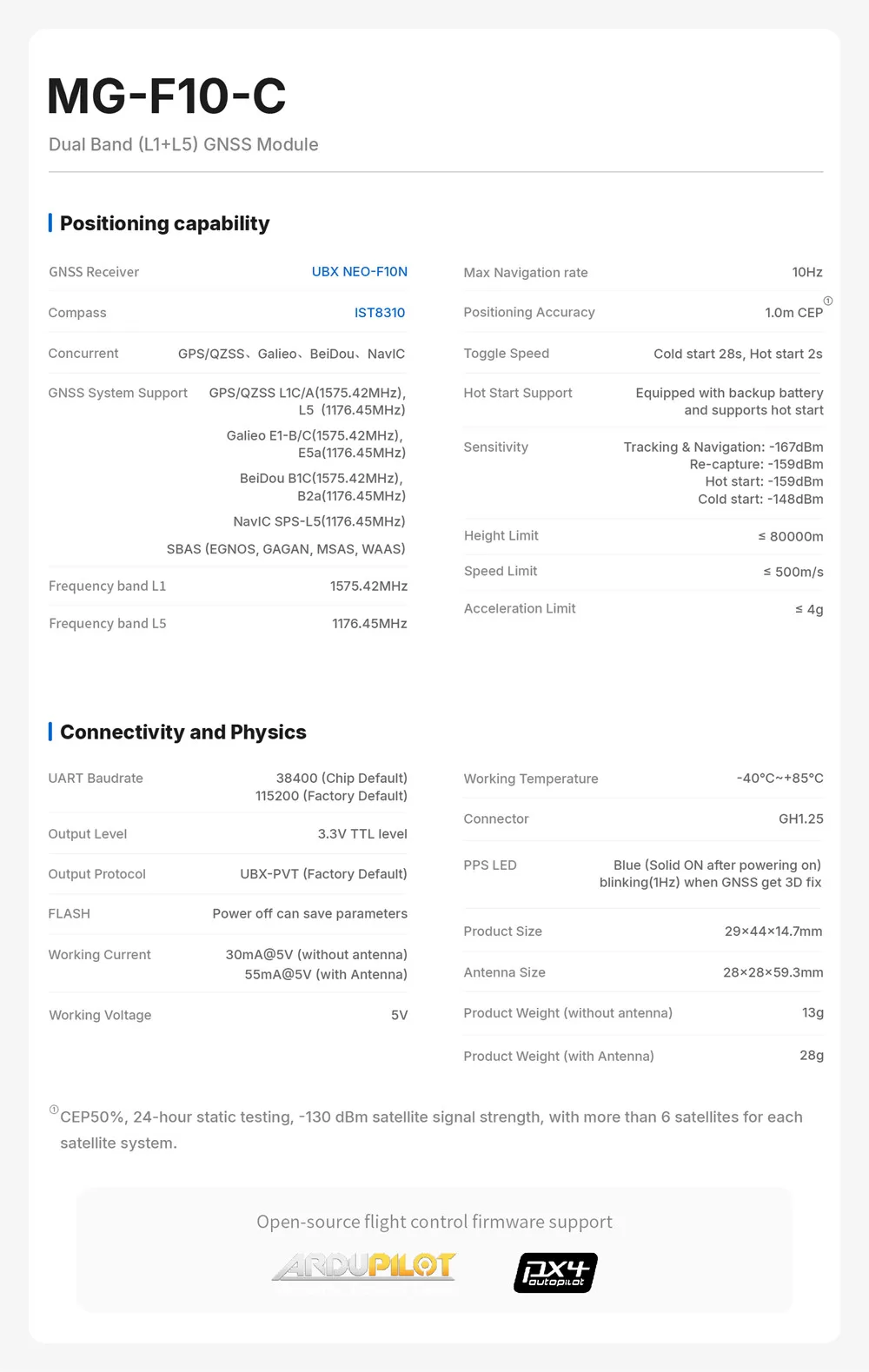

Technical Specifications :
| Specification | Details |
|---|---|
| Brand | MicoAir |
| Model | MG-F10-C |
| Product Type | Dual-Band GNSS GPS Module with Compass |
| GNSS Receiver | u-blox NEO-F10N |
| Compass Sensor | IST8310 |
| GNSS Frequency Bands | L1: 1575.42 MHz, L5: 1176.45 MHz |
| Supported Satellite Systems | GPS, QZSS, Galileo, BeiDou, NavIC |
| Simultaneous GNSS Systems | Up to 4 |
| Maximum Navigation Update Rate | 10 Hz |
| GPS Interface | UART (3.3V LVTTL) |
| Compass Interface | I²C |
| Input Voltage | 5 V |
| Operating Current | 30 mA without antenna; 55 mA with antenna |
| Default Baud Rate | 115200 bps (factory default) |
| Output Protocol | UBX-PVT (factory default) |
| Antenna Type | Quad-Helix Antenna |
| Antenna LNA Gain | 38 dB |
| Antenna Connector | SMA |
| Module Dimensions | 29 × 44 × 14.7 mm |
| Antenna Dimensions | 28 × 28 × 59.3 mm |
| Weight | Approximately 28 g with antenna |
| Compatible Firmware | ArduPilot 4.4.0 or later; PX4 1.14.0 or later |
Features :
-
Dual-band L1+L5 GNSS positioning for improved positioning performance.
-
Integrated IST8310 compass for heading information.
-
High-gain quad-helix antenna for satellite signal reception.
-
Supports four GNSS constellations simultaneously, including NavIC.
-
Up to 10 Hz navigation updates.

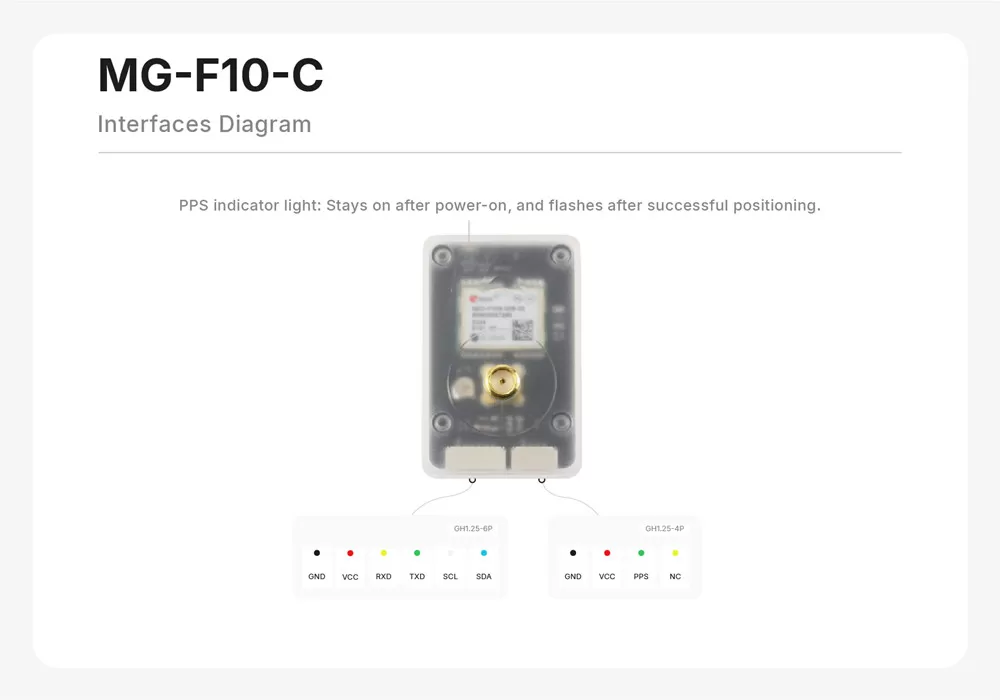

- PPS status indication for satellite-fix monitoring.
Package Include:
1x MicoAir MG-F10-C UAV GNSS GPS Module with Compass
