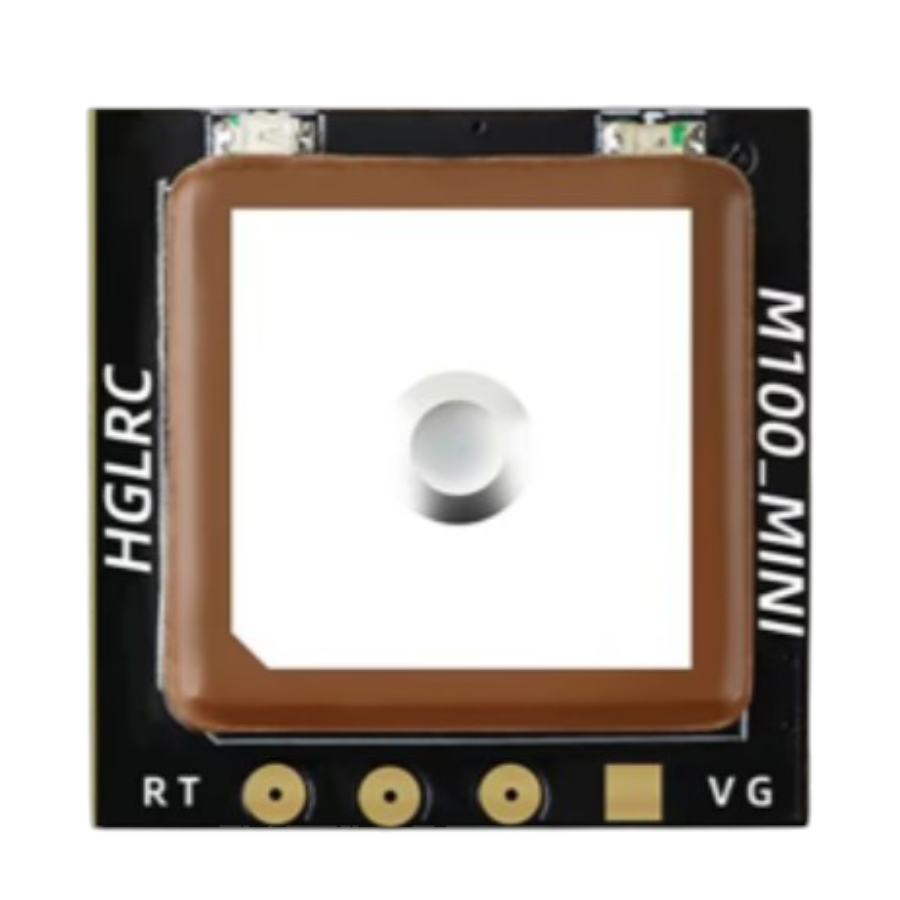

HGLRC M100 MINI GPS
Description:
Using the new 10th-generation UBLOX chip design, the HGLRC M100 GPS positioning is fast and accurate. The small 15x15mm size can be loaded on 2-7 inch drones. The ceramic antenna and externally expanded PCB design allow M100 MINI GPS to receive satellite signals effectively. At the same time, it supports receiving GPS, Galileo, and BDS three satellite signals, allowing you to locate in any area quickly. For the convenience of everyone, we have designed onboard LED indicators, including power indicators and positioning PPS indicators, so that you can know the working status of GPS well.
Features:
- Using the new 10th generation chip design, fast and accurate positioning.。
- Small size, compatible with 2-7 inch traversal Drone on the market
- Selected ceramic antenna and externally expanded PCB design to effectively receive satellite signals
- Support GPS, Galileo, BDS three-mode positioning, fast positioning in any area

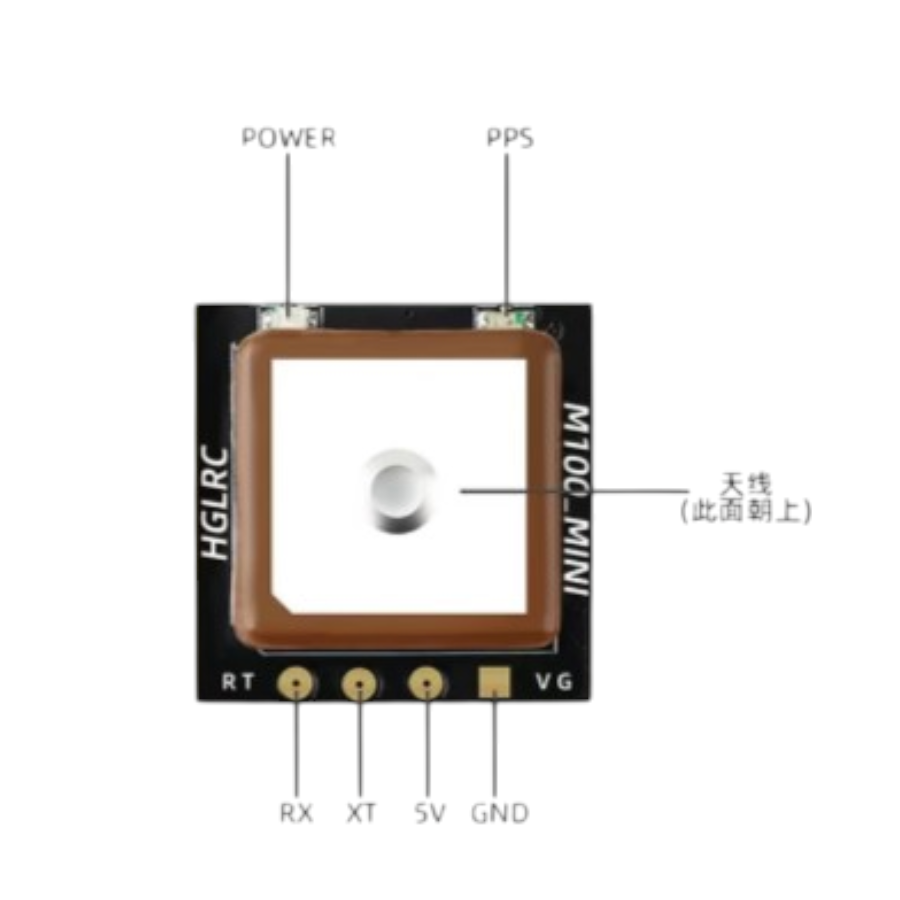

- Onboard POWER and PPS indicator lights, the working status is clear at a glance
- Compatible power supply, support 3.3V-5V DC power input
Specifications:
- Chip: M10(10th Generation Chip)
- Antenna: Ceramic Antenna
- Frequency: GPS L1，GLONASS L1，BDS B1，GALILEO E1，SBAS L1，OZSS L1
- Receive Channel: 72ch
- Baud Rate: 115200bps
- Output Frequency: 10Hz
- Input: 3.3V-5V
- Size: 15x15x5.2mm
- Weight: 2.6g
- Speed Accuracy: 0.05m/s
- Horizontal positioning accuracy: 2D ACC2.0m(Outdoor)
- Receiver Sensitivity: Trace -166dBm
- Capture -160dBm
- Characteristics: High:50000m，
- Speed: 500m/s，
- acceleration 4G
- Operating temperature: -40°C – +85°C
- Storage temperature: -40°C – +105°C
Package Includes:

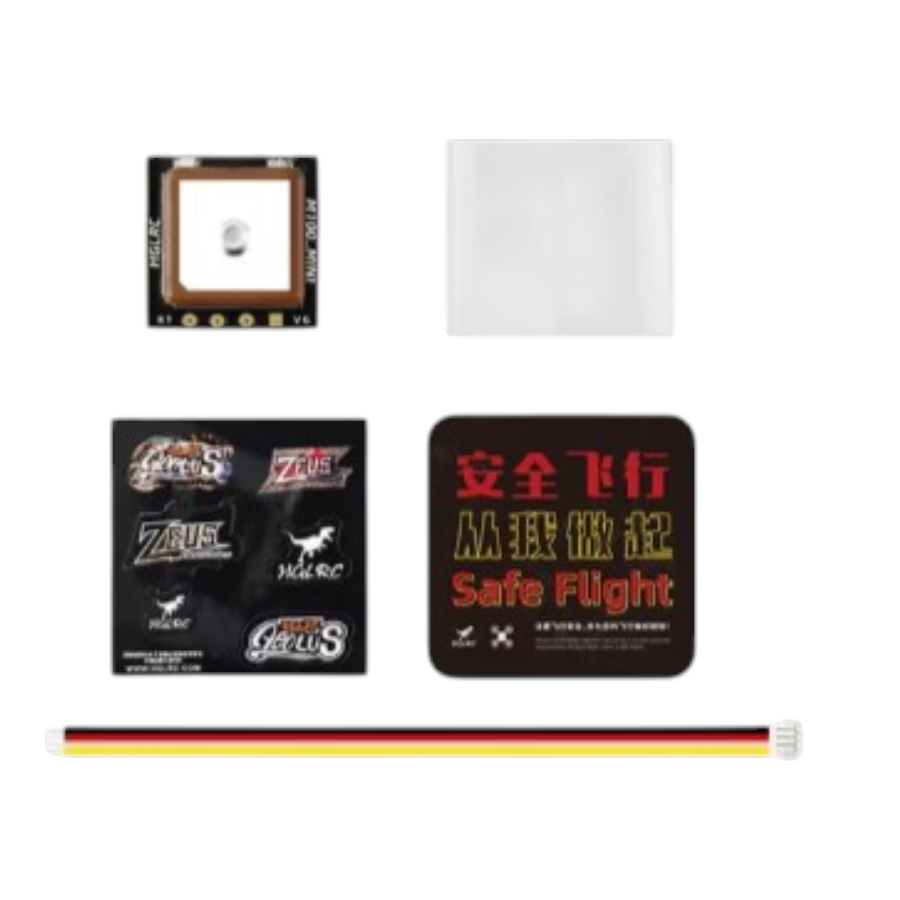

1 x HGLRC M100_MINI GPS 1 x Heat Shrink Tube (Φ12mm x 20mm) 1 x HGLRC sticker 1 x HGLRC Manual 1 x SH1.0-4Pin Cable
Drone Telemetry Setup: SiK Radio vs FrSky vs ExpressLRS Compared
Drone telemetry is your eyes on the aircraft when it is in the air. Without it, you are...
Read More →
DigiSky Drone Registration Walkthrough: Step-by-Step India
Every drone owner in India must complete DigiSky registration before flying. The DGCA's DigiSky platform is the official...
Read More →
Long-Range FPV: ExpressLRS Setup Guide India
Setting up ExpressLRS for long-range FPV in India gives you a high-performance, open-source radio link that outperforms proprietary...
Read More →Technical Specifications
| Brand | HGLRC |
|---|---|
| SKU | AI8236 |
| Weight | 0.015 kg |
| Availability | Out of Stock |
Applications & Use Cases
The HGLRC M100 MINI GPS is a versatile gps modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine HGLRC product sourced from authorized channels
