Description:

The LR900-F/P Telemetry Radio is a small, cheap radio with superior performance for flight controller. And it is very suitable for Pixhawk or other Audupilot/PX4 flight controller. It will connect automatically when power up without any configuration unless you need to implement some special features.

The LR900-F/P works in the 915MHz, so is better to use 2.4GHz receiver than 915MHz receiver (BlackSheep/ELRS 915) on your drones.

Features

• Works in 915MHz (890-915MHz)
• Small size and light weight (8g)
• Transmit power up to 500mW(LR900-F) / 1000mW (LR900-P)
• Base on LoRa modulation technology to obtain excellent anti-interference performance
• Frequency hopping spread spectrum (FHSS)
• Using transparent transmission to compatible with any data and protocol not just mavlink
• CP2102 USB to UART IC, compatible with QGroundControl on Android

Data Transmission

• Transmission Rate: 2.1K Byte/s (default); 1.1K Byte/s; 0.4K Byte/s; 3.2K Byte/s(down) 1.6K Byte/s(up) in FHSS mode
• Maximum Single-package Length: 20K Byte
• Uart Baudrate for JST-GH Interface: 9600; 19200; 38400; 57600 (default); 115200
• Uart Baudrate for USB Interface: 57600 (default); 115200

Physical

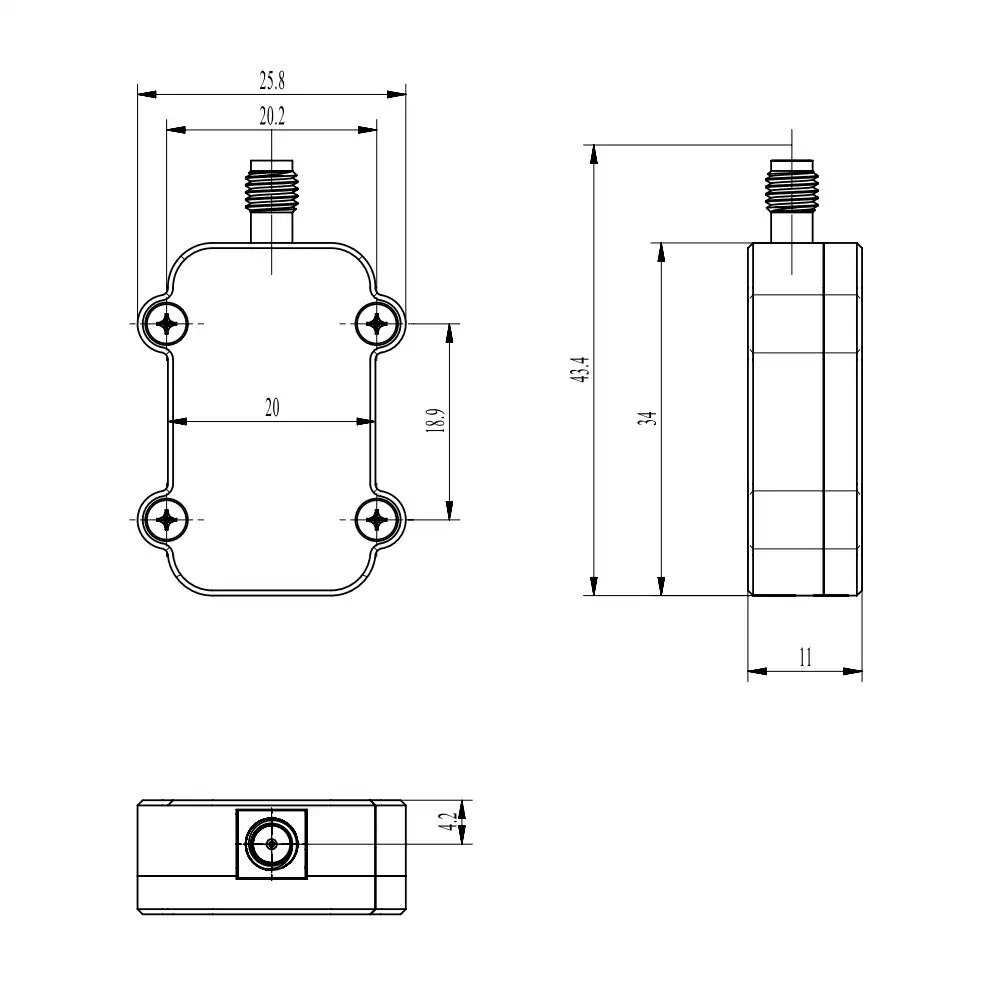

• Dimensions: 43.4 x 25.8 x 11mm (without antenna)
• Weight: 8g

Electrical

• Supply Voltage: 5V DC (from USB or JST-GH)
• Average Transmit Current: 200 mA at 27dBm (LR900-F) / 400mA at 30dBm (LR900-P)

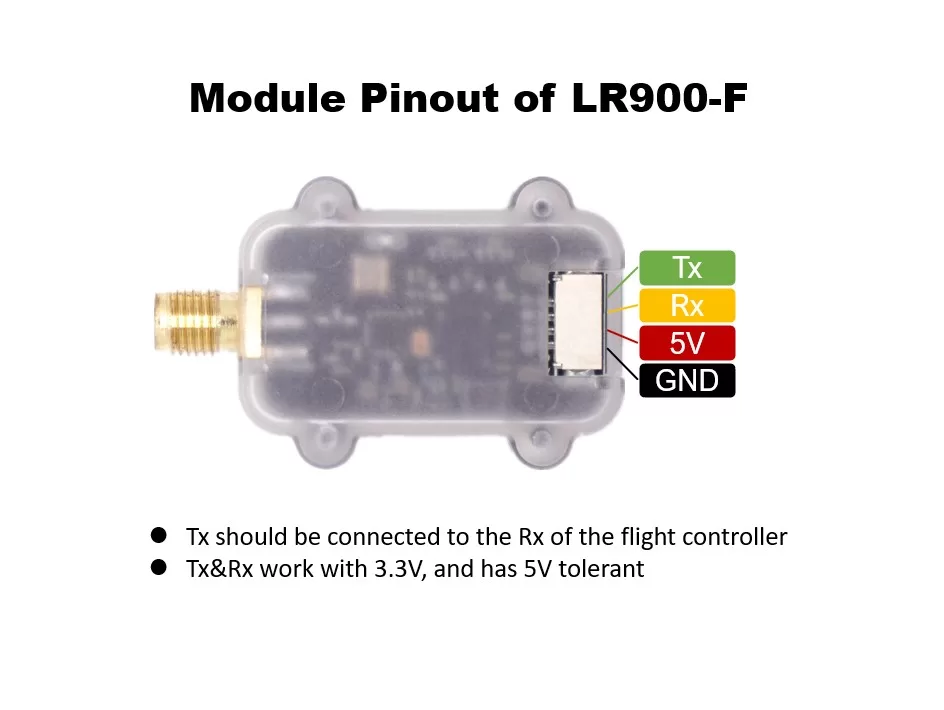

• Serial Interface: 3.3V UART JST-GH1.25-4P
• USB Interface: USB-Type-C (CP2102)
• Antenna Interface: SMA (Female)

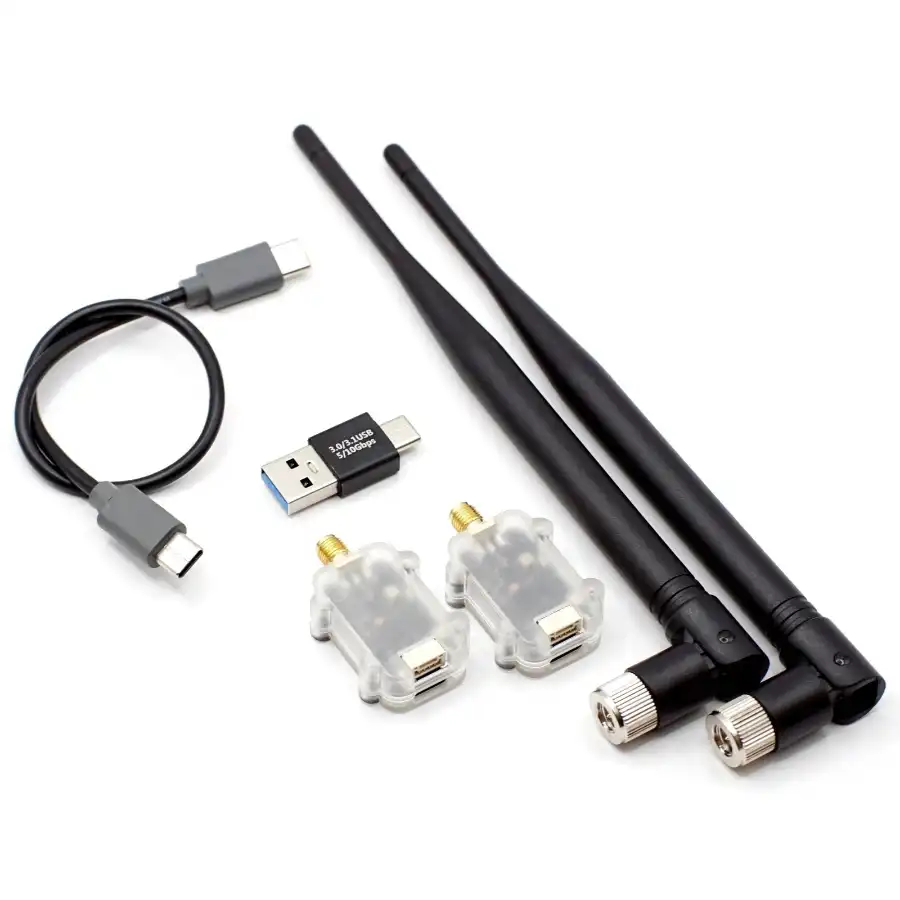

Package Includes:

1xMicoAir LR900-P Long-Range Telemetry Radio Module with 2 dBi Antenna
