3DR Single TTL MINI Radio Telemetry 433MHz 500mW for PIXHAWK and APM FC

3DR Single TTL MINI Radio Telemetry 433MHz 500mW for PIXHAWK and APM FC

This 3DR Radio Telemetry 433MHz 500mW Set allows you to link to a flight controller to a USB or UART equipped device such as a computer, laptop or tablet supporting a USB connection (OTG).

The new V2 radios, no longer have a separate Air/Ground module, as both transceivers can use UART or USB connections and supports both modes. The Radio set not only lets you see live data, such as live GPS position overlaid on a map, system voltage, heading, waypoint navigation even artificial horizon and so much more.

Using open source MAVlink based ground station software, you can even fly your aircraft with a joystick via your computer and update settings live! Or just use it for your DIY projects that need a wireless Serial interface. This kit offers a great low price, longer range, and superior performance. The system utilizes the 433MHz band and provides a full-duplex link using HopeRF’s HM-TRP modules running custom, open source, firmware.

Note: The reference to APM refers to the ArduPilot project, a family of open source autopilots based on the Arduino open-source computing platform, developed by 3DR and the open source community. It consists of a choice of ArduPilot Mega (APM) electronics and a range of free software versions for different vehicles and is governed by an open source creative commons license.

Important Note:  Do not turn ON the 3DR telemetry without attaching the antenna.

Note:. Product may be available with casing or without casing

Features:

1. MAVLink protocol framing status documents
2. Frequency modulation and Spread Spectrum (FHSS)
3. Self-adaption to time division multiplexing
4. Support LBT and AFA
5.  Configurable duty cycle
6. Built-in error correcting code(up to 25% data bit error)
7. AT command configure data transmission
8. RT command remote control data transmission
9. Interchangeable air and ground 433MHz modules
10.  Micro-USB port
11. 6-position Molex connector
12. 250mW maximum output power (adjustable)
13. SMA connector
14. 2-way full-duplex communication through adaptive TDM
15. UART interface
16. Transparent serial link
17. Open-source SIK firmware
18. Configurable through *Mission Planner and *APM Planner
19. Based on the HM-TRP wireless module, with Si1000 8051 microcontroller and Si4432

Specification:

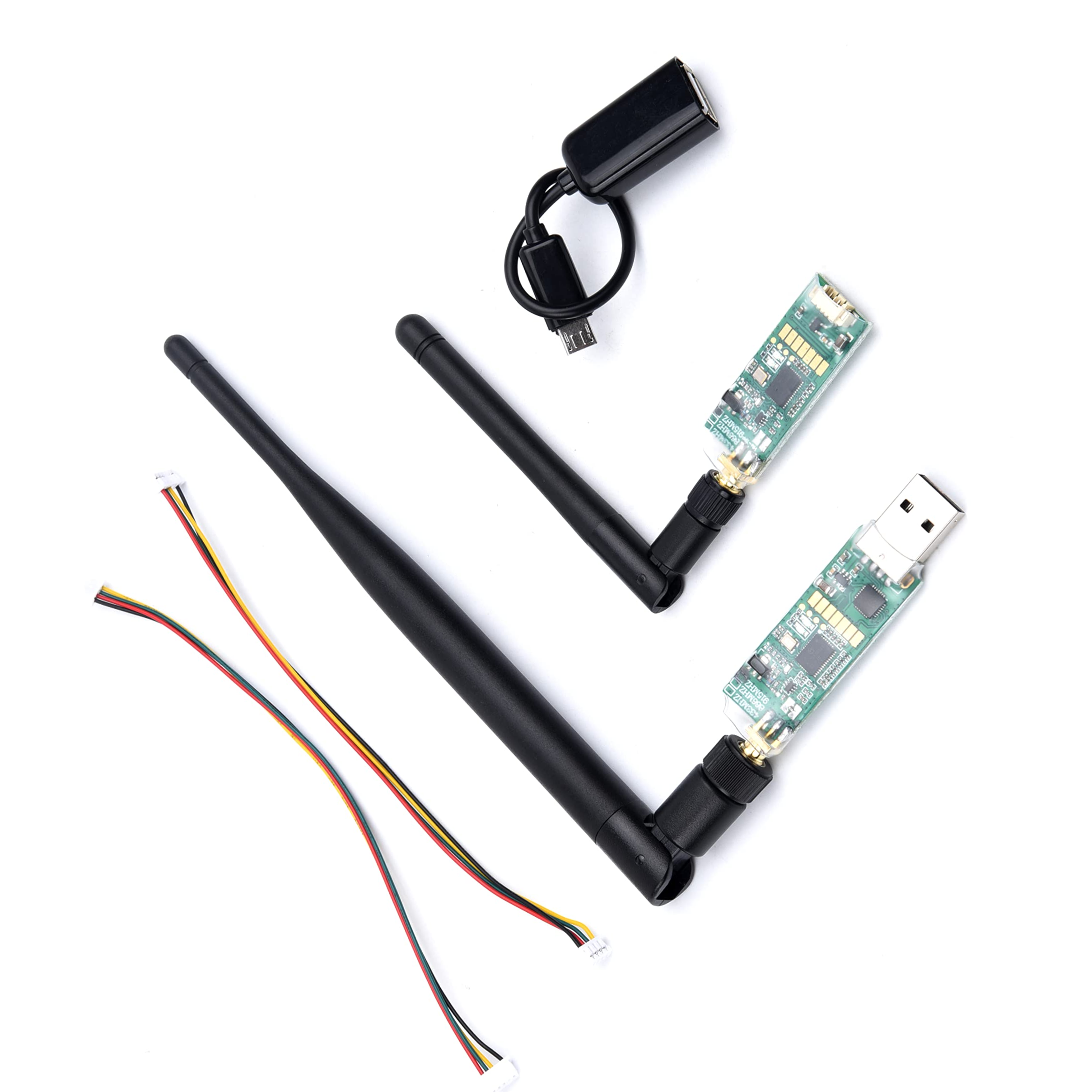

Package Includes:

1 x Radio Telemetry Base Station (USB Connection).

1 x Telemetry Transreceiver (Pin Header).

2 x 2.5dbi Antenna.

1 x 5-pin Lead cable for APM FC.

1 x 6-pin Lead cable for PIXHAWK FC.

3DR Single TTL MINI Radio Telemetry 433MHz 500mW for Overview

The 3DR Single TTL MINI Radio Telemetry 433MHz 500mW is a compact transceiver module designed to link PIXHAWK or APM flight controllers to ground stations over several kilometers. It provides bidirectional data transfer for live telemetry, mission updates, and real-time parameter tuning via USB or UART connections.

Key Features of 3DR Single TTL MINI Radio Telemetry 433MHz 500mW for

• 433MHz, 500mW RF output power for multi-kilometer range with the included omni antenna
• Hope RF HM-TRP radio module paired with a SiLabs Si1000 RF microcontroller
• Open Source MAVLink firmware with AT commands for local configuration
• RT Commands support remote radio configuration from your ground station software
• Adaptive flow control optimizes data throughput when used with APM flight controllers
• Supports USB OTG connection to Android devices and standard USB for computers
• Expandable range when used with a bi-directional RF amplifier
• Fast shipping from Zbotic across India

Applications and Use Cases

• Long-range telemetry link for quadcopters and fixed-wing drones running PIXHAWK or APM
• Real-time GPS tracking and live mapping for aerial survey missions
• Remote parameter tuning and in-flight calibration of autopilot settings
• Wireless data transfer for robotics projects requiring UART or USB connectivity
• Ground station control and joystick-based piloting via open source GCS software
• DIY UAV development and testing with affordable, open firmware hardware

How to Use 3DR Single TTL MINI Radio Telemetry 433MHz 500mW for

Connect one module to your PIXHAWK or APM flight controller’s TTL serial port and the other to a computer or Android device via USB (OTG). Power them on, pair the radios at the desired frequency using AT commands, then launch your MAVLink-based ground station software to view live telemetry, set waypoints, or control the aircraft.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Is this telemetry module plug-and-play with PIXHAWK and APM?

Yes. It uses a standard TTL serial interface compatible with PIXHAWK and APM flight controllers. Simply connect the TX/RX and power pins, then configure baud rate in your ground station software.

What range can I expect with the stock antenna?

With the included omni antenna and 500mW power, you can achieve reliable telemetry links over several kilometers in open terrain. Adding a bi-directional amplifier or high-gain antenna can extend that range further.

How do I change radio settings like frequency or net ID?

Use standard AT commands over the serial link to adjust parameters such as frequency, net ID, and air data rate. Refer to the 3DR radio command reference sheet, send commands via a terminal emulator, then power-cycle the module to apply changes.
