MicoAir LR24-F Long-Range Telemetry Radio Module with 3 dBi Antenna

MicoAir LR24-F Long-Range Telemetry Radio Module with 3 dBi Antenna

Description:

The MicoAir LR24-F Long-Range Telemetry Radio Module with 3 dBi Antenna is designed for wireless data communication in UAV drones and unmanned aerial vehicle systems. It enables telemetry communication between compatible onboard flight-control equipment and ground control stations, supporting flight-data monitoring and remote system communication. The included 3 dBi antenna helps establish a wireless link for telemetry transmission. This module is suitable for drone communication and UAV integration projects where compatible hardware and operating frequencies are supported.

Key Features

• Wireless telemetry communication for UAV applications.

• Includes a 3 dBi antenna.

• Designed for integration with compatible drone systems.

• Supports flight-data transmission and monitoring.

• Suitable for compatible ground stations and onboard equipment.

• Compact module design for UAV integration.



The LR24-F Telemetry Radio is a small, cheap radio with superior performance for flight controller that typically allows ranges of better than 10 kilometers. And it is very suitable for Pixhawk or other Audupilot/PX4 flight controller. It will connect automatically when power up without any configuration unless you need to implement some special features.

The LR24-F works in the 2.4GHz, so is better to use 915M receiver (BlackSheep/ELRS 915) than any other 2.4G receiver on your drones.

Features

• Work in 2.4GHz ISM bands
• Small size and light weight (8g)
• Transmit power up to 27dBm (500mW)
• Base on LoRa modulation technology to obtain excellent anti-interference performance
• Frequency hopping spread spectrum (FHSS)
• Using transparent transmission to compatible with any data and protocol not just mavlink
• CP2102 USB to UART IC, compatible with QGroundControl on Android

Data Transmission

• Transmission Rate: 2.4K Byte/s (default); 4K Byte/s; 8K Byte/s; 20K Byte/s;
• Maximum Single-package Length: 20K Byte
• Uart Baudrate for JST-GH Interface: 9600; 19200; 38400; 57600 (default); 115200; 230400; 460800; 500000; 921600
• Uart Baudrate for USB Interface: 57600 (default); 115200; 921600

Physical

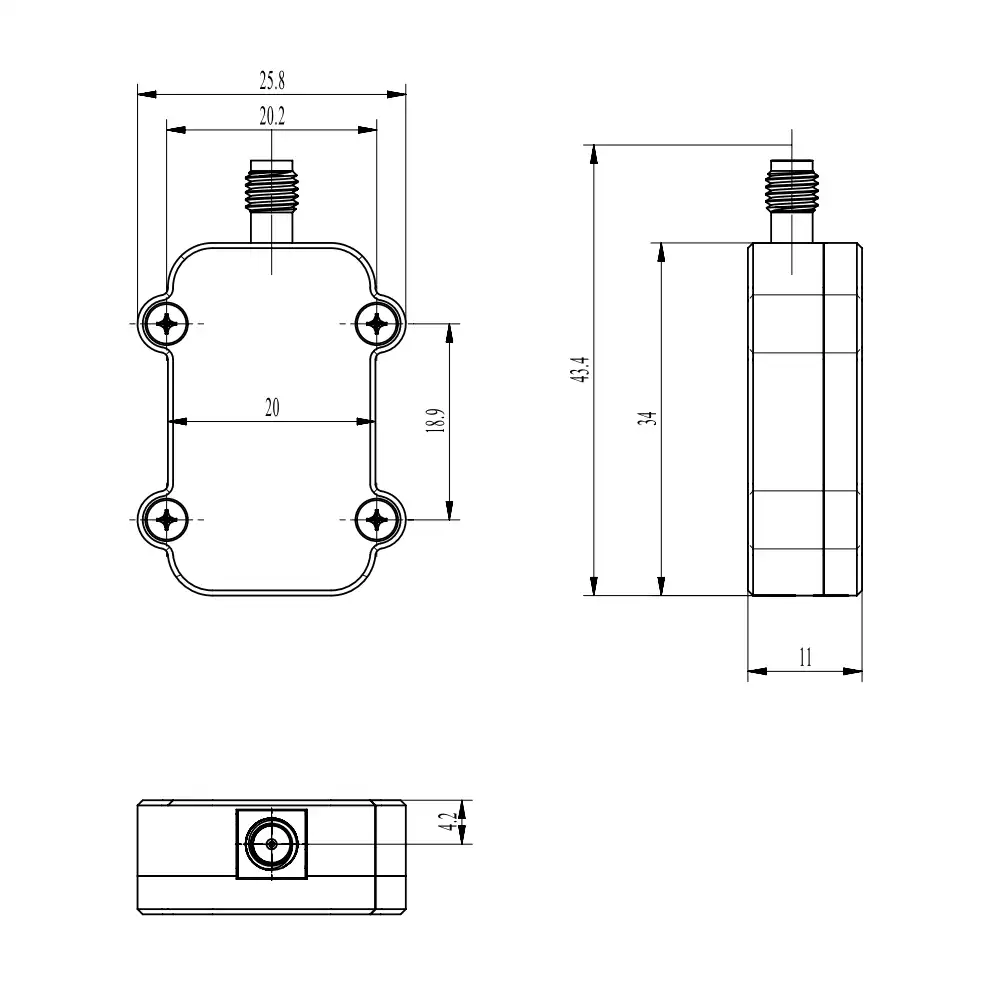

• Dimensions: 43.4 x 25.8 x 11mm (without antenna)
• Weight: 8g

Electrical

• Supply Voltage: 5V DC (from USB or JST-GH)
• Average Transmit Current: 400 mA at 27dBm

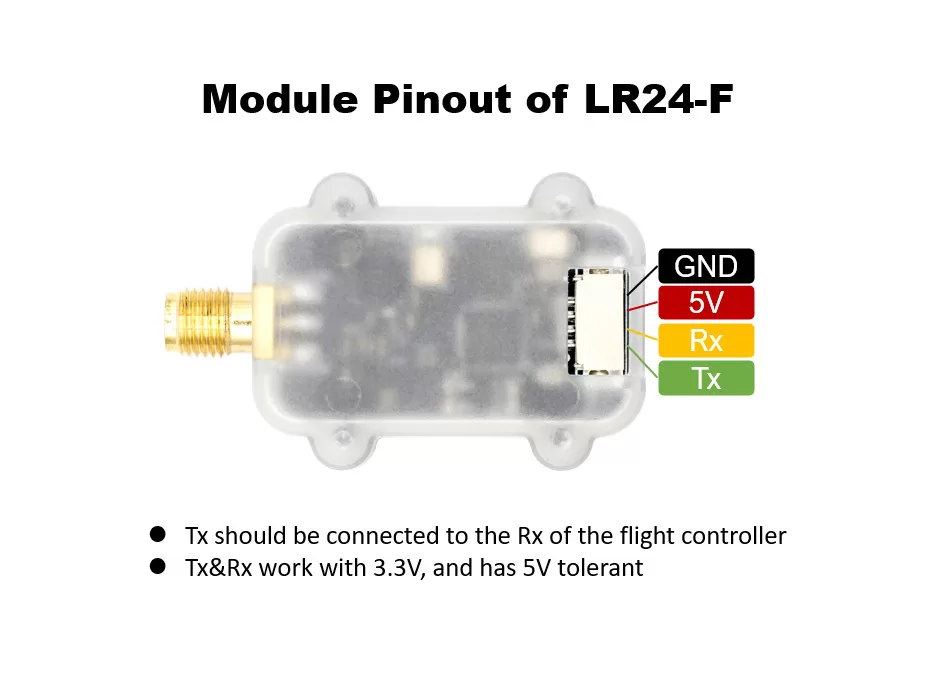

• Serial Interface: 3.3V UART JST-GH1.25-4P
• USB Interface: USB-Type-C (CP2102)
• Antenna Interface: SMA (Female)

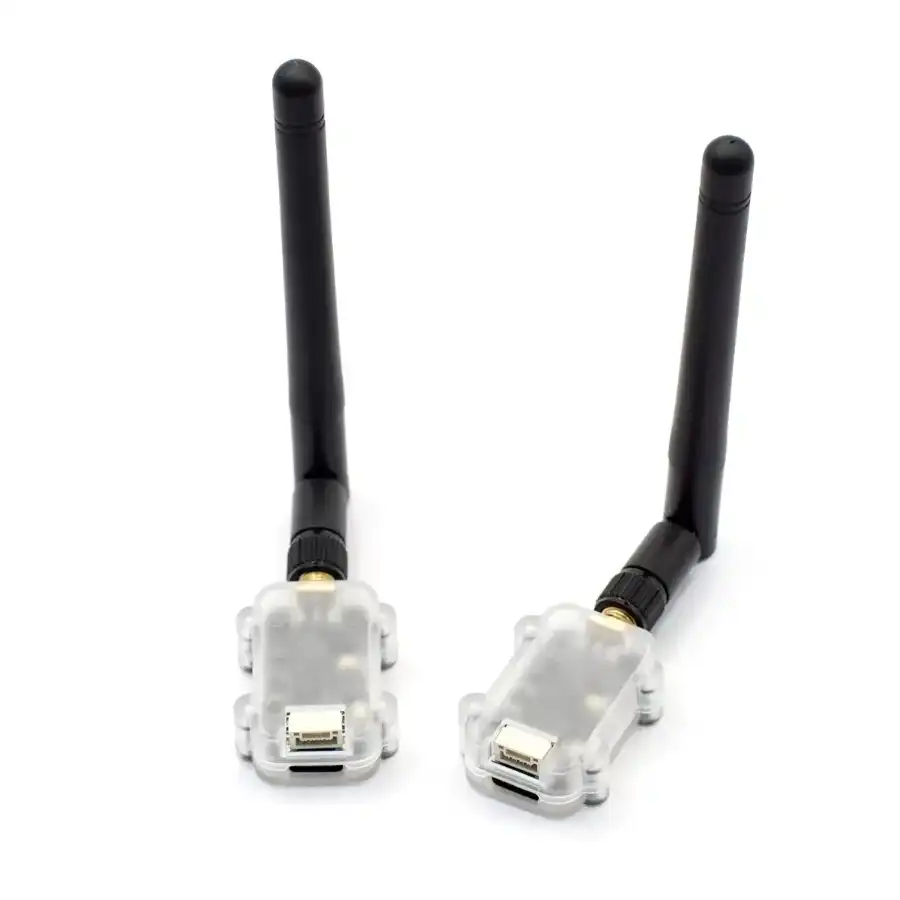

Package Includes:

1xMicoAir LR24-F Long-Range Telemetry Radio Module with 3 dBi Antenna
