This 915MHz 100mW Radio Telemetry Kit is based on the 3DR Telemetry kit and is fully compatible, running the same open-source firmware used by 3D Robotics. This allows Unmanned Tech to offer their own version. The kit works with ArduPilot or Pixhawk-based systems, enabling a two-way telemetry connection between your drone and ground station. It comes with full support and warranty, ensuring functionality and reliability.

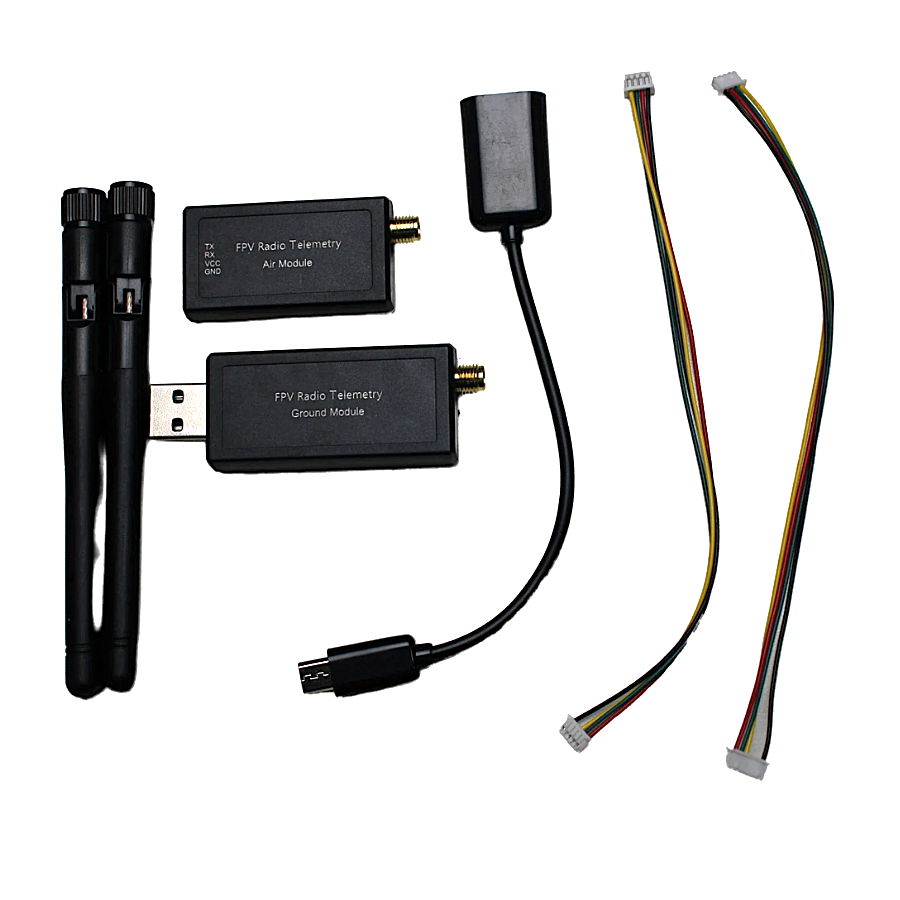

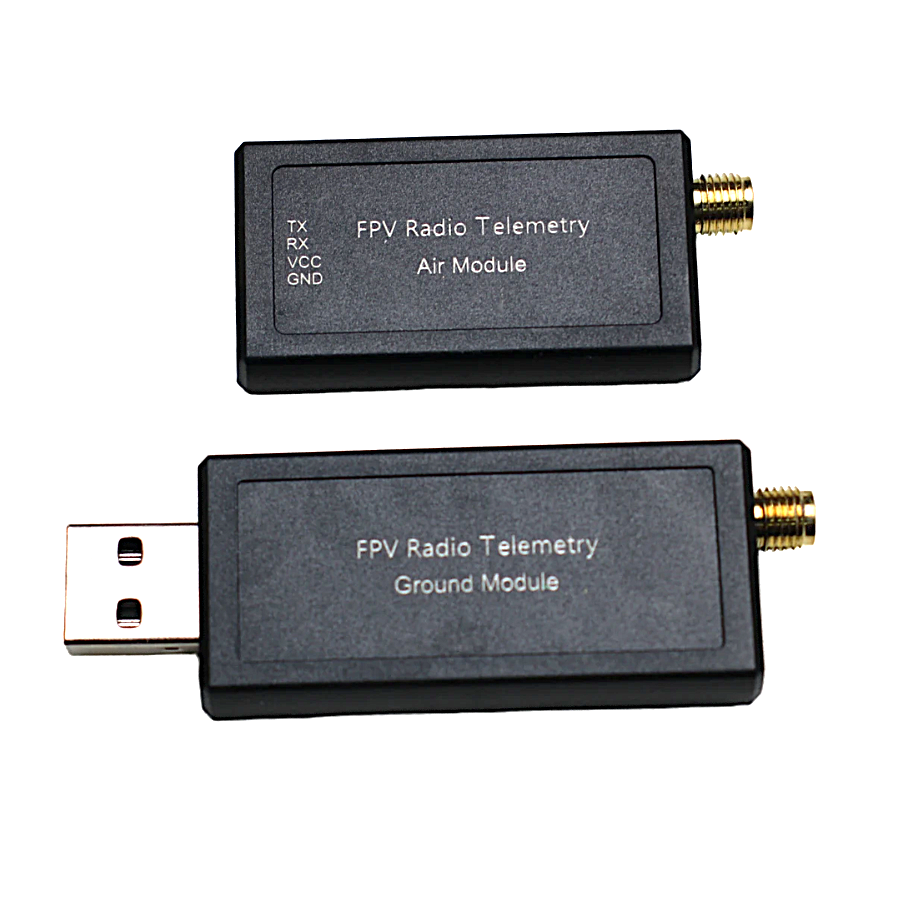

Key features include interchangeable air and ground modules, each equipped with a USB connector and a DF13 connector. For Pixhawk connections, it’s recommended to purchase a 6-pos to 6-pos cable for ease of use. The kit features complete wiring and independent housing for enhanced safety and aesthetics. Data transmission is stable, and both modules are identical, featuring USB and 6-pin serial port dual TTL design. Users can upgrade the firmware themselves without any tools.
Note:
- This telemetry only could use with APM compatible control board.
- As we have some variations in the color of the connecting cable & also this product is available in two variants with casing and without casing which will be shipped randomly.Â
- OTG cable is not included.
Features :
- Â Small size and lightweight
- Â CP2102 high-quality USB to TTL chips
- Â 915MHZ
- Â Support MWC / APM / PX4 / Pixhawk other open-source flight control
- Â MAVLink Framework Agreement
-  Open Source Firmware Frequency-hopping spread spectrum (FHSS)
- Â 2-way full-duplex communication adaptive TDM
- Up to 25% can be corrected bit errors
- Based on Si1000 and Si4432 wireless microcontroller modules.
Specification-
Rated Power (mW) | 100 |
---|---|
Range(m) | 1600 |
Receive Sensitivity(dBm) | -117 |
Air Data Rates(kbps) | 250 |
Operating Temperature (°C) | -10 to 85 |
Weight(gm) | 65 |
Shipping Weight | 0.07 kg |
Shipping Dimensions | 35 × 10 × 2 cm |
