This is the Blue variant of the MicoAir Bluejay 60A 4-in-1 ESC in (ESC) Drone Speed Controller. Available at ₹9,293.87 (₹8,851.30 + GST) with free shipping across India.

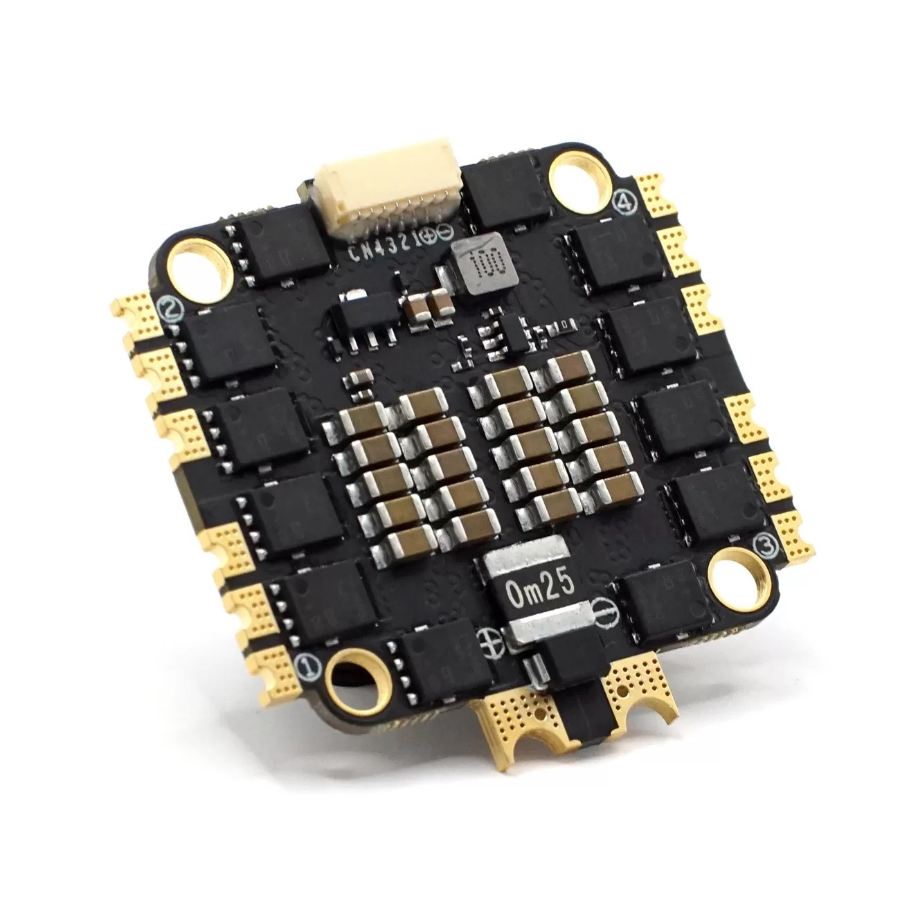

MicoAir Bluejay 60A 4-in-1 ESC
Description:
The MicoAir Bluejay 60A 4-in-1 ESC is a high-current electronic speed controller designed for FPV drones and multirotor UAV applications. It integrates four motor controllers into a single compact board, delivering up to 60A continuous current per channel. Featuring Bluejay firmware, a 48 kHz PWM frequency, and DShot300/600 protocol support, it provides responsive and reliable brushless motor control. Compatible with 3–6S LiPo batteries, this ESC is suitable for demanding FPV freestyle, long-range, and larger multirotor drone builds.
Key Features
-
4-in-1 integrated ESC design for controlling four brushless motors.
-
60A continuous current per channel.
-
Supports 3–6S LiPo batteries.
-
Bluejay firmware for configurable motor control.
-
Supports DShot300 and DShot600 protocols.
-
48 kHz PWM frequency.
-
Integrated current sensor output.
-
Compact design with a 30.5 × 30.5 mm mounting pattern.

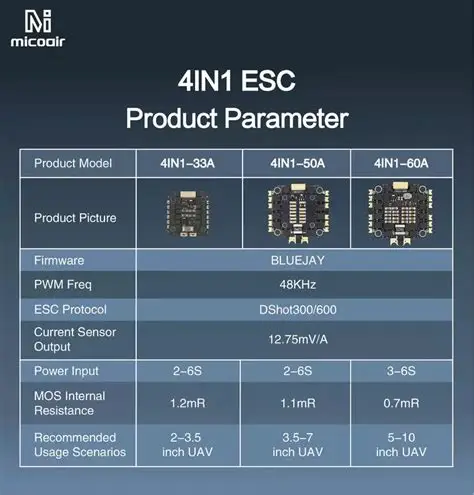

Specifications:
- Firmware: Bluejay_0.19.2_JH40
- PWM Freq: 48KHz
- ESC Protocol: DShot300/600
- Power Input: 3-6S LiPo
- Continuous Current: 60A * 4
- MOSFET RDS(on): 0.75mR
- Current Sensor Output: 12.75mV/A

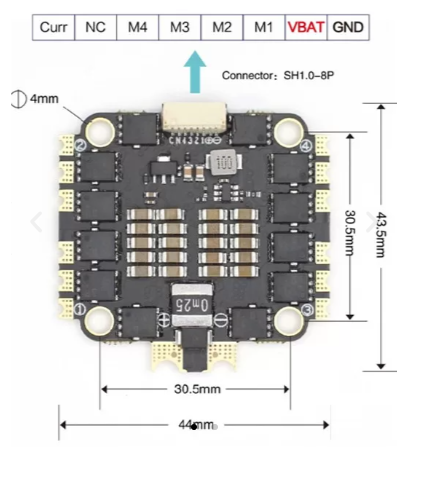

- Mounting: 30.5*30.5mm (Φ4mm)
- Dimension: 44 * 43.5 * 5.2 mm
- Weight: 13.5g
Package Includes:
1xMicoAir Bluejay 60A 4-in-1 ESC
Whoop Drone for Indoor FPV: Best Tiny Whoops in India 2026
Whoop Drone for Indoor FPV: Best Tiny Whoops in India 2026 Imagine flying through your living room at...
Read More →
Drone Thermal Camera Guide: FLIR, InfiRay & Budget Options in India
Drone Thermal Camera Guide: FLIR, InfiRay & Budget Options in India Thermal cameras on drones are no longer...
Read More →
Drone VTX Power Levels: 25mW to 1000mW Comparison
Table of Contents Understanding Drone VTX Power Levels Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →Technical Specifications
| Brand | MicoAir |
|---|---|
| Current Rating | 60A |
| Color | Blue |
| SKU | AI8313 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MicoAir Bluejay 60A 4-in-1 ESC is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
