Product Description:

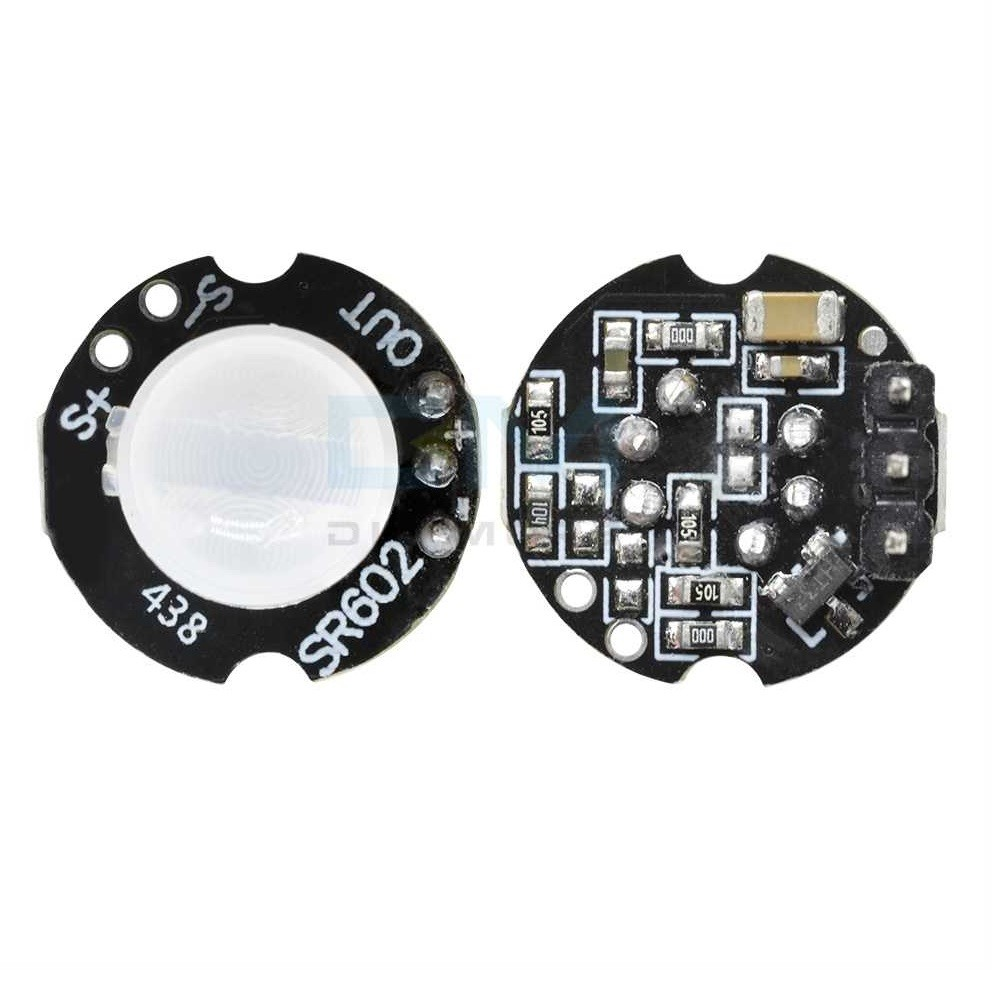

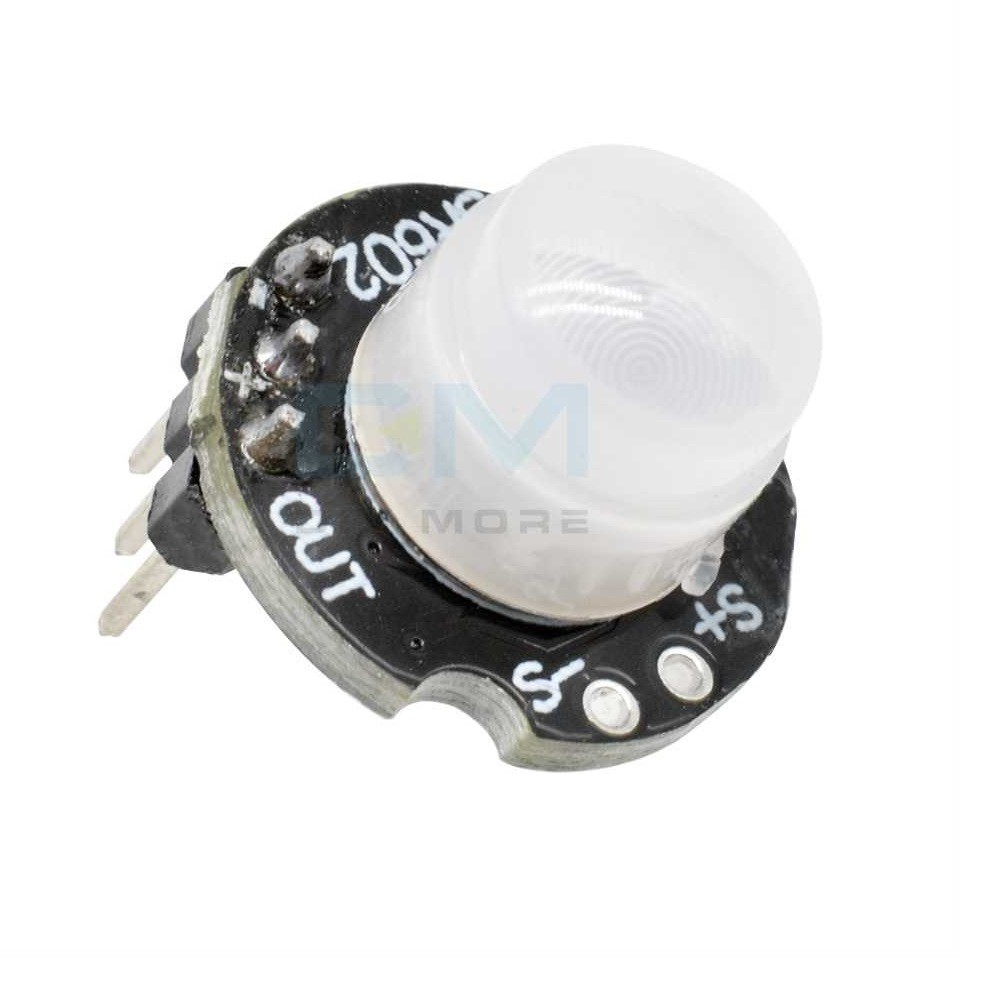

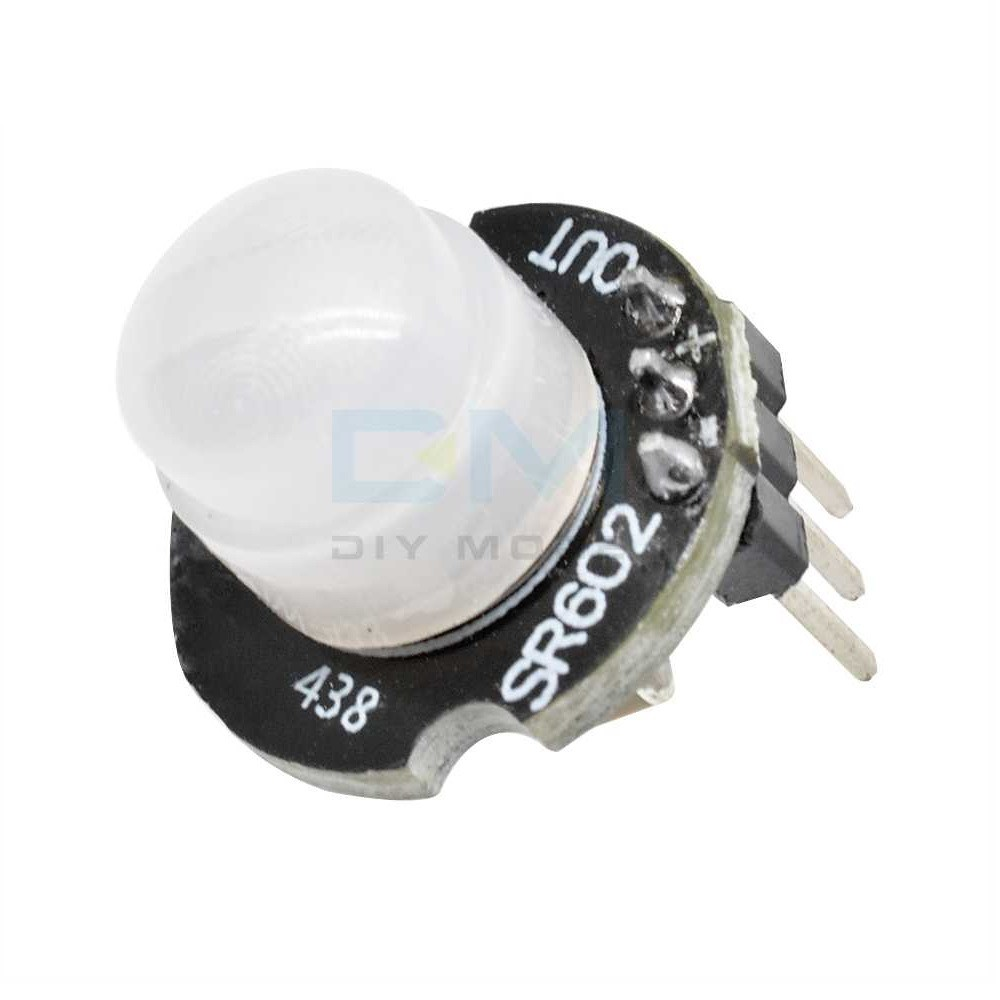

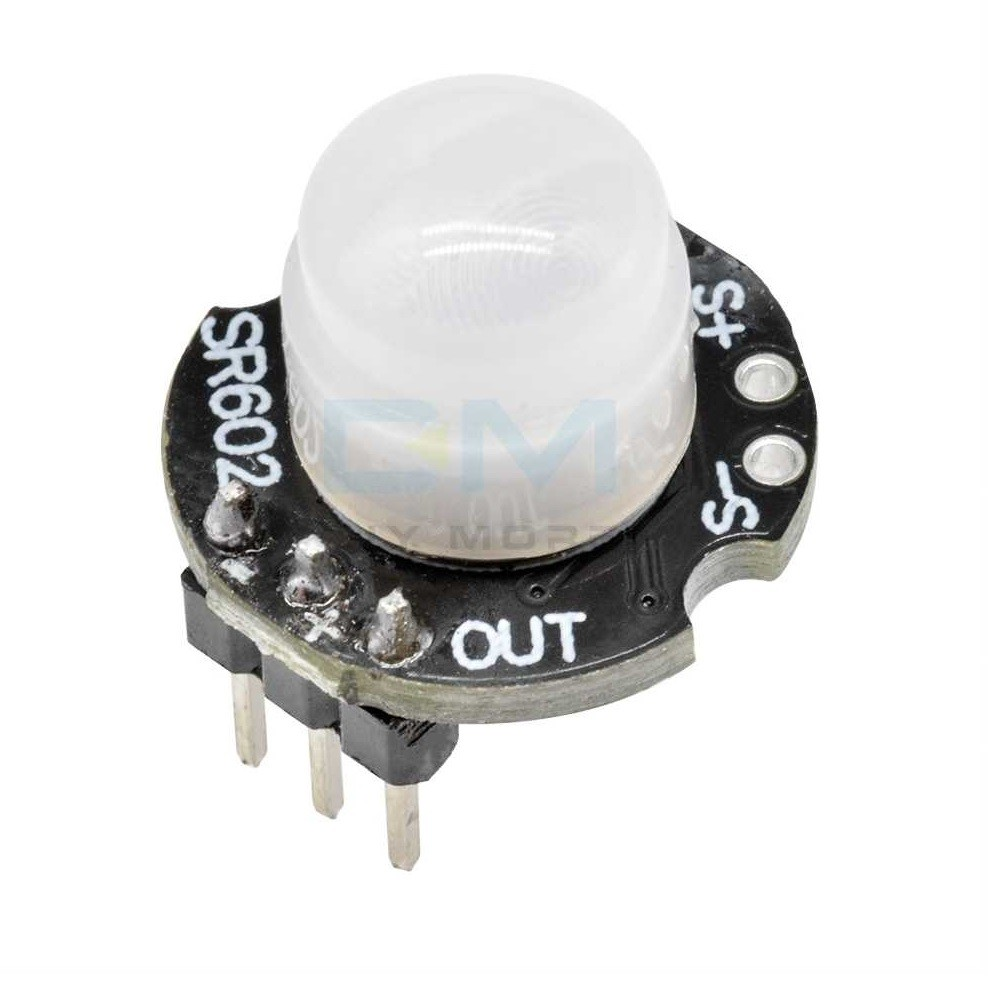

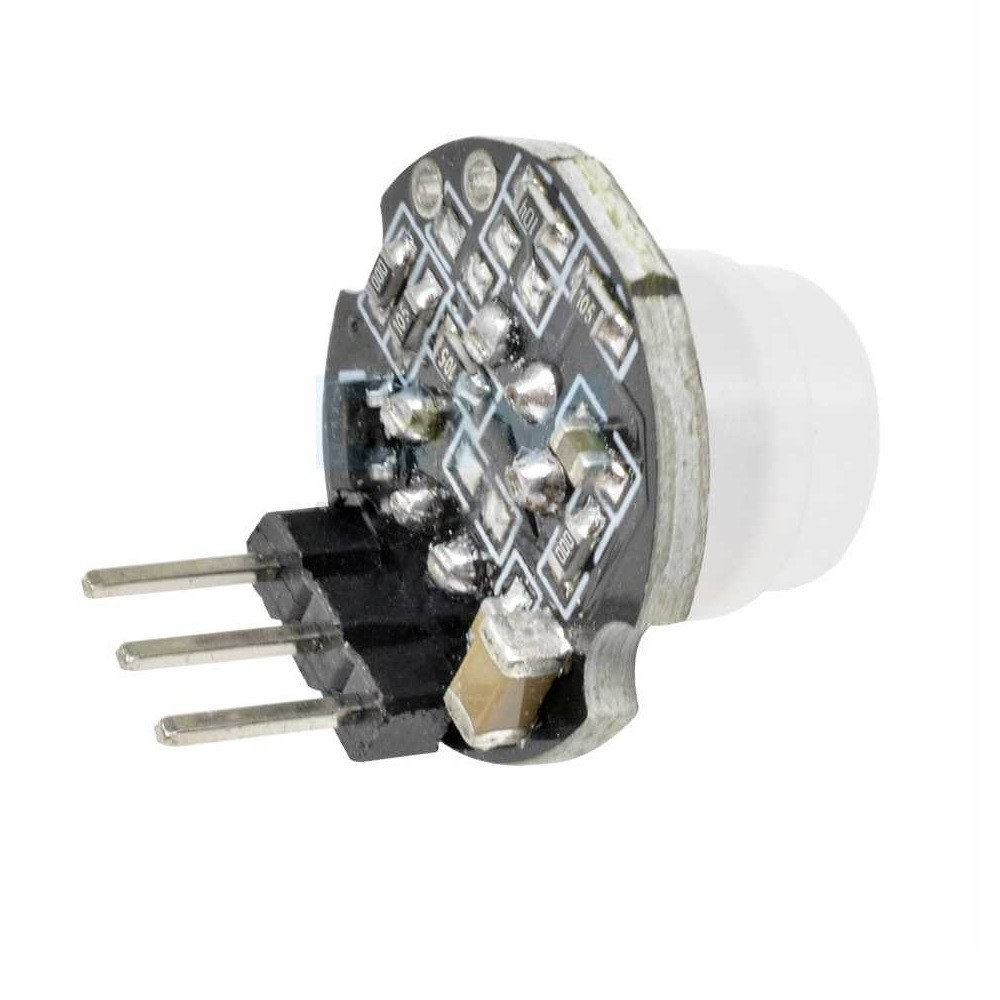

MH-SR602 Mini Motion Sensor Detector Module For Arduino
The MH-SR602 Mini Motion Sensor Detector Module is a Pyroelectric human body infrared sensor module that can detect motion up to 5 meters away. It can be used for applications such as body sensor lights, alarms, and security.
Note:
The output of this product has a high-level time that can be adjusted from 2.5 seconds to 1 hour. The factory setting is 2.5 seconds, but you can change it by replacing one chip resistor. Please refer to the table of resistance values and typical delay times.
Features
- High sensitivity
- Fast response
- Small static power consumption
- Small size
- Easy to install
Specifications
| Model | SR602 |
|---|---|
| Sensing Distance | 3M-5M |
| Delay | Adjustable |
| Power supply DC | 3.3V-15V |
| Output | high level, H=3.3V, L=0V |
| Quiescent current | 20uA |
| Color | Black |
| Dimension(mm) | 15 x 15 x 20 |
| Weight(g) | 20 |
Package Includes
- 1 x MH-SR602 Mini Motion Sensor Detector Module For Arduino
How to Fix Noisy Sensor Readings: Filtering Techniques for Arduino
You have wired up your sensor, uploaded your sketch, and opened the Serial Monitor — only to see...
Read More →
MPU6050 IMU Sensor: Complete Tutorial with Arduino & Python
The MPU6050 is one of the most powerful and affordable sensor modules available to hobbyists and engineers in...
Read More →
ADXL345 Accelerometer: Tilt and Vibration Sensing with Arduino
Table of ContentsWhat Is the ADXL345?How MEMS Accelerometers WorkADXL345 Key FeaturesWiring ADXL345 via I2CWiring ADXL345 via SPIArduino Code:...
Read More →Technical Specifications
| Model | MH-SR602 |
|---|---|
| SKU | AI0242 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The MH-SR602 Mini Motion Sensor Detector Module For Arduino is a versatile pir / ir and optical sensor used across a wide range of applications including motion detection, security systems, automatic lighting, people counting, and gesture recognition.
Common use cases:
- Building an automatic porch light
- Creating a people counter for a room
- Adding motion detection to a security system
This product is ideal for home automation builders and security system designers.
Technical Tip: PIR sensors detect heat-emitting movement. Adjust sensitivity and delay potentiometers for your environment. False triggers can be reduced with proper shielding.
