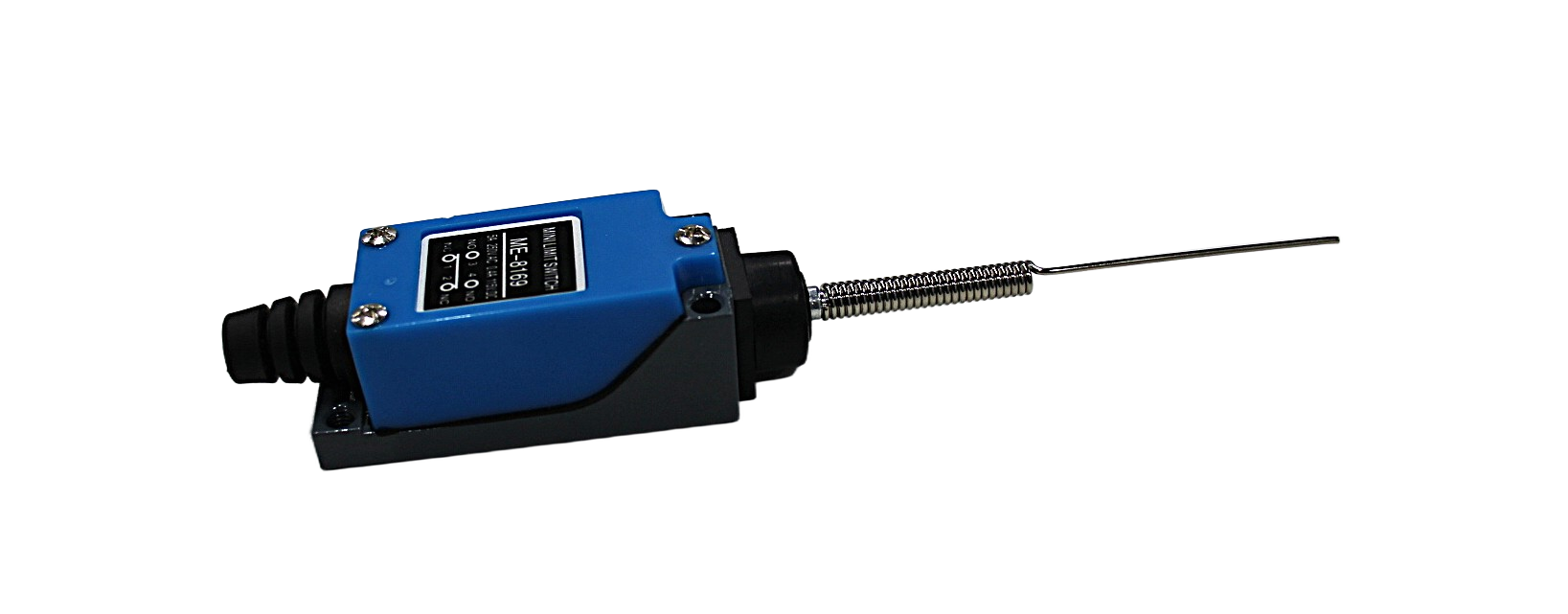

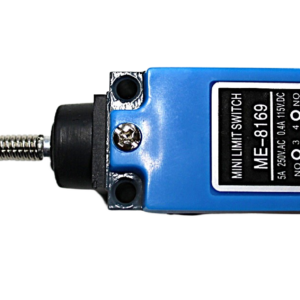

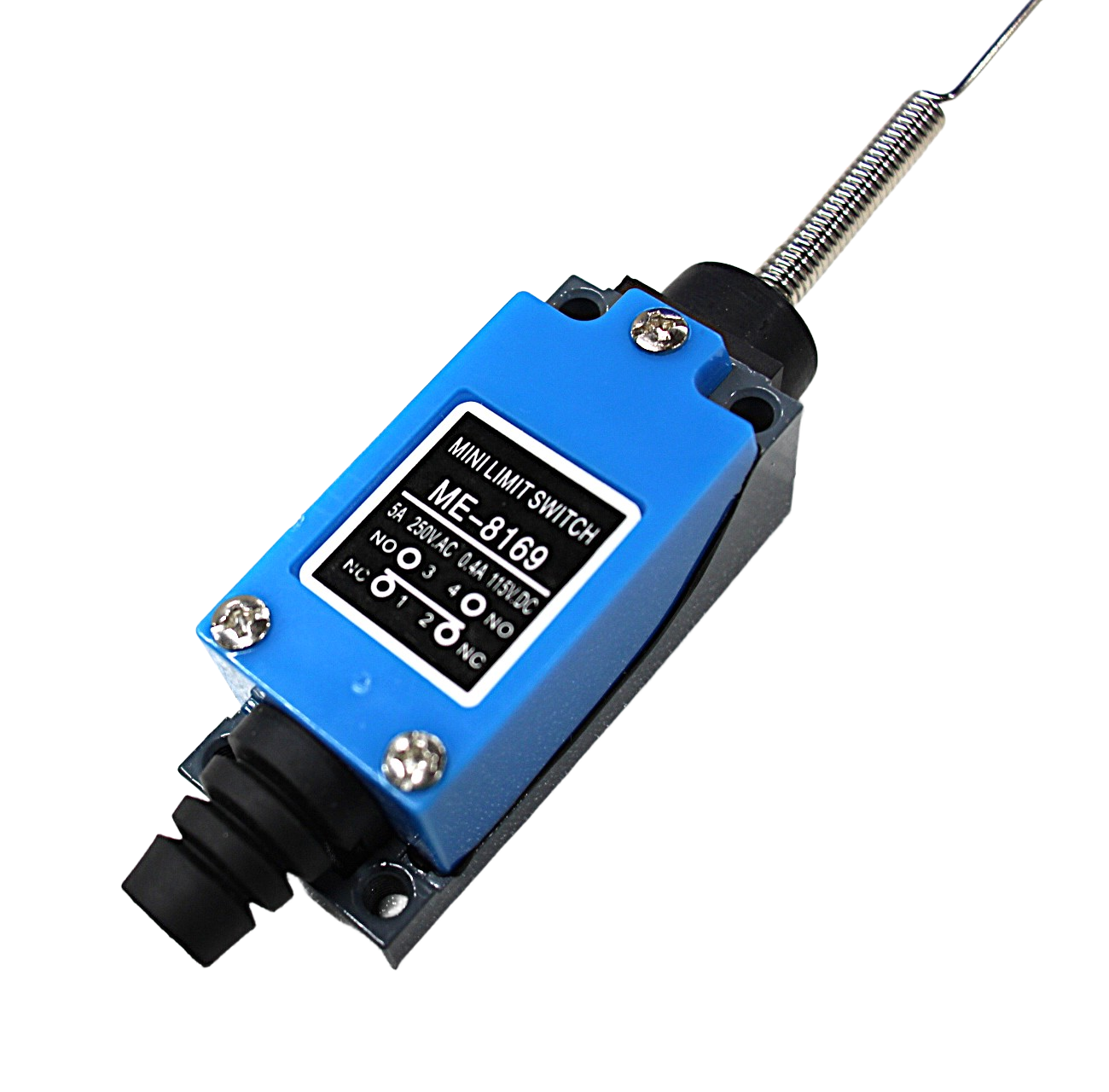

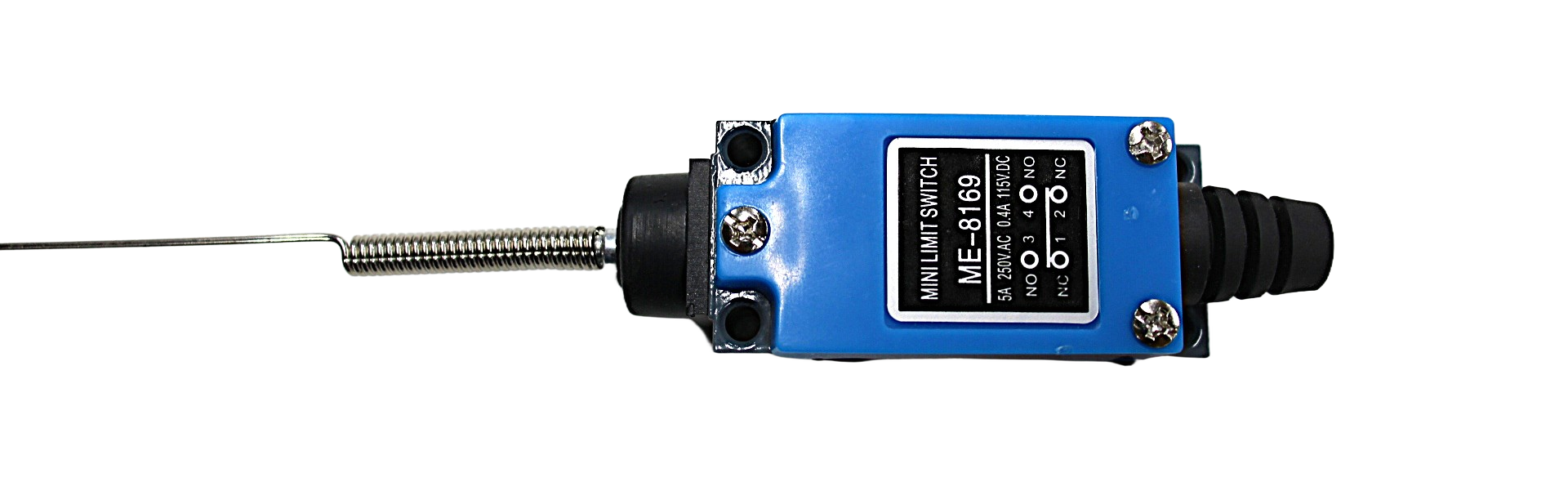

PRODUCT DESCRIPTION
The ME-8169 Rotary Adjustable Roller Mini Limit Switch, often known as the POSITION SWITCH, is a commonly used electrical device for small currents. It operates by detecting contact with moving parts of production machinery or segmented control circuits, thus achieving certain control objectives.
This Limit Switch is ideal for serving as an electrical control switch in mechanical and various industrial fields. It can monitor the positions of moving parts of machines and components in plants across diverse equipment. It is essential to note the Voltage Rating, which must match the voltage in your locality to ensure the Limit Switch functions properly.
Features:
- The actuator is activated only when pressed and released.
The actuator has a rotary lever arm that can be adjusted in length and angle, and a roller at the end of the arm.
The actuator is dust-tight and resistant to powerful water jets.
IP Rating: IP66
Specifications:
- This text describes a wobble stick lever with the model number ME-8169.
- It has a lever length of 85mm and a body dimension of 88 x 28 x 25mm.
- It can operate with AC power of 380V, 6(2)A or 250V, 10(4)A.
- It has a blue, gray and black color scheme and is made of plastic, metal and rubber.
- It weighs 60g and has a mounting hole diameter of 4.5mm.
- It has an IP rating of IP66, which means it is dust-tight and water-resistant.
Package Includes:
1 x ME-8169 Rotary Adjustable Roller Mini Limit Switch
Technical Specifications
| Model | ME-8169 |
|---|---|
| Interface / Protocol | BLE |
| SKU | AI3316 |
| Weight | 0.07 kg |
| Availability | In Stock |
Applications & Use Cases
The ME-8169 Rotary Adjustable Roller Mini Limit Switch is a versatile limit switch used across a wide range of applications including 3D printer maintenance, printer upgrades, custom printer builds, and replacement parts.
Common use cases:
- Replacing a worn-out nozzle or extruder gear
- Upgrading to a direct drive extruder
- Building a custom CoreXY printer
This product is ideal for 3D printer owners and custom printer builders.
Technical Tip: Keep spare nozzles, PTFE tubes, and belts on hand. Regular maintenance significantly extends printer life and print quality.
