Description:
The MAX7219 4-in-1 Dot Matrix Display Module is an integrated serial input/output common-cathode display driver that connects a microprocessor to an 8-digit 7-segment digital LED display. It can also interface with bar graph displays or 64 individual LEDs.
The module includes:
- BCD encoder chip
- Multi-channel scanning loop for segment drivers
- Static RAM (8×8) for data storage
- Requires only one external register to set the segment current for each LED
Each module features an 8×8 LED matrix, controlled by the MAX7219 driver for creating dynamic patterns. Its major advantage is the ability to control all 64 LEDs using just 3 output wires from microcontrollers like Arduino.
The module uses a 4-wire serial interface, compatible with most microprocessors. Data can be addressed individually without refreshing all displays during updates. The MAX7219 also provides:
- Low-power shutdown mode (150μA)
- Analog and digital brightness control
- Scan limit register for displaying 1–8 bits of data
- Test mode that illuminates all LEDs
Features:
- Requires only 3 communication wires from MCU
- Pre-cascaded MAX7219 Dot Matrix LED Module
- Compact overall size
- PCB includes M3 mounting holes
- Input and output interfaces provided
- Supports cascading multiple modules
- Large and clear display
Wiring Instructions:
- Left side → Input port
- Right side → Output port
- For single module: connect input port to CPU
- For multiple cascaded modules:
- Connect CPU to first module input
- Output of first module → Input of second
- Output of second → Input of third, and so on
Pin Description:
- VCC → 5V
- GND → GND
- DIN → P2.2
- CS → P2.1
- CLK → P2.0
Specifications:
| Driver IC | MAX7219 |
|---|---|
| Input Voltage (V) | 5 |
| Max. Operating Current (mA) | 320 |
| LED Color | Red |
| LED Display Dim. (mm) | 32x32x6 (LxWxH) |
| PCB Size ( L x W ) mm | 128 x 32 |

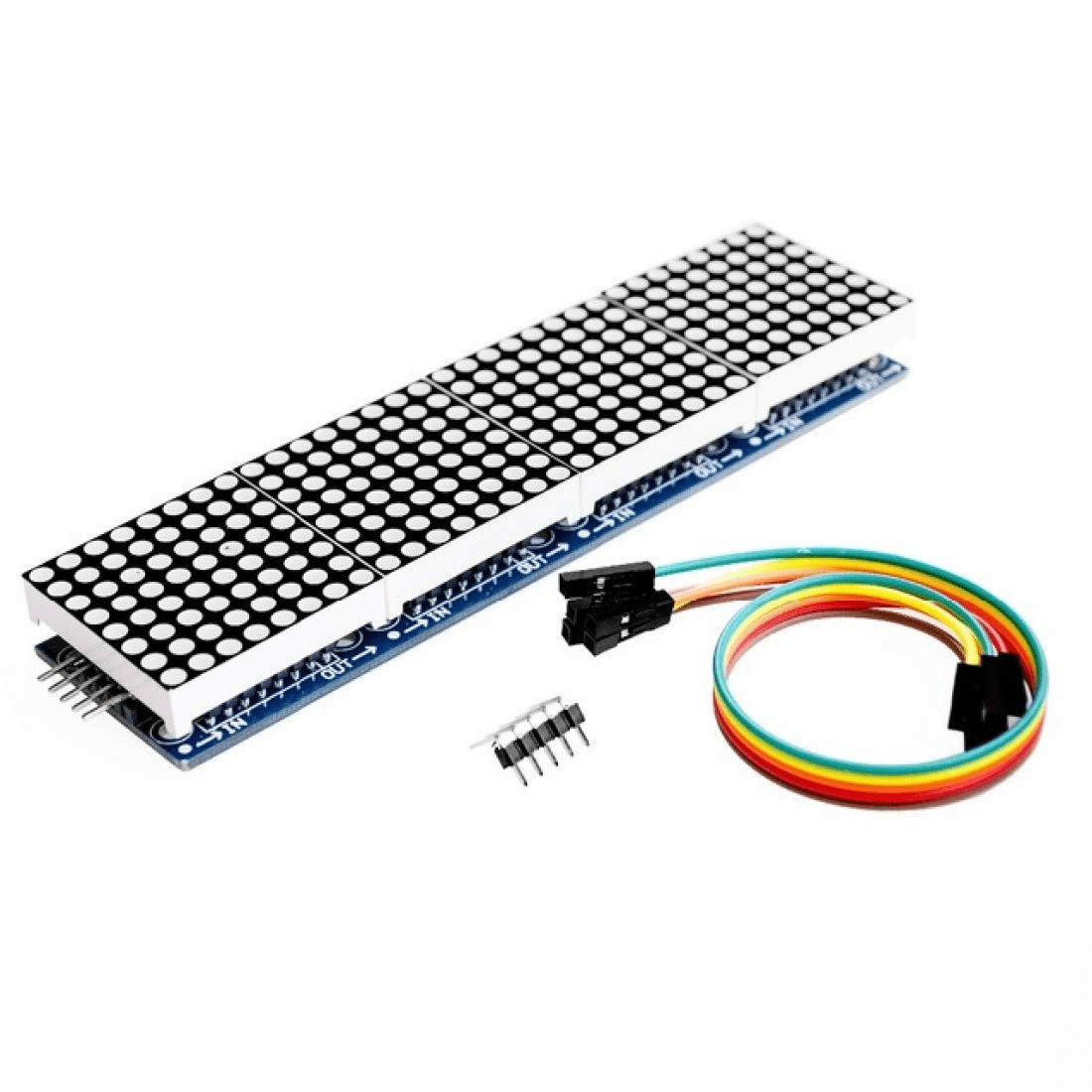

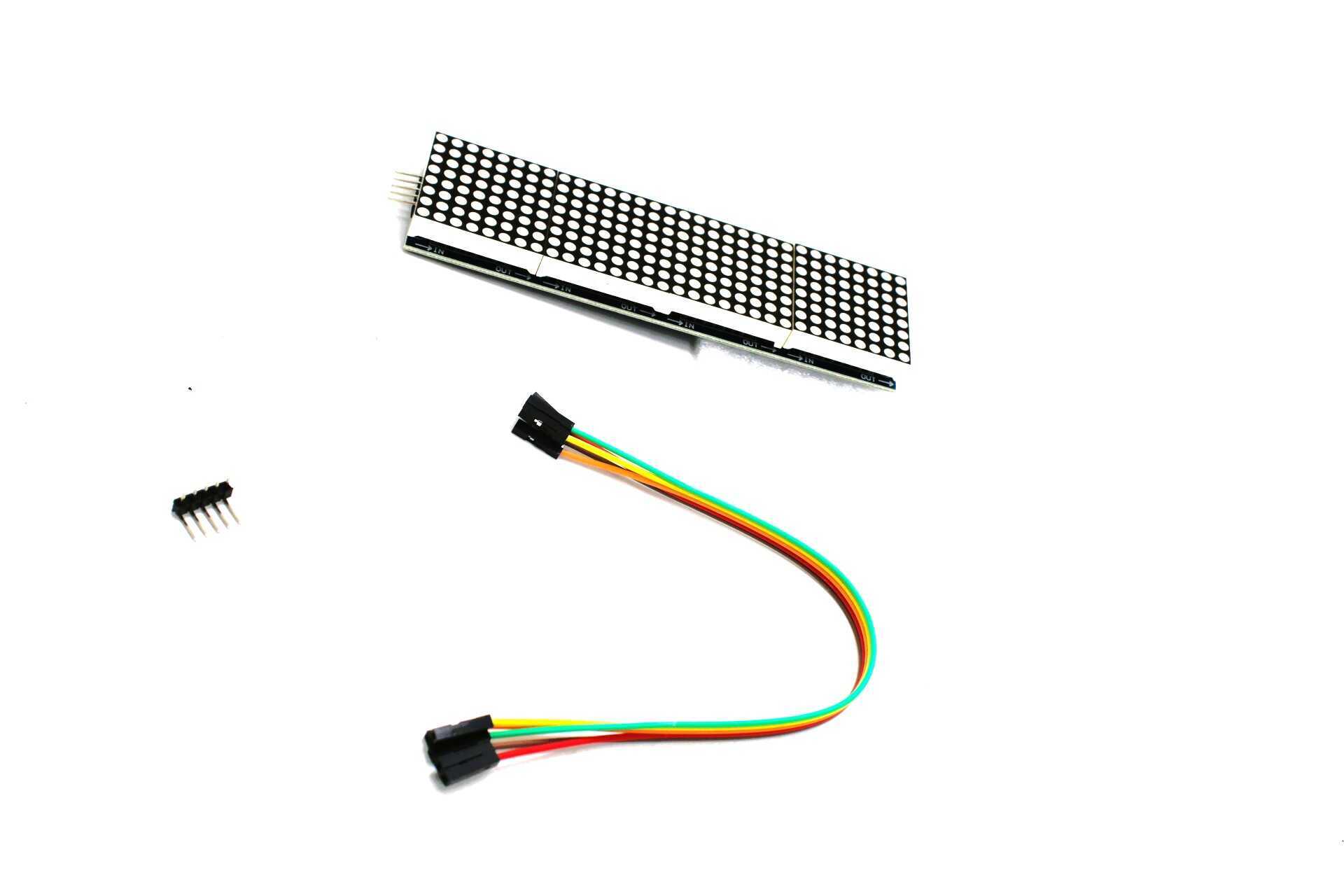

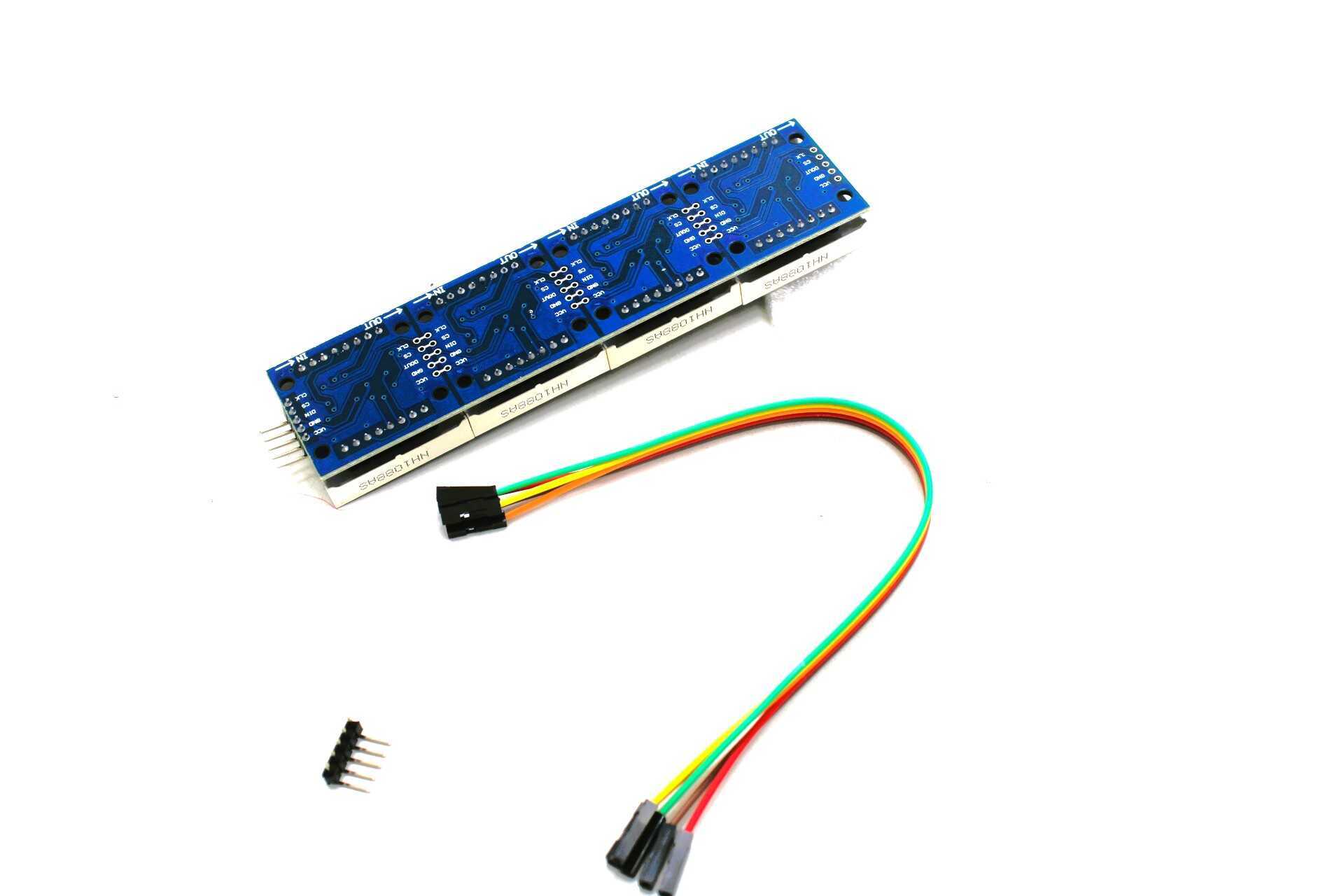

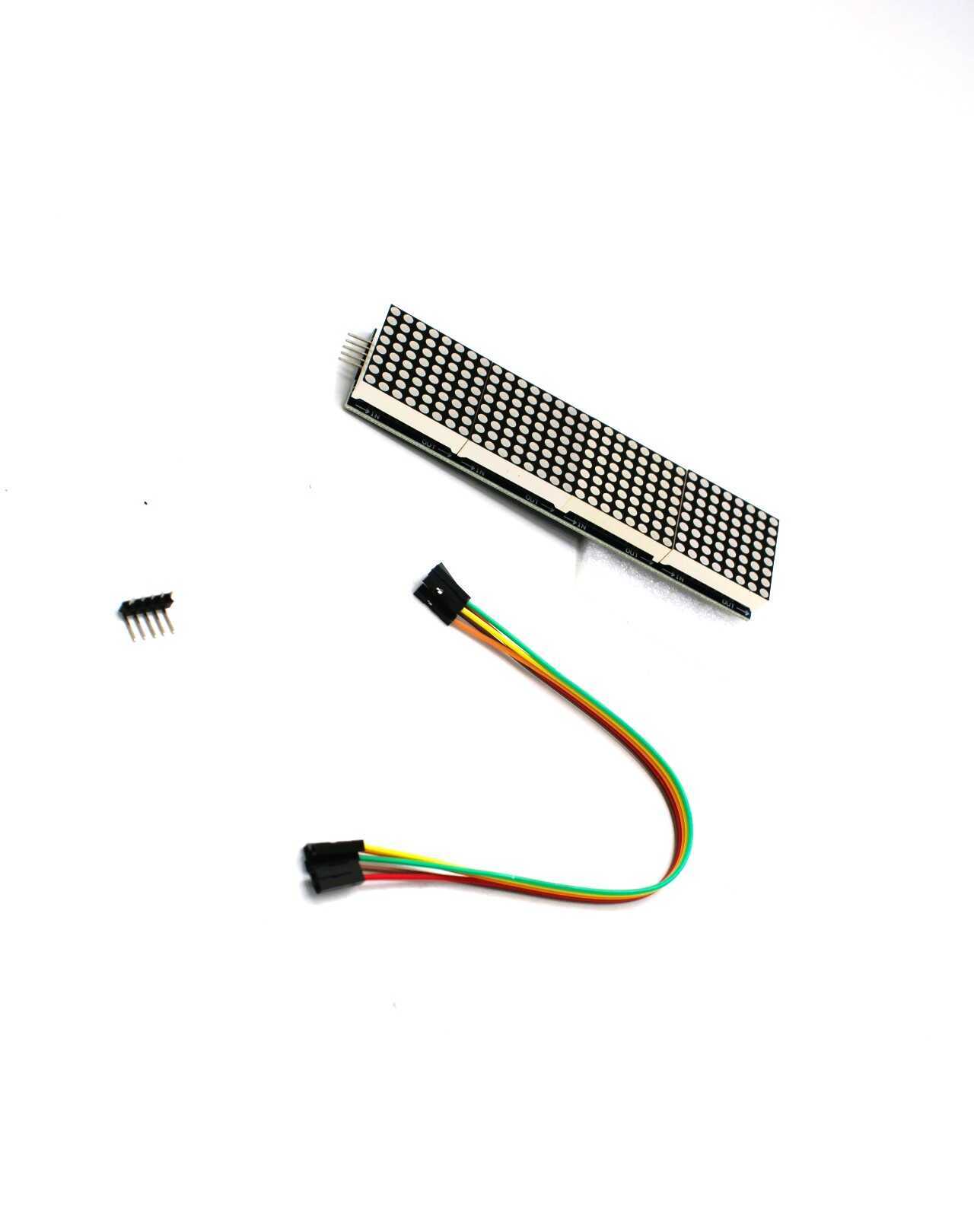

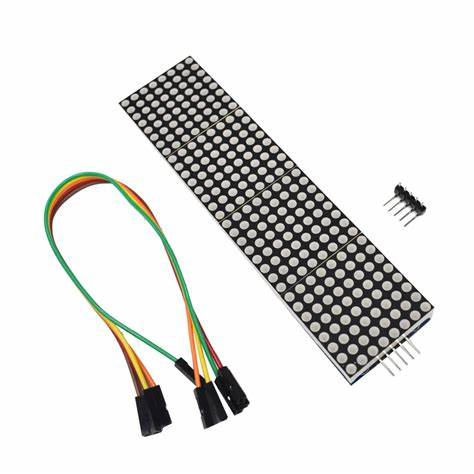

Package Includes:
1 x 4-in-1 Dot LED Matrix Module

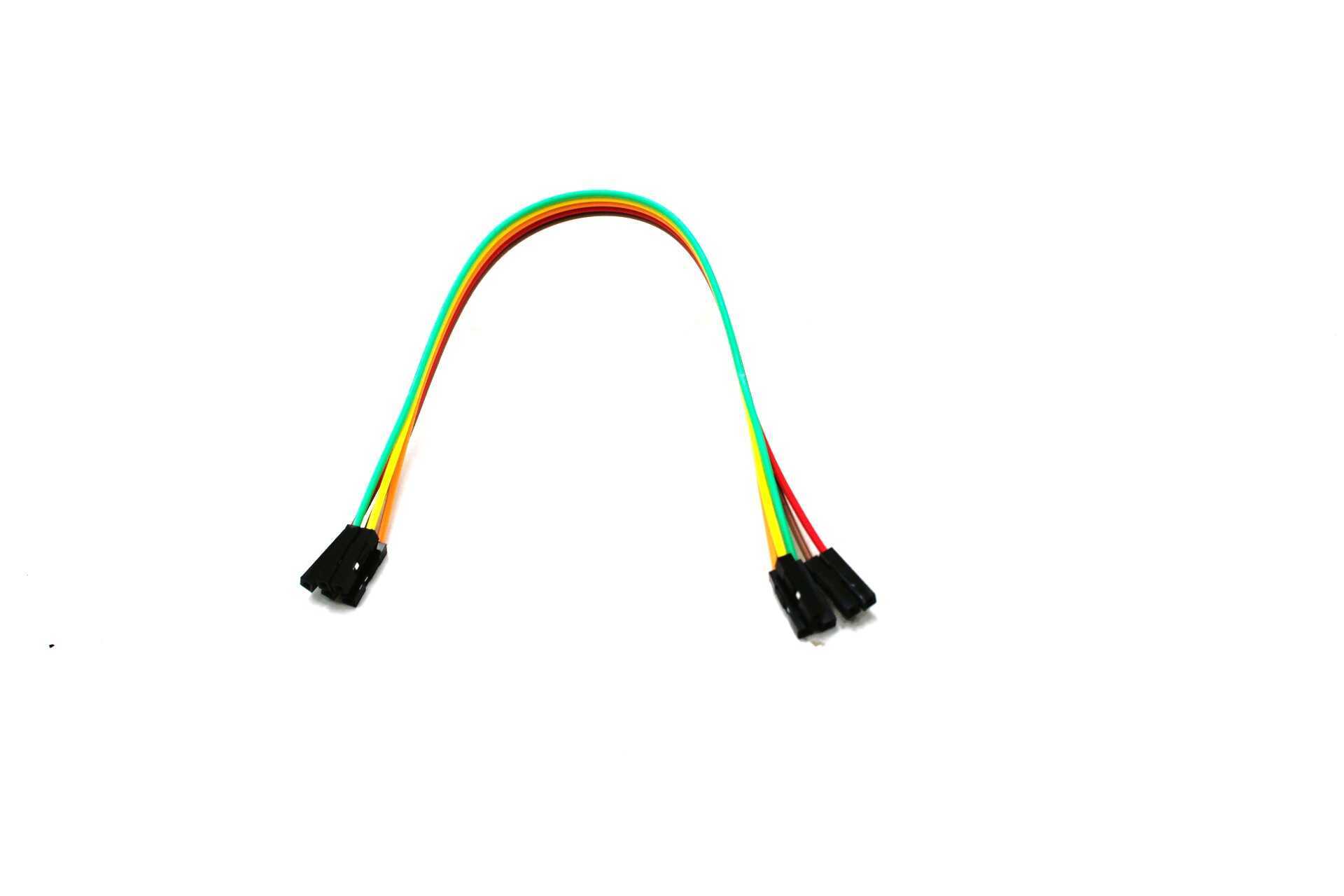

1 x Connecting Wire
Videos:
Gate Driver IC: Isolated and Non-Isolated MOSFET Drive
Gate Driver IC: Isolated and Non-Isolated MOSFET Drive A gate driver IC for MOSFET switching is one of...
Read More →
Touch Screen Button: Software UI Button Design
Understanding the touch screen button is essential for anyone working with electronics in India. This comprehensive guide covers...
Read More →
Overheating Protection: Thermal Shutdown Circuits
Table of Contents Why You Need Thermal Shutdown Thermal Fuse: One-Time Protection Bimetallic Thermostat: Resettable Protection Electronic Thermal...
Read More →Technical Specifications
| Model | MAX7219 |
|---|---|
| Package Quantity | 7219 pcs |
| SKU | AI0329 |
| Weight | 0.05 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAX7219 LED Dot Matrix 4 In 1 Display with 5P Line Module is a versatile led dot matrix display used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
