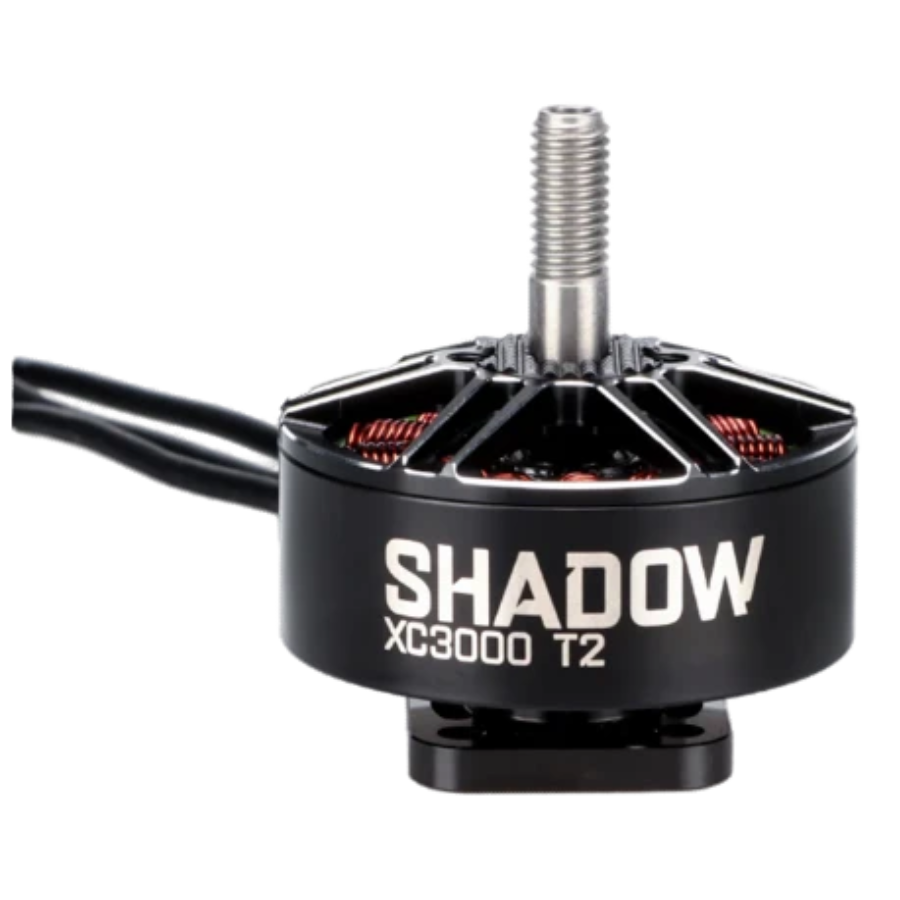

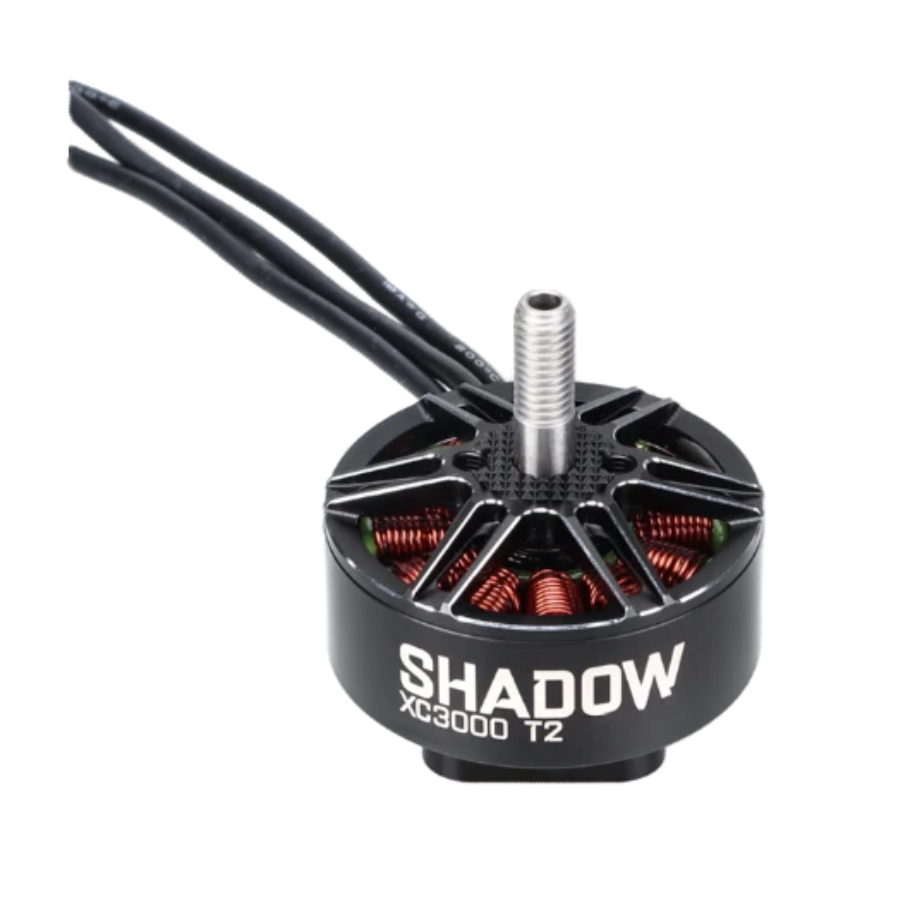

MAD – XC3000 T2 Shadow brushless motor 920KV (Pack Of 4)
Description:
The MAD Shadow XC3000 T2 920KV Brushless Motor is designed for aerial enthusiasts demanding high efficiency and powerful thrust. Built with aerospace-grade materials, this motor delivers stable performance under extreme conditions, making it ideal for FPV drones, professional multi-rotor setups, and high-end DIY aircraft. Weighing just 70g, it provides up to 2.5kg of thrust while maintaining optimal thermal control and energy efficiency. Engineered with precision balancing and a 12N14P configuration, the XC3000 T2 ensures minimal vibration and smooth operation. This pack of four motors guarantees consistent, synchronized power output for quadcopter performance you can trust.
Dimensional Diagram
Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.
Features:
- High Thrust Output – Delivers up to 2.5 kg thrust with minimal power loss.
- Precision Balanced Rotor – Maintains rotor balance ≤5mg for reduced vibration.
- Efficient Design – 920KV rating optimized for 6S–8S LiPo batteries.
- Lightweight Build – Weighs only 70g, ensuring better thrust-to-weight ratio.
- Advanced Cooling – Operates efficiently up to 96°C under load.
- Durable Construction – High-quality materials for long operational life.
- Smooth Mounting – Compatible with various props (7×4.5×3, 8×4.5×3, etc.).
- Plug & Fly Setup – Comes with pre-soldered 18# silicone wires (380mm).
Specification:
| Motor KV (RPM/V): | 920 |
|---|---|
| Model No: | XC3000 |
| Motor Type: | Brushless |
| Compatible LiPO Batteries: | 6S to 8S |
| Framework | Multi-rotor |
| Shaft Diameter (mm): | 5 |
| Motor Outer Diameter(mm) | 35.7 |
| Max. Efficiency Current (A) | ~16-22 (at 70–100% throttle) |
| Max. Power (W) | 1088 |
| Maximum Thrust (gm) | 2500 |
| No-load current (A) | 1 |
| No-Load Current (mA) | 1000 |
| No of poles | 14 |
| Operating Temperature (°C): | Max up to 96°C |
| Motor Size (mm): | D:35.7 × 40.55 |
Package Includes:

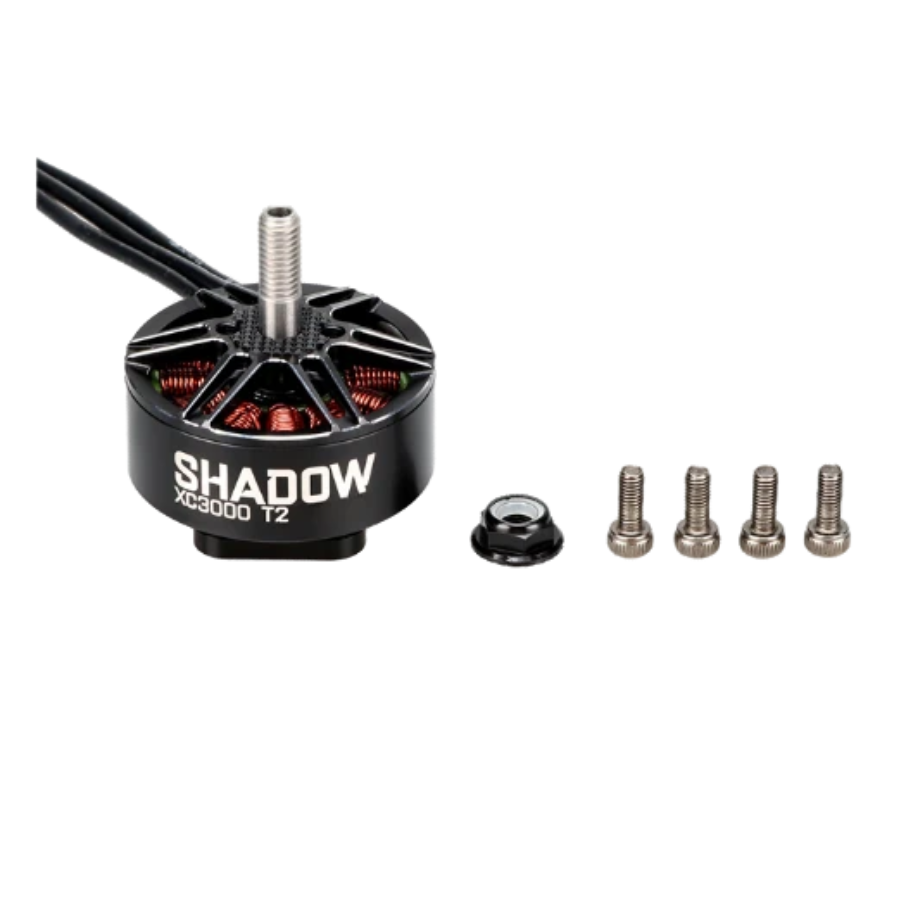

4 x MAD – XC3000 T2 Shadow brushless motor 920KV
1 x Accessory Set
High Speed DC Motor: 12V 300RPM to 10000RPM Buying Guide
Whether you are building a combat robot, an electric go-kart, a drone, or an industrial conveyor system, the...
Read More →
Stepper Motor Power Supply: Choosing Voltage & Amperage
Table of ContentsIntroductionStepper Motor Electrical BasicsUnderstanding Rated Voltage vs Operating VoltageCurrent Rating and Why It MattersThe Driver's Role...
Read More →
Drone Spare Parts: Essential Replacements You Need
No matter how carefully you fly, crashes are inevitable when you are learning or pushing the limits of...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 920KV |
| Package Quantity | 4 pcs |
| SKU | AI8108 |
| Weight | 0.555 kg |
| Availability | In Stock |
Applications & Use Cases
The MAD – XC3000 T2 Shadow brushless motor 920KV (Pack Of 4) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
