Hobbywing UAV M4006 Light 350KV Brushless Motor
Description:
which has higher requirements and stricter control on
incoming materials, process and assembly.

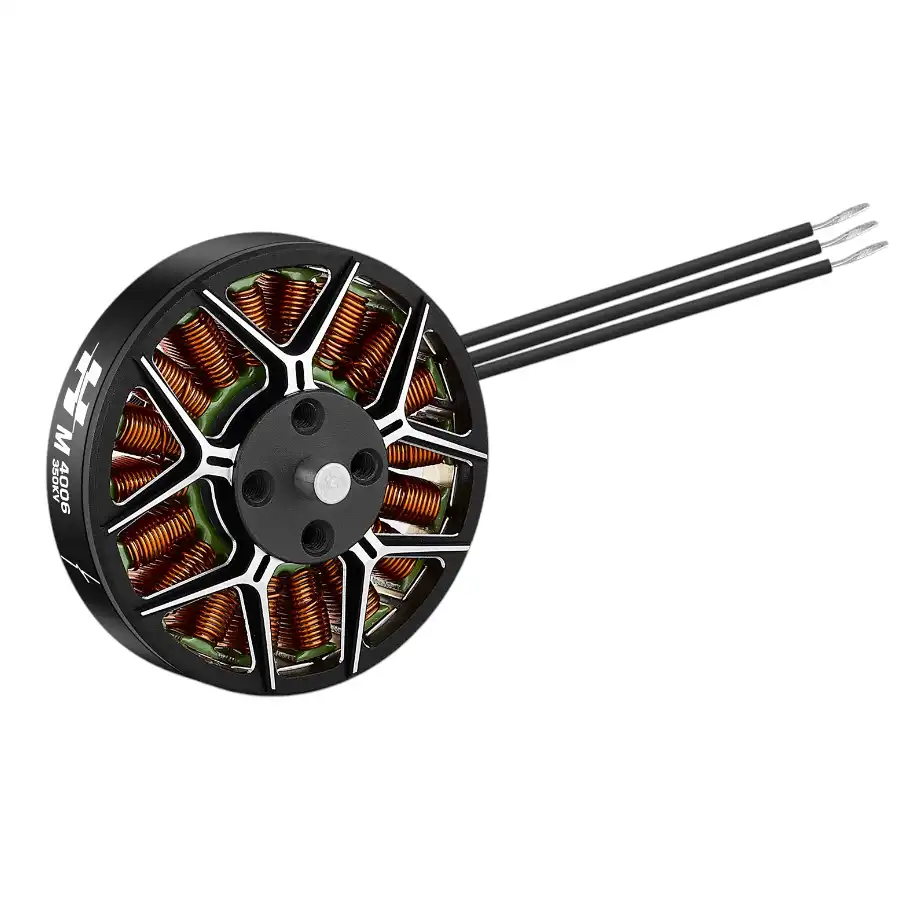

It adopts a new hollow shape design of the rotor
which is more recognizable.

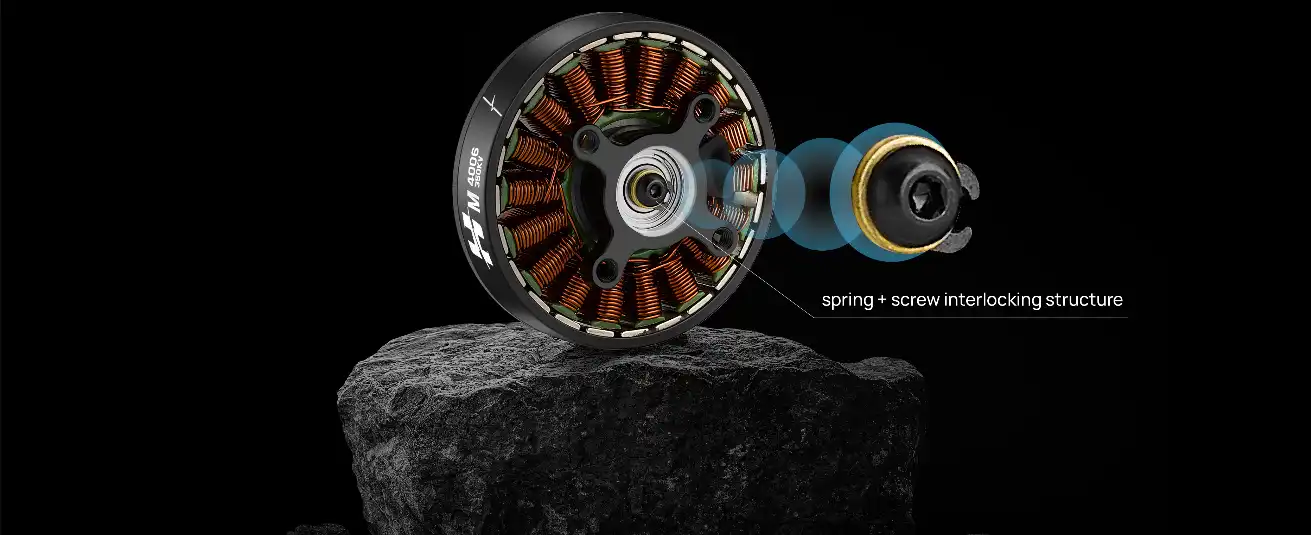

Shaft knurled design to avoid loosening.
The new magnetic circuit design optimizes the anti-emotive
force harmonics, so that its anti-emotive
force is higher sine and to better match
Specification :
| Model |
|
||||||||||||||||||||||||||||||||||||||||||||||
| Specification |
|
||||||||||||||||||||||||||||||||||||||||||||||
| Recommended Combinations |
|
| Voltage(V) | Propeller | Throttle(%) | Thrust(g) | Current(A) | Power Input(W) | Speed(RPM) | Efficiency(g/W) | Torque(N·m) | Power Output(W) | Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
| 23V (6S LiPo) | MSC 16×5.4 | 33% | 347 | 1.0 | 23.2 | 2320 | 15.0 | 0.07 | 19.7 | 71.2 |
| 35% | 374 | 1.1 | 25.9 | 2400 | 14.4 | 0.07 | 22.0 | |||
| 37% | 410 | 1.3 | 29.5 | 2503 | 13.9 | 0.08 | 25.0 | |||
| 39% | 453 | 1.5 | 33.8 | 2621 | 13.4 | 0.09 | 28.7 | |||
| 42% | 529 | 1.8 | 41.4 | 2814 | 12.8 | 0.10 | 35.2 | |||
| 45% | 613 | 2.2 | 50.1 | 3013 | 12.2 | 0.12 | 42.6 | |||
| 48% | 702 | 2.6 | 59.9 | 3209 | 11.7 | 0.14 | 50.9 | |||
| 51% | 793 | 3.1 | 70.7 | 3399 | 11.2 | 0.15 | 60.1 | |||
| 54% | 885 | 3.6 | 82.5 | 3583 | 10.7 | 0.17 | 70.1 | |||
| 57% | 976 | 4.1 | 95.1 | 3758 | 10.3 | 0.19 | 80.8 | |||
| 60% | 1066 | 4.7 | 108.5 | 3926 | 9.8 | 0.20 | 92.2 | |||
| 63% | 1154 | 5.3 | 122.6 | 4087 | 9.4 | 0.22 | 104.2 | |||
| 66% | 1242 | 6.0 | 137.4 | 4241 | 9.0 | 0.24 | 116.8 | |||
| 69% | 1329 | 6.6 | 152.9 | 4389 | 8.7 | 0.26 | 129.9 | |||
| 72% | 1417 | 7.3 | 169.1 | 4532 | 8.4 | 0.27 | 143.7 | |||
| 75% | 1506 | 8.1 | 186.2 | 4670 | 8.1 | 0.29 | 158.3 | |||
| 78% | 1595 | 8.9 | 204.2 | 4803 | 7.8 | 0.31 | 173.6 | |||
| 81% | 1687 | 9.7 | 223.2 | 4931 | 7.6 | 0.32 | 189.7 | |||
| 84% | 1781 | 10.6 | 243.3 | 5053 | 7.3 | 0.34 | 206.8 | |||
| 87% | 1876 | 11.5 | 264.3 | 5170 | 7.1 | 0.36 | 224.7 | |||
| 90% | 1971 | 12.4 | 286.3 | 5283 | 6.9 | 0.37 | 243.4 | |||
| 100% | 2251 | 15.6 | 357.8 | 5618 | 6.3 | 0.43 | 304.1 |
Package Include :
1 x Hobbywing UAV M4006 Light 350KV Brushless Motor
DigiSky Drone Registration Walkthrough: Step-by-Step India
Every drone owner in India must complete DigiSky registration before flying. The DGCA's DigiSky platform is the official...
Read More →
INAV vs Betaflight vs ArduPilot: Which Flight Firmware?
Table of Contents Overview: The Three Firmware Giants Betaflight – The FPV Racer's Choice INAV – Navigation Made...
Read More →
Altitude Hold Drone Build: Barometer and Optical Flow Sensor Fusion Guide
Table of ContentsWhat Is Altitude Hold and Why Does It Matter?Barometer vs Optical Flow: Understanding Each SensorHow Sensor...
Read More →Technical Specifications
| Brand | Hobbywing |
|---|---|
| KV Rating | 350KV |
| SKU | AI8306 |
| Weight | 0.0845 kg |
| Availability | In Stock |
Applications & Use Cases
The Hobbywing UAV M4006 Light 350KV Brushless Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Hobbywing product sourced from authorized channels
