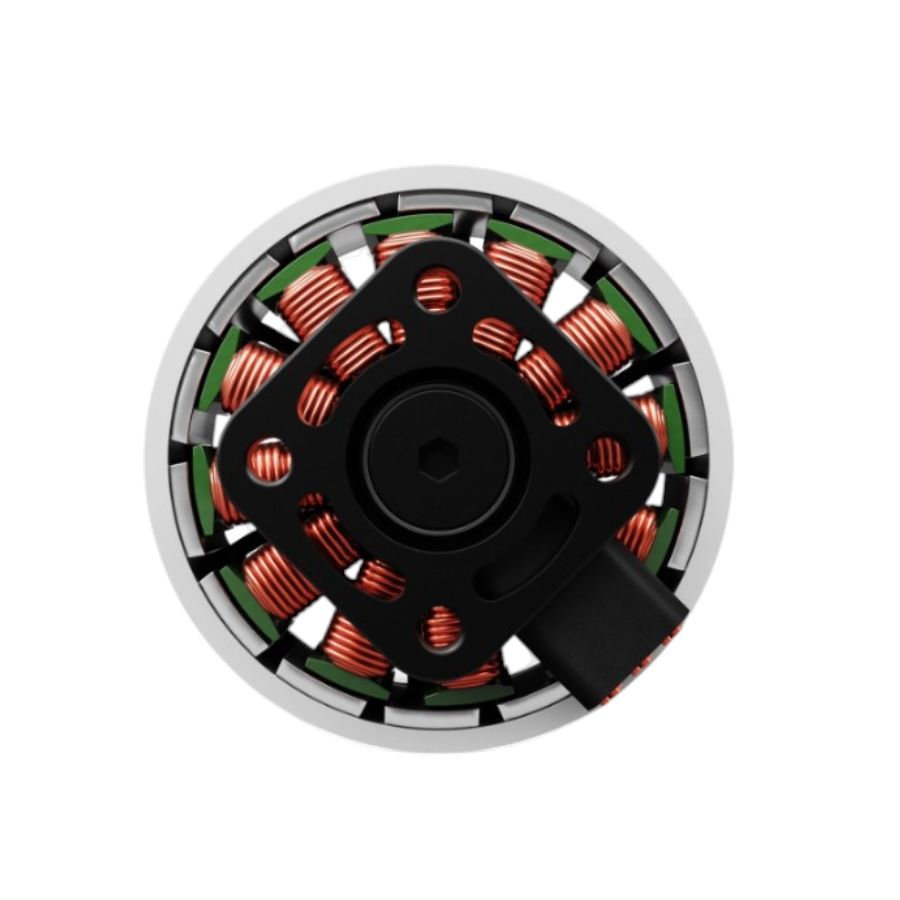

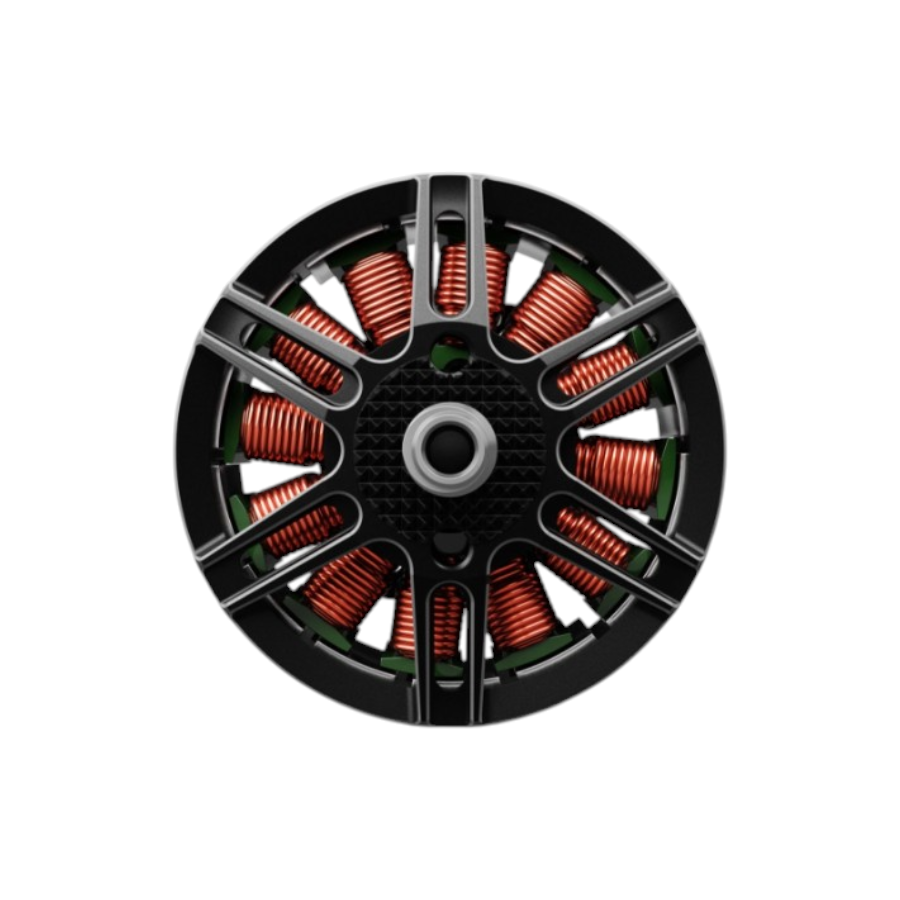

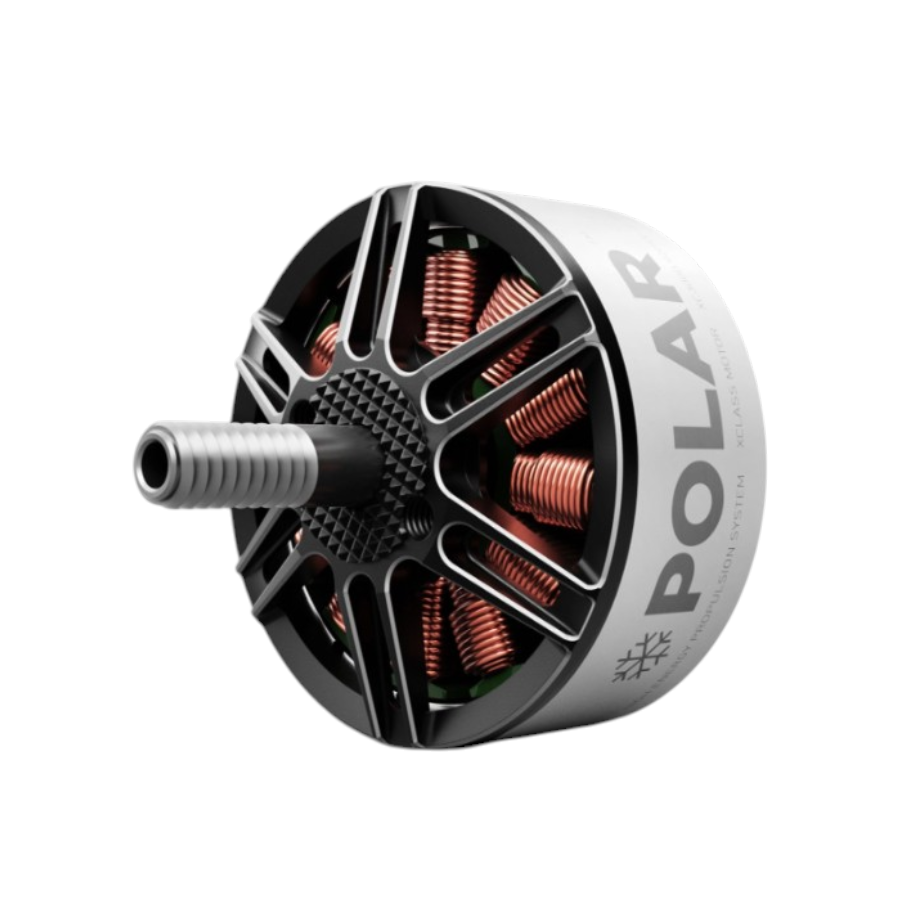

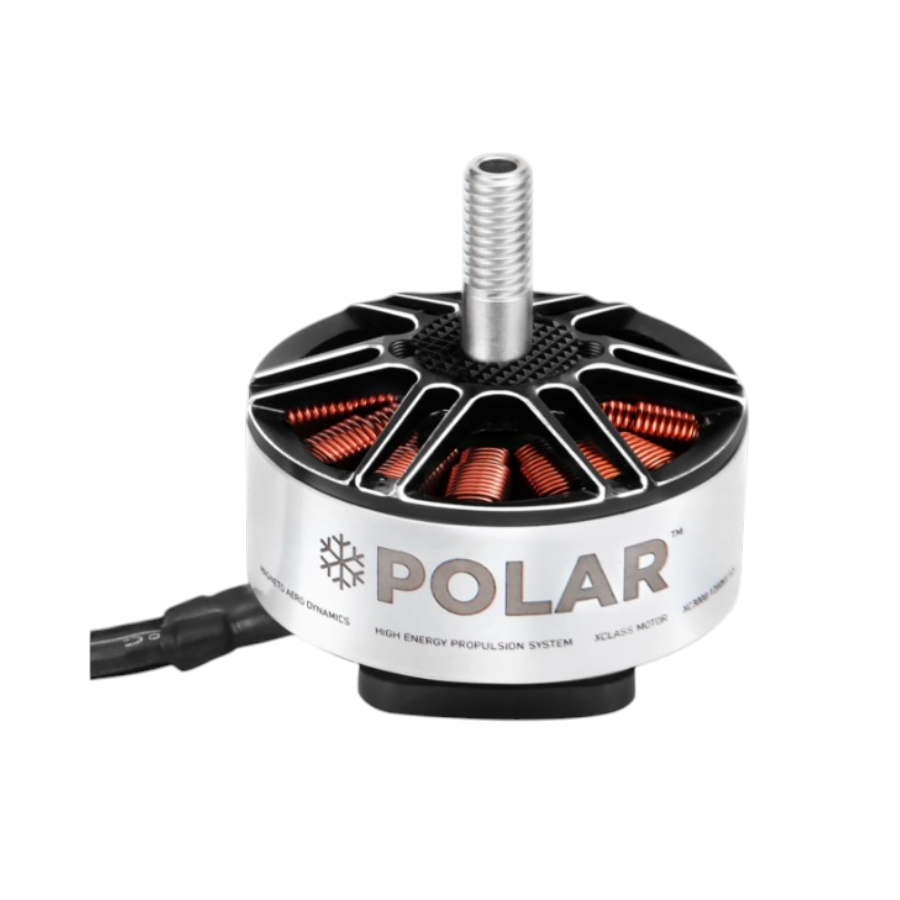

MAD – XC3000 POLAR Brushless Drone Motor 920KV (Pack Of 4)
Description:
Engineered for professional drone enthusiasts, the MAD Polar XC3000 920KV Brushless Motor delivers high thrust performance with exceptional efficiency. Designed to withstand demanding aerial tasks, this motor boasts a maximum thrust of up to 2.5 kg per rotor, optimized for 6S-8S LiPo battery setups. Weighing just 70g, it ensures a superior thrust-to-weight ratio, reducing overall drone payload. The motor features high-grade materials and superior thermal stability, allowing it to maintain performance even under high RPMs and elevated temperatures. Whether you’re building an FPV rig or an industrial quadcopter, the XC3000 ensures consistent power output and smooth operation. This pack of 4 motors is perfect for quadcopter builds demanding top-tier propulsion efficiency and precision.
Dimensional Diagram
Features:
- High-Efficiency 920KV Brushless Motor
- Max Thrust: Up to 2.5kg per rotor
- Lightweight – Only 70g per motor
- Operates with 6S to 8S LiPo batteries
- Precision-balanced for reduced vibrations
- Built for high thermal endurance (up to 96°C)
- Smooth and stable RPM control
- Optimized for 7035×3 to 8045×3 propellers
Specification:
| Motor KV (RPM/V): | 920 |
|---|---|
| Model No: | XC3000 |
| Motor Type: | Brushless |
| Compatible LiPO Batteries: | 6S to 8S |
| Framework | Multirotor / Quadcopter |
| Shaft Diameter (mm): | 5 |
| Motor Outer Diameter(mm) | 35.7 |
| Max. Efficiency Current (A) | ~10-20 |
| Max. Power (W) | 1088 |
| Maximum Thrust (gm) | 2500 |
| No-load current (A) | 1 |
| No-Load Current (mA) | 1000 |
| No of poles | 14 |
| Operating Temperature (°C): | -20 to 96 |
| Motor Size (mm): | D:35.7 × 40.55 |
| Weight (g): | 70(Each) |
Package Includes:

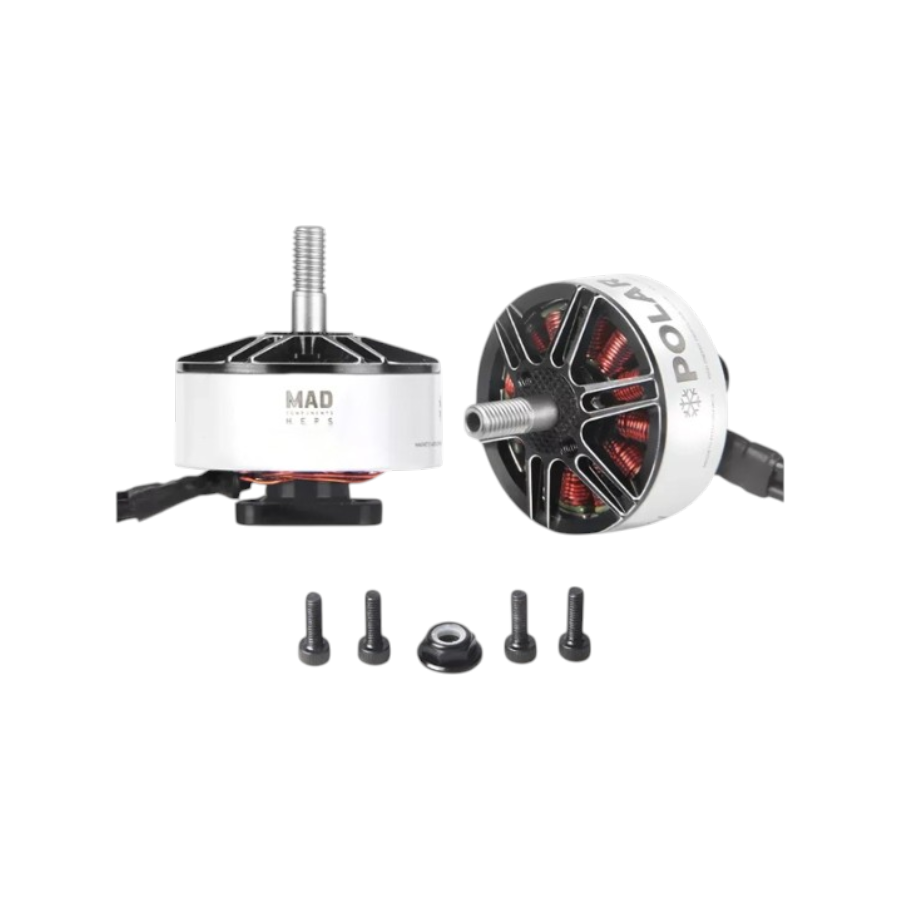

4 x MAD – XC3000 POLAR Brushless Drone Motor 920KV
1 x Accessory Set
