This is the Green variant of the MAD CO – FS 2006 MYTHIC FPV Drone motor (Green) 2500KV in Drone Motor. Available at ₹3,184.42 (₹2,698.66 + GST) with free shipping across India.

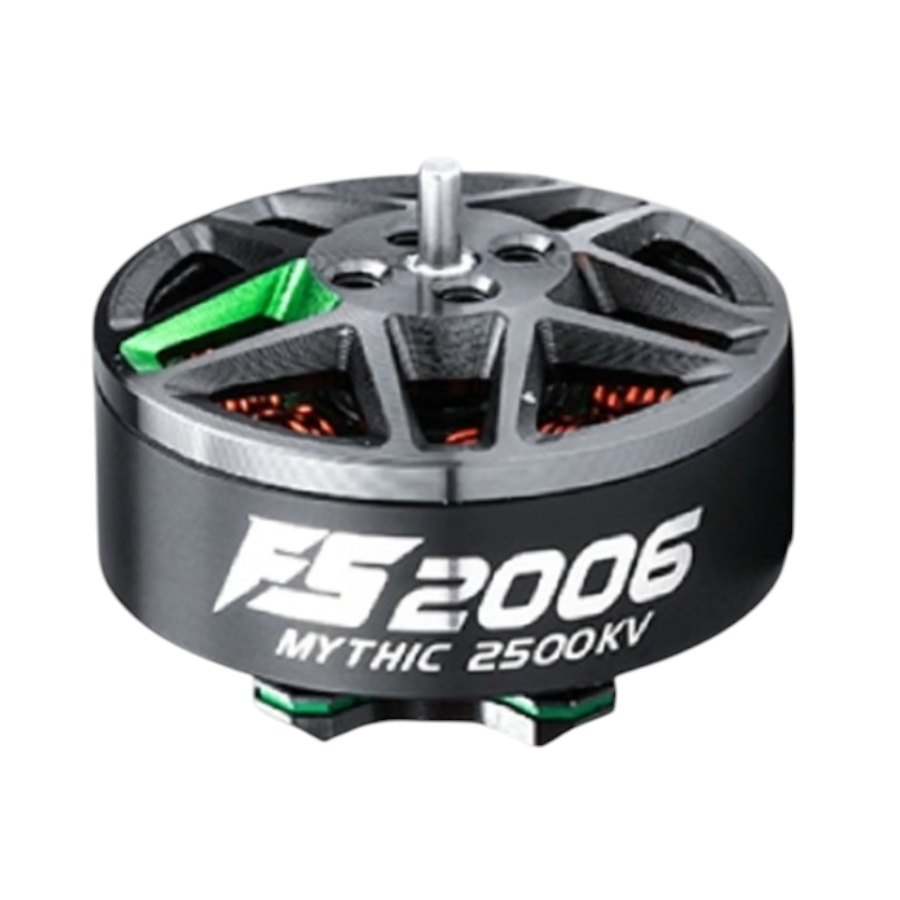

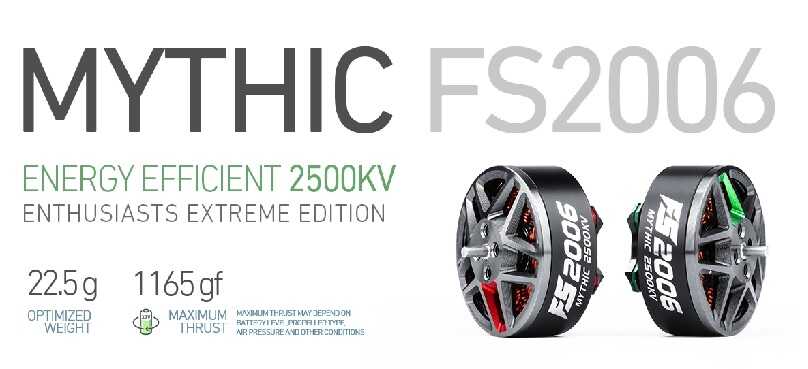

MAD CO – FS 2006 MYTHIC FPV Drone motor (Green) 2500KV
Description:
The FS series of MAD FPV brushless motors is specifically designed for freestyle flying. The development process involved six months of rigorous testing, resulting in refined aesthetics and improved functionality.
The main difference between the FS and BSC series is the lightweight titanium shaft and the 0.15mm silicon steel sheet, which increases efficiency. Additionally, the product has an aesthetically pleasing appearance due to secondary anodizing.
Features:
- Optimized for freestyle FPV flying
- Lightweight titanium hollow shaft
- Durable 0.15mm silicon steel laminations
- Dual-anodized finish for standout looks
- Smooth and powerful throttle response
- Compatible with 6S setups
Specifications:
| Max Current (A) | 32.1 |
|---|---|
| Internal Resistance(mOhm) | 50.6 |
| Max. Power (W) | 745.6 |
| Max Thrust | 1165 |
| Motor KV (RPM/V): | 2500 |
| Motor Type: | Brushless Motor |
| Compatible LiPO Batteries: | 6S |
| Framework | FS2006 |
| Shaft Diameter (mm): | 05 |
| Max. Efficiency Current (A) | 24 |
Package Includes:
1 x MAD CO – FS 2006 MYTHIC FPV Drone motor (Green) 2500KV
4S vs 6S LiPo for FPV Drones: Which Should You Choose?
4S vs 6S LiPo for FPV Drones: Which Should You Choose? One of the most debated topics in...
Read More →
Servo PWM Frequency: 50Hz vs 333Hz vs 1kHz — Trade-offs Explained
PWM frequency is one of the most frequently misunderstood aspects of servo motor control. Most beginners set their...
Read More →
Drone Insurance in India: Is It Mandatory? Complete Guide 2025
As drones become increasingly common across India — from hobbyist FPV pilots in residential areas to commercial operators...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 2500KV |
| Color | Green |
| SKU | AI8052 |
| Weight | 0.028 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD CO – FS 2006 MYTHIC FPV Drone motor (Green) 2500KV is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine MAD COMPONENTS product sourced from authorized channels
