This is the 60V variant of the MAD CO AMPX 40A (5-14S) Drone ESC HV 60V V2.0 in (ESC) Drone Speed Controller. Available at ₹10,267.56 (₹8,701.32 + GST) with free shipping across India.

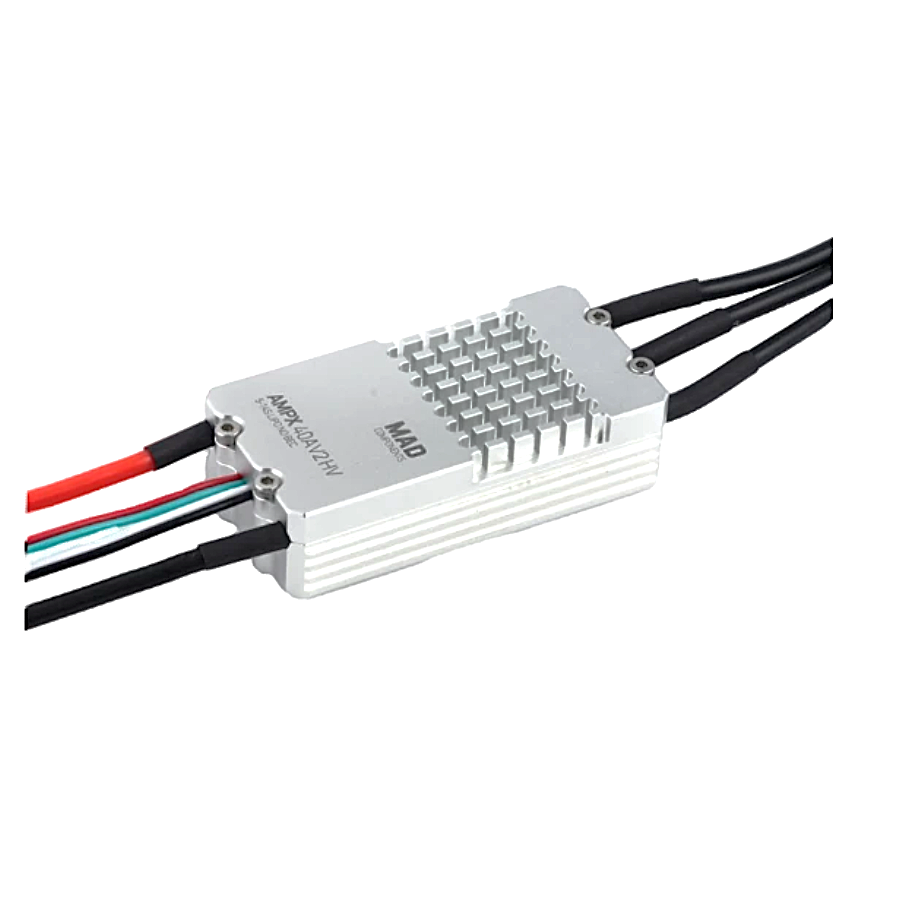

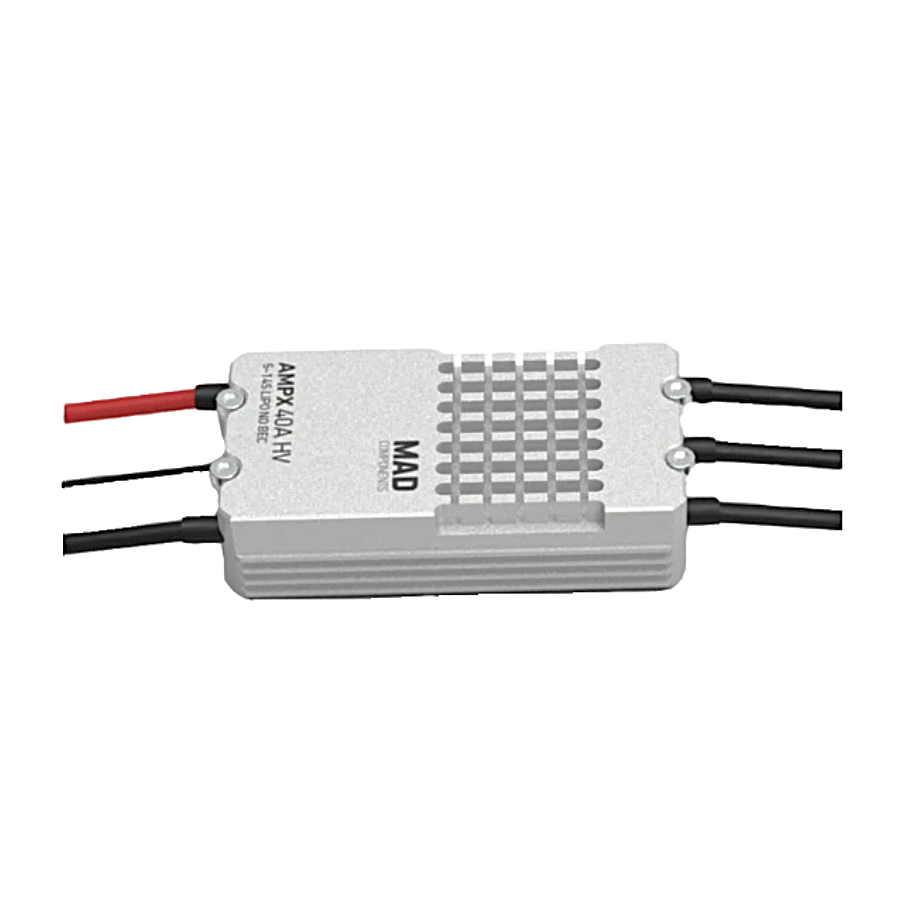

MAD CO AMPX 40A (5-14S) Drone ESC HV 60V V2.0
Description:
The MAD AMPX 40A (5-14S) Drone ESC HV V2.0 is a high-performance electronic speed controller designed for professional drones, VTOLs, and long-range UAVs. With waterproof construction and high-voltage support up to 60 V, it ensures stability and safety during demanding operations.
The V2.0 version includes a dual throttle interface (RPM + CAN), real-time data feedback via DroneCAN/CyphalCAN, and built-in overload protection with auto-restart. Firmware is upgradeable for future functionality. Compatible with 5-14S LiPo batteries, this ESC is perfect for users demanding reliability, advanced telemetry, and efficiency in aerial platforms. A must-have for mission-critical UAV systems.
Features:
- Supports 5-14S LiPo input (16V–64V)
- Dual throttle control: RPM + CAN protocol
- DroneCAN and CyphalCAN compatibility
- Waterproof design for harsh environments
- Real-time telemetry: voltage, current, temperature
- Upgradeable firmware for extended life
- Intelligent overload protection with automatic restart
Specifications:
| Item Type: | Drone ESC |
|---|---|
| Firmware: | Upgradeable / V2.0 |
| Voltage Rating: | 16V to 64V |
| Continuous Current (A): | 40 |
| Constant Current (A) | 40 |
| Burst Current (A) | 60 |
| Cells (LiPo) | 5S to 14S |
| BEC (Y/N): | NO |
| ESC Programming | Firmware upgradeable |
| Input Voltage (V): | 16 to 64 |
| Motor Type: | Brushless Motor |
| Operating Current (A): | 40 |
| Operating Voltage | 16V to 64V |
Package Includes:
1 x MAD CO AMPX 40A (5-14S) Drone ESC HV 60V V2.0
Custom Flight Controller Build with STM32
Building a custom flight controller with STM32 is the ultimate drone electronics project. You design the PCB, select...
Read More →
Agriculture Sprayer Drone: Complete Guide to Tank, Pump and Nozzle Selection
Table of ContentsWhy Agriculture Sprayer Drones Are Transforming Indian FarmingSprayer System Components OverviewTank Selection: Capacity, Material, and MountingPump...
Read More →
Drone Light Show: Synchronized LED Flight Formation
Table of Contents Understanding Drone Light Show Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| Operating Voltage | 60V |
| Current Rating | 40A |
| Package Quantity | 40 pcs |
| SKU | AI8087 |
| Weight | 0.191 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD CO AMPX 40A (5-14S) Drone ESC HV 60V V2.0 is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
