This is the Black variant of the MAD CO AMPX 80A (5-14S) Drone ESC Black V2.0 in Drone Motor. Available at ₹12,570.59 (₹10,653.04 + GST) with free shipping across India.

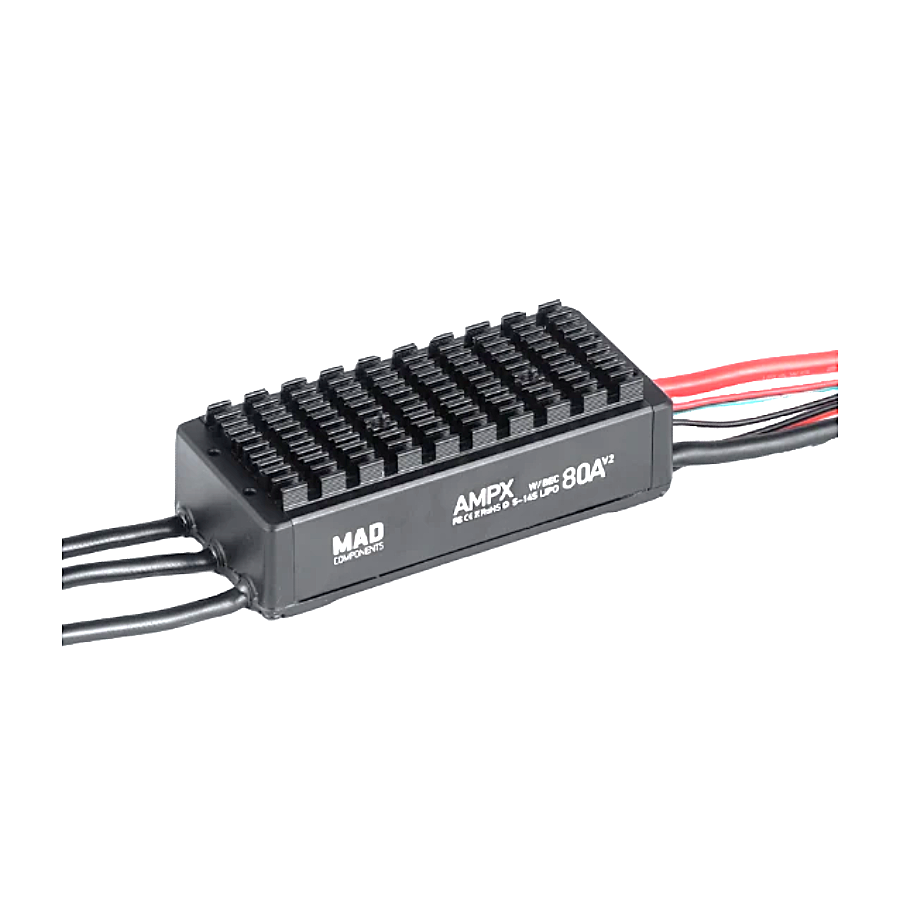

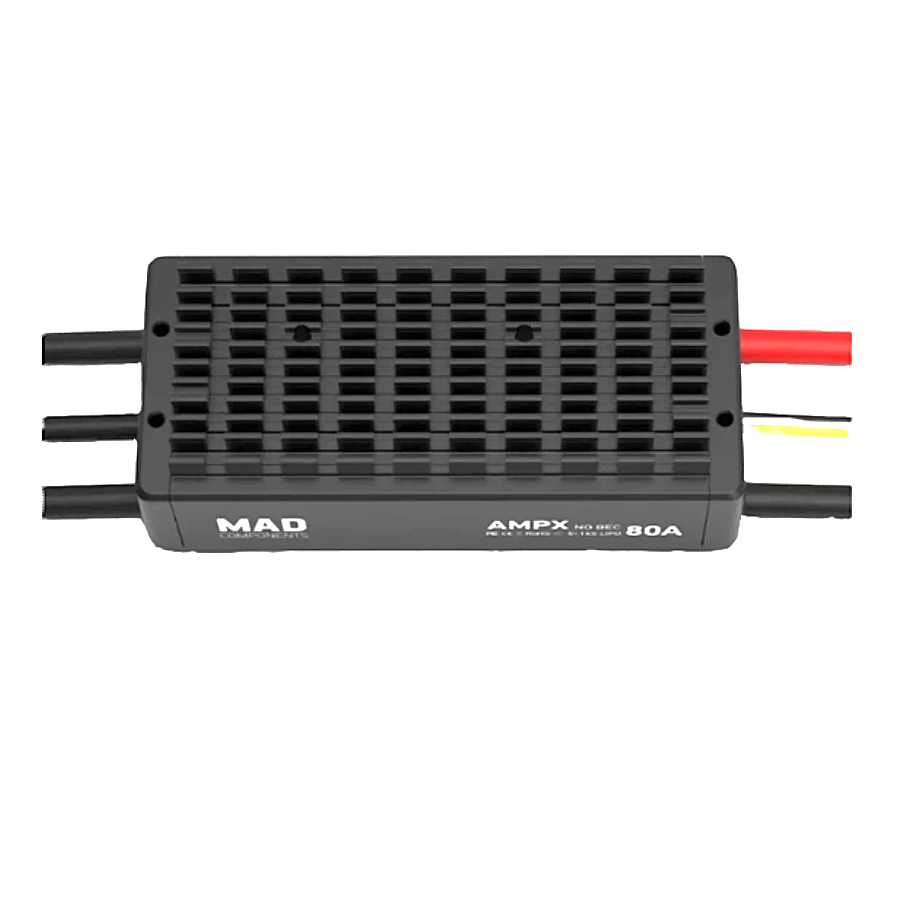

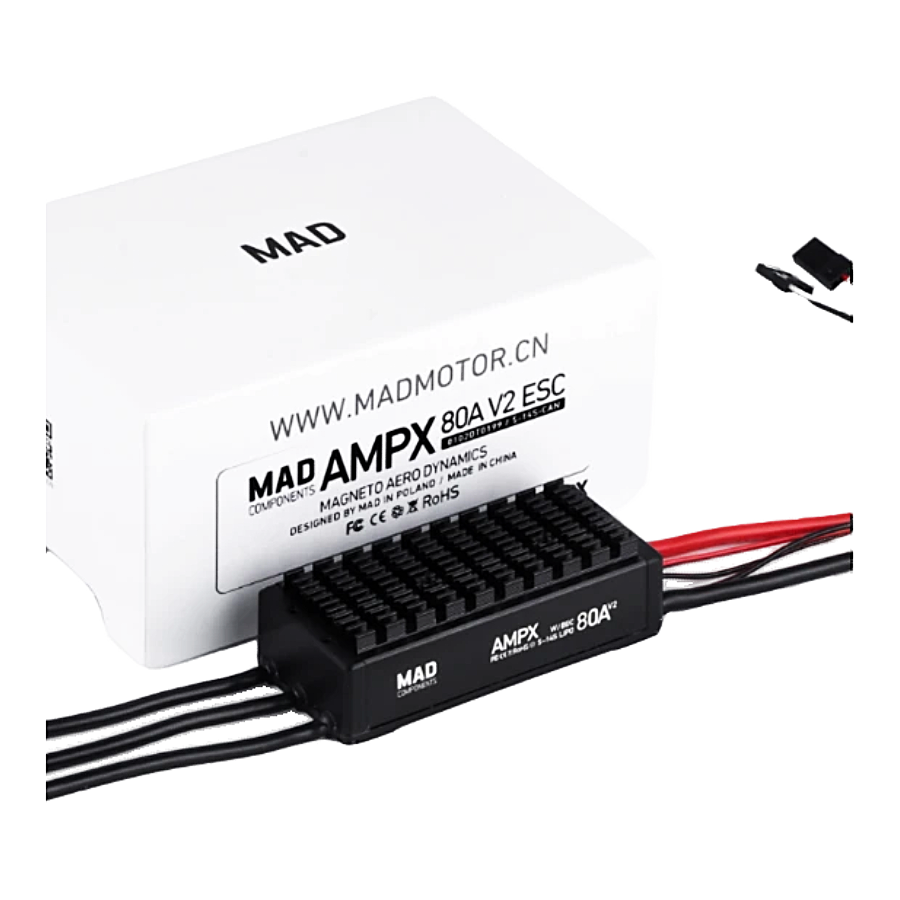

MAD CO AMPX 80A (5-14S) Drone ESC Black V2.0
Description:
Designed for serious drone enthusiasts and professionals, the MAD CO AMPX 80A (5-14S) Drone ESC Black V2.0 delivers powerful, efficient, and reliable motor control for high-performance multirotor aircraft like hexacopters, quadcopters, and octocopters. Supporting a wide voltage range from 16V to 64V (5–14S), this ESC ensures smooth throttle response with advanced RPM and CAN dual control.
Built with smart overload protection, real-time telemetry via DroneCAN/CyphalCAN, and firmware upgrade capabilities, the V2.0 provides maximum safety and customization. A compact form factor and integrated 5V/200mA BEC output make it ideal for tight builds. Whether you’re mapping, filming, or racing, the AMPX 80A V2.0 offers unmatched stability and performance. Recommended for professional drone applications needing reliable power and control.
Features:
- Supports 5–14S LiPo input (16V–64V)
- Dual throttle control: RPM + CAN
- Built-in BEC output: 5V/200mA
- Firmware upgradeable via USB
- Real-time data with DroneCAN or CyphalCAN
- Unlimited automatic restart overload protection
- Optimized for multirotor platforms
Specification:
| Item Type: | Drone ESC |
|---|---|
| Firmware: | Supports Dual Throttle Control, Upgradeable |
| Voltage Rating: | 16V to 64V |
| Continuous Current (A): | 80 |
| Constant Current (A) | 80 |
| Burst Current (A) | 100 |
| Cells (LiPo) | 5S to 14S |
| BEC (Y/N): | Yes |
| ESC Programming | Firmware upgradeable |
| Frequency (Hz) | Up to 500 |
| Input Voltage (V): | 16 to 64 |
| Motor Type: | Brushless Motor |
| Operating Current (A): | Up to 80 |
| Operating Voltage | 16 to 64 |
| Max. Output Current (A) | 100 |
| Length (mm): | 127 |
| Width (mm): | 87 |
| Height (mm): | 62 |
Package Includes:
1 x MAD CO AMPX 80A (5-14S) Drone ESC Black V2.0
Drone Maintenance Checklist: Pre and Post Flight
Table of Contents Understanding Drone Maintenance Checklist Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Best Drone Flight Controllers Under ₹5000 in India
Table of Contents Why the Flight Controller is the Brain of Your Drone Types of Flight Controllers: FPV...
Read More →
4S vs 6S LiPo for FPV Drones: Which Should You Choose?
4S vs 6S LiPo for FPV Drones: Which Should You Choose? One of the most debated topics in...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| Current Rating | 80A |
| Package Quantity | 80 pcs |
| Color | Black |
| SKU | AI8069 |
| Weight | 328 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD CO AMPX 80A (5-14S) Drone ESC Black V2.0 is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
