BotStack BotWing F722 FC Solderless Design and BotDrive AM32 4-in-1 ESC 55 Amps

BotStack BotWing F722 FC Solderless Design and BotDrive AM32 4-in-1 ESC 55 Amps

Description:

Power meets precision with the BotStack BotWing F722 FC Solderless Design and BotDrive AM32 4-in-1 ESC 55 Amps  . Designed for FPV racers, freestyle pilots, and advanced drone enthusiasts, this stack delivers smooth, responsive flight control and reliable power in a compact, lightweight package.

With full software compatibility, BotWing F722 FC and BotDrive 55A ESC Combo supports freestyle tricks, racing, or autonomous navigation, while robust onboard tools make integration with GPS, receivers, VTX modules, and LEDs seamless.

The solderless design ensures quick and easy installation, letting you focus on flying rather than wiring. Perfect for racing, exploring, mapping, or precision maneuvers, this combo gives pilots complete control and confidence in every flight.

Note: Refer ATTACHMENTS section for more info. regd. the product.

Features:

• Precise Flight Control: Smooth and responsive handling for any drone mission.
• Reliable Power Delivery: Supports high-performance maneuvers effortlessly.
• Flexible Software Support: Works with popular flight software for all build types.
• Easy Integration: Compatible with GPS, VTX, LED modules, and other accessories.
• Compact & User-Friendly: Lightweight, solderless design for fast, hassle-free setup.

Specification:

Specifications:

BotWing F722 Flight Controller Specifications:

• MCU: STM32F722
• Gyro (IMU): ICM42688P
• Motor Outputs: 4
• Power Input: 2S–6S LiPo
• Firmware: BetaFlight & iNav (Target: BOTWING F722)
• OSD Chip: AT7456E
• BlackBox Flash: 32 MB
• Buzzer Pads: BZ+ / BZ- (5V)
• i2C Pads: SDA & SCL for sensors (e.g., magnetometer)
• RSSI Pad: Named RSSI on front side
• Boot Button: Activates DFU mode for flashing
• LED Pads: 5, supported by BetaFlight
• Connector: BetaFlight standard
• Weight: 9.35 g
• Barometer: DPS310XTSA1
• USB Port: Type-C
• Power Regulators: 5V 3A, 9V 2.5A, 3.3V 500 mA
• USB 4.5V: For Receiver & GPS module
• ESC Signal Pads: M1–M4 + 2 servos on top side
• UARTs: UART1 (VTX), UART2 (Receiver), UART3 (Camera), UART4 (ESC), UART6 (GPS)
• Camera Control Pad: Present
• Dimensions: 40 × 40 mm
• Mounting: 30.5 × 30.5 mm (3.2 mm hole)

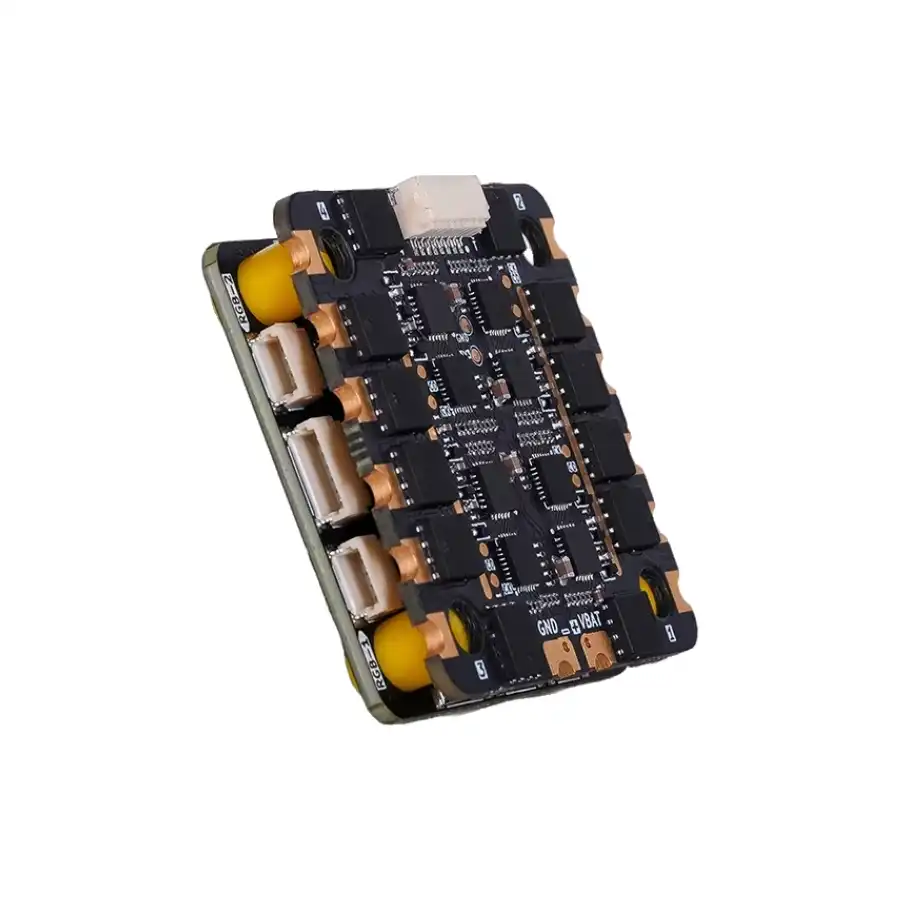

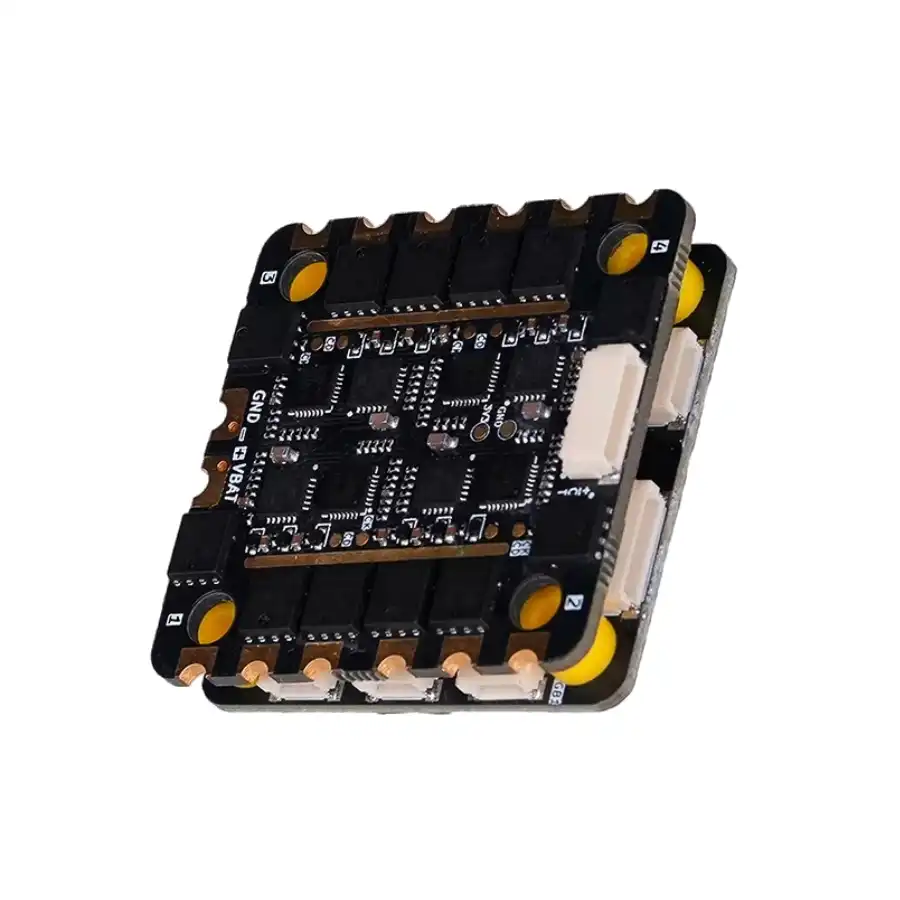

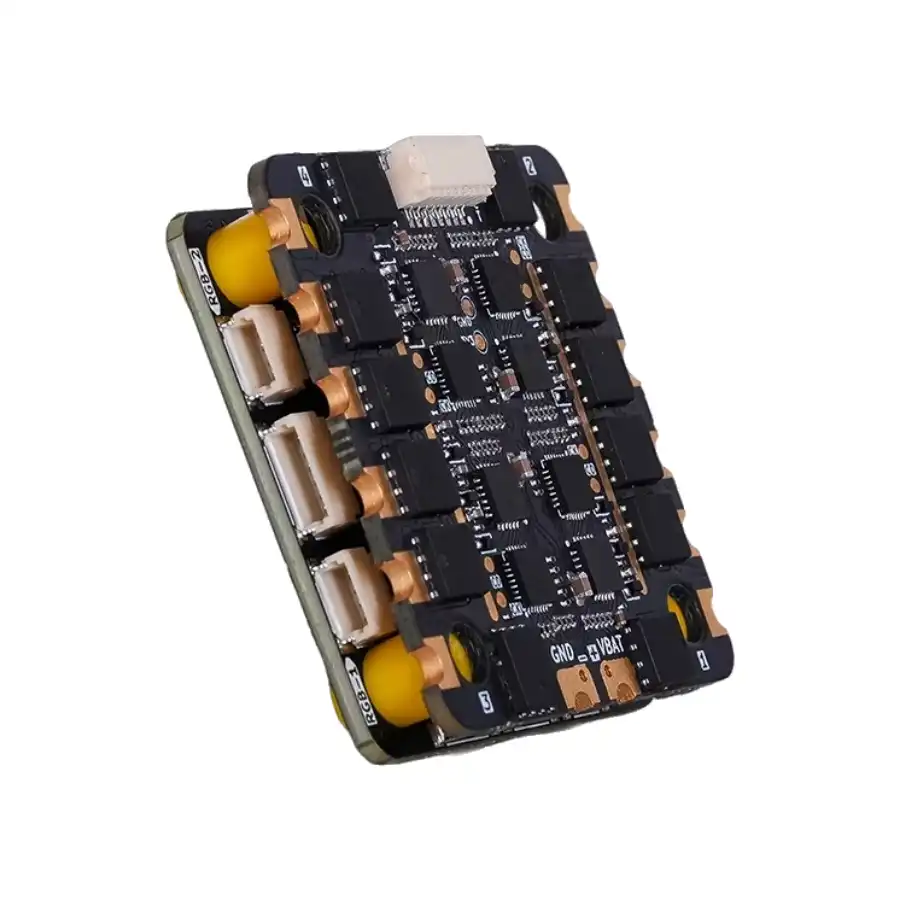

AM32 4-in-1 55A ESC Specifications:

• MCU: AT32F421G8U7
• Mosfet Driver: FD6288Q
• Firmware: AM32_AT32PB4_540_F421
• ESC Configurator Download: AM32 Configurator
• Continuous Current: 55A × 4
• Burst Current: 60A × 4
• External Capacitor: 47µF 35V Low ESR
• ESC Protocols: DSHOT 300/600, PWM
• Telemetry: Supported
• Power Input: 2S–6S LiPo
• Power Output: VBAT
• Current Sensor: Supported
• Mounting: 30.5 × 30.5 mm (hole-to-hole)
• Overall Dimensions: 41 × 41 mm (edge-to-edge)
• Mounting Hole: M4 (diameter 4.2 mm)
• Weight: 12.5 g

Package Includes:

1 x BotWing F722 FC and BotDrive 55A ESC Combo
BotWing F722 Flight Controller Includes:

1 x USB Protector

5 x M3 Anti-Vibration Silicone Grommet Insert
10 x Connectors Cables Including –

5 x 150 & 180 mm length (4pin cable),

2 x 50 & 30 mm length (8pin cable),

2 x 60 & 80 mm length (6pin cable),

1 x 60 mm length (5pin cable)
AM32 4-in-1 55A ESC Includes:

1 x 35V 1000uF low ESR Capacitor

4 x M3 Anti-Vibration Silicone Grommet Insert

1 x XT60 Power cable(70mm)

1 x JST-SH 65 mm length ,

1 x JST-SH 45 mm length 8pin cable (for FC-ESC connection)
