MAD 4014 IPE 400KV Brushless Drone Motor (Pack OF 2)
Description:
The MAD IPE 400KV Brushless Drone Motor (Pack of 2) is built for heavy-duty aerial performance in cinematography, industrial delivery, and tactical drone applications. Each IPE 400KV Brushless Drone Motor supports payloads up to 1.6 kg per rotor and delivers a peak thrust of 3.4 kg, making it ideal for setups involving 8K cinema cameras, urban logistics, or surveillance UAVs.
With a robust 168 g design, high-quality anti-corrosive windings, and centrifugal heat dissipation, it ensures stability, efficiency, and long operational life under demanding conditions.
Dimensional diagram:
Features:
- Supports up to 3.4 kg thrust per motor
- Ideal for Sony Venice 2 + DJI Ronin 4D setups
- Integrated cooling with IP35 protection
- 8km+ delivery range and VTOL compatibility
- Radar-absorbent upgrade available (on request)
Applications:
- Heavy-Lift Cinematography:
- Safely carries Sony Venice 2 + DJI Ronin 4D (3.2kg payload)
- Ultra-smooth operation for 8K video stabilization
- Industrial Logistics
- 8km delivery range with 2kg cargo (VTOL compatible)
- Shock-resistant design for urban environments
- Defense & Surveillance
- Radar-absorbent coating option available
Specification:
| Motor KV (RPM/V): | 400 |
|---|---|
| Model: | IPE Brushless Drone Motor |
| Model No: | 4014 |
| Motor Type: | Brushless Motor |
| Compatible LiPO Batteries: | 6S |
| Shaft Diameter (mm): | 4 |
| Max. Power (W) | 612 |
| Maximum Thrust (gm) | 3400 |
| No of poles | 12 (24 poles) |
| Bearing | 685ZZ*1, 695ZZ ×1 |
| Propeller Mount Holes | D:12 M3×4 |
| Motor Mount Holes | D:25 M3×4 |

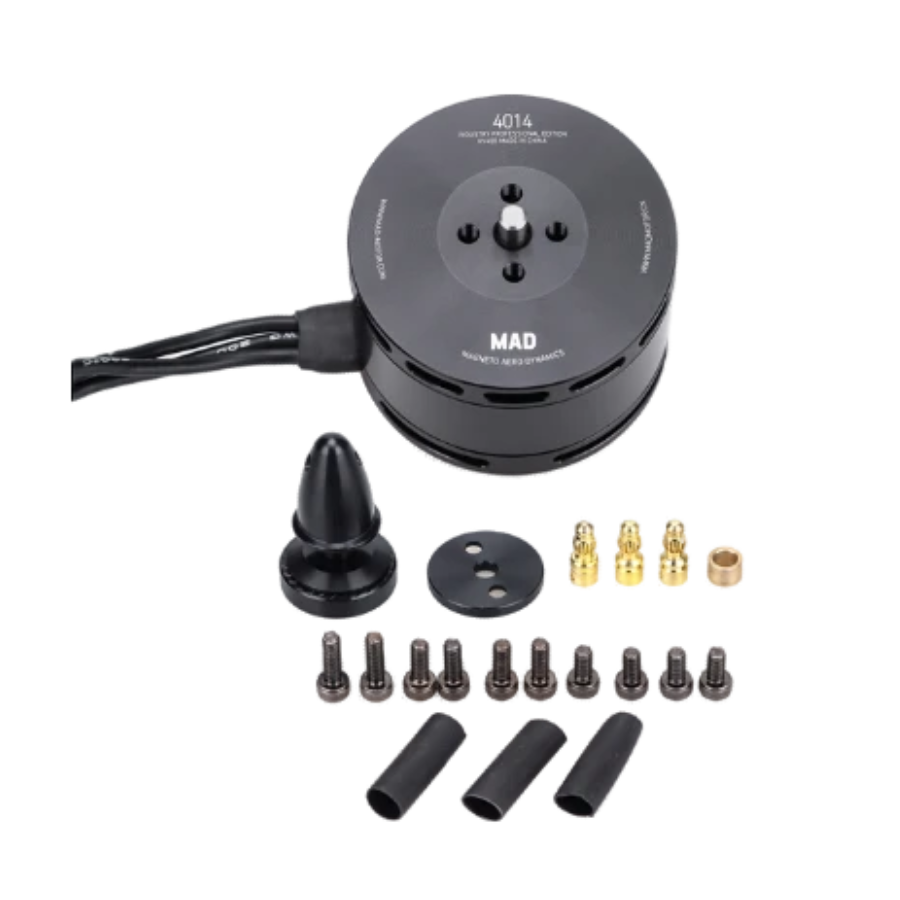

Package Includes:
2 × MAD 4014 IPE 400KV Brushless Drone Motor
2 × Propeller Plates
2 × Prop Adapters
2 × M6 Bullet Adapter Plates
6 × 3.5mm Bullet Connectors
2 × Ø4–6 Adapter Rings
6 × Heat Shrink Tubes
8 × M3×6 Motor Mounting Screws
8 × M3×8 Prop Adapter Screws
4 × M3×10 Propeller Screws
2 × Branding Stickers
DJI FPV System: Digital HD Video for Racing Drones
Table of Contents Overview of DJI FPV Video System DJI Air Unit and Vista Components DJI FPV Goggles...
Read More →
FPV Drone Crash Repair Guide: Fix Arms, Motors and ESCs Like a Pro
Table of ContentsPost-Crash Assessment: What to Check FirstRepairing and Replacing Broken ArmsDiagnosing Motor DamageMotor Replacement Step-by-StepDiagnosing ESC DamageESC...
Read More →
Servo Motor Buying Guide India: Micro, Standard, and Digital
Whether you are building a robotic arm, a pan-tilt camera mount, or an automated door lock, choosing the...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 400KV |
| Package Quantity | 2 pcs |
| SKU | AI8092 |
| Weight | 0.4 kg |
| Availability | In Stock |
Applications & Use Cases
The MAD 4014 IPE 400KV Brushless Drone Motor (Pack OF 2) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine MAD COMPONENTS product sourced from authorized channels
