This is the CCW rotation variant of the Hobbywing X9 Plus G2L Motor -CCW in Drone Motor. Available at ₹23,079.62 (₹19,559.00 + GST) with free shipping across India.

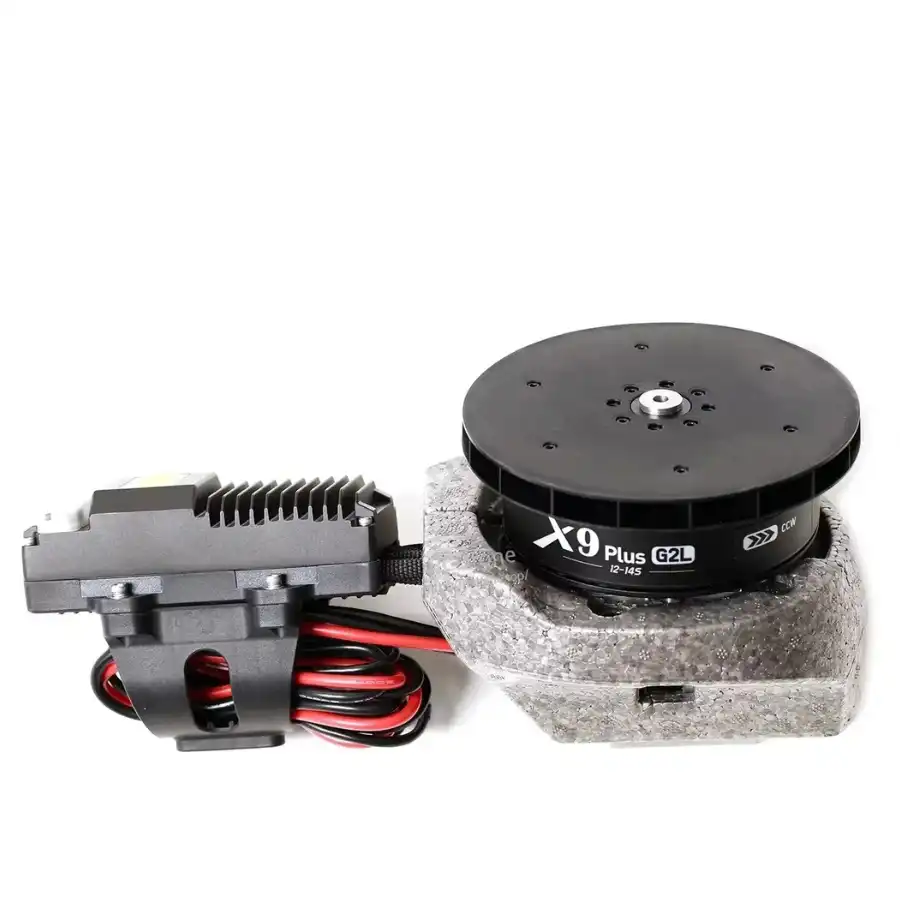

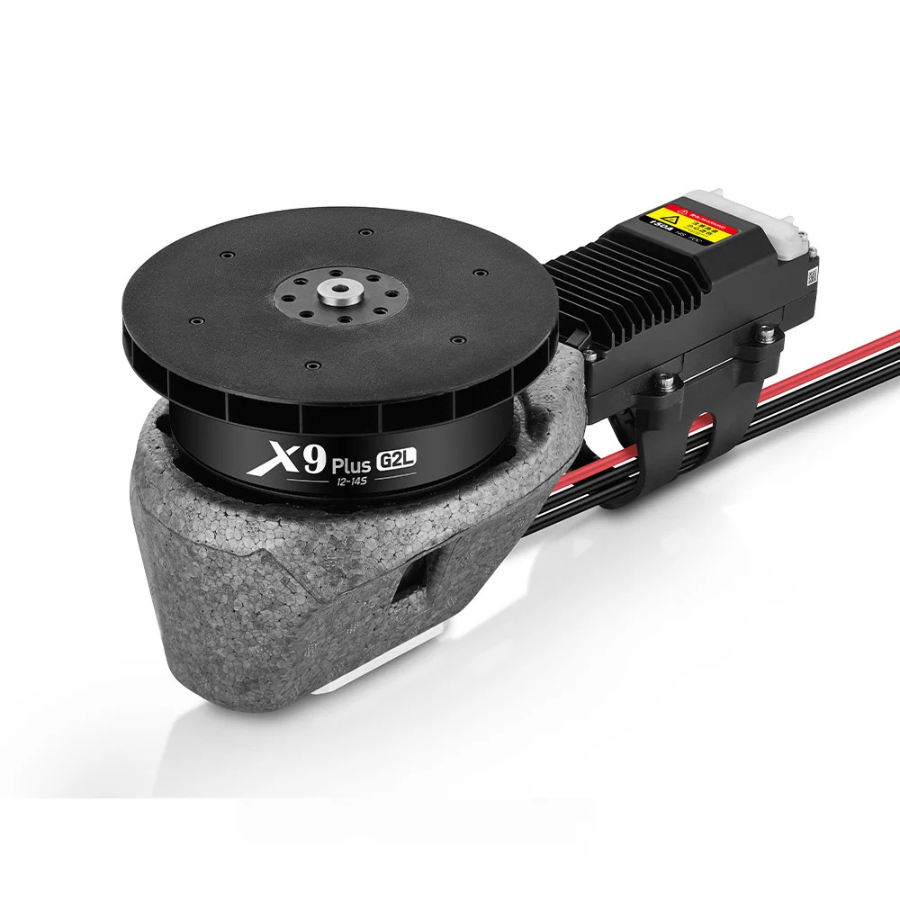

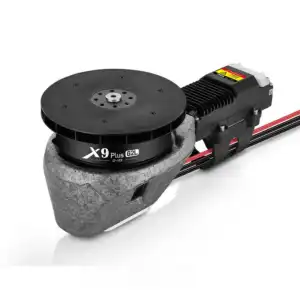

Hobbywing X9 Plus G2L Motor -CCW
Description:
The HOBBYWING X9 Plus G2L Motor – CWW is a high-performance brushless motor designed for heavy-lift multirotor UAVs and industrial drone applications. The clockwise (CW) rotation configuration is intended for compatible propulsion setups, helping provide reliable thrust and stable flight performance. It is suitable for professional applications such as agricultural spraying, aerial surveying, mapping, and industrial operations. For optimal performance, the motor should be used with compatible propellers, ESCs, and battery systems.

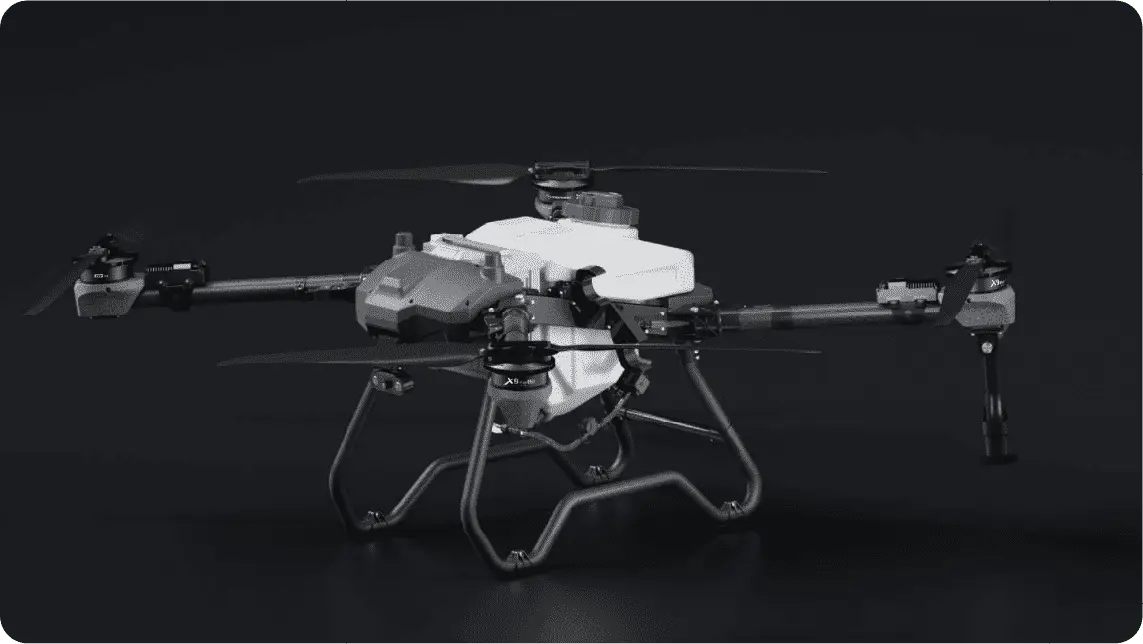

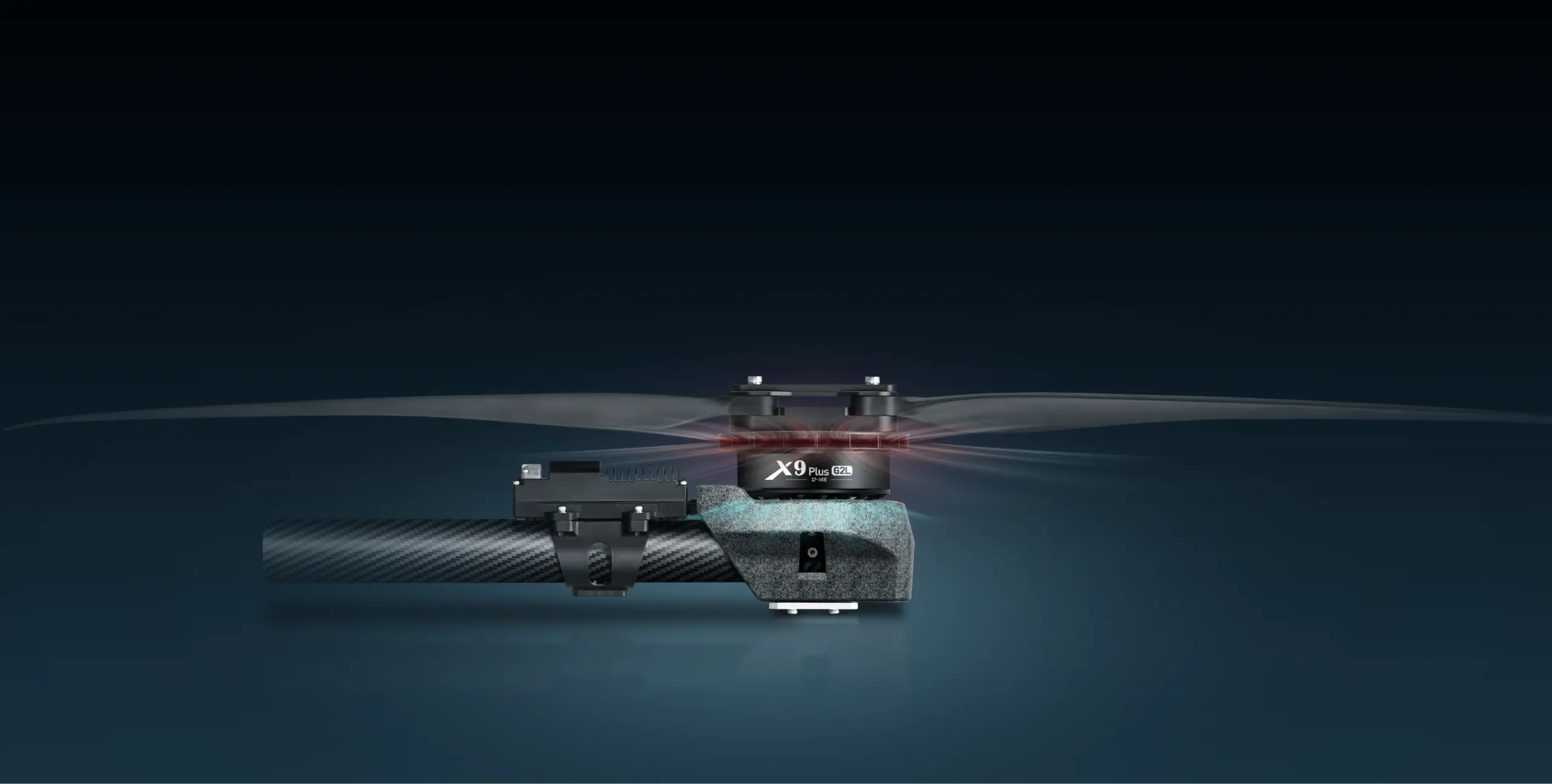

The X9 Plus G2L is an integrated propulsion system with a motor, ESC, and propeller, designed for professional agricultural and industrial UAVs. It supports 12S–14S LiPo batteries, delivers up to 28 kg maximum thrust, and has an IPX6 protection rating

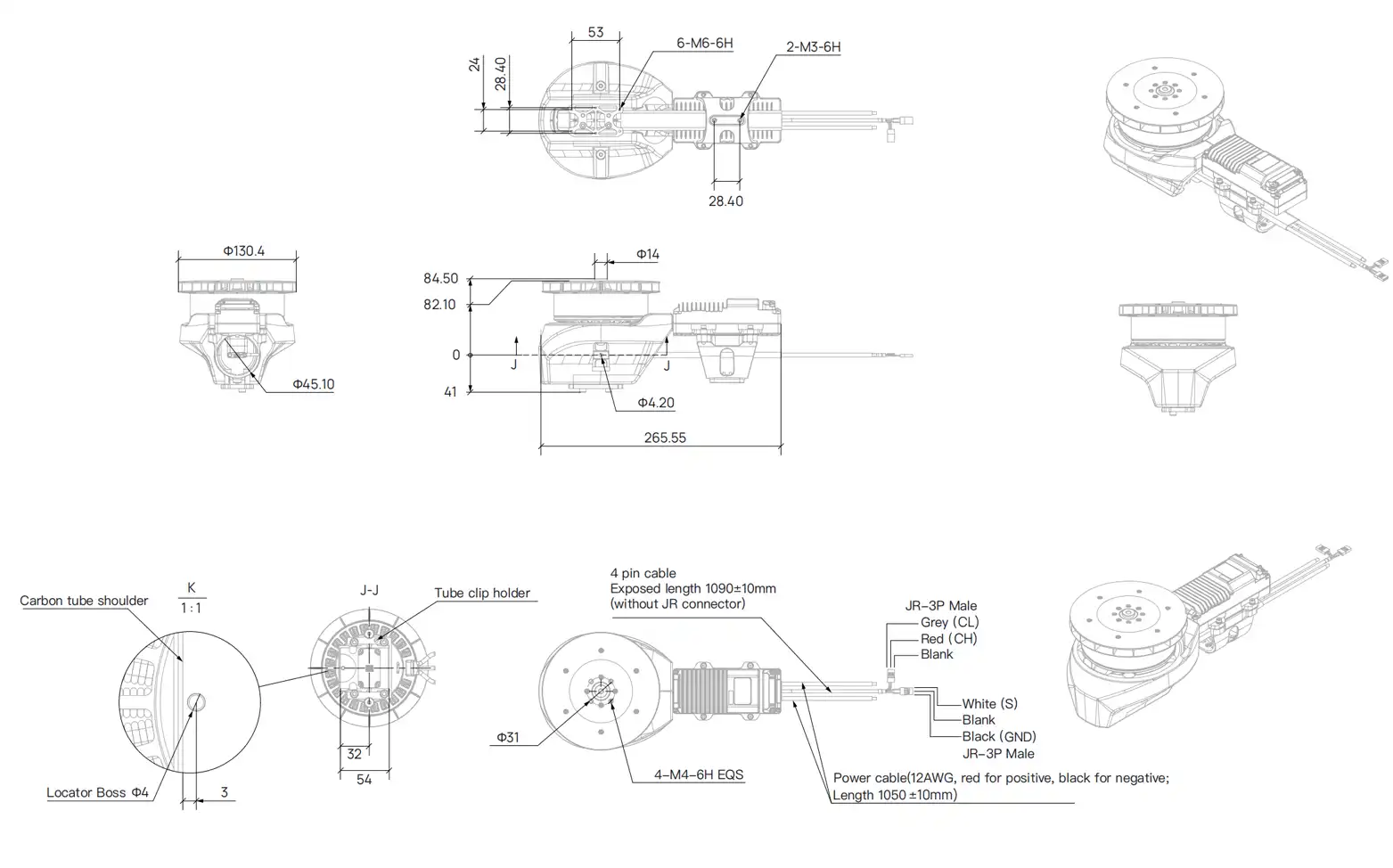

All-in-one thrust system specification
-
- Max Thrust
- Recommended takeoff weight per axis
- Efficiency of recommended takeoff weight
- Compatible lithium battery
- Rated voltage
- Input voltage
- Tube outer diameter
- Weight (with cable and propeller)
- Cable specification
- Operating temperature
- Ingress Protection
- Rated output power (Max continuous)
- Pinout
- DataLink Version
-
- 28 kg (Sea level)
- 12~14 kg (Sea level)
- 8.6~8.0 g/W
- 12S~14S（LiPo）
- 14S-54V / 12S-48V
- 18~63 V
- D45 mm
- 1852 g*
- Power cable: 12AWG 1050 mm* Signal cable: 1090 mm*
- -20~50 ℃
- IPX6
- 1440 W
- Black-GND, White-PWM & Red-CH, Gray-CL
- DataLinkBox G3
ESC specification
-
- Rated voltage
- Communication protocol
- Peak current (3s)
- Continuous current
- Throttle range calibration
- Dual throttle control
- Operating pulse width
- Fault storage & Log
-
- 14 S / 12 S
- Cyphal（UAVCAN）
- 150 A（3s）
- 40 A
- Not supported
- PWM + CAN
- 1050~1950 μs
- Supported
Motor specification
-
- KV
- Slot& Pole
- Stator diameter
- Motor diameter
-
- 80KV
- 36N40P
- 96×20 mm
- 104 mm (Fan 130 mm)

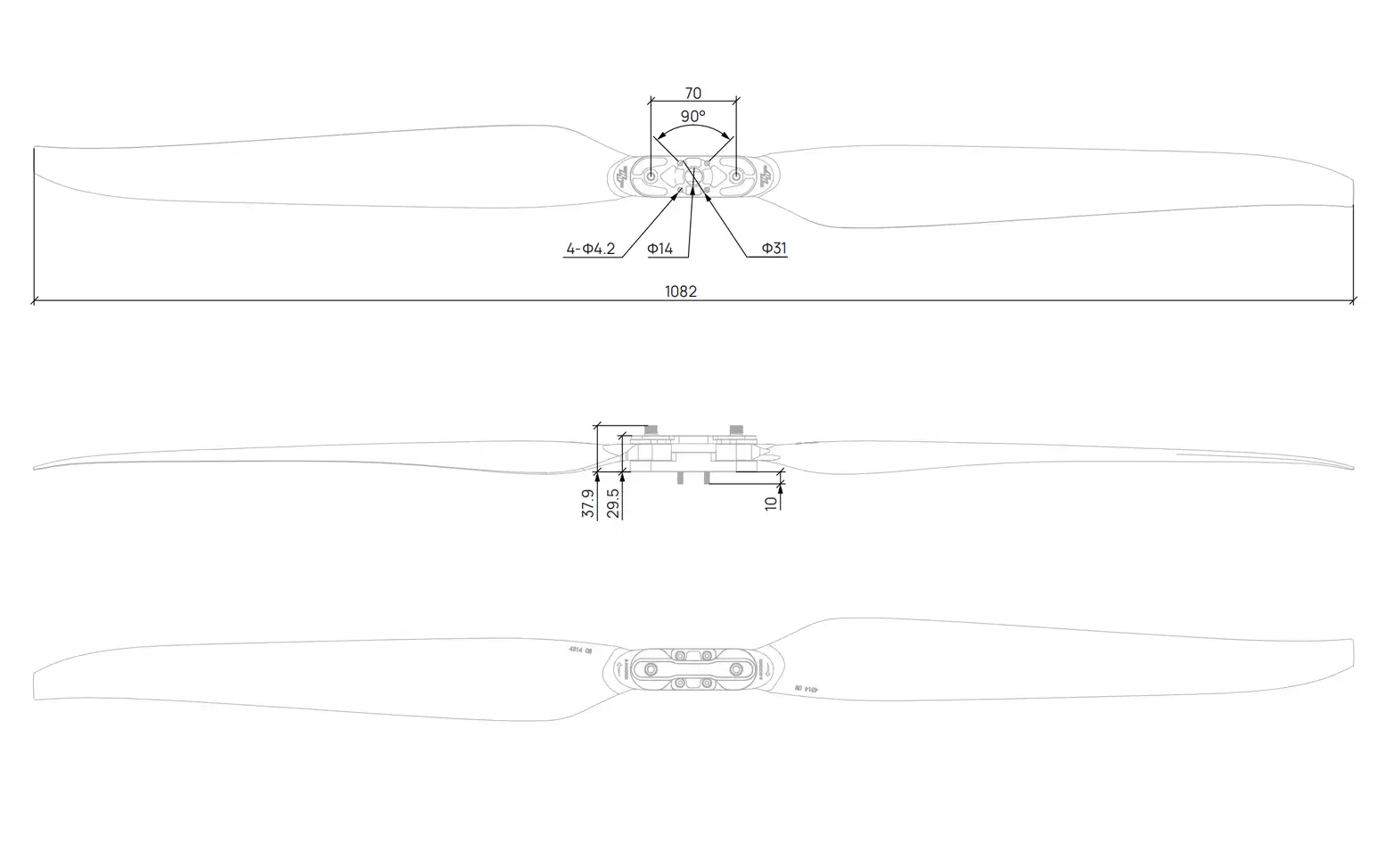

Propeller specification
-
- Model
- Total Weight
- Material of Props
- single Weight
- Subject to the actual product.
-
- MFP 43×14 (Folding propeller)
- 427 g*
- Carbon fibre-reinforced nylon composite material
- 146 g*
Specifications:
| Specification | Details |
|---|---|
| Brand | HOBBYWING |
| Product Name | X9 Plus G2L Motor – CW |
| Motor Type | Brushless Motor |
| KV Rating | 80 KV |
| Maximum Thrust | 28 kg (at sea level) |
| Recommended Take-off Weight | 12–14 kg per axis |
| Compatible Battery | 12S–14S LiPo |
| Rated Voltage | 48 V (12S) / 54 V (14S) |
| Input Voltage Range | 18–63 V |
| Rated Input Power | 1700 W |
| Rated Output Power | 1440 W |
| Maximum Peak ESC Current | 150 A (3 seconds) |
| Continuous ESC Current | 40 A |
| Propeller | MFP 43 × 14-inch folding propeller |
| Total Weight | 1852 g (including cable and propeller) |
| Compatible Carbon Tube Diameter | 45 mm |
| Operating Temperature | -20°C to 50°C |
| Protection Rating | IPX6 |
| Communication Protocol | Cyphal (UAVCAN) |
| Throttle Control | PWM + CAN |
| Application | Agricultural drones and industrial UAVs |
Package Includes:
1xHobbywing X9 Plus G2L Motor -CWW
Drone Night Flying: Lights, Settings and DGCA Rules India
Drone Night Flying in India: Lights, Settings, and DGCA Rules Explained Flying your drone at night unlocks a...
Read More →
How to Set Up Pixhawk Flight Controller Step-by-Step
Getting your Pixhawk setup right the first time saves hours of frustration and prevents crashes. The Pixhawk family...
Read More →
Best Budget Drone Kits in India 2026: Complete Comparison
Finding the best budget drone kits in India for 2026 can be overwhelming with dozens of options available...
Read More →Technical Specifications
| Brand | Hobbywing |
|---|---|
| Package Quantity | 9 pcs |
| SKU | AI5394 |
| Weight | 2.730000 kg |
| Availability | In Stock |
Applications & Use Cases
The Hobbywing X9 Plus G2L Motor -CCW is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
