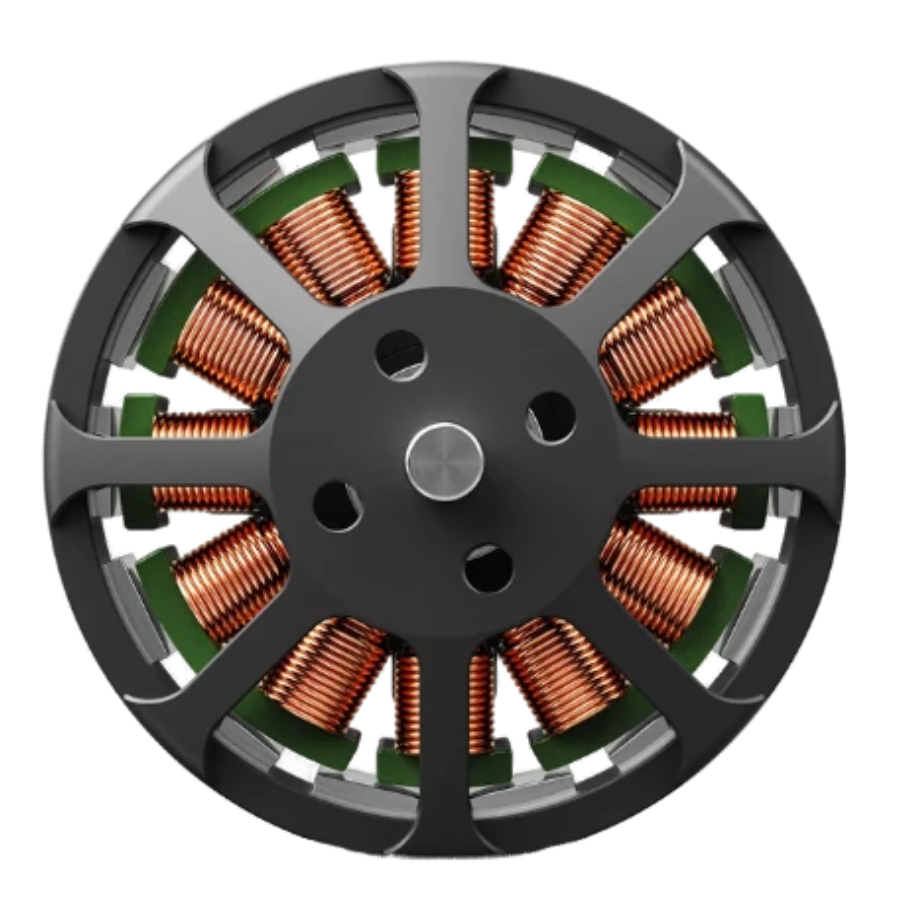

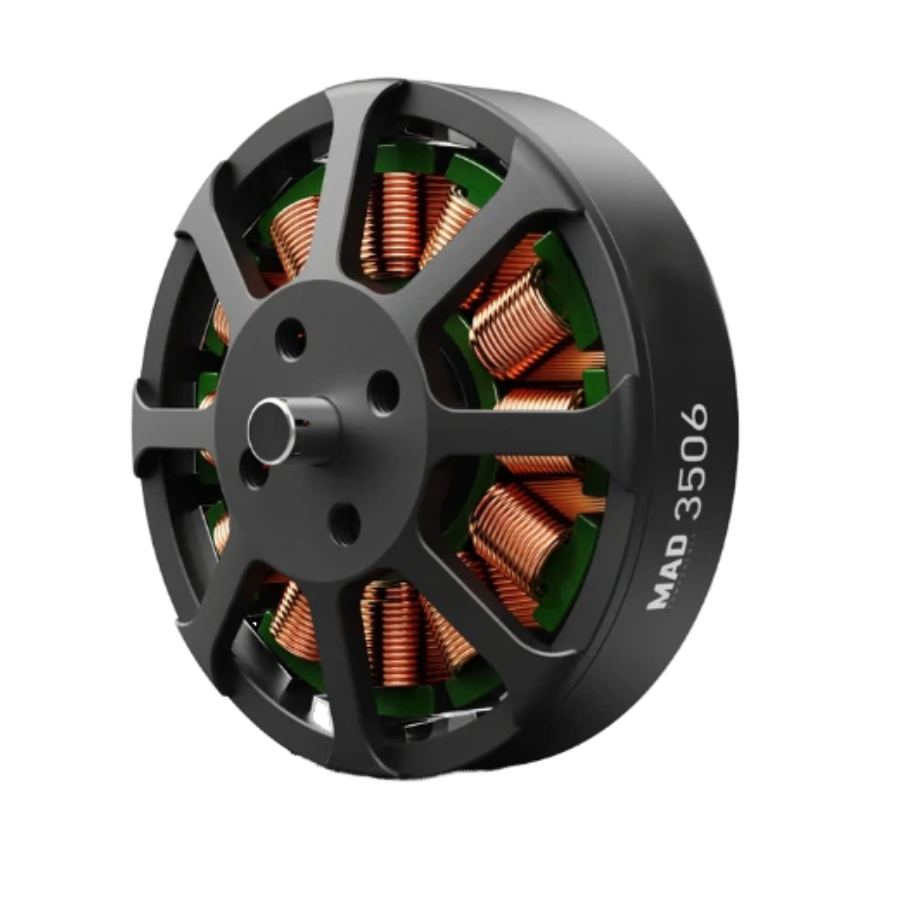

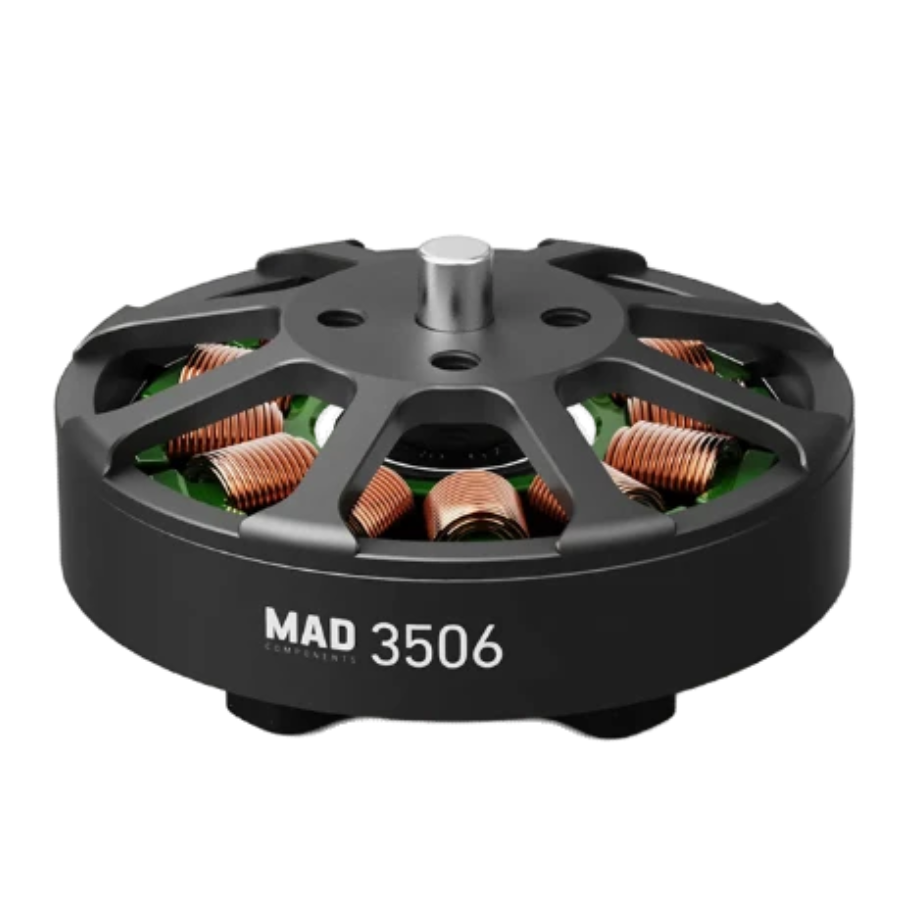

MAD 3506 EEE Brushless Drone Motor 460KV (Pack Of 2)
Description:
The MAD 3506 EEE Brushless Drone Motor (460KV) – Pack of 2 offers a lightweight and highly efficient power solution for professional UAV applications. 3506 EEE Brushless Drone Motor is designed for single-rotor payloads of 320–720g, this motor is perfectly matched for 11–14″ carbon fiber propellers, enabling agile and stable flight even under payload.
Each motor weighs just 72.3 g yet delivers up to 1.2 kg of thrust, making it ideal for drones used in aerial photography, mapping, industrial inspections, and other mid-lift applications. Engineered with high precision and thermal resilience, this motor supports 4S–6S LiPo systems and works seamlessly with MAD AMPX PRO 40A ESCs.
Dimensional diagram:
Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.
Features:
- Lightweight & efficient – Perfect balance of thrust and weight
- Optimized for 11–14″ carbon fiber propellers
- 83%+ efficiency under typical load
- Quiet, smooth performance thanks to precision-balanced rotor
- Designed for endurance and extended UAV operations
Specification:
| Model: | EEE Brushless Drone Motor |
|---|---|
| Model No: | 3506 |
| Motor KV (RPM/V): | 460 |
| Motor Type: | Brushless Drone Motor |
| Compatible LiPO Batteries: | 4S–6S |
| Shaft Diameter (mm): | 4 |
| Max. Power (W) | 204 |
| Maximum Thrust (gm) | 1200 |
| No of poles | 24 |
| Motor Size (mm): | D:42.5 × 23.8 |
| Bearing | 694ZZ*2 |
| Motor Mount Holes | D:25 M3×4 |

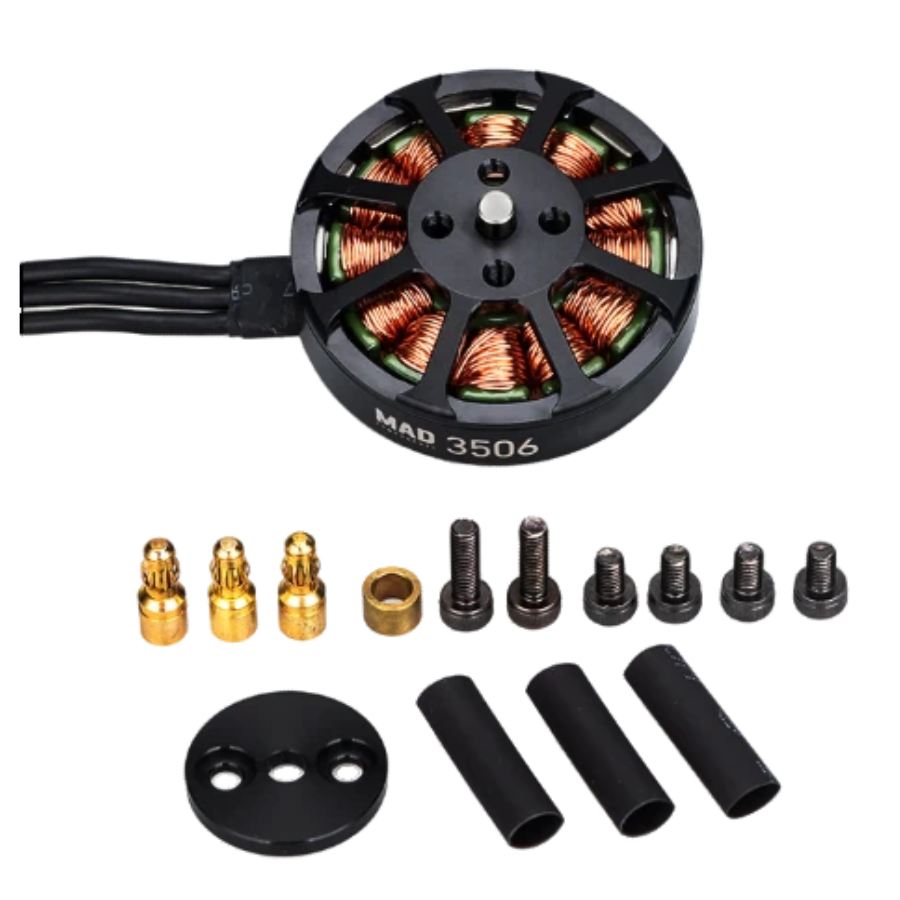

Package Includes:
2 x MAD 3506 EEE Brushless Drone Motor 460KV
2 x Propeller Plates
6 x Adapter Rings (Ø4–6)
2 x 3.5mm Bullet Connectors
6 x Heat Shrink Tubes
8 x M3×6 Motor Mounting Screws
7 x M3×10 Propeller Screws
2 x MAD Stickers
FPV Drone Range Extender: Booster Amplifiers for Video TX Explained
Table of ContentsUnderstanding FPV Video Range LimitationsHow Video TX Booster Amplifiers WorkTypes of Range Extension SolutionsAntenna Selection for...
Read More →
Best Drone Batteries in India 2026: LiPo vs Li-Ion Compared
Your drone's battery is the most critical — and most often misunderstood — component in any build. Choose...
Read More →
DGCA Drone Rules India 2026: Registration & License Guide
Table of ContentsOverview of India's Drone Regulatory FrameworkDrone Categories by WeightHow to Register Your Drone on DigiSkyRemote Pilot...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 460KV |
| Package Quantity | 2 pcs |
| SKU | AI8105 |
| Weight | 0.36 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD 3506 EEE Brushless Drone Motor 460KV (Pack Of 2) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
