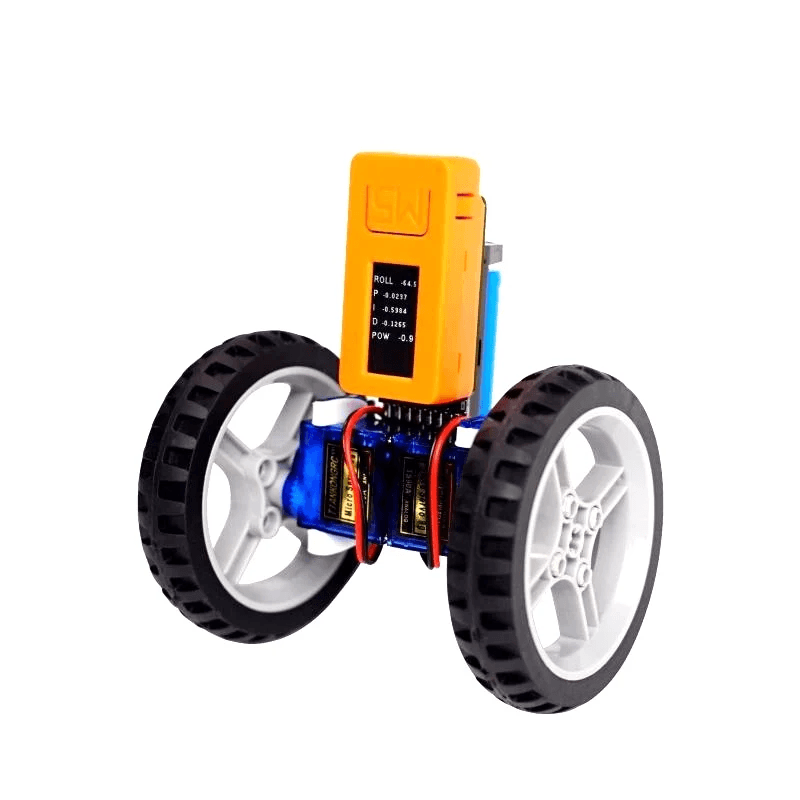

M5STACK BALA-C ESP32 Development Mini Self-Balancing Car
BALA-C is a DIY dual-wheel balancing car kit. BALA-C uses the STM32 series chip, two motor driver ICs, and is also equipped with a rechargeable replaceable battery. It incorporates a lightweight design with 360° servos. It’s possible to use the UIFlow graphic interface to program the balancing car.
An M5StickC is included in the package. The BalaC maintains its balance with the help of mpu6886. The real-time compensation of the servos is controlled by calculating the offset value to achieve the purpose of balancing. A LEGO-compatible design allows you to change different tires. If you want to learn about PID or need an interesting programming toy product, BALA-C will be a good choice.
Features:
- Based on ESP32 + STM32
- Personality DIY
- Detachable Design
- Two-wheel Drive
- Replaceable battery
- Program Platform：UIFlow, MicroPython, Arduino
Package Includes:
- 1x M5StickC
- 1x BalaC Base
- 2x Wheels
- 2x Wheel Connectors
- 2x 9G Servos
- 2x Elastics
- 2x Screws
- 1x Hex key
- 1x 16340 Battery
- 1x 10cm Type-C Cable
M5STACK BALA-C ESP32 Development Mini Self-Balancing Car Overview
The M5STACK BALA-C ESP32 Development Mini Self-Balancing Car is a DIY dual-wheel robotic chassis kit powered by an ESP32-Pico-D4 module and an STM32F030F4P6 co-processor. It’s designed for makers and educators to explore self-balancing algorithms, real-time servo control, and graphic programming with UIFlow.
Key Features of M5STACK BALA-C ESP32 Development Mini Self-Balancing Car
- ESP32-Pico-D4 dual-core 240 MHz MCU with Wi-Fi & Bluetooth for on-board computing and connectivity
- Built-in mpu6886 IMU enables real-time tilt sensing and balance compensation

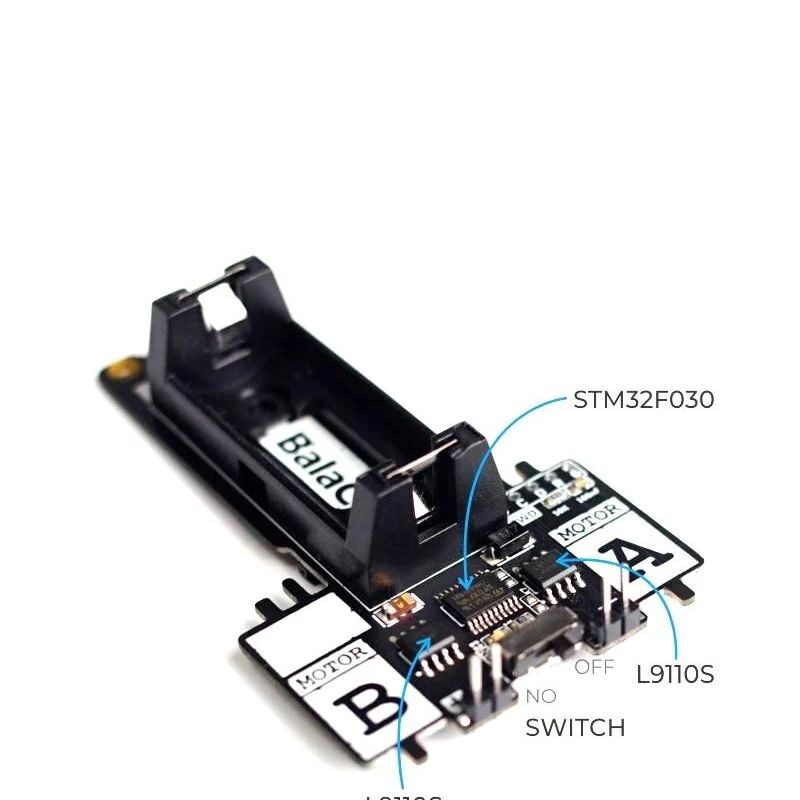

- 360° continuous-rotation servos (0.12 s/60° at 4.8 V) driven by an STM32F030F4P6 co-processor
- Dual L9110S motor drivers for reliable wheel control and smooth balancing
- Rechargeable, replaceable battery pack for extended test runs and easy swapping
- UIFlow graphic programming support and I²C control at address 0x38 for rapid prototyping
- LEGO-compatible wheel hubs let you attach standard LEGO tires or custom wheels
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- STEM education: teach control theory and sensor fusion with hands-on balancing demos
- Robotics prototyping: integrate custom sensors or expanders via the M5StickC port
- Programming workshops: introduce UIFlow and MicroPython on ESP32 for beginners
- Algorithm development: test and refine PID or complementary filters for self-balancing
- Exhibition robot: build a compact, self-stabilizing platform for trade shows or maker fairs
- DIY customization: swap wheels, add 3D-printed parts or LEGO elements for creative designs
How to Use M5STACK BALA-C ESP32 Development Mini Self-Balancing Car
Attach the rechargeable battery pack and mount the M5StickC controller onto the BALA-C expansion port, then charge the battery via a 5 V USB source. Install UIFlow on your PC, connect to the ESP32 module over USB or Wi-Fi, and load the sample balancing sketch. Calibrate the mpu6886 sensor through the UIFlow interface, snap on your chosen LEGO-compatible wheels, and power on to see the car self-balance and respond to tilt commands.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I charge and replace the battery?
The BALA-C kit includes a rechargeable, replaceable battery pack with its own charging circuit. Simply connect a 5 V USB power source to the car’s charging port. To replace the battery, slide it out of its holder and insert a fresh pack of the same specification.
Which programming environments are supported?
This self-balancing car is optimized for UIFlow graphic programming via the M5StickC interface. Advanced users can also deploy MicroPython scripts on the ESP32-Pico-D4 or write custom firmware using the ESP-IDF framework.
How do I change the wheels or tires?
The BALA-C features LEGO-compatible wheel hubs. To change tires, detach the existing wheel from the servo shaft, align a standard LEGO tire or custom wheel on the hub, and press firmly until it snaps into place.
