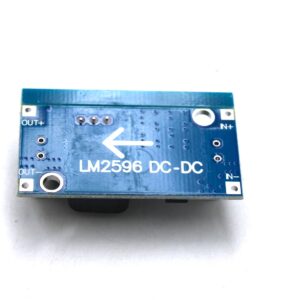

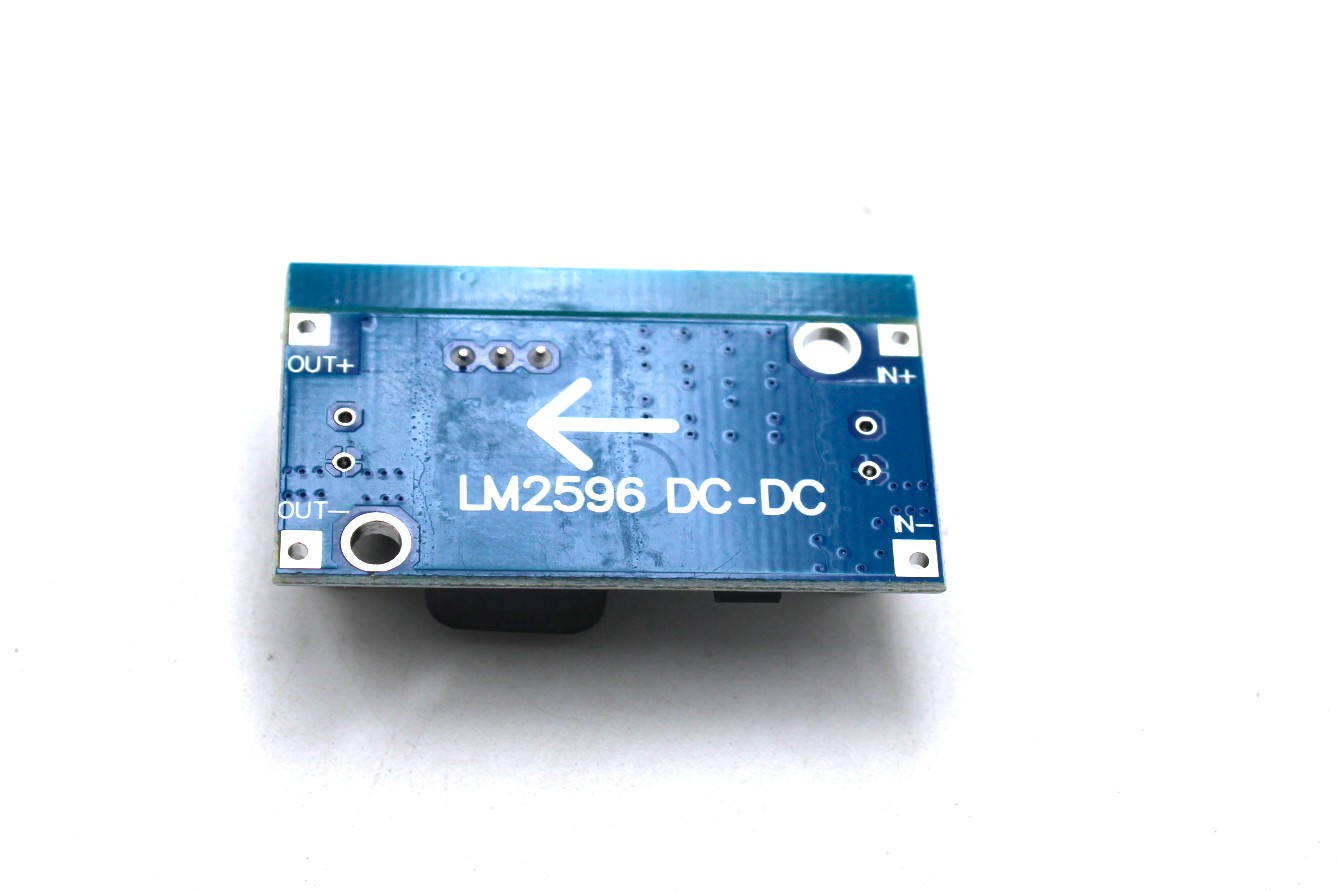

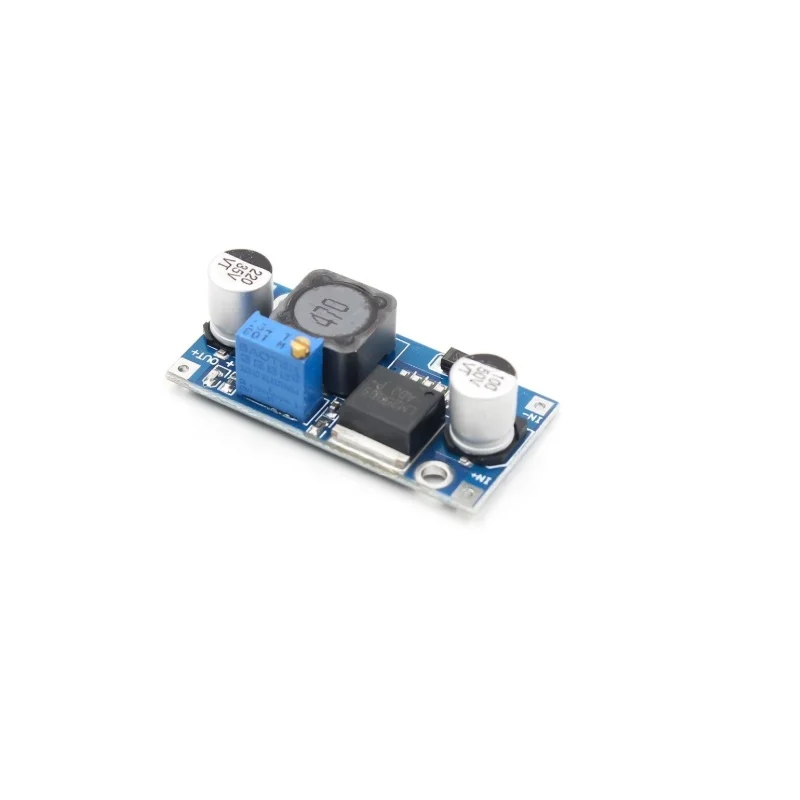

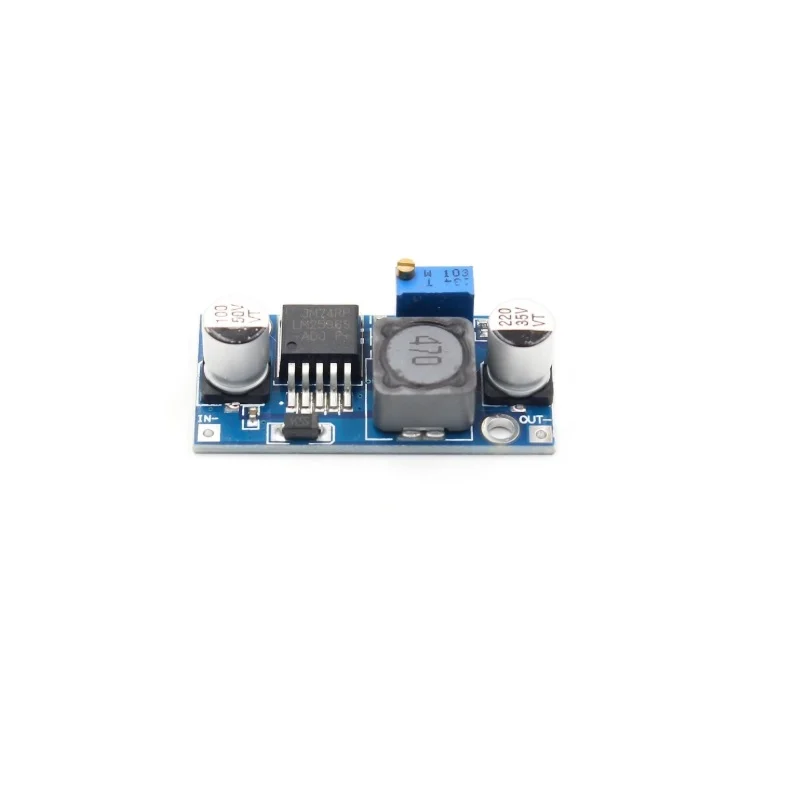

LM2596S with SMD LED DC-DC Step-Down Power Supply
DC-DC Buck Converter Step Down Module LM2596 Power Supply is a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
The LM2596 series operates at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators.
This is an LM2596 DC-DC buck converter step-down power module with the high-precision potentiometer, capable of driving a load up to 3A with high efficiency, which can work with Freeduino UNO, other mainboards, and basic modules. When the output current keeps greater than 2.5A (or output power greater than 10W), please add a heat sink to it.
This device is internally compensated to minimize the number of external components to simplify the power supply design.
Since LM2596 converter is a switch-mode power supply, its efficiency is significantly higher in comparison with popular three-terminal linear regulators, especially with higher input voltages. The LM2596 operates at a switching frequency of 150 kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators.
Features:
- Input voltage:3-40V.
- Output voltage:1.5-35V(Adjustable)
- Output current: Rated current is 2A, maximum 3A (Additional heatsink is required)
- Module Properties: non-isolated constant voltage module
- Rectification: non-synchronous rectification
- Short circuit protection: current limiting, since the recovery
Specification:
| Output voltage | 1.5-35V(Adjustable) |
|---|---|
| Output current | Rated current is 2A, maximum 3A(Additional heatsink is required) |
| Switching Frequency | 150KHz |
| Operating temperature | Industrial grade (-40 to +85 ) |
| Conversion efficiency | 92%(highest) |
| Load Regulation | ± 0.5% |
| Voltage Regulation | ± 0.5% |
| Dynamic Response speed | 5% 200uS |
| Dimension | 45*20*14mm(L*W*H) |
| Shipping Weight | 0.011 kg |
| Shipping Dimensions | 9 × 5 × 2 cm |
Package Includes:
1 x LM2596S with SMD LED DC-DC Step-Down Power Supply
Technical Specifications
| Model | LM2596S |
|---|---|
| SKU | AI5198 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The LM2596S with SMD LED DC-DC Step-Down Power Supply is a versatile buck converter used across a wide range of applications including voltage step-down for electronics, battery-powered projects, LED driver circuits, microcontroller power supply, and solar power regulation.
Common use cases:
- Converting 12V car battery to 5V for USB devices
- Powering a Raspberry Pi from a drone battery
- Regulating solar panel output for charging
This product is ideal for electronics hobbyists, IoT developers, and power supply designers.
Technical Tip: Buck converters are more efficient than linear regulators (LM7805). Choose one rated for at least 1.5x your required current. Ensure input voltage is at least 2V above output.
