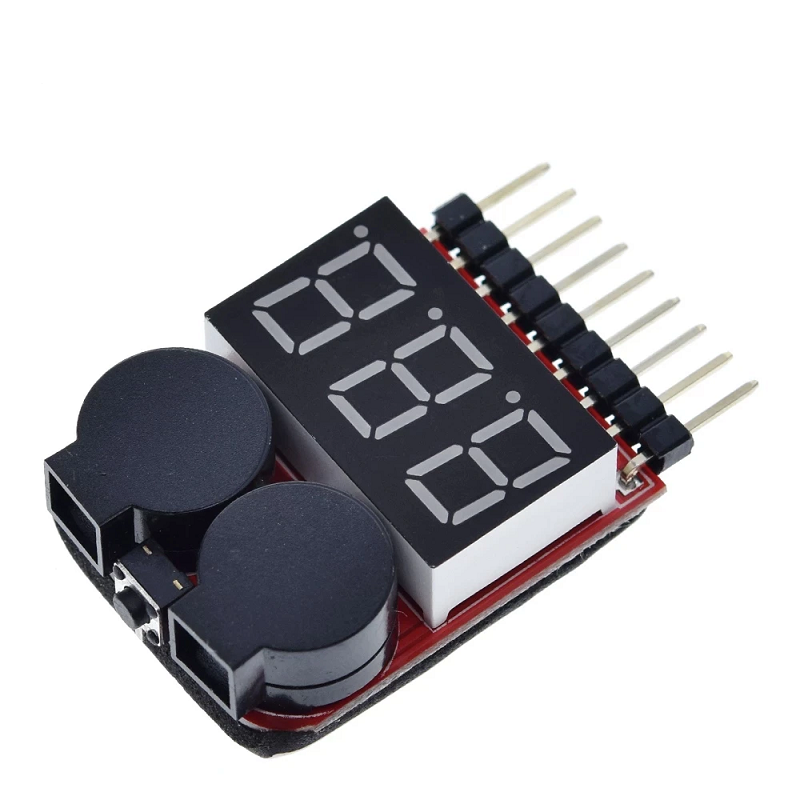

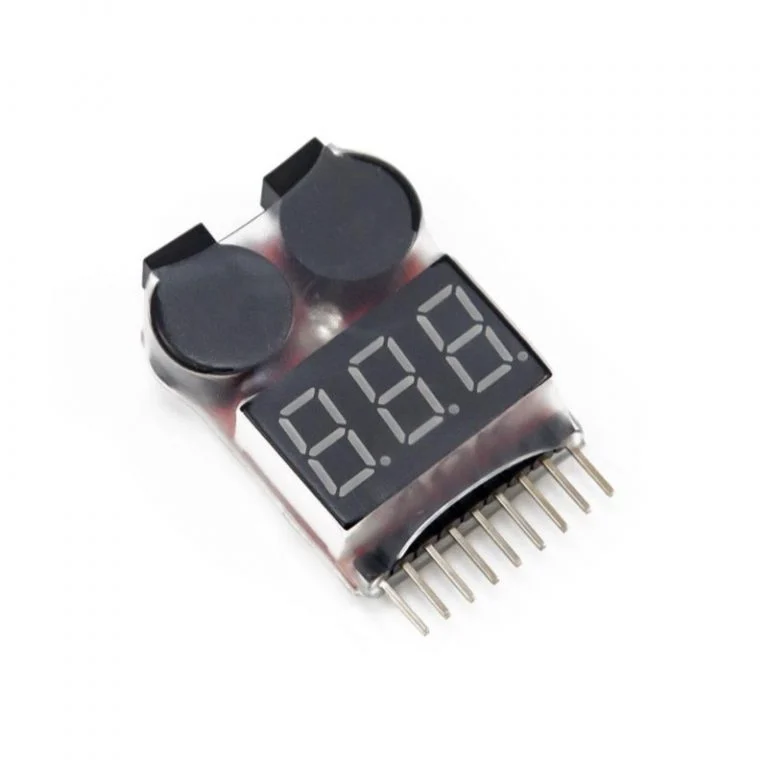

Lipo Voltage Checker 1S-8S with Buzzer Alarm
The LiPo Battery Voltage Checker 1S-8S with Buzzer is a quality product available and a special design to measure and display the voltage of LiPo battery packs. This voltage checker can measure the voltage of the battery pack as well as the voltage of every single cell of the battery pack.
This unit also features a handy built-in Led display that will show the voltage of each cell followed by the overall voltage of the pack. Don’t risk your model by flying on depleted batteries, at this price piece of mind flying can’t be any cheaper!

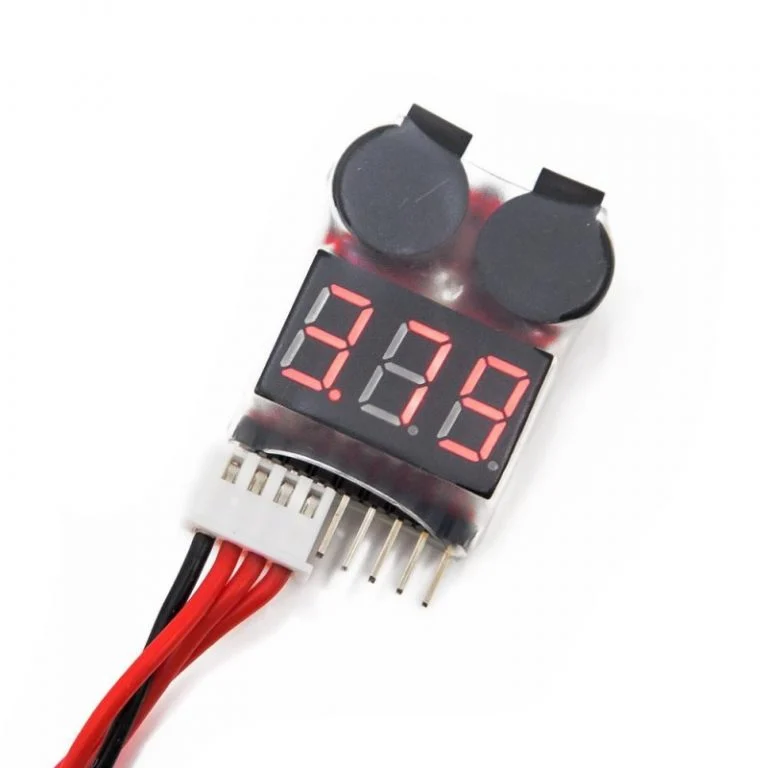

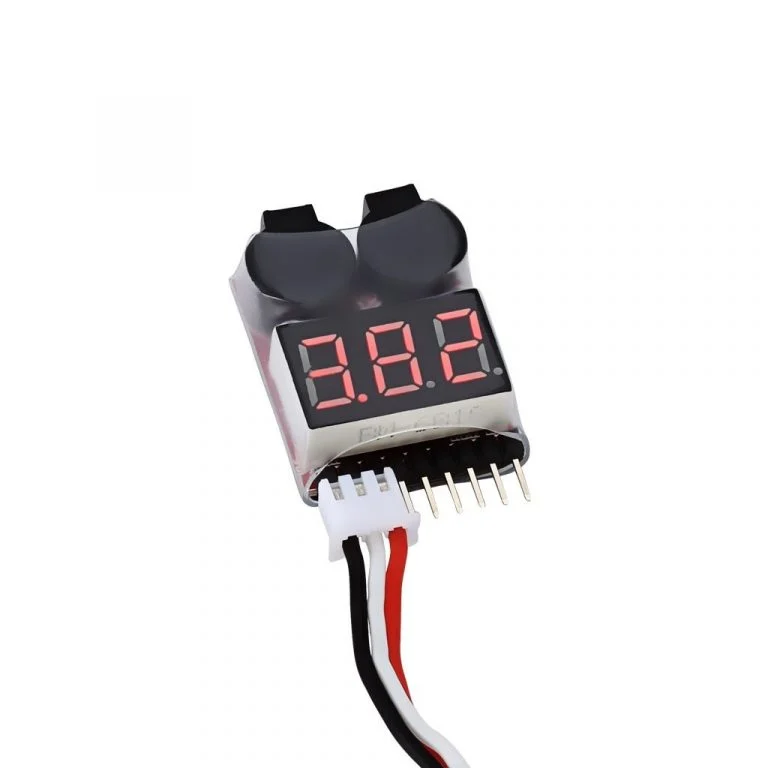

Simply connect the battery balance plug to the leads of this voltage checker, it will show the instant voltage of each cell one by one ending with displaying the voltage of the total pack. The Li-Po Voltage Checker 1S-8S with buzzer alarm is equipped with loud twin piezo alarms which will notify you once your cells reach a low voltage or user defined voltage.
You can customize the alarm to sound at a voltage between 2.7v-3.8v per cell in 0.10v increments. It has a mode button at the top for setting the desired voltage value.
specification-
| Alarm set range (V) | 2.7-3.8 |
|---|---|
| Battery Input | 1S-8S Battery |
| Battery Type | LiPO/LiFe/Li-Ion/LiMn |
| Cell Voltage Display Range (V) | 0.5-4.5 |
| Height (mm) | 12 |
| Length (mm): | 40 |
| Pack voltage display range(V) | 3.7-36 |
| Weight (gm) | 10 |
| Width (mm) | 25 |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 5 × 4 × 3 cm |
Features :
- Input: 1S-8S Battery
- Battery type: Lipo/LiFe/Li-ion/LiMn
- It has a Buzzer Alarm for low voltage indication.
- Useful for measuring each cell voltage.
- It has a mode button at the top for setting the desired voltage value.
Package Includes :
1 x LiPo Battery Voltage Checker 1S-8S with Buzzer
Charging Profile Stages: CC CV Float for Lead Acid Battery Explained
Charging Profile Stages: CC CV Float for Lead Acid Battery Explained Whether you are building a solar charge...
Read More →
Power Supply Design: Ripple Noise Reduction Techniques
Every electronics project eventually hits the same wall: sensitive circuits misbehaving because the power supply is noisy. Microcontrollers...
Read More →
Battery Desulfator: Restore Lead-Acid Battery Capacity
A battery desulfator uses high-frequency voltage pulses to break down lead sulfate crystals on the plates of a...
Read More →Technical Specifications
| Cell Configuration | 1S |
|---|---|
| SKU | AI0669 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Lipo Voltage Checker 1S-8S with Buzzer Alarm is a versatile lipo voltage checker used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
