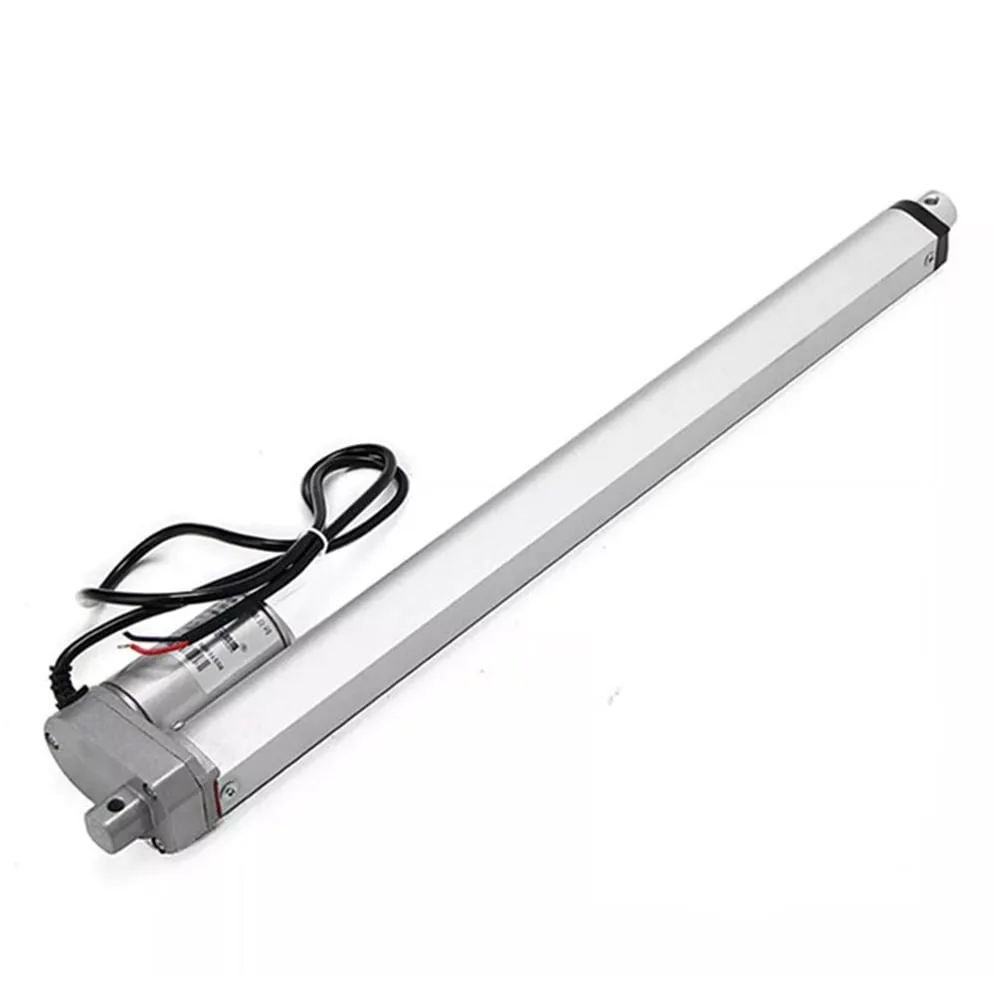

Linear Actuator Stroke Length 500MM 7mm/S 1000N 12V
A Miniature Linear Actuator Stroke Length 500MM 7mm/S 1000N 12V is a device that converts the rotational motion of a motor into the back-and-forth motion of a rod. It can be used to control various machines remotely, centrally or automatically. It is suitable for industrial, agricultural, construction, cleaning, marine and cargo applications. The device consists of a drive motor, a reduction gear, a screw, a nut, a guide sleeve, a rod, a sliding seat, a shell and a micro motion control switch.
Note:
1. The actual product may vary in terms of color and markings.
2. The following conditions can cause serious damage to the product.
1. Direct connect with AC power
2. Use in the above standard voltage environment
3. Push/Pull exceed the maximum value of the product show
4. The stroke did not finish, still with power, forced to cease.
3. The following conditions may shorten the product life.
1. High frequency operation
2. High temperature
4. It’s works on reverse polarity.
Linear Actuator Parts:
Following figure shows various parts of Liear Actuator. Also, please refer to the schematic provided in the attachments for dimensions of the actuator.
Features:
- Aluminium frame and extension tube
- Compact Design
- Built in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
- Permanent magnet DC motor drive: Voltage 12VDC
- Self Locking Force: 1000N
Applications:
- Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
- The medical electric bed, surgical bed, traction bed
- Electric equipments: Electric sofa, electric lifting lever, electric booth, electric sunroof, etc;
- Chair for medical use: Electric wheelchair, massage chair, dental chair.
- Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.
Specification-
| Protection Level | IP55 |
|---|---|
| Maximum current draw | ≤2A |
| Maximum static load | 337.2 lbs. ( 1500 Newtons ) |
| Self Locking Force | 1000N |
| Motor Diameter | 36 mm |
| Speed at no load | 0.28in/sec (7 mm /sec) |
| Speed at full load | 0.22in/sec (5.5 mm /sec) |
| Noise level | 45 dB |
| Weight (g): | 1476 |
| Length (mm): | 620 |
| Width (mm) | 77 |
| Height (mm) | 37 |
| Shipping Weight | 1.5 kg |
| Shipping Dimensions | 63 × 9 × 5 cm |
Package Includes:
1 x Linear Actuator Stroke Length 500MM, 7mm/S, 1000N, 12V
