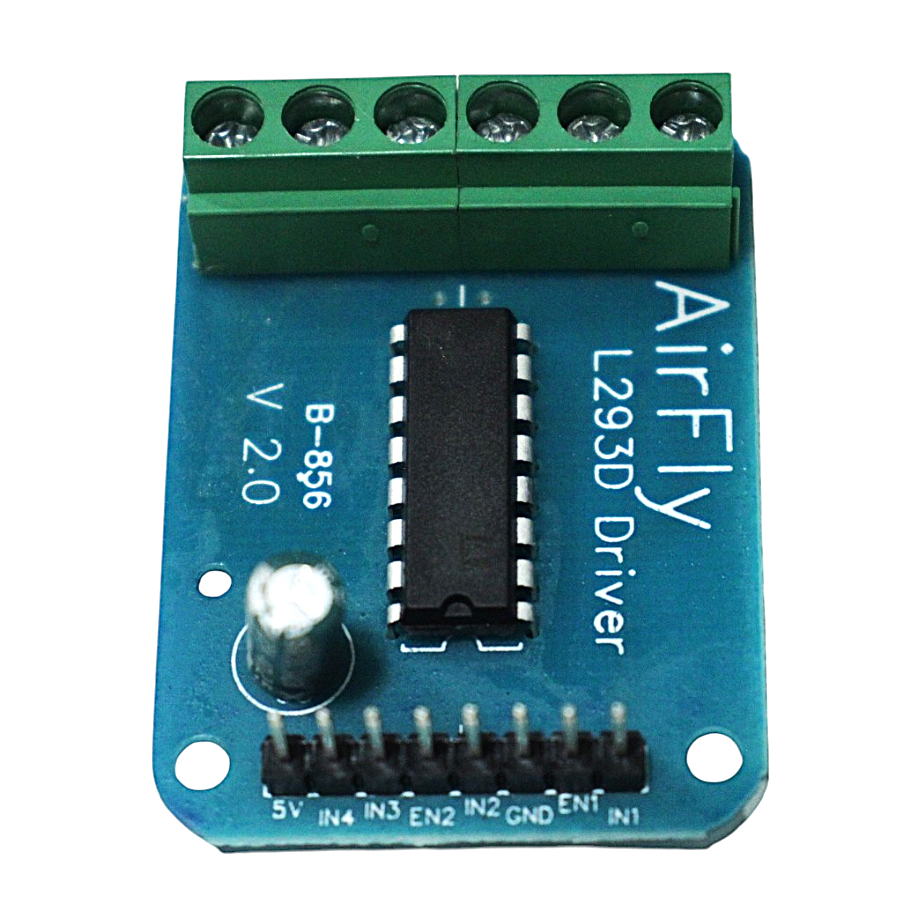

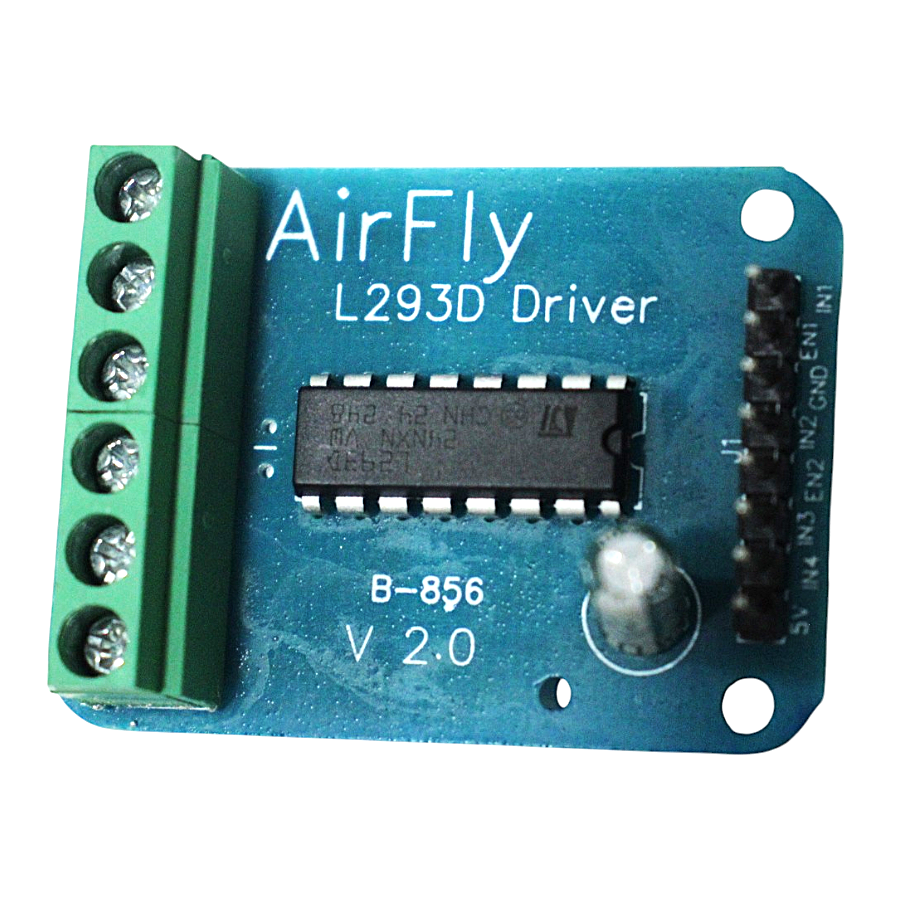

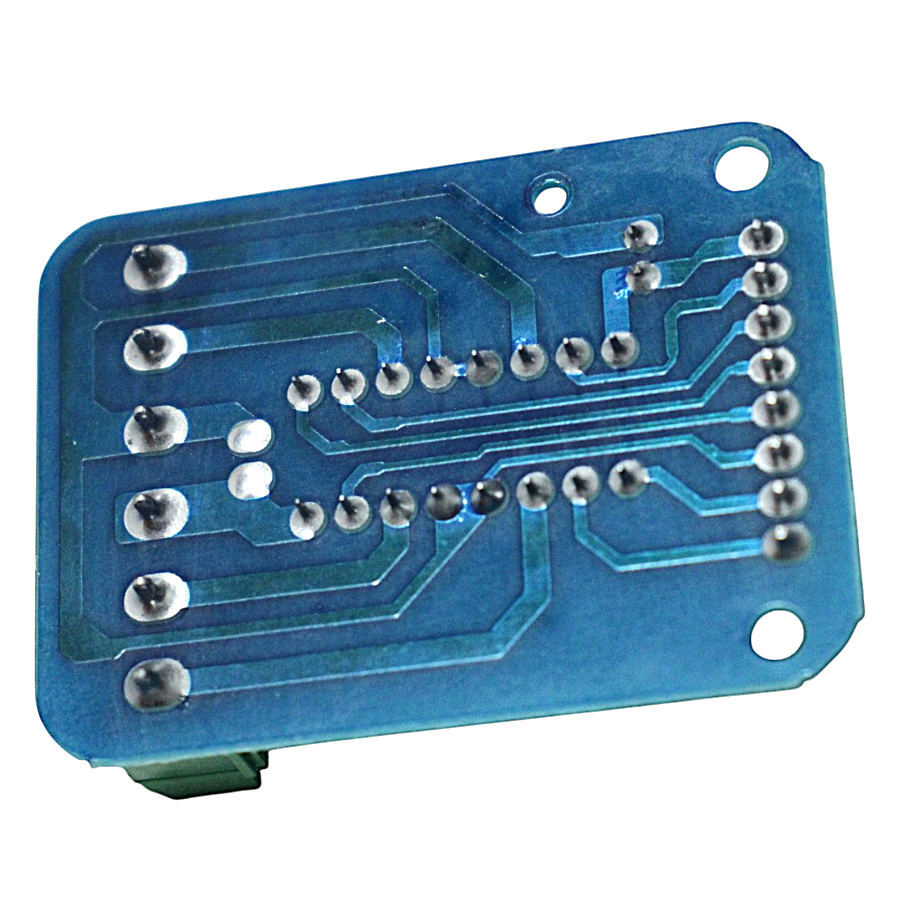

L293d Motor Driver V-2 9 (Made In India)
Description:
The L293D Motor Driver V-2 9 is a compact and efficient motor control module designed for robotics and embedded electronics projects. It is based on the popular L293D H-Bridge IC, which allows microcontrollers like Arduino, ESP32, ESP8266, and Raspberry Pi to control the direction and speed of DC motors and stepper motors easily.
This motor driver can independently control two DC motors with forward and reverse rotation. It also supports PWM (Pulse Width Modulation) for motor speed control. The module is widely used in robotic cars, automation systems, DIY electronics, and educational projects due to its simple interface and reliable performance.
Features
- Based on the L293D Dual H-Bridge Motor Driver IC
- Controls 2 DC motors independently
- Supports 1 stepper motor
- Provides forward and reverse motor rotation
- PWM support for motor speed control
- Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, and other microcontrollers
- Built-in back EMF protection diodes
- Easy screw terminal connections
- Compact and lightweight design
- Suitable for robotics, automation, RC cars, and DIY electronics projects
- Beginner-friendly and easy to interface
- Reliable “Made in India” PCB design
Specifications
- Driver IC: L293D
- Motor Channels: 2
- Motor Type Supported: DC Motors / Stepper Motors
- Operating Voltage: 4.5V to 36V
- Logic Voltage: 5V
- Output Current: 600mA per channel
- Peak Current: 1.2A per channel
- Control Method: Digital logic / PWM
- Interface: Header pins & screw terminals
- Protection: Internal flyback diodes
- Board Type: Motor Driver Module
- Application: Robotics, smart cars, automation projects, educational kits
Package Includes:
1xL293d Motor Driver V-2 9 (Made In India)
Nickel Metal Hydride NiMH Battery: Charger and Tips Guide
Despite the lithium-ion revolution, NiMH (Nickel Metal Hydride) batteries remain the go-to choice for a surprising number of...
Read More →
UPS for Raspberry Pi: 18650 or LiPo HAT Comparison
UPS for Raspberry Pi: 18650 or LiPo HAT Comparison Power outages are a real challenge in India, making...
Read More →
LiPo Battery Charging Safety: Dos and Don’ts Complete Guide
Lithium Polymer (LiPo) batteries power everything from racing drones and RC cars to FPV quads and robotic arms...
Read More →Technical Specifications
| Model | V-2 |
|---|---|
| SKU | AI8205 |
| Weight | 0.0156 kg |
| Availability | In Stock |
Applications & Use Cases
The L293d Motor Driver V-2 9 (Made In India) is a versatile batteries, chargers and accessories used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
