Looking for Kp Original 523450 Battery 543497? KP Original 523450 1500mAh 3.7Vsingle cell Rechargeable LiPo Battery is available at Zbotic with fast shipping across India.

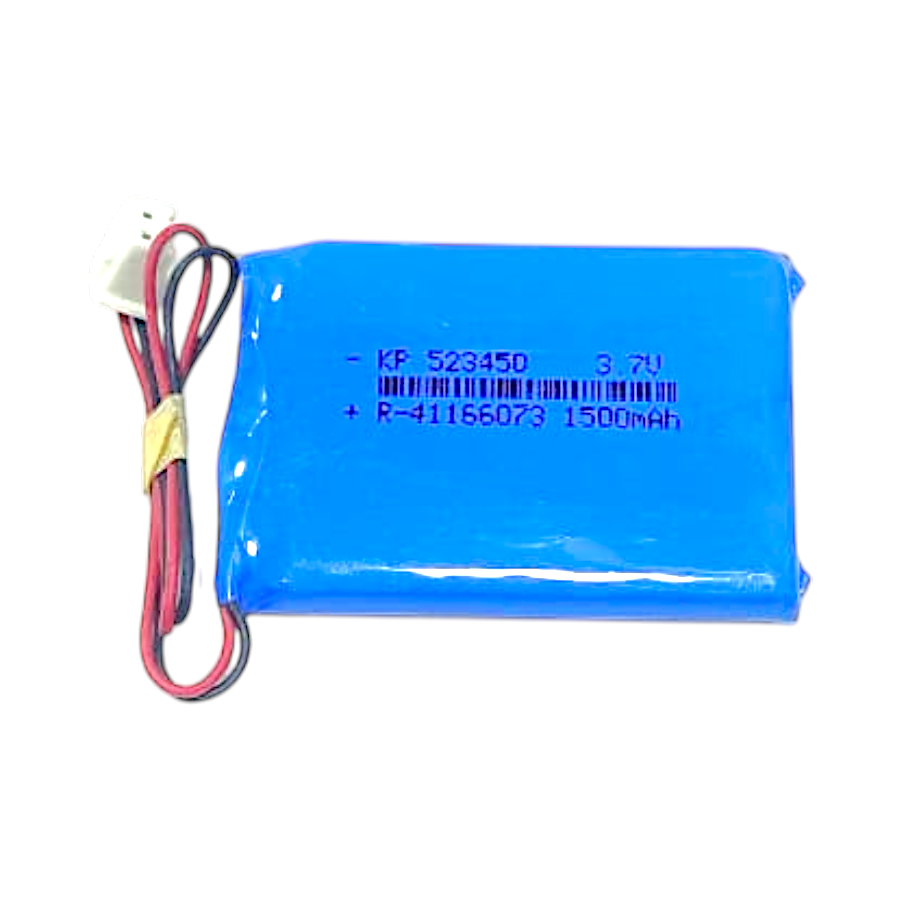

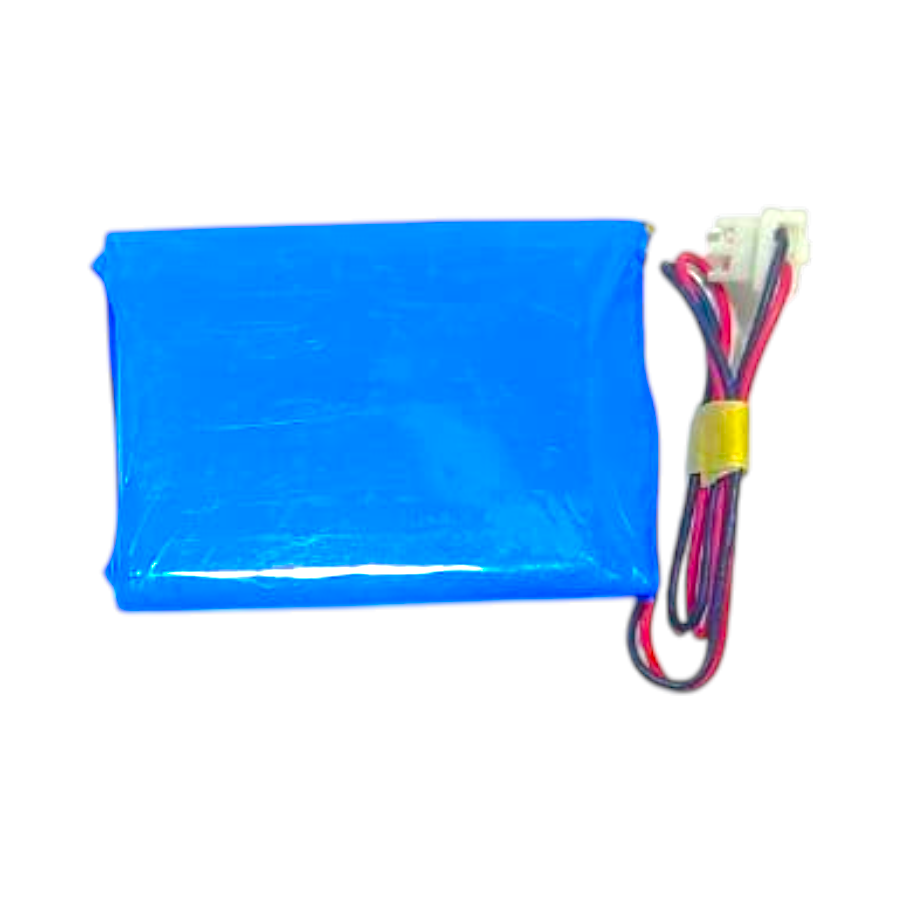

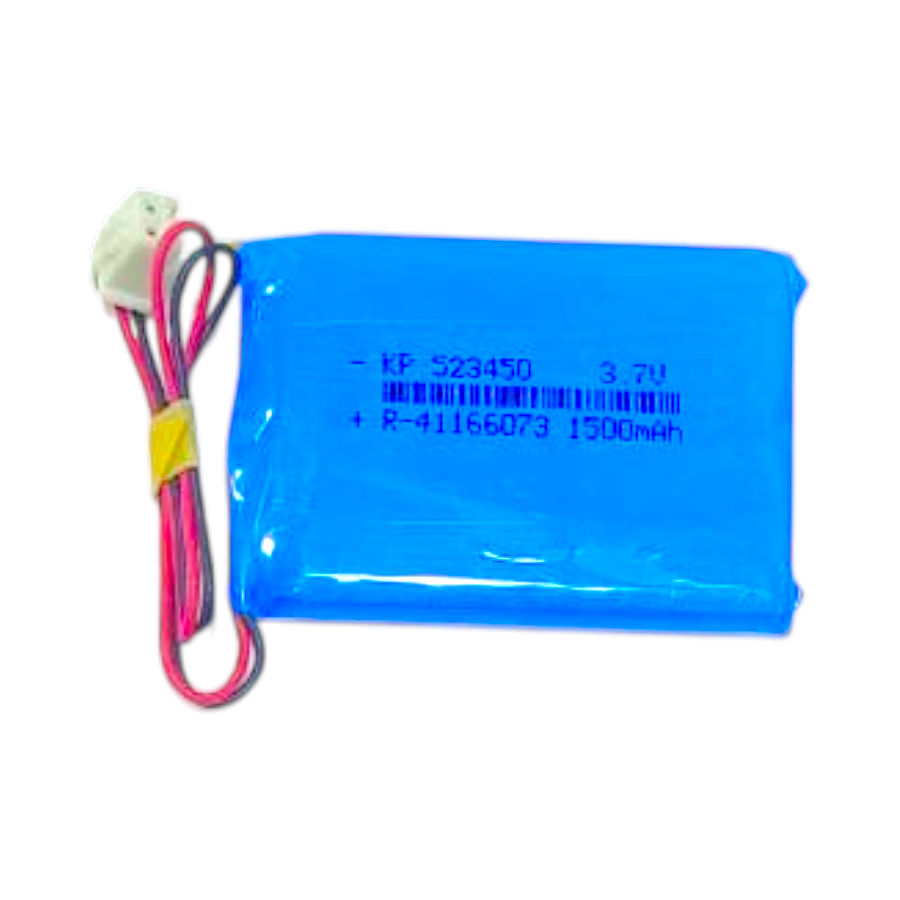

KP Original 523450 1500mAh 3.7V single cell Rechargeable LiPo Battery
Description:
Introducing the KP Original 523450 1500mAh 3.7Vsingle cell Rechargeable LiPo Battery, designed for compact electronic devices requiring reliable power in a small form factor. With its high energy density and lightweight design, this battery is ideal for applications in drones, remote controls, wearables, and other portable electronics.
Features:
- Overcharge Protection: Yes
- Over-discharge Protection: Yes
- Short Circuit Protection: Yes
- Fire Resistance: Designed with protective features to minimize fire hazards.
Specifications:
- Model Number: 523450
- Type: Lithium Polymer (LiPo)
- Configuration: Single Cell
- Nominal Voltage: 3.7V
- Capacity: 1500 mAh
- Discharge Rate: 1C (1500 mA continuous current)
- Charge Voltage: 4.2V (maximum)
- Discharge Cut-off Voltage: 3.0V (minimum)
- Temperature Range for Charging: 0°C to 45°C
- Temperature Range for Discharging: -20°C to 60°C
- Charging Method: Constant current / constant voltage (CC/CV)
- Recommended Charge Current: 0.5C to 1C (750 mA – 1500 mA)
- Charge Time: Approximately 1.5 to 3 hours, depending on charge current.
Applications:
- Commonly used in:
- Remote control devices
- Drones and UAVs
- Mobile devices and electronics
- Wearable technology
- Portable power application
Package includes:
- 1 x KP Original 523450 1500mAh 3.7V single cell Rechargeable LiPo Battery
KP Original 523450 1500mAh 3.7Vsingle cell Rechargeable Overview
The KP Original 523450 is a single-cell Lithium Polymer battery offering a nominal voltage of 3.7V and a capacity of 1500mAh. Its slim 49×34×4mm design and reliable safety protections make it ideal for compact electronic devices.
Key Features of KP Original 523450 1500mAh 3.7Vsingle cell Rechargeable
- 1500mAh capacity at 3.7V nominal voltage for extended run-time
- 1C (1500mA) continuous discharge rate for consistent power delivery
- Built-in overcharge, over-discharge and short-circuit protection
- Fire-resistant construction with protective features to minimize hazards
- Compact dimensions (49×34×4 mm) for tight installations
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Micro and mini drones requiring lightweight power sources
- Remote control cars, boats and aircraft with moderate current draw
- Wearable electronics, fitness trackers and smart garments
- Portable sensors, data loggers and IoT prototypes
- DIY robotics and microcontroller-powered devices
How to Use KP Original 523450 1500mAh 3.7Vsingle cell Rechargeable
Attach the battery to a dedicated LiPo charger set to a maximum of 4.2V and a charging current up to 1C (1.5A). After full charge, connect the battery leads—observing correct polarity—to your device’s power input. Monitor voltage during operation and avoid discharging below 3.0V to protect battery health.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum safe charging current?
Use a dedicated LiPo charger set to 1C (1.5A) maximum and cut off at 4.2V to ensure safe charging without over-stress.
Is this battery suitable for a 250g racing drone?
Yes. Its 1500mAh capacity and compact 49×34×4 mm profile provide a good balance of energy and weight for small to mid-sized racing drones.
How should I store the battery when not in use?
Store at around 40–60% charge in a cool, dry place. Avoid temperatures above 45°C and deep discharges below 3.0V to prolong cycle life.
Bench Power Supply Projects: Variable Voltage and Current
Table of ContentsWhat Is a Bench Power Supply Building a Variable Voltage Supply Constant Current Feature Using LM2596...
Read More →
Power Supply for Arduino: Best Options Compared (USB, 9V, DC)
Choosing the right power supply for Arduino options is one of the most fundamental decisions you will make...
Read More →
LTC4054 Solar Charger IC: Single Cell LiPo Charge Circuit
LTC4054 Solar Charger IC: Single Cell LiPo Charge Circuit If you are building a solar-powered IoT device, a...
Read More →Technical Specifications
| Brand | KP |
|---|---|
| Operating Voltage | 3.7V |
| Battery Capacity | 1500mAh |
| Interface / Protocol | BLE |
| Color | Blue |
| SKU | AI6767 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The KP Original 523450 1500mAh 3.7V single cell Rechargeable LiPo Battery (Blue) is a versatile single cell micro lipo battery used across a wide range of applications including FPV drones, RC vehicles, portable electronics, robotics, and airsoft guns.
Common use cases:
- Powering an FPV racing drone
- Running a high-current RC car
- Portable power for field robotics
This product is ideal for drone pilots, RC enthusiasts, and robotics builders.
Technical Tip: Never discharge below 3.5V per cell. Store at 3.8V per cell. Always use a balance charger and never leave charging unattended. Use a LiPo bag for safety.
