Looking for Jiyi Kx Flight Controller Kit? Jiyi KX Flight Controller Kit – For VTOL is available at Zbotic with fast shipping across India.
KX flight controller is designed for industrial application scenarios, with redundant control of software and hardware. It has advanced diagnostic algorithms to meet the applications of power line inspection, fire fighting, logistics, emergency rescue, transportation, surveying and mapping, etc. Provide API interface development according to different needs.
Features:
- Redundant control of both software and hardware
- Supports multiple frame types (I4, X4 quadrotors)
- Advanced diagnostics for enhanced reliability
- Operates in challenging environments with high wind resistance
- Integration with JIYI products like 5G picture transmission and RTK
- API interface for customized development
Specification:
| Operating Voltage (V): | 4.8-5.3 |
|---|---|
| Battery Type | 3S-14S lithium polymer battery |
| Max Tilt Angle | 30deg |
| Power Dissipation (W) | ＜5 |
| Maximum Yaw Speed | 150deg/s |
| Maximum Vertical Speed | 6m/s |

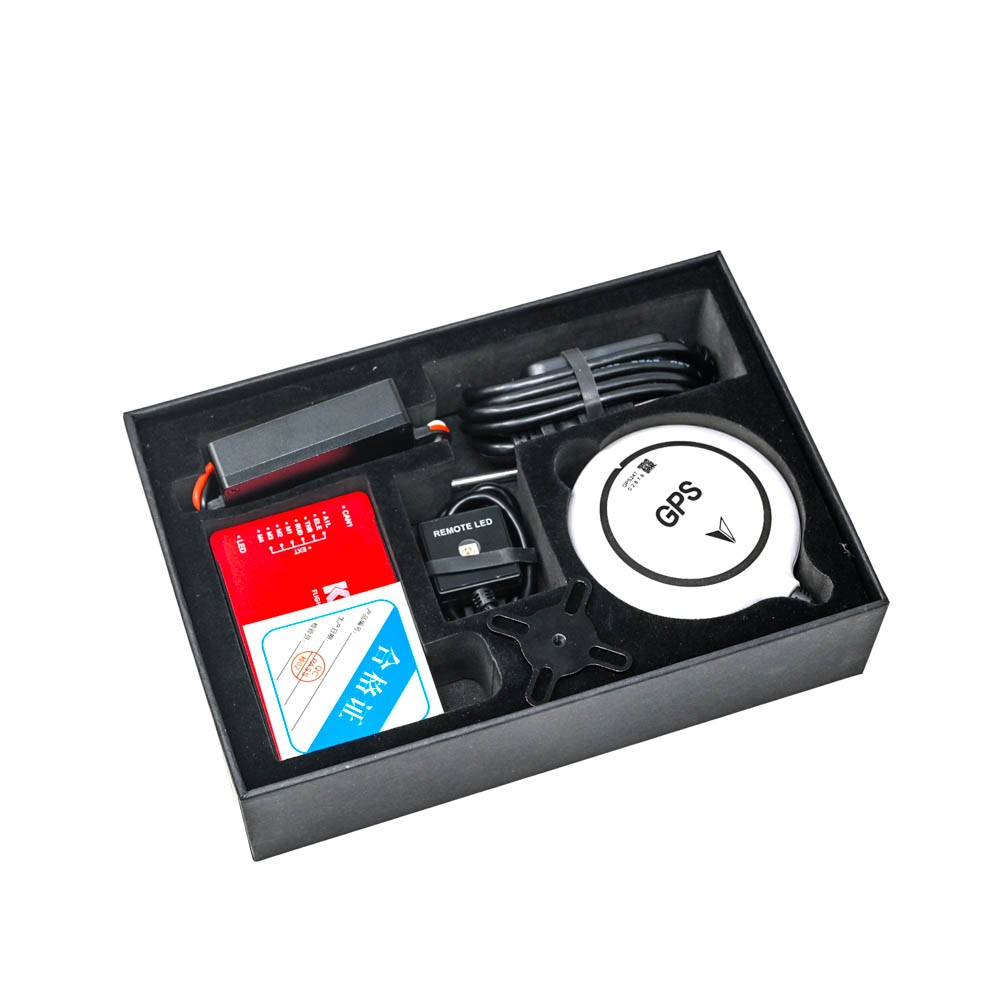

Package Includes:
1 x Jiyi KX Flight Controller Kit – For VTOL
Jiyi KX Flight Controller Kit – For VTOL Overview

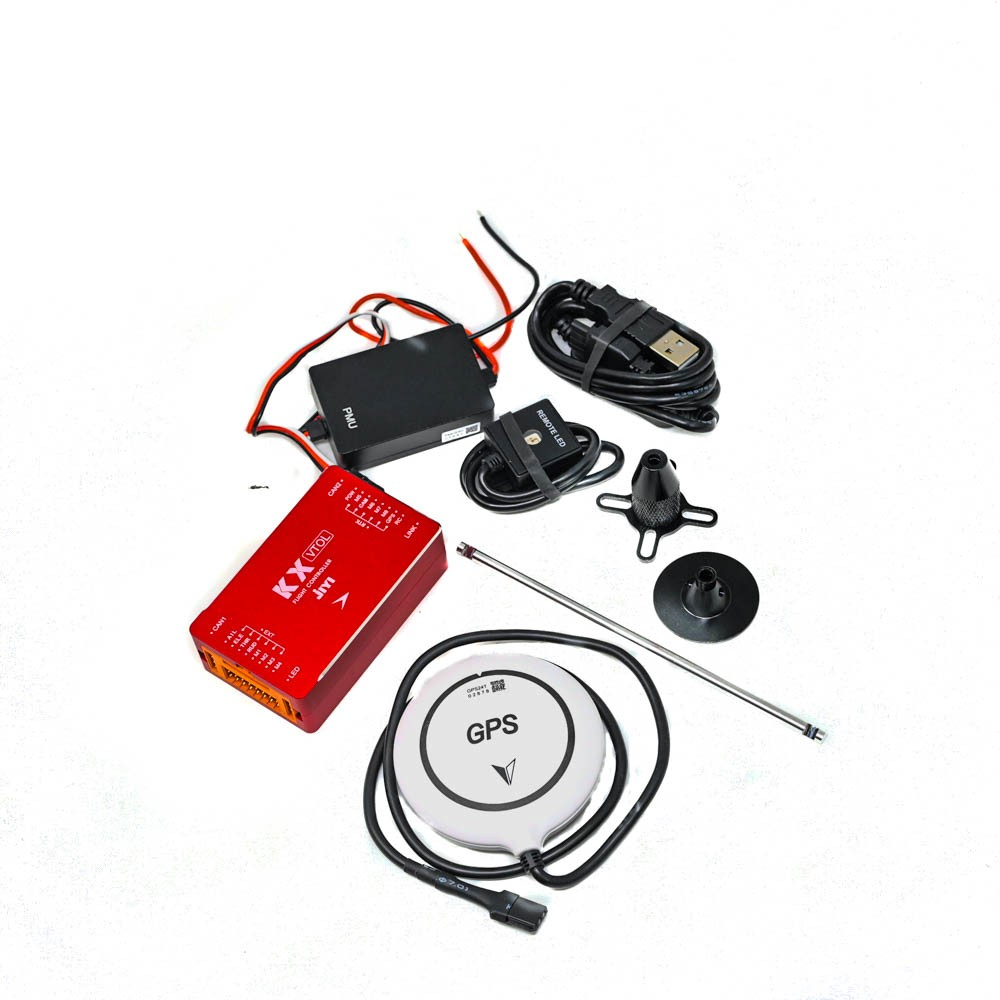

The Jiyi KX Flight Controller Kit – For VTOL is a complete control solution tailored for hybrid vertical takeoff and landing drones. It combines a high-precision flight controller, power management unit, GPS module and LED status indicator to deliver stable, reliable performance in demanding industrial environments.
Key Features of Jiyi KX Flight Controller Kit – For VTOL
- Redundant software and hardware control for fail-safe operation
- Supports I4 and X4 quadrotor frame types with VTOL configurations
- Hover accuracy: ±1.5 m horizontally, ±0.5 m vertically
- Maximum tilt angle 30°, yaw speed up to 150°/s and vertical speed 6 m/s
- Wide voltage range: FC 4.8 V–5.3 V, PMU 11.1 V–60 V
- Lightweight modules: FC 80 g, PMU 41 g, GPS 45 g, LED 14 g
- Advanced diagnostic algorithms for high wind resistance and reliability
- Seamless integration with JIYI 5G video transmission and API development
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Power line inspection drones operating in remote areas
- Firefighting surveillance UAVs with VTOL capability
- Logistics and parcel delivery in urban and rural zones
- Emergency rescue operations requiring precise hover control
- Surveying and mapping missions with stable vertical hold
- Industrial transportation platforms in confined spaces
How to Use Jiyi KX Flight Controller Kit – For VTOL
Mount the flight controller, PMU, GPS and LED modules on your VTOL airframe according to the included drill template. Connect the battery to the PMU (11.1 V–60 V) and power the FC (4.8 V–5.3 V). Wire motor outputs, sensors and 5G video link as per the user manual. Calibrate sensors via the ground station software, configure VTOL transition parameters, then perform a hover test to verify ±1.5 m horizontal and ±0.5 m vertical accuracy before full flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which drone frames are compatible with the Jiyi KX Kit?
The kit supports I4 and X4 quadrotor frames configured for VTOL. Its API interface also allows custom frame adaptations based on your design requirements.
What power supply does the flight controller require?
The flight controller operates on 4.8 V–5.3 V, while the PMU accepts 11.1 V–60 V for main power, making it suitable for 3S–14S battery setups.
How do I enable advanced diagnostics and redundancy?
Enable redundant control in the ground station settings. The controller automatically runs health checks on sensors and power rails, switching to backup channels if anomalies are detected.
