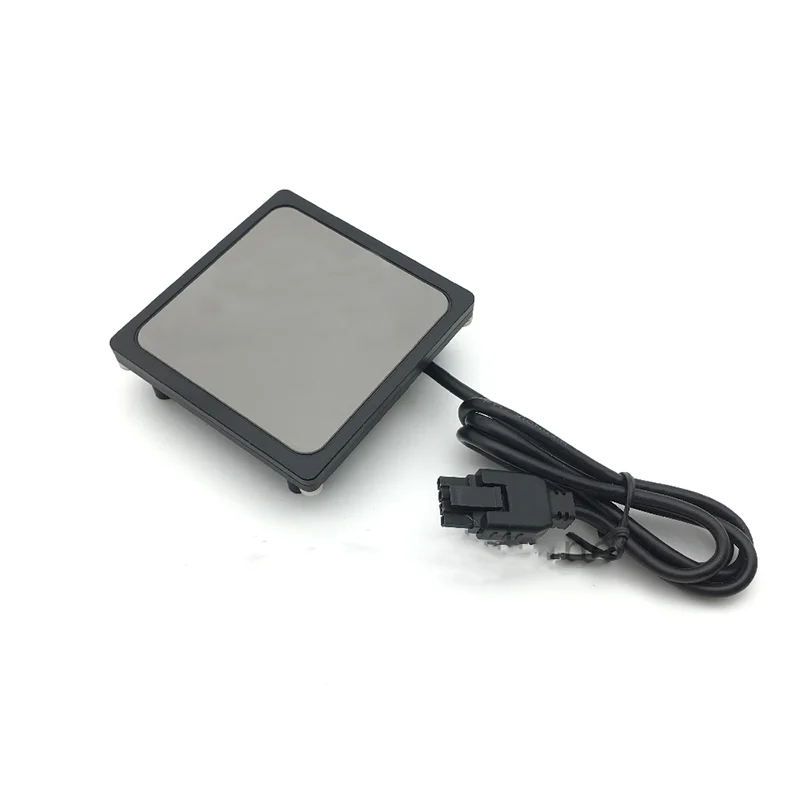

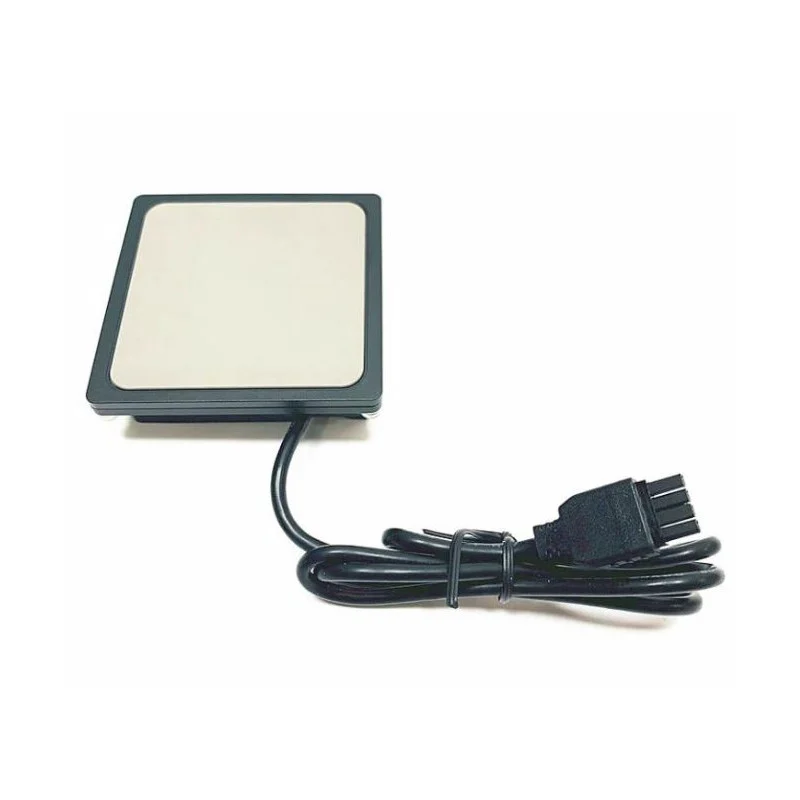

Looking for Jiyi Back? Jiyi Back Obstacle Avoidance Radar is available at Zbotic with fast shipping across India.
The rear obstacle avoidance radar module primarily functions to gauge the relative distance between the drone and any hindrances behind it during flight, thereby facilitating effective evasion. This radar employs 24GHz technology, capable of operating under various conditions including intense light, high temperatures, fog, dust, wind, and darkness. It boasts high sensitivity, an extensive detection range, and swift, reliable signal transmission. Objects such as electric wires, small trees with trunks measuring 10 cm in diameter, individuals standing at 1.7 m tall, and telephone poles 15 cm tall are excellently detected by this system. This makes it exceptionally suitable for high-speed drones performing plant protection tasks in complex outdoor settings.
Features:
Working in 24GHz ISM band
One transmit path and two receive paths are separated for maximum gain
Optimized noise figure and high receiver gain for better obstacle detection
The Jiyi Back Obstacle Avoidance Radar is a 24.125 GHz FMCW radar module designed to measure the distance between a drone’s rear and any obstacles behind it. It ensures safe backward flight by providing reliable detection up to 25 m, even in challenging light or environmental conditions.
Key Features of Jiyi Back Obstacle Avoidance Radar
FMCW modulation at 24.125 GHz for precise distance measurement
Wide detection range from 1 m to 25 m
High sensitivity to detect wires, small tree trunks (10 cm), humans (1.7 m) and poles (15 cm)
Operates reliably in intense light, high temperatures, fog, dust, wind and darkness
Fast and dependable signal transmission for real-time avoidance
Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
Rear-facing collision avoidance on commercial and hobby drones
Autonomous UAV inspections of industrial facilities, detecting hazards behind the vehicle
Agricultural drone operations avoiding trees or posts during reverse maneuvers
Cinematography drones shooting in tight spaces or low-light environments
Search and rescue UAVs navigating debris-filled or dusty areas
How to Use Jiyi Back Obstacle Avoidance Radar
Securely mount the radar module on the rear of your drone with a clear line of sight, then connect it to your flight controller’s sensor port using the supplied interface cables. Power the module at the specified voltage, configure detection thresholds in your autopilot software, and perform a test flight in an open area to verify accurate readings before operational use.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum detection range of the Jiyi Back Obstacle Avoidance Radar?
This radar provides accurate obstacle detection from 1 m up to 25 m, covering most rearward collision avoidance scenarios for drones.
Can the radar operate in adverse weather or low-light conditions?
Yes, the 24 GHz FMCW technology maintains high sensitivity and reliable performance in intense light, high temperatures, fog, dust, wind, and darkness.
How do I integrate this radar with my drone’s flight controller?
Connect the radar’s communication interface to a compatible sensor port on your flight controller, supply the required voltage, and configure distance thresholds in your autopilot software to receive real-time obstacle alerts.
The Jiyi Back Obstacle Avoidance Radar is a versatile ultrasonic sensors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
Free shipping on orders above ₹999 across India
Dispatched within 1-3 business days
Expected delivery: 3-7 business days depending on location
Secure packaging to ensure safe transit of electronic components
Genuine jiyi product sourced from authorized channels
Weight
0.1725152 kg
Country Of Origin: China
