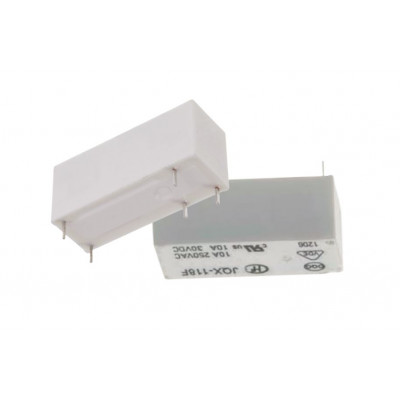

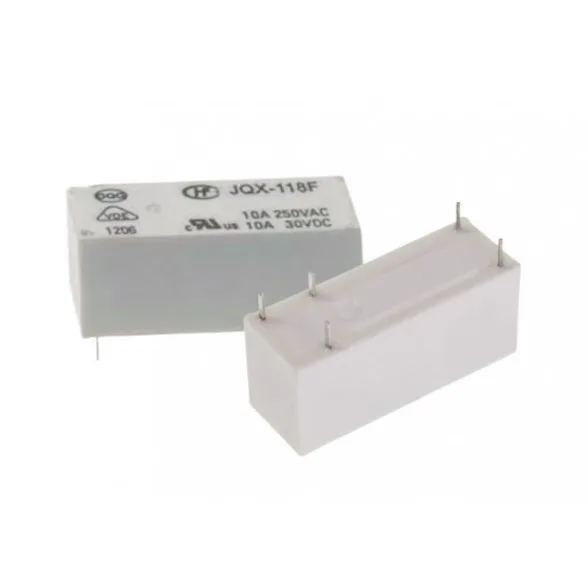

HONGFA 12V 10A DC JQX118F/012-1ZS1G Series 5 Pins SPDT High Power Relay
Hongfa 12V 10A DC JQX118F/012-1ZS1G Series 5 Pins SPDT High Power Relay offers low height, 8A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation.
Features:
- 10A switching capability
- 5kV dielectric strength (between coil and contacts)
- Low height: 12.5 mm
- Creepage distance >8mm
- Meeting VDE 0700, 0631 reinforce insulation
- Product in accordance to IEC 60335-1 available
- 1 pole configurations available
- UL insulation system: Class F
- Plastic sealed and flux proofed types available
Specifications:
- Manufacturer: HONGFA RELAY
- Contact Arrangement: 1 Form C
- Type of relay: electromagnetic
- Contacts configuration: SPDT
- Rated coil voltage: 12V DC
- AC contacts rating @R: 10A / 250V AC
- DC contacts rating @R: 10A / 30V DC
- Contact current max: 10A
- Switched voltage: max. 125V DC, max. 440V AC
- Relay variant: miniature
- Mounting: PCB
- Coil resistance: 620Ω
- Coil voltage min: 8.4V DC
- Coil voltage max: 18V DC
- Operate time: 10ms
- Body dimensions: 28.5×12.5×10.1mm
- Release time: 5ms
- Coil power consumption: 220mW
- Operating temperature: -40…85°C
- Contact resistance: 100mΩ
- Contact material: AgNi+ Au Plated
- Terminal pitch: 3.2mm
- Size: 28.5×10.1×12.5mm
- Weight: 8gm
Package Includes:
1 x Hongfa 12V 10A DC JQX118F/012-1ZS1G Series 5 Pins SPDT High Power Relay
HONGFA 12V 10A DC JQX118F/012-1ZS1G Series 5 Pins SPDT High Overview
The HONGFA 12V 10A DC JQX118F/012-1ZS1G Series relay is a compact, high‐power SPDT device designed to switch loads up to 10 A on DC and AC circuits. With a slim 12.5 mm profile and reinforced insulation, it’s ideal for space‐constrained control panels and power distribution modules.
Key Features of HONGFA 12V 10A DC JQX118F/012-1ZS1G Series 5 Pins SPDT High
- 10 A switching capability for resistive loads
- 5 kV dielectric strength between coil and contacts
- Low overall height of 12.5 mm for PCB mounting in tight spaces
- Creepage distance > 8 mm and VDE 0700/0631 reinforced insulation
- Meets IEC 60335-1 safety standards with UL Class F insulation system
- Plastic‐sealed, flux‐proofed construction and RoHS compliant
- Genuine product, fast shipping from Zbotic across India
Applications and Use Cases
- Switching DC motors and solenoids in industrial control panels
- Controlling heating elements or lamps in home appliances
- Power management in UPS, inverter and power supply units
- Automation systems for HVAC and building management
- Security and alarm systems for activating sirens or door locks
- Auxiliary circuit switching in automotive and EV charging stations
How to Use HONGFA 12V 10A DC JQX118F/012-1ZS1G Series 5 Pins SPDT High
Mount the relay securely on your PCB or relay socket, wiring the 12 V coil terminals to your control circuit. Connect the common (COM) contact to your power source and route the normally open (NO) or normally closed (NC) contacts to your load circuit. Ensure proper creepage and clearance distances, and verify coil polarity before energizing.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What does SPDT configuration mean on this relay?
SPDT stands for Single Pole Double Throw. This relay has one common contact and two outputs (NO and NC) allowing you to switch a single circuit between two paths.
Is the dielectric strength sufficient for industrial applications?
Yes, it offers 5 kV dielectric strength between the coil and contacts, meeting reinforced insulation requirements under VDE 0700/0631.
Can I use this relay in appliance-grade equipment?
Absolutely. The JQX118F series complies with IEC 60335-1 safety standards and features UL Class F insulation, making it suitable for household and commercial appliances.
