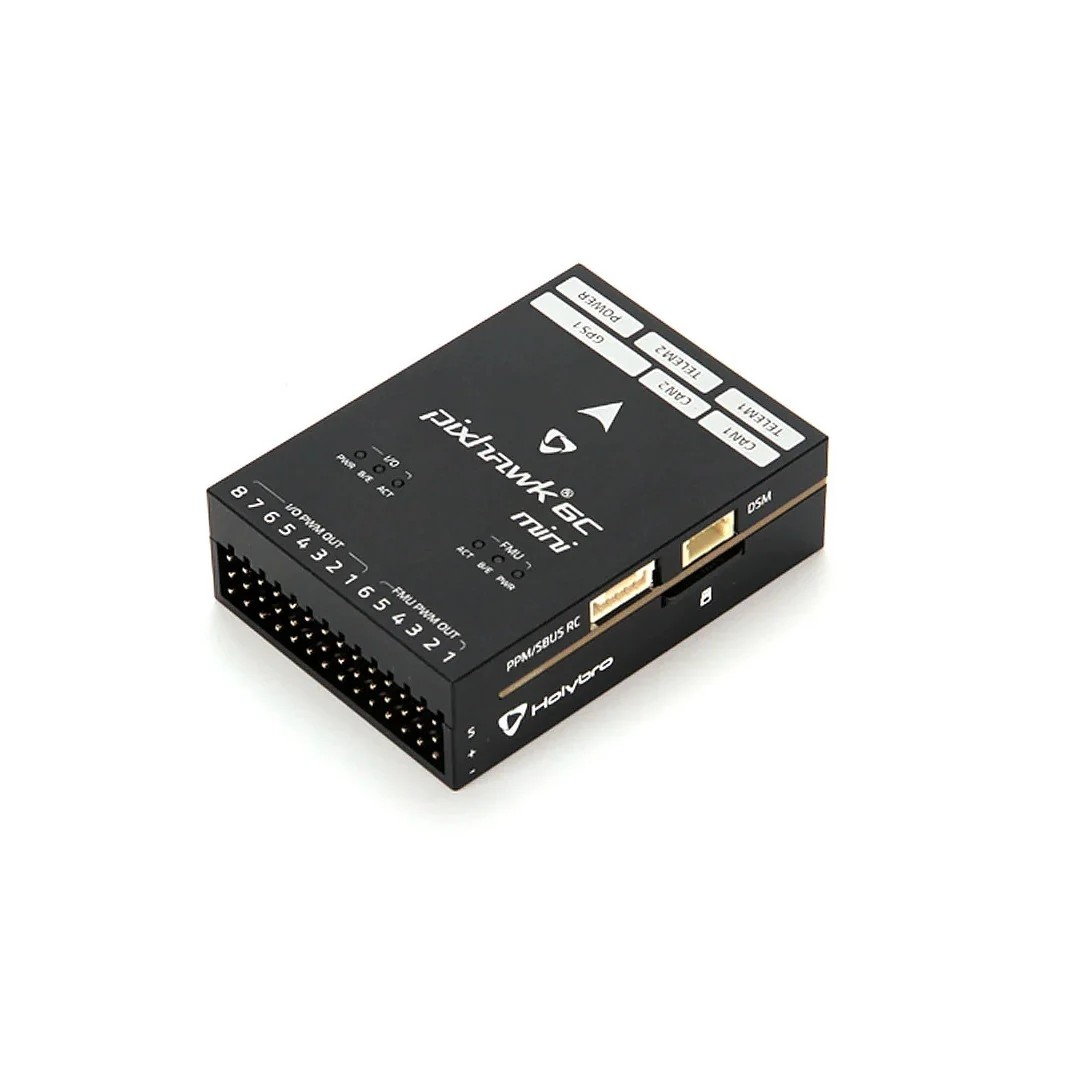

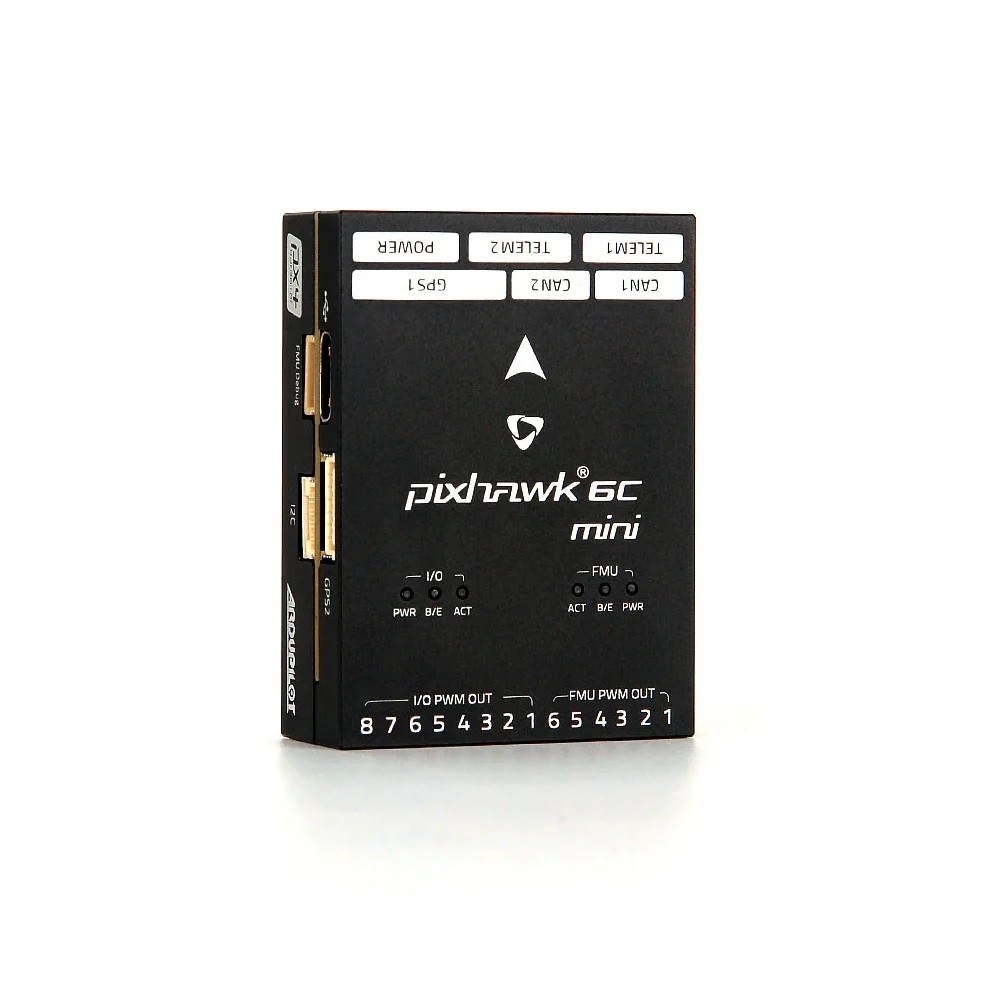

Holybro Pixhawk 6C Mini Flight Controller

Introducing the Holybro Pixhawk 6C Mini Flight Controller.

The Pixhawk® 6C Mini represents the newest addition to the esteemed Pixhawk® flight controller lineage, adhering to the Pixhawk® FMUv6C Open Standard and Connector Standard. It boasts the same STM32H743 microprocessor and sensors as its predecessor, the Pixhawk® 6C. This Mini variant is equipped with an integrated PWM header and has undergone port reduction to accommodate its compact size.

At the heart of the Pixhawk® 6C Mini lies the STM32H743 from STMicroelectronics®, coupled with cutting-edge sensor technology from Bosch® and InvenSense®. This combination delivers the versatility and dependability needed to pilot any autonomous vehicle, making it ideal for both scholarly and commercial endeavors.

The Pixhawk® 6C Mini’s H7 microcontroller is powered by the Arm® Cortex®-M7 core, capable of speeds up to 480 MHz, and is supported by 2MB of flash memory and 1MB of RAM. The enhanced computational capacity allows developers to work more effectively, enabling the execution of intricate algorithms and models.

Embracing the FMUv6C open standard, the device incorporates advanced, low-noise IMUs, optimized for cost-effectiveness and redundancy. It also features a vibration isolation system that mitigates high-frequency vibrations and diminishes noise, ensuring precise sensor readings and facilitating superior flight performance.

The Pixhawk® 6C Mini is an exemplary tool for developers working in corporate research laboratories, startups, academia (including researchers, professors, and students), and various commercial sectors.

Key Design Points

• High performance STM32H743 Processor with more computing power & RAM
• New cost-effective design in a small form factor
• IMU redundancy with sensor technology from Bosch® & InvenSense®
• Integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
• IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

For technical Information, please visit our Pixhawk 6C Mini Documentation Page.

Specification-

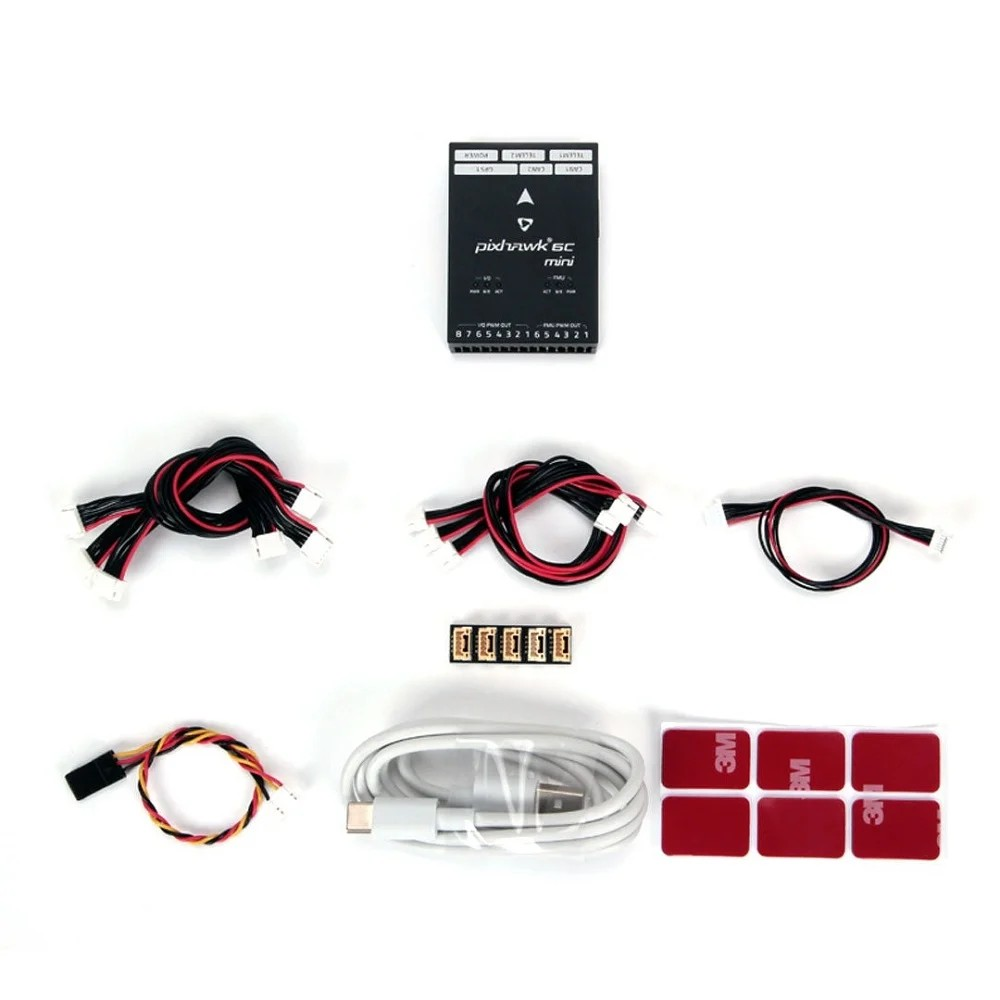

Package Includes:

1 x Pixhawk 6C Mini Flight Controller
1 x Cable Set
