PM02D provides regulated power supply for your Pixhawk® 5X & 6X from the battery, as well as current consumption and battery voltage measurements, all through a 6pin cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from LiPo batteries up to 12S (HV). The Power Module comes completely assembled with XT60 connectors, wrapped in shrink tubing for physical damage protection.
It is not designed to power servos, please use your aircraft’s ESC/BEC for that. The Molex 2.00mm pitch CLIK-Mate Wire-to-Board connector is rated for 3.0A current per contact
Note:
PM02D HV version is supported by PX4. For Ardupilot, it is supported in version 4.4 and later. Full setup guide can be found here.
This PM uses I2C digital signal data output, Compatible with Pixhawk 5X/6X Series.
NOT compatible with flight controller that uses analog PM such as the Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers.
Current Rating: The PM02D comes with XT60 plugs with 14 AWG silicone wires rated for 30A continuous current and 60A burst current (<1 minute).
Features:
- Regulated Output: 5.2V and 3A max for stable power supply
- Battery Compatibility: Supports LiPo batteries up to 12S (HV)
- Current Sensing: High-accuracy current sensing up to 327A for HV
- Monitoring Interface: I2C compatible interface for voltage and current monitoring
- Physical Protection: Wrapped in shrink tubing to prevent damage
- Connectors: Equipped with XT60 connectors for reliable connections
Applications:
- Autonomous Vehicle Control: Academic and commercial drones and robots.
- Research & Development: Suitable for corporate labs and startups.
- Education: Ideal for professors, students, and academic research.
- Commercial Use: Enables robust and efficient performance for real-world task
Specification:
| Item Type: | Flight Controller |
|---|---|
| Processor | STM32H743, 32-bit Arm® Cortex®-M7, 480 MHz, 2MB Flash, 1MB SRAM. |
| IO Processor | STM32F103, 32-bit Arm® Cortex®-M3, 72 MHz, 64KB SRAM |
| Sensor | Accel/Gyro: ICM-42688-P, BMI055,Magnetometer: IST8310,Barometer: MS5611. |
| Voltage Input | 6V |
| Max Current Output (mA) | 1.5A |
Package Includes:
1 x Holybro PM02D Power Module High Voltage (2S -12S)
How to Solder Drone ESC and Motors: Beginner Tutorial
How to Solder Drone ESC and Motors: Beginner Tutorial Soldering is the single most important skill you will...
Read More →
Long Range Cruiser Drone: 7-Inch Build for Exploration
Table of Contents Understanding Long Range Cruiser Drone Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
RC Transmitter Buying Guide India: FrSky vs RadioMaster 2026
RC Transmitter Buying Guide India: FrSky vs RadioMaster 2026 Choosing your first RC transmitter — or upgrading from...
Read More →Technical Specifications
| Brand | Holybro |
|---|---|
| Model | PM02-12S |
| Discharge Rate | 6C |
| SKU | AI7420 |
| Weight | 0.37 kg |
| Availability | Out of Stock |
Applications & Use Cases

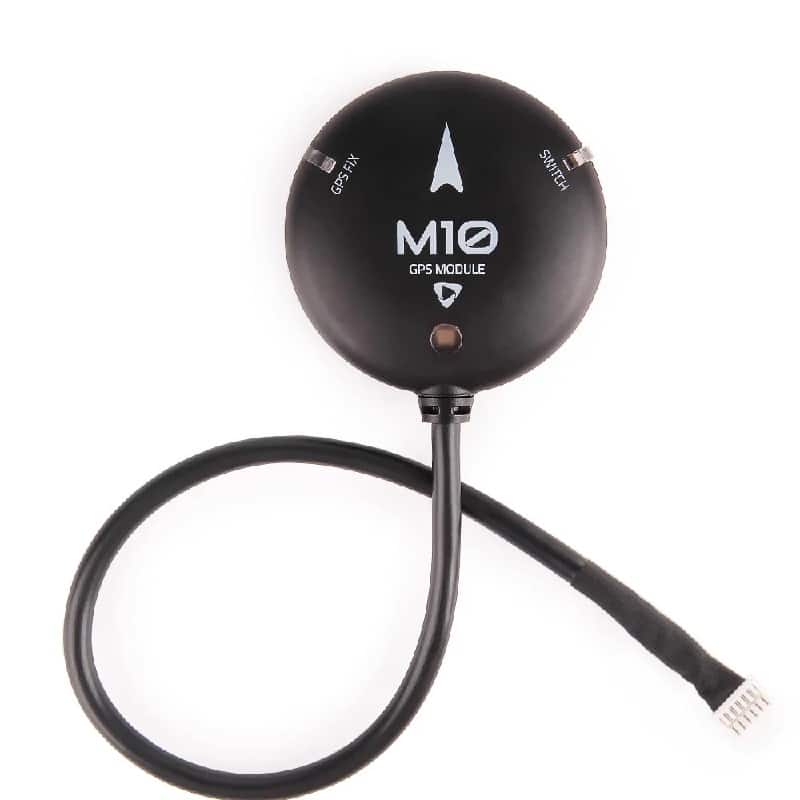

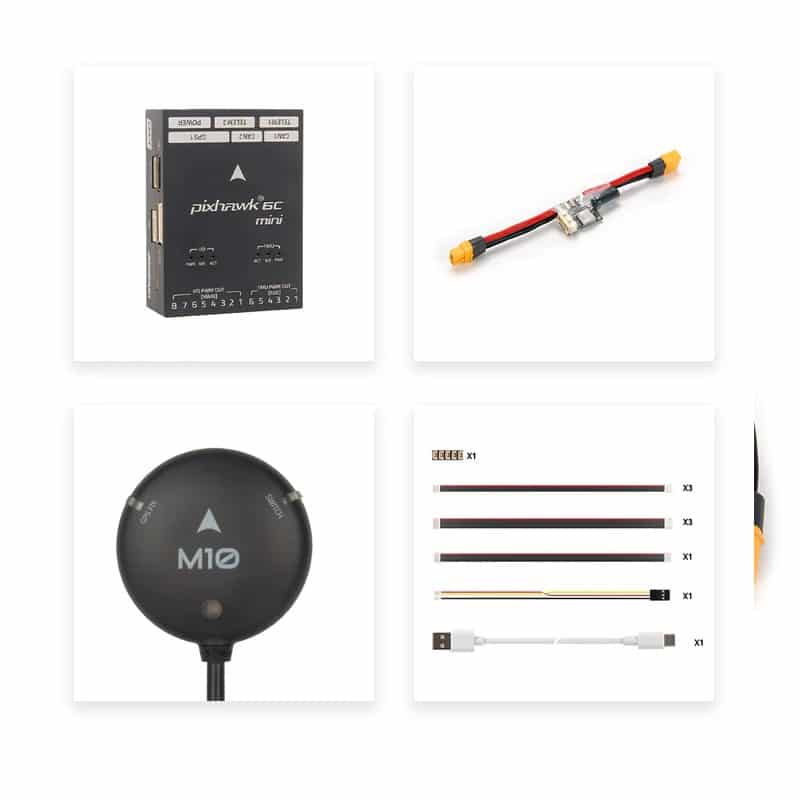

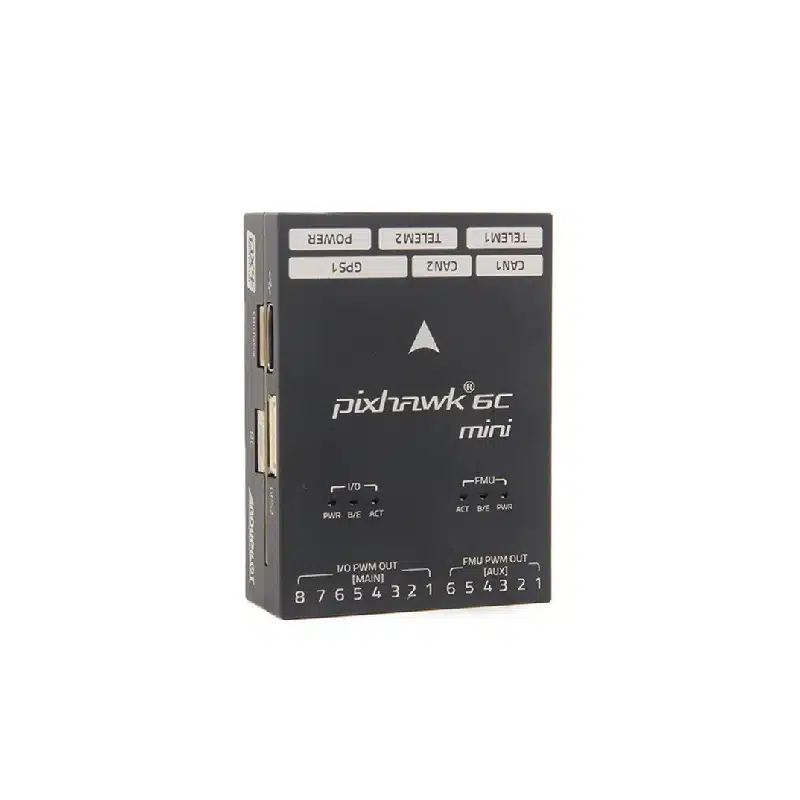

The Holybro Pixhawk 6C Mini and PM02-12S and M10 GPS Combo is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
