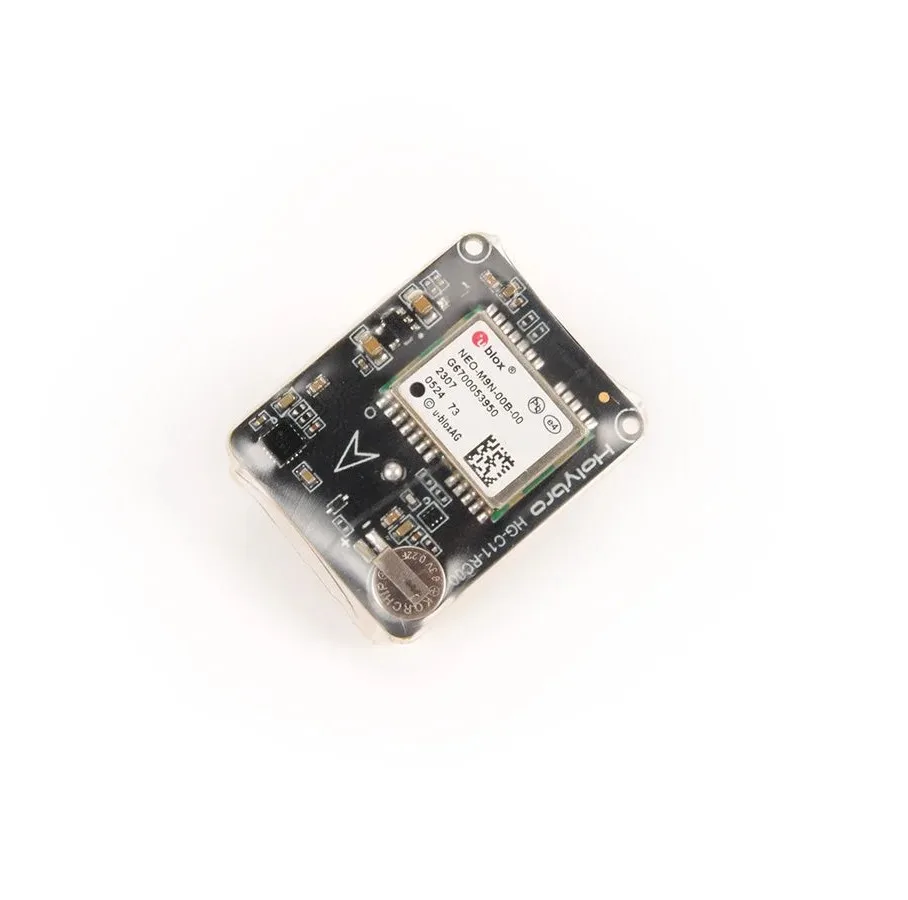

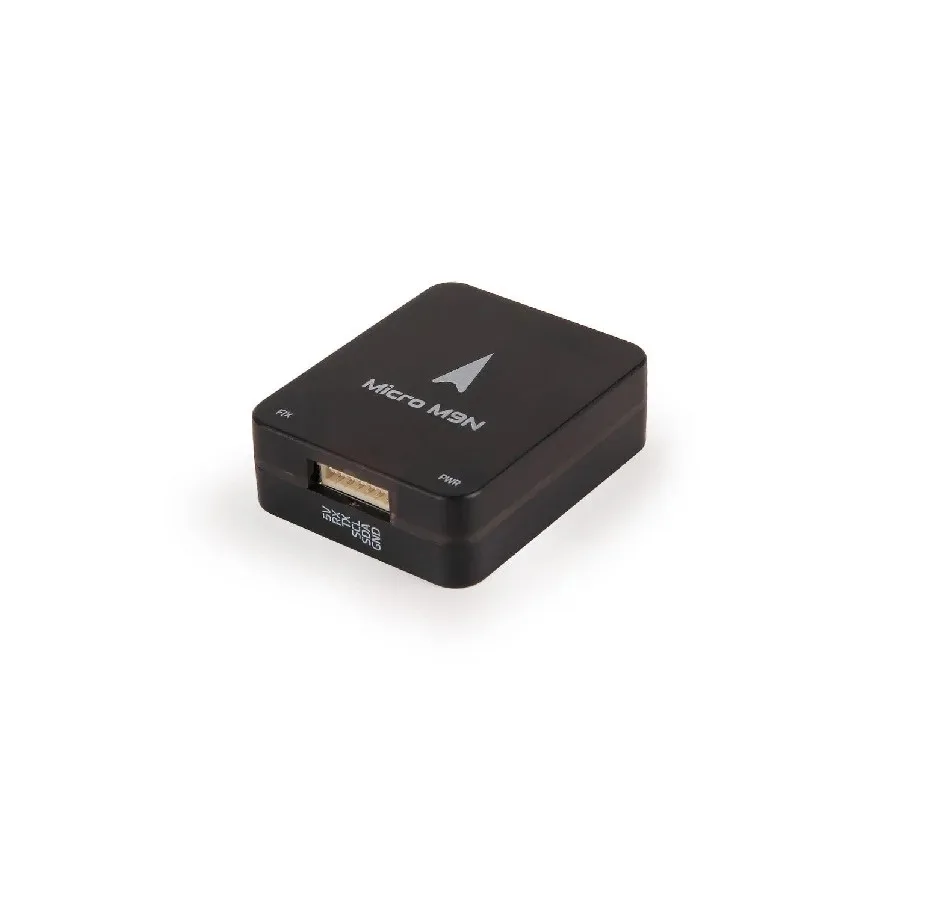

The Holybro Micro M9N GPS with Case is equipped with a multi-constellation GNSS, powered by the u-blox M9N module. This concurrent GNSS receiver is capable of receiving and tracking various GNSS systems simultaneously. Thanks to its multi-band RF front-end architecture, it can concurrently receive signals from all four major GNSS constellations: GPS, Galileo, GLONASS, and BeiDou. Additionally, it includes the IST8310 compass.
Its high-gain 25 x 25 mm^2 patch antenna delivers superior performance, and its omnidirectional radiation pattern offers increased installation flexibility. The device also boasts active circuitry for the ceramic patch antenna and a rechargeable backup battery to facilitate warm starts.
For the M10 GPS, firmware support is required from PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0, or later versions.
Features
- Ublox M9N GNSS Reciever
- Accurate Positioning
- Fast Navigation Update Rate
- IST8310 Compass
- Small Form Factor
Specification-
GNSS Receiver | Ublox M9N |
---|---|
Number of Concurrent GNSS | Up to 4 GNSS – BeiDou – Galileo – GLONASS – GPS – QZSS |
Frequency Band | – GPS L1 – Galileo E1 – GLONASS L1 – BeiDou B1 – SBAS L1 – QZSS L1 |
Compass | IST8310 |
Output Protocol | – UBX (U-blox) – NMEA |
Accuracy[CEP] | 1.5 |
Nav. Update Rate | Up to 25 Hz (4 concurrent GNSS) |
GNSS Augmentation System | EGNOS, GAGAN, MSAS and WAAS QZSS: L1S |
Default Baud Rate | 115200 |
Input Voltage | 4.7-5.2V |

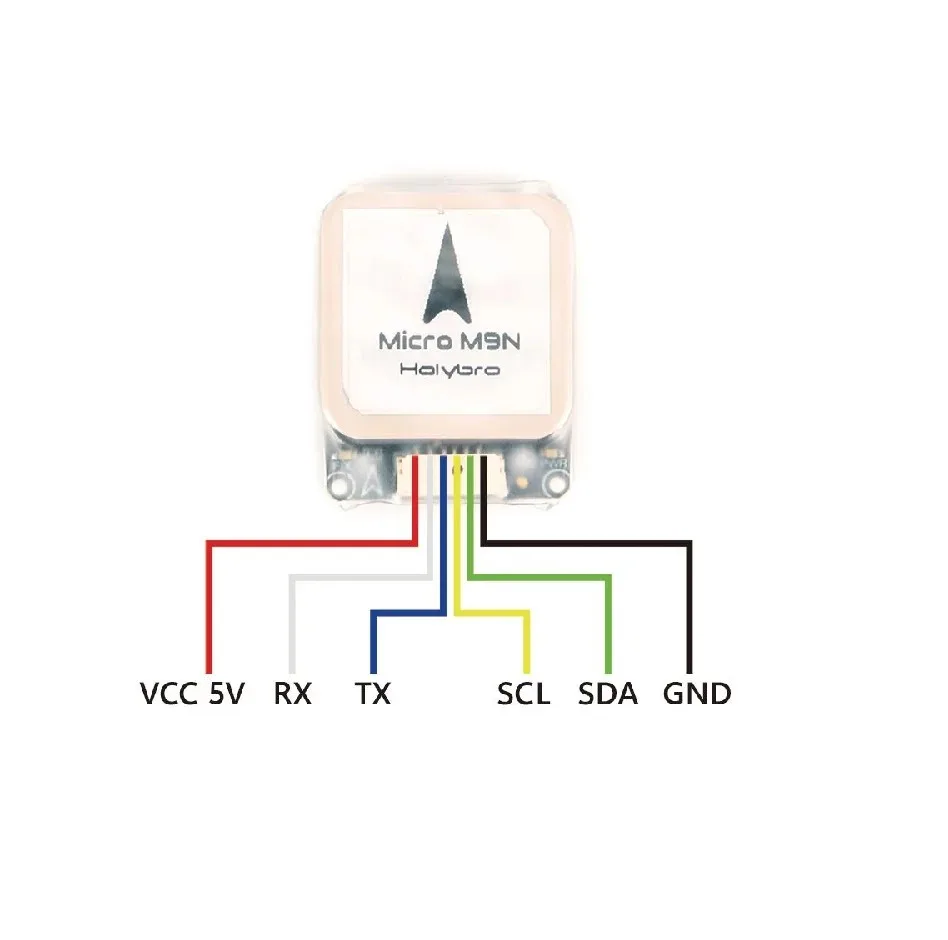

Port Type | JST-GH-6P |

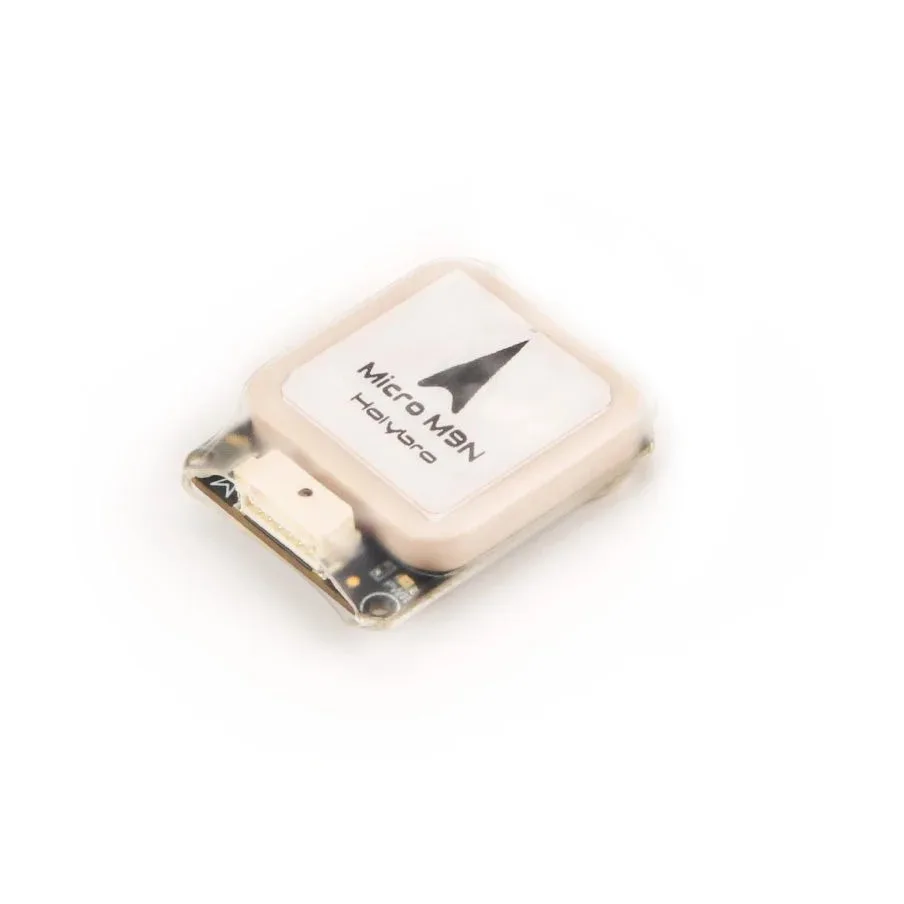

Antenna | 25 x 25 x 4 mm ceramic patch antenna |
Power consumption | Less than 200mA @ 5V |
Operating Temperature | -40~80C |
Dimension | – 32 x 26 x 9mm (w/o Case) – 34 x 28 x 11mm (With Case) |
Weight | – 14g (w/o Case) – 16g (With Case) |
Shipping Weight | 0.031 kg |
Shipping Dimensions | 13 × 9 × 2 cm |

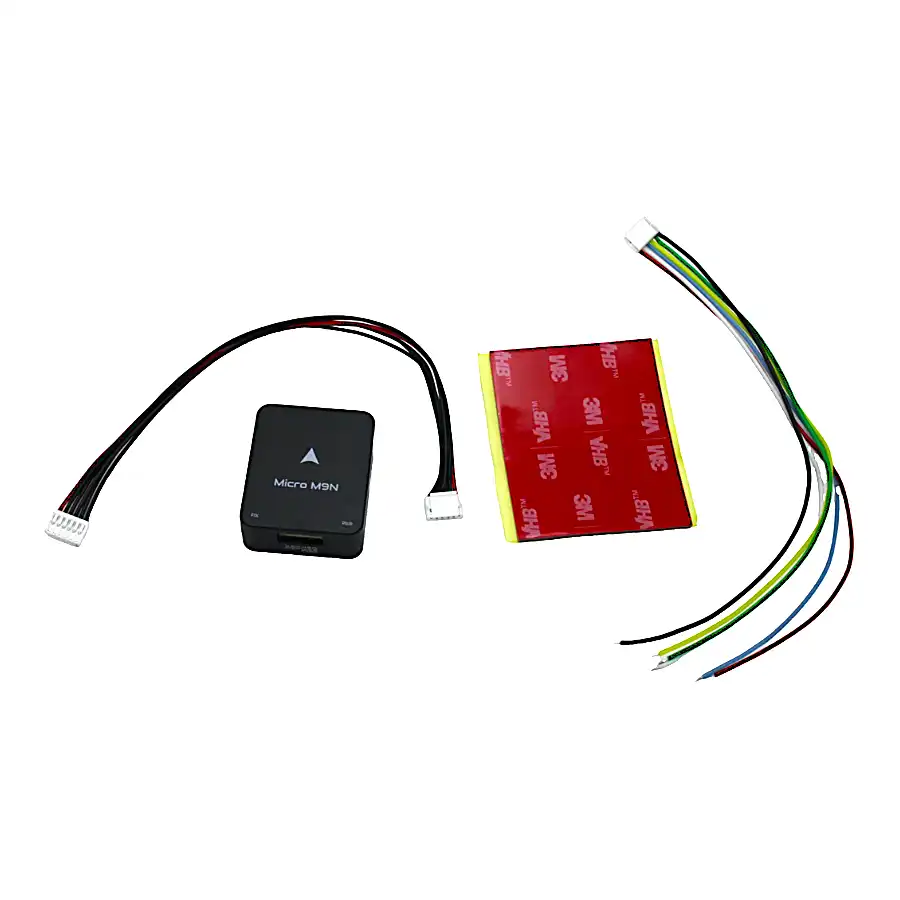

Package Includes:
1x Micro GPS module *1
1x JST GH 6 Position Connector 15 cm
1x JST-GH 6pin Colored Silicon Cable 15 cm
