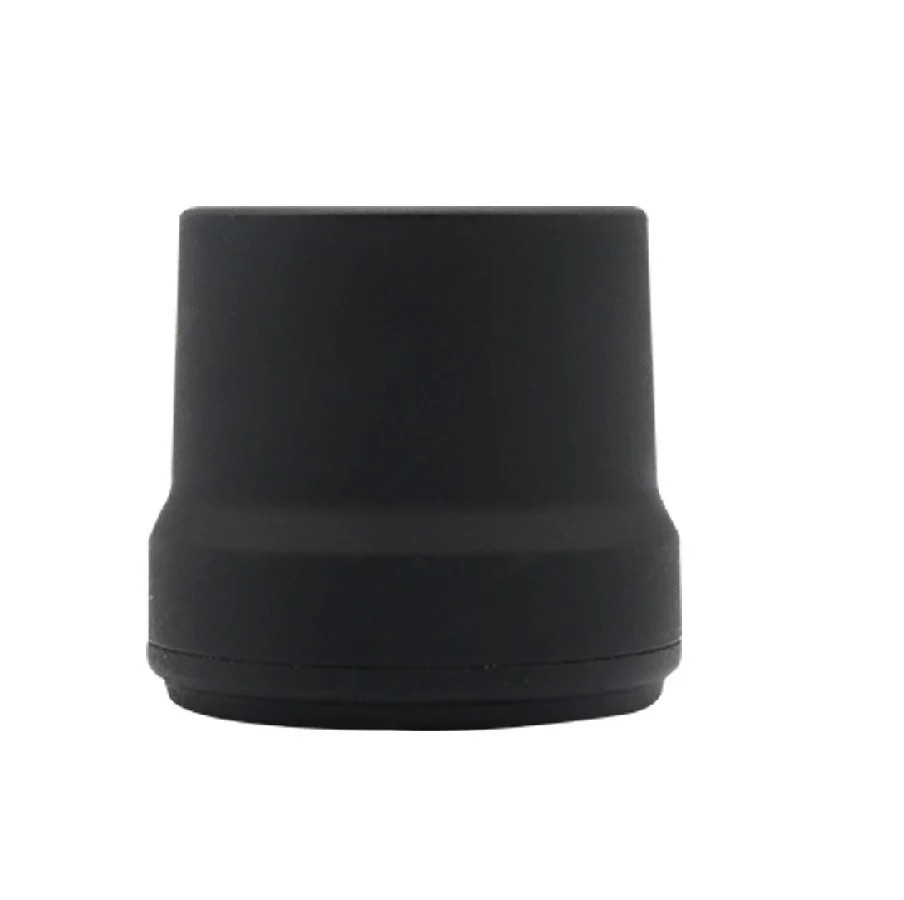

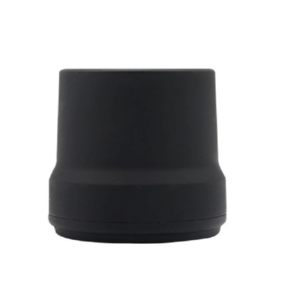

Holybro High Precision RTK GNSS Antennas (CH7609A – 4 Bands)

Achieve unmatched precision and dependability in your GNSS applications with Holybro’s High Precision RTK GNSS Antennas (CH7609A – 4 Bands). Tailored for challenging navigation and positioning operations, these antennas provide superior performance across four frequency bands, ensuring excellent signal reception in a variety of settings.

Equipped with sophisticated RTK technology, they offer centimeter-level precision, making them perfect for tasks in surveying, mapping, agriculture, and drone operations. Their robust build ensures lasting performance under tough conditions, and their sleek design allows for seamless integration into different systems.

Advance your GNSS projects with Holybro’s state-of-the-art antennas, redefining the benchmarks for accuracy and efficiency.

Features:

1. Supports 4 frequency bands
2. Comprehensive GNSS support: GPS, GLONASS, Galileo, BeiDou, as well as
3. L-Band correction service
4. Centimeter phase center repeatability, high gain at low elevation
5. Improved signal filtering and excellent multipath rejection
6. lightweight, low profile facilitates easier integration
7. Dimensions ¢43.6*40.8mm ≤30.5g

Specification-

Package Includes:

1 x Holybro High Precision RTK GNSS Antennas (CH7909A – 4 Bands)

DATA SHEET

Holybro High Precision RTK GNSS Antennas Overview

The Holybro CH7609A High Precision RTK GNSS Antennas is a 4-band external antenna designed for centimeter-level positioning in demanding navigation and mapping applications. With built-in Real-Time Kinematic (RTK) technology and a rugged form factor, it ensures reliable satellite reception and integration into drones, survey rigs, and agricultural machinery.

Key Features of Holybro High Precision RTK GNSS Antennas

• Four-band reception covering GPS, GLONASS, BeiDou and Galileo signals for comprehensive satellite tracking
• RTK-enabled design delivers centimeter-level accuracy for precision mapping and surveying
• Low-noise, high-gain element optimizes signal strength even in obstructed environments
• Durable, weather-resistant housing built to withstand outdoor use in harsh conditions

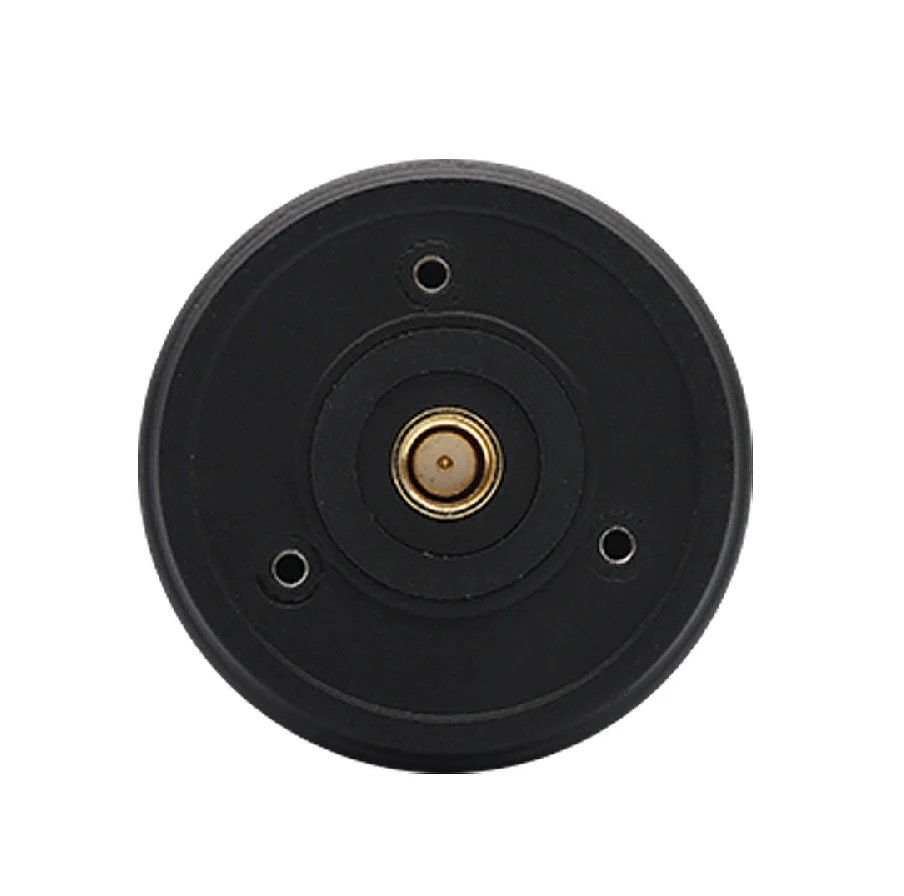

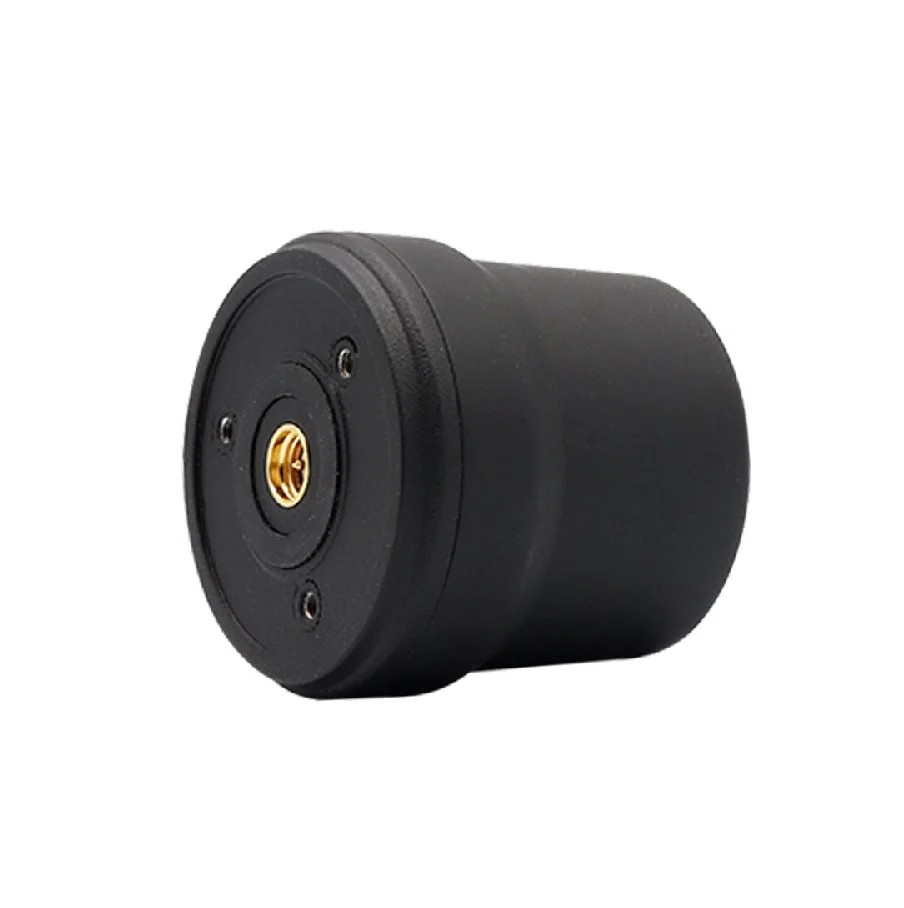

• Compact footprint and standard SMA connector for easy mounting on drones or survey poles
• Genuine product with fast shipping from Zbotic for rapid project deployment

Applications and Use Cases

• High-precision land surveying and boundary mapping
• Construction site layout and machine control guidance
• Agricultural field mapping and variable-rate application systems
• UAV/drone flight planning, autonomous waypoint navigation and photogrammetry
• Marine navigation and hydrographic surveying
• Autonomous vehicle positioning and robotics research

How to Use Holybro High Precision RTK GNSS Antennas

Mount the CH7609A antenna on a stable mast, drone frame, or survey pole using its standard SMA-mount base. Connect the antenna cable to your RTK-capable GNSS receiver, configure the receiver to accept RTK correction data from a base station or network, power on the system, and wait for satellite lock. Once locked, begin your precision measurements or mapping mission.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What GNSS signals does the CH7609A support?

The CH7609A monitors four frequency bands to receive GPS L1/L2, GLONASS G1/G2, BeiDou B1/B2 and Galileo E1/E5a signals, ensuring robust multi-constellation performance.

How durable is the Holybro CH7609A antenna?

Its rugged, weather-resistant housing and sealed design protect the internal RTK electronics from moisture and dust, making it suitable for long-term outdoor deployments.

Will this antenna integrate with my existing RTK setup?

Yes. The CH7609A uses a standard SMA connector and provides a universal RTK-compatible output, allowing seamless integration with most base stations, rovers and drone GNSS receivers.
