The SIYI HM30 Full HD Digital Image Transmission FPV System is an advanced solution for first-person view (FPV) enthusiasts. This system offers high-definition video transmission with exceptional clarity, enabling real-time, immersive experiences for drone pilots and remote operators. Its compact design ensures easy integration with various drones and RC vehicles. With reliable digital transmission technology, it provides stable and lag-free video feeds, making it an ideal choice for capturing breathtaking aerial footage and enhancing the FPV flying experience.

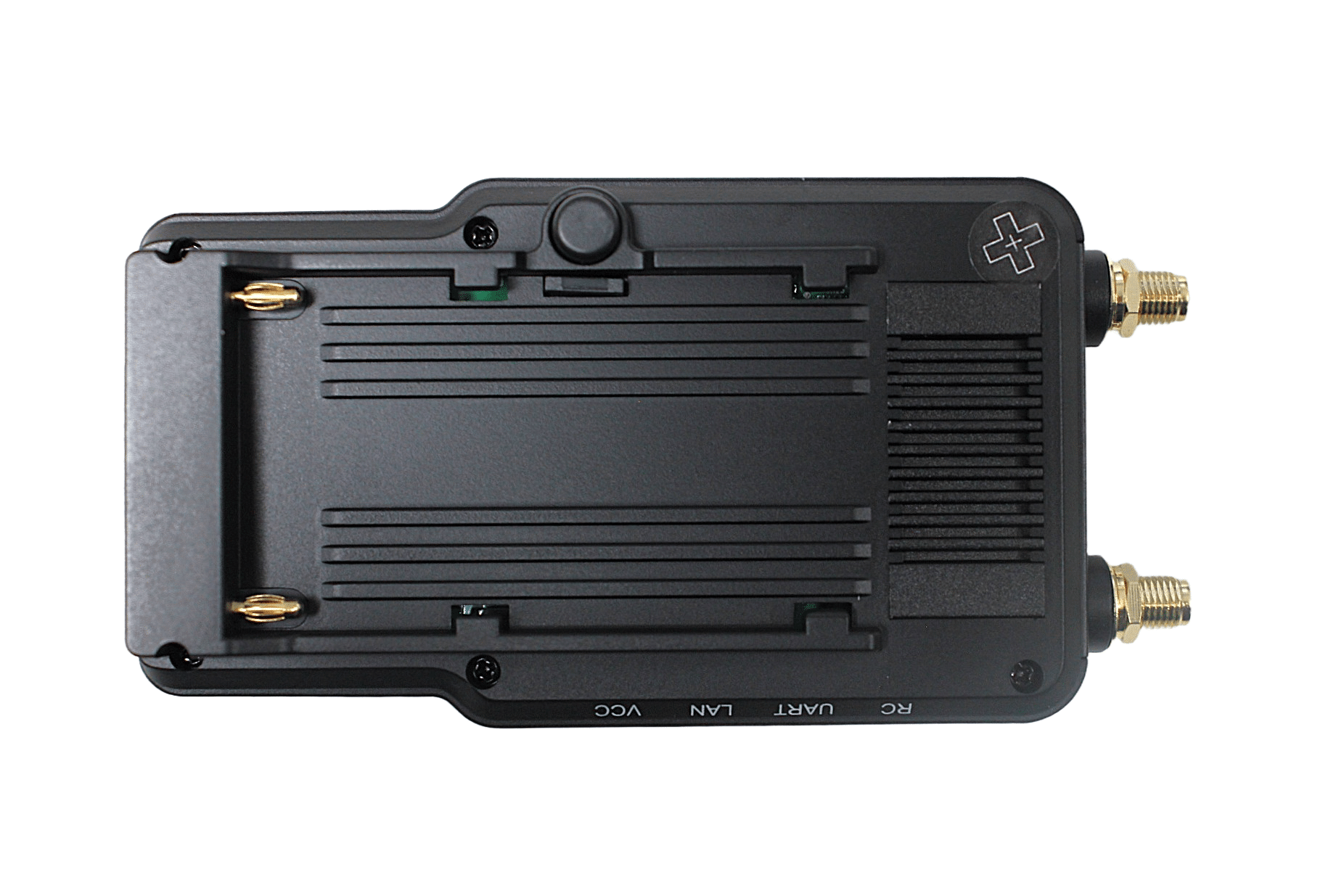

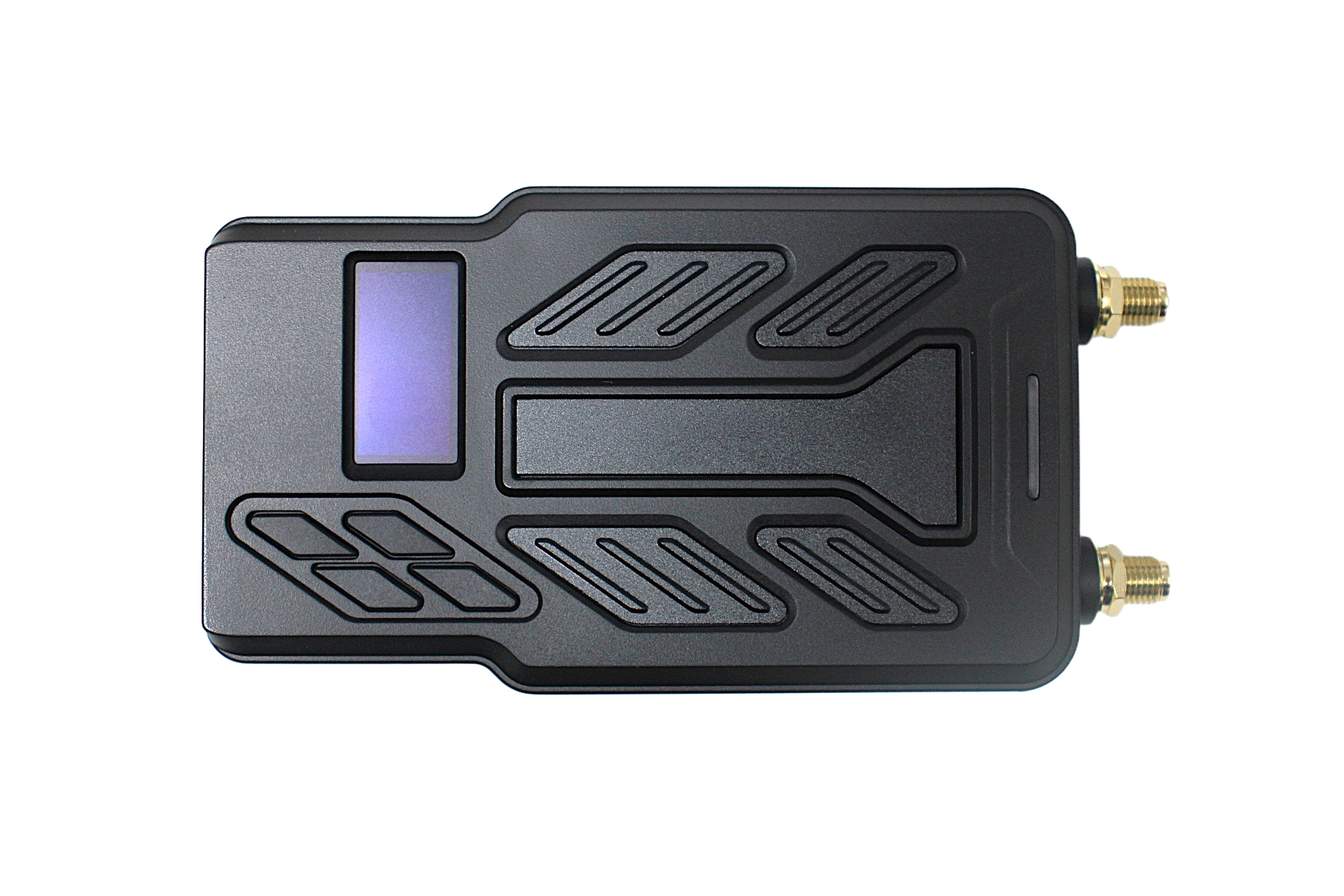

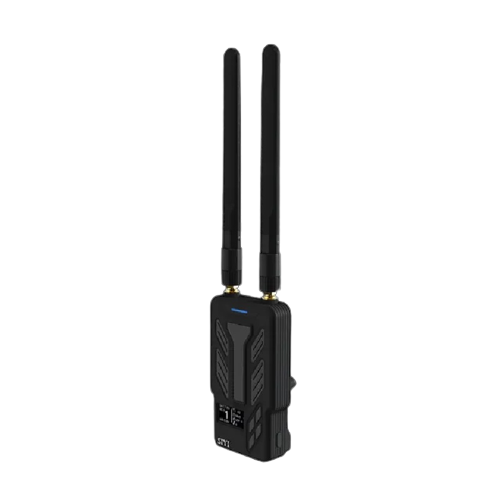

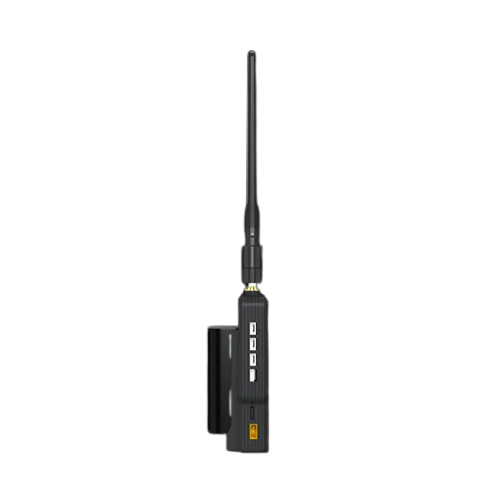

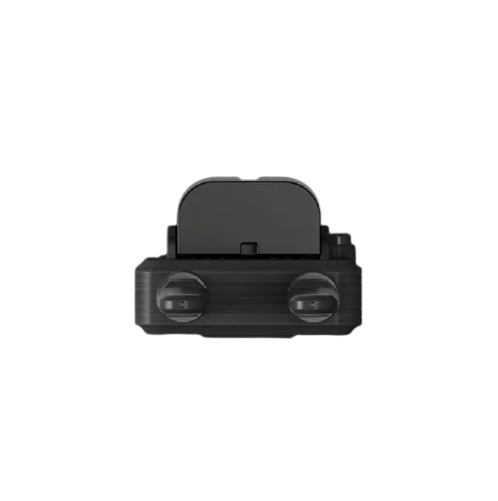

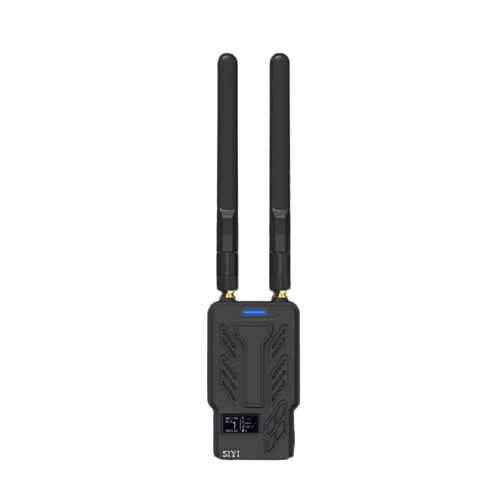

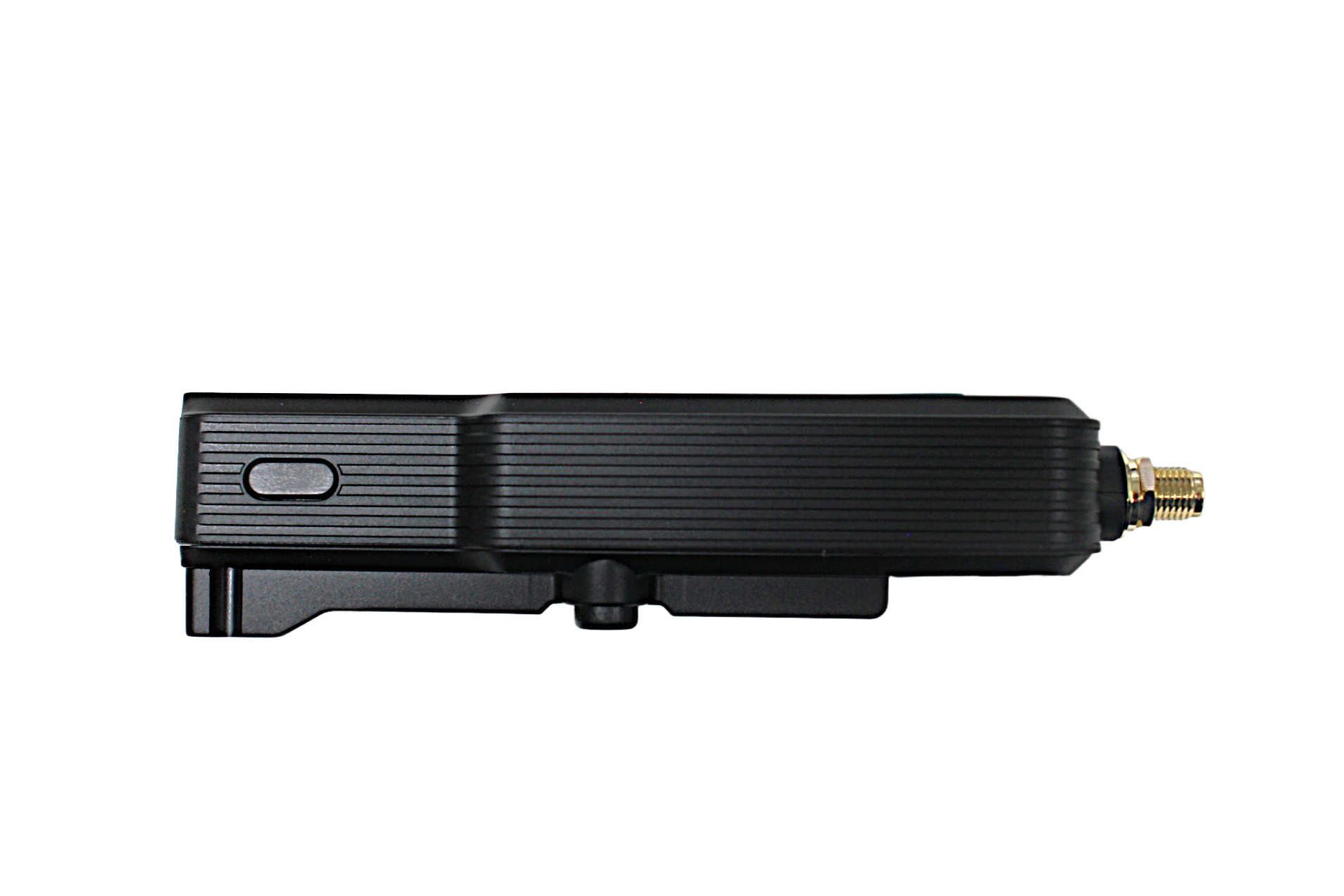

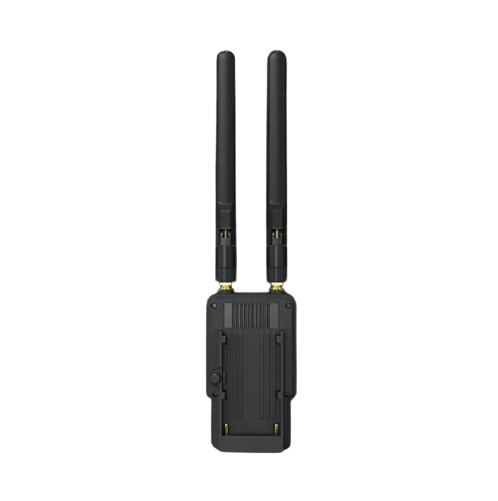

Ground Unit
Monitor Display: 0.96-inch OLED Screen
Dimensions (antennas and battery excluded): 109 x 61 x 28 mm
Weight (antenna and battery excluded): 132 g
Compatible Battery Type:
– NP-F550 / F750 / F770 / F950 / F970 series quick release batteries
(HM30 Fly More Combo comes with NP-F750 battery)
Fast Charging Protocol: PD 30W
Antenna Gain:

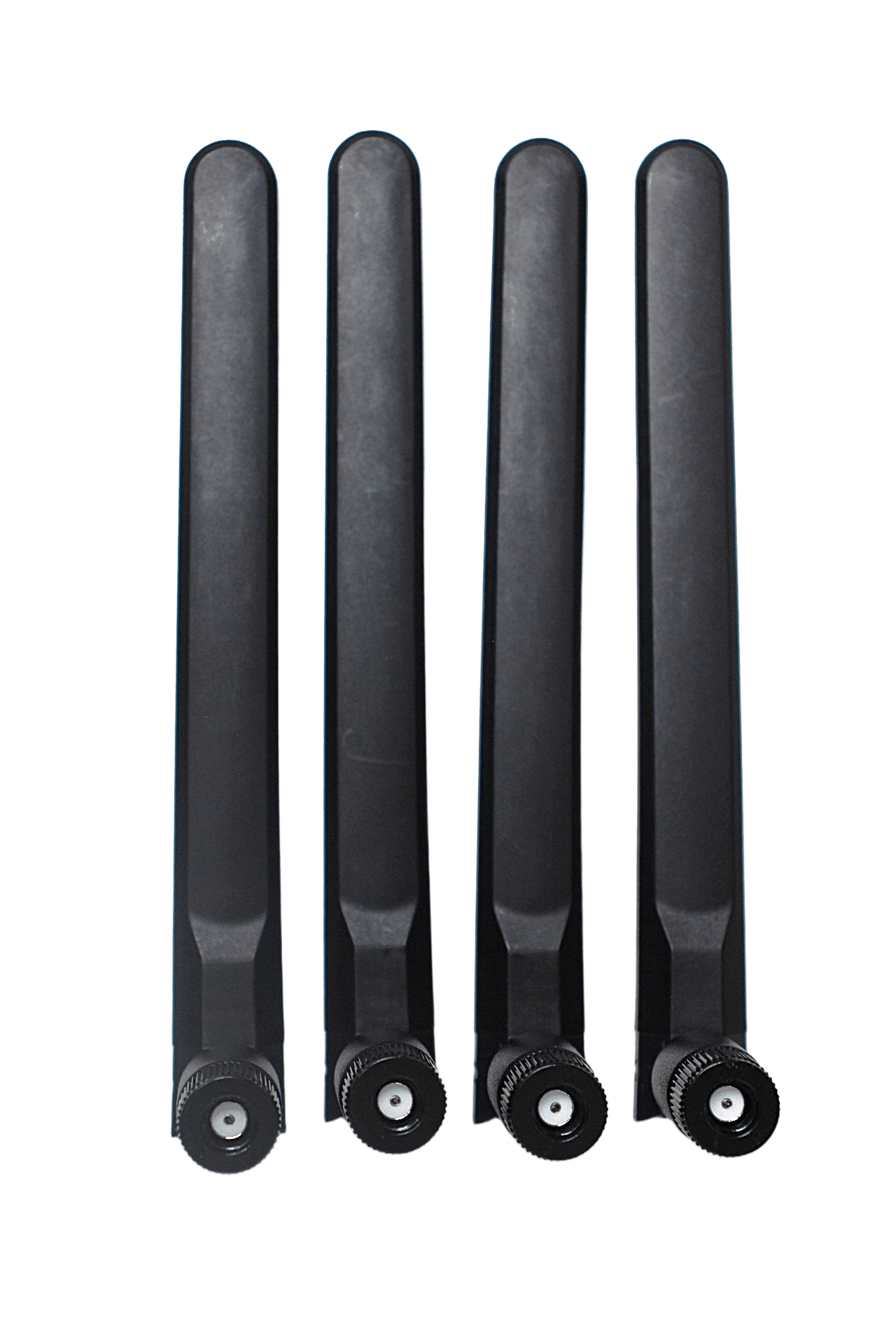

– Standard Omni Antennas: 5 dBi

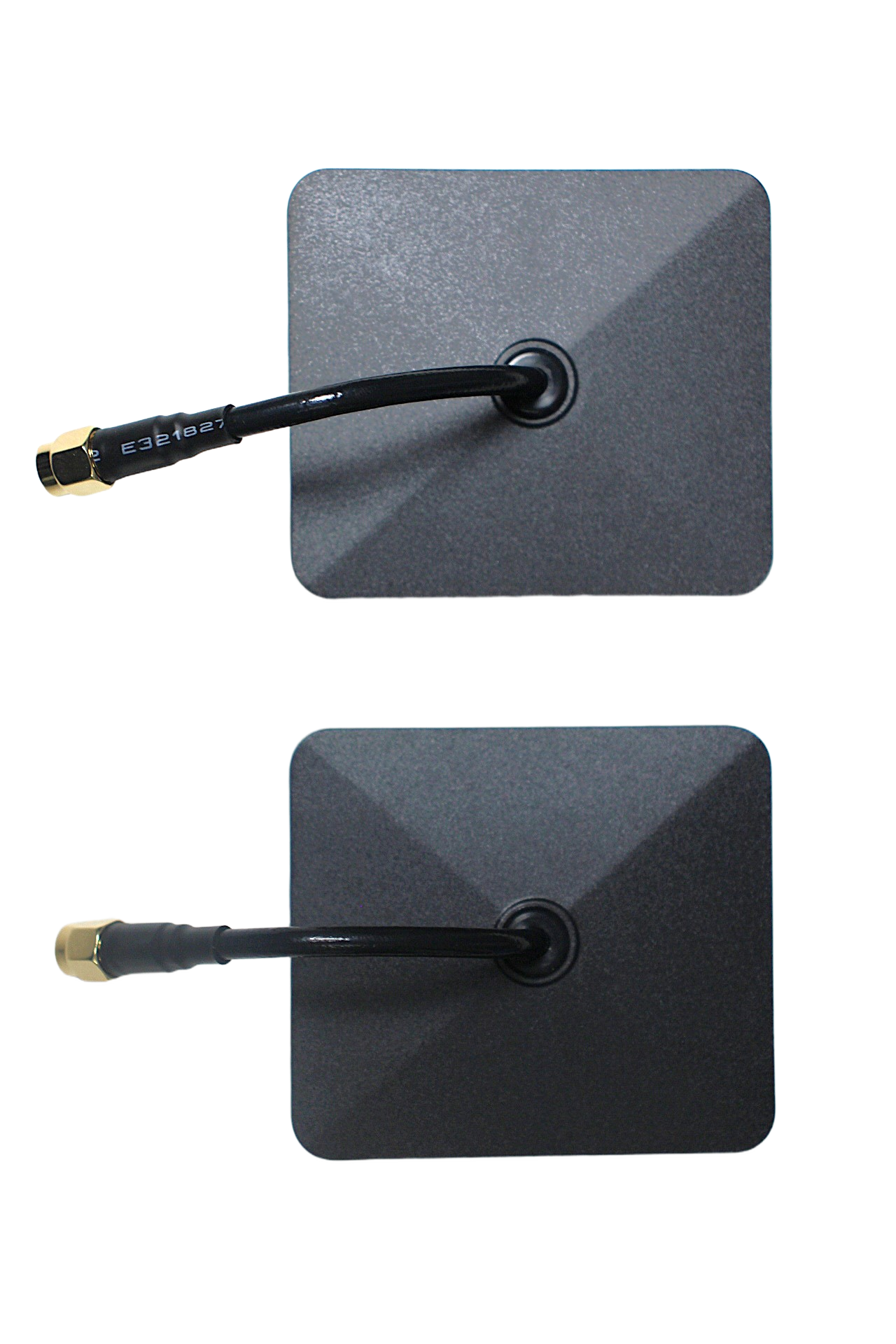

– Standard Long Range Antennas: 11 dBi
Power Consumption: 5 W

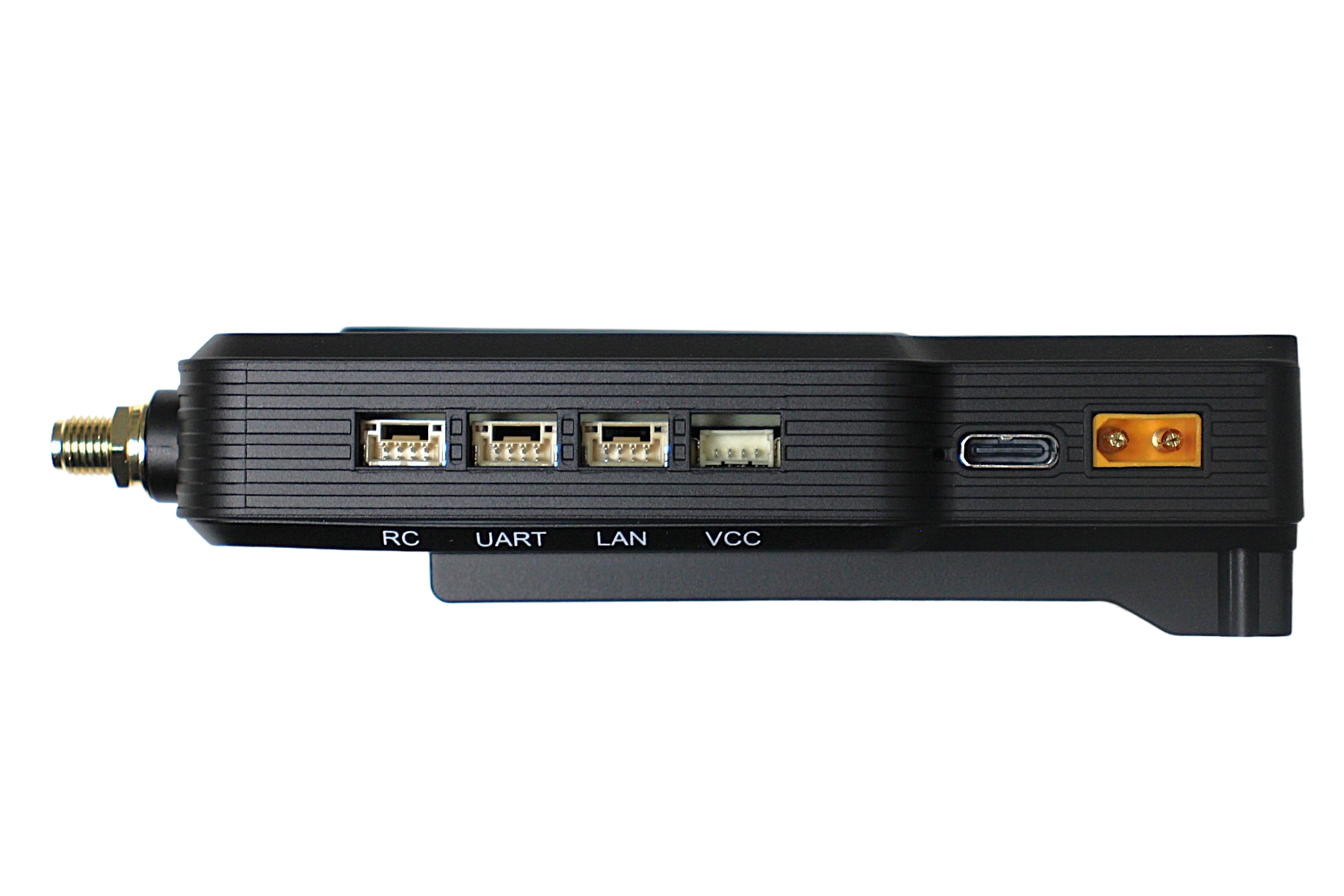

Interface & Ports:
– S.Bus / PPM RC Signal Input: RC (GH1.25 4-Pin)
– Datalink Output: UART (GH1.25 4-Pin)
– Ethernet Port: LAN (GH1.25 4-Pin)
– Power Output: VCC (GH1.25 4-Pin)
– USB Video Output / Charging / Firmware Upgrade / USB WiFi: Type-C
– Power Input: PWR (XT30)
– Tripod Connector: 1/4-inch Screw Hole
Waterproof Level: IP53
Working Temperature: -10 to 50℃

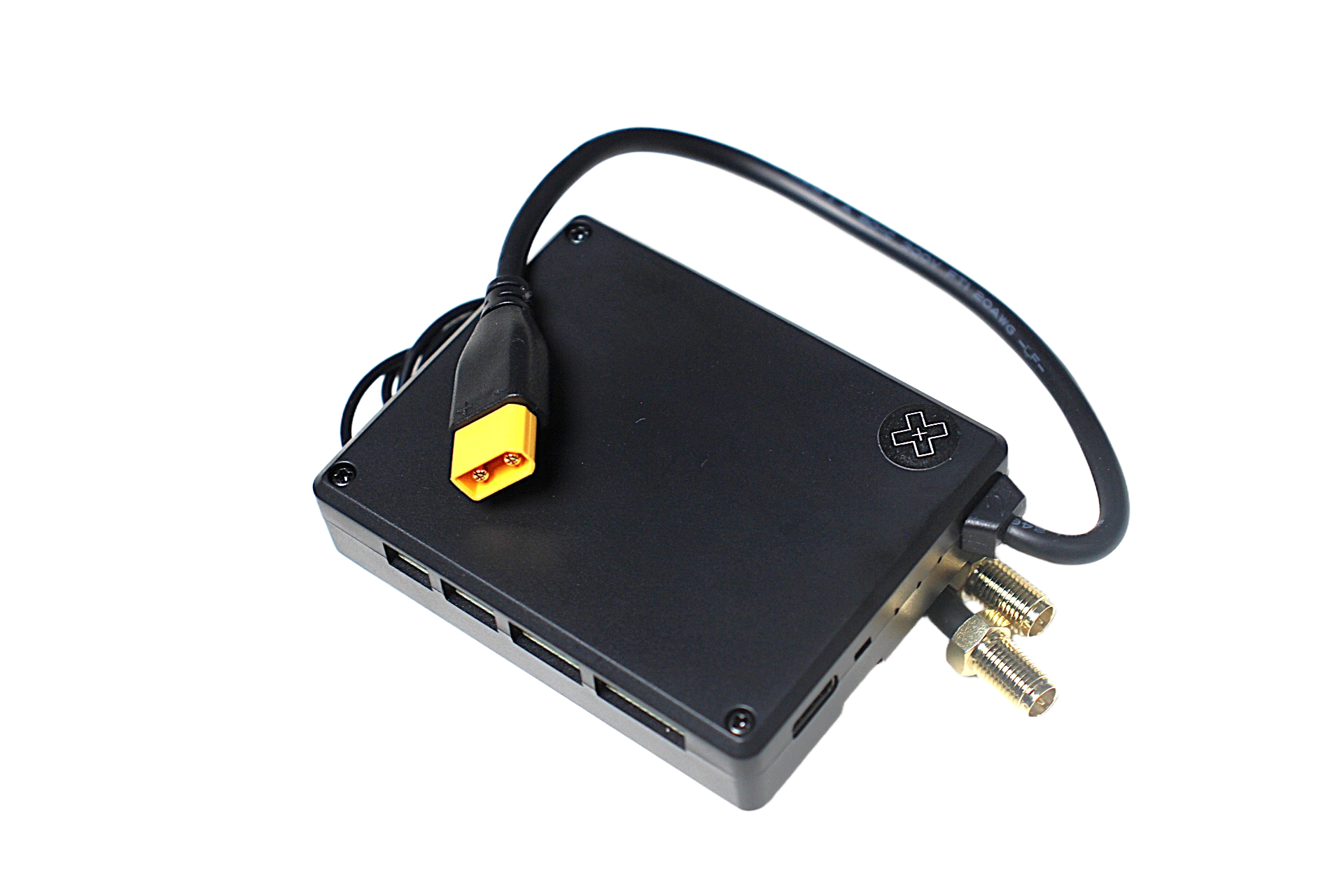

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
– SBUS: 3-Pin
– Datalink (to FC): UART 4-Pin
– PWM Channel 1 to 5: 6-Pin
– Video Input: Ethernet 8-Pin
– Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50℃

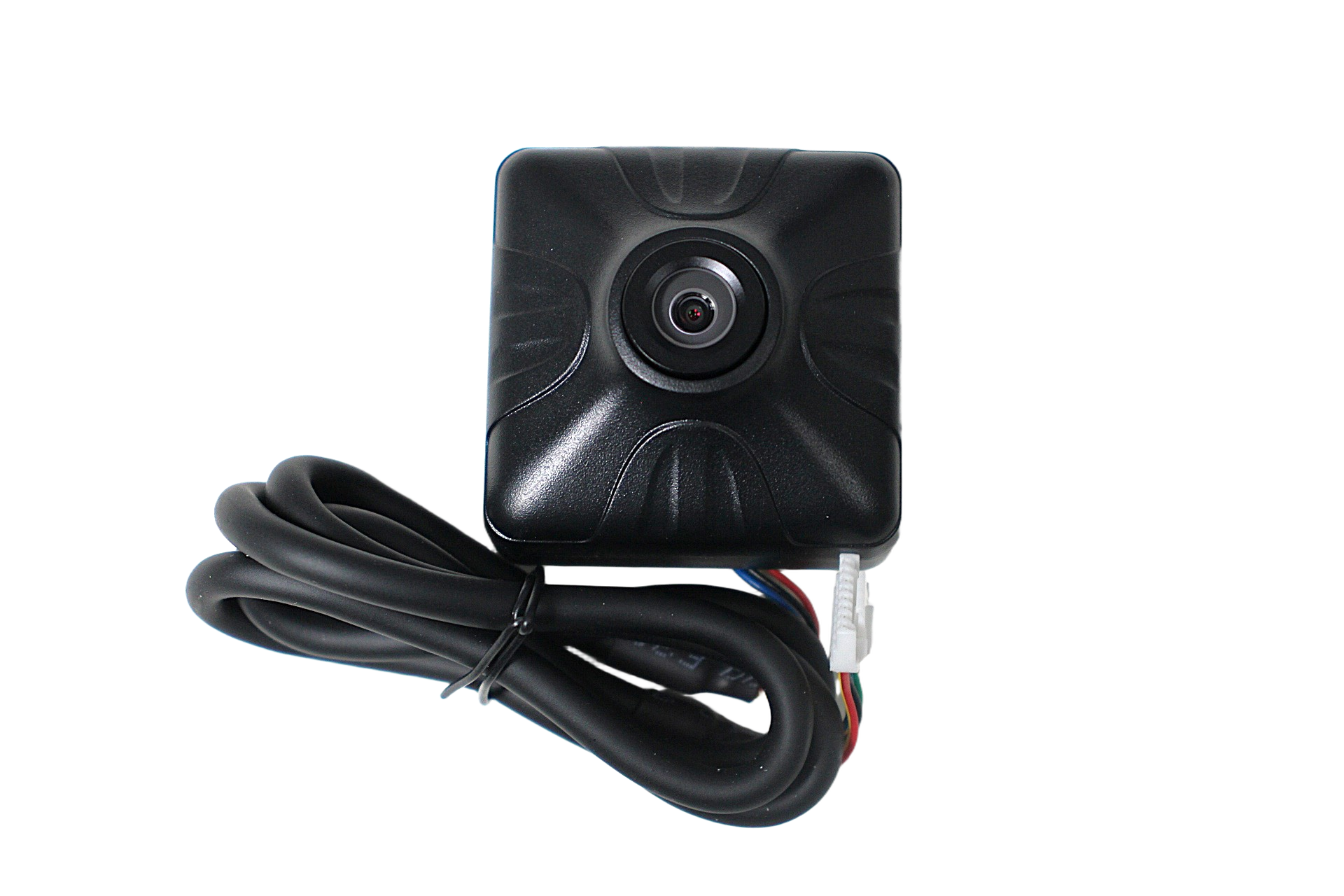

FPV Camera
Frame & Bitrate: 720p 30fps 1.57Mbps H.265 (or 1080p 30fps 2.3 Mbps H.265 only as the reference to DIY configuration)
Sensor: 1/2.9″ CMOS
Effective Resolution: 3 MP
Lens: 3.2 mm, F/2.8
Camera Angle: FOV 105°
Dimensions: 42 x 42 x 25 mm
Weight: 23 g
Cable Lens: 1000 mm
Working Temperature: -10 to 55℃
Ground Unit HDMI Output Converter (Optional)
HDMI Port Type: Standard HDMI
Power Consumption: 2.5 W
Dimensions: 52 x 52 x 16 mm
Weight: 150 g
Working Temperature: -10 to 55℃
Features:
- High-definition digital video transmission.
- Seamless FPV experience for drone pilots.
- Compact and easily integrated with drones.
- Reliable and lag-free video feeds.
- Enhances aerial photography and videography.
- Ideal for remote operators seeking real-time clarity.
- Advanced technology for immersive FPV adventures.
Specification-
| Model | HM30 |
|---|---|
| Range | Range: 30 kilometers (unobstructed, free of interference) |
| Channels | 16 |
| Shipping Weight | 1.011 kg |
| Shipping Dimensions | 21 × 15 × 7 cm |

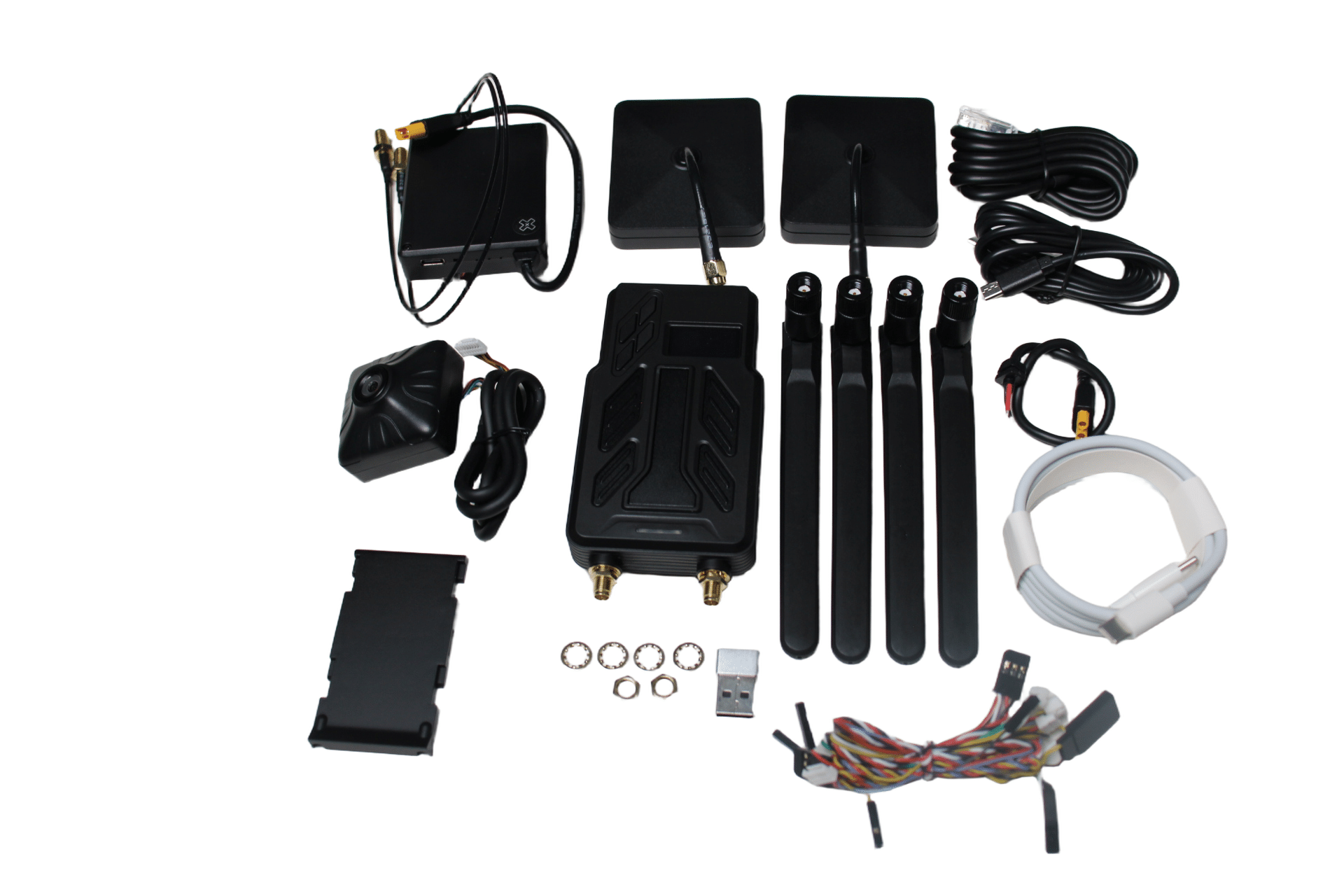

Package Includes:
1 x SIYI HM30 Full HD Digital Image Transmission FPV System
Drone Frame Materials: Carbon Fiber vs Nylon vs PCB Frame
Table of ContentsWhy Frame Material is the Most Important Build DecisionCarbon Fiber Drone Frames: The Gold StandardNylon and...
Read More →
LiPo Battery Parallel Charging: Board Setup Guide
Table of Contents Understanding LiPo Battery Parallel Charging Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
Octocopter Drone Build: Heavy Lift Platform for Industry
Octocopter Drone Build: Complete Guide to Heavy Lift Industrial Platforms When a quadcopter simply does not have enough...
Read More →Technical Specifications
| Brand | SIYI |
|---|---|
| SKU | AI5385 |
| Weight | 1.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The SIYI HM30 Full HD Digital Image Transmission FPV System is a versatile drone transmitter and receiver used across a wide range of applications including FPV drone control, RC aircraft, ground vehicles, and long-range drone operations.
Common use cases:
- Setting up a new FPV quad with digital link
- Replacing a receiver after a crash
- Building a long-range fixed-wing aircraft
This product is ideal for FPV pilots, RC hobbyists, and drone builders.
Technical Tip: ELRS (ExpressLRS) offers excellent range and low latency at 2.4GHz. Ensure your transmitter and receiver use the same protocol.
