Looking for Tekko32 Esc? (DISCONTINUE) Holybro Kakute H7 V2 FC & Tekko32 F4 4in1 ESC Stack is available at Zbotic with fast shipping across India.

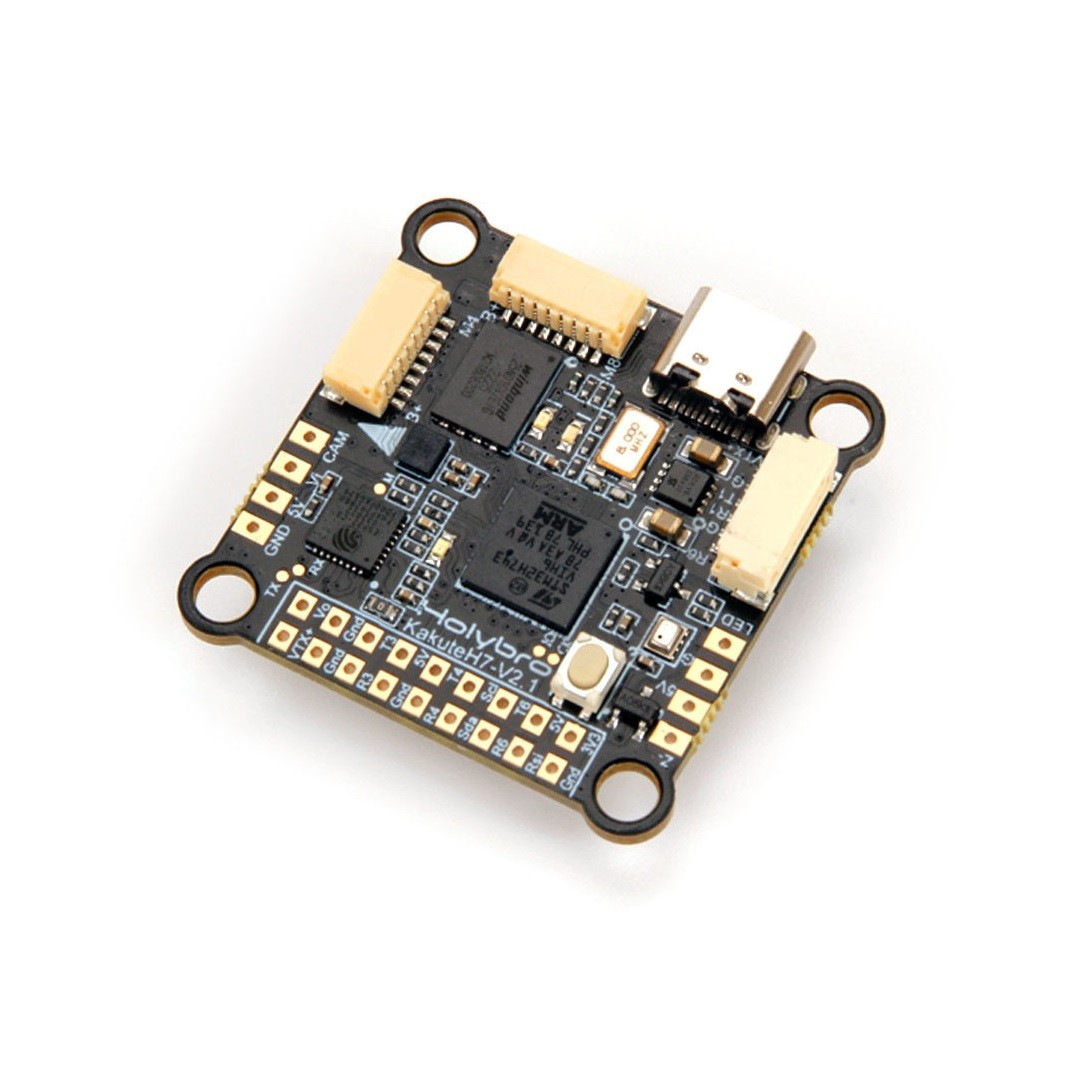

The (DISCONTINUE) Holybro Kakute H7 v2 Flight Controller brims with features, including integrated Bluetooth, an HD camera plug, dual 4in1 ESC ports for plug-and-play, a 9V VTX ON/OFF Pit Switch, a barometer, OSD, six UARTs, 128MB of Flash for logging, 5V and 9V BECs, and a larger soldering pad for an easier layout, among others.
Building on the strengths of its F7 predecessor, the Kakute H7 v2 enhances hardware components and layout. It includes an integrated Bluetooth chip, allowing for wireless configuration and tuning via the SpeedyBee Android & IOS App. The controller is ready for DJI HD, featuring a plug-and-play port with a 9V regulator to power HD video transmitters like the DJI/Caddx FPV Air Unit & Caddx Vista, while also supporting analog systems.
The Kakute H7 v2 introduces an onboard “VTX ON/OFF Pit Switch,” enabling you to turn off the video transmitter with your RC transmitter’s switch—ideal for drone maintenance, GPS synchronization, or race preparation without overheating or causing interference. It offers six dedicated UART ports with inversion for peripherals (UART2 for Bluetooth telemetry), 128MB Flash for extensive logging, dual 4in1 ESC connectors for straightforward support of x8 & Octocopter configurations, and a clean setup. The integrated BetaFlight OSD facilitates the display of vital FPV information such as battery voltage, flight time, warnings, RSSI, smart audio features, and more. It’s also equipped for autonomous flight with an onboard barometer. Additionally, it includes LED & buzzer pads and an I2C pad (SDA & SCL) for external connections.GPS/Magnetometers.
Note: Atlatl HV V2 is not included.
Features:
-
New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
-
PWM Frequency: 16k to 96k
-
Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
ESC’s Specification:
-
Continuous Current: 50A x4
-
Burst Current: 60A x4
-
Supports 4-6S battery
-
Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
-
ESC telemetry Supported
-
Onboard analog current sensor
-
No output BEC
-
BLHeli_32 firmware
-
1000uf 35v capacitor included (highly recommended for 6s setup)
-
Amperage meter scale ratio: 168
-
Dimensions: 45x37x6mm / Weight: 13.8g
-
Mounting holes: M4 30.5×30.5mm (M3 grommets included)
specification
| MCU | STM32H743 32-bit processor running at 480 MHz |
|---|---|
| IMU | MPU6000 |
| Barometer | BMP280 |
| OSD | AT7456E |
| Onboard Bluetooth chip | ESP32-C3 |
| Battery input voltage | 7V to 42V |
| Mounting | 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets |
| Dimension | 35x35mm |

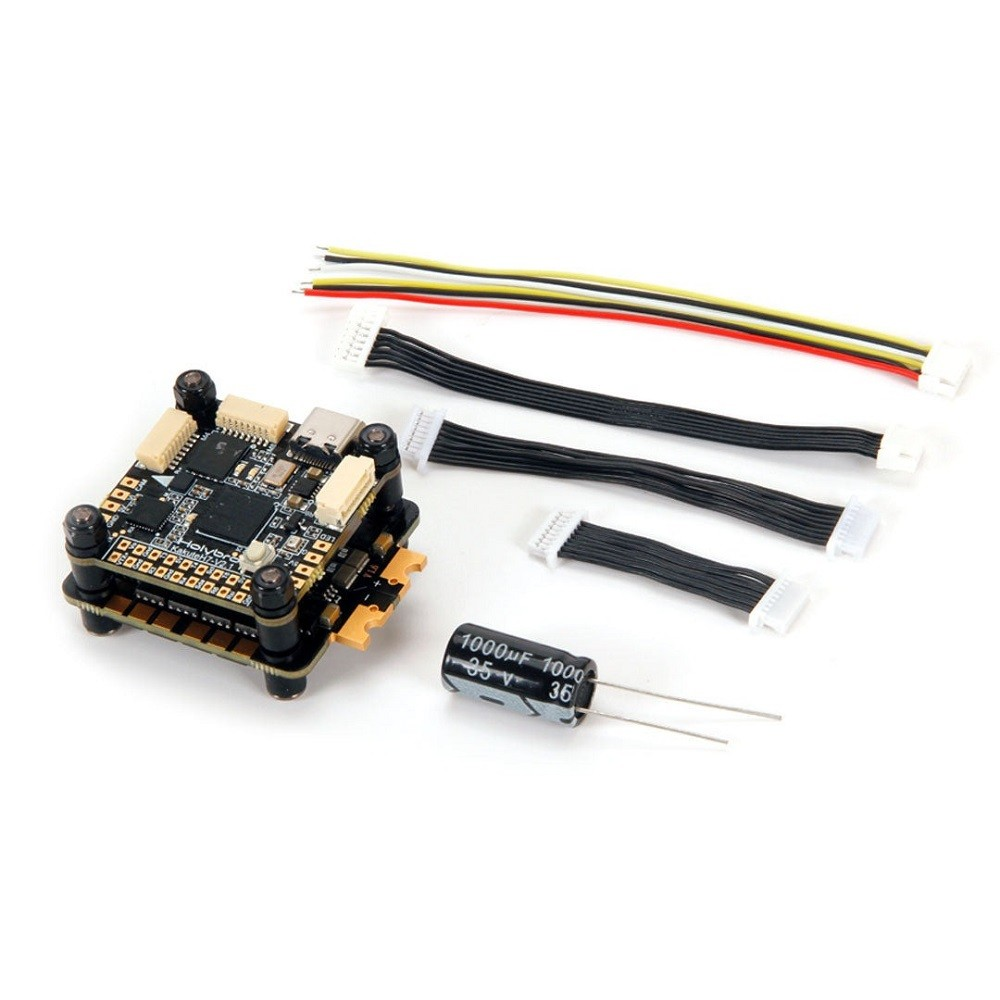

Package Includes:
1x Kakute H7 V2 STACK
1x Electrolytic capacitor: 1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
1x JST GHR 8pin to JST GHR 6pin 80mm cable (for DJI/Caddx HD System)
1x JST GHR 6pin 100mm cable(for Caddx HD Systems)

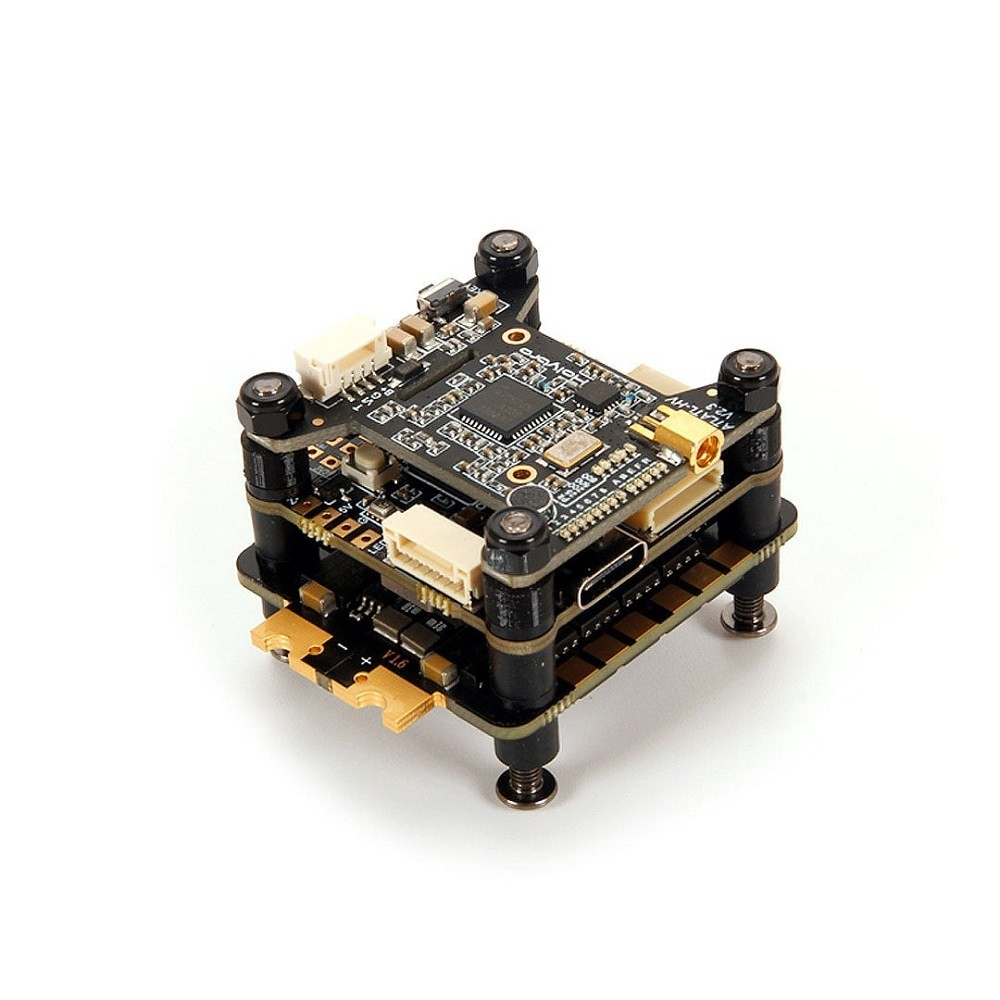

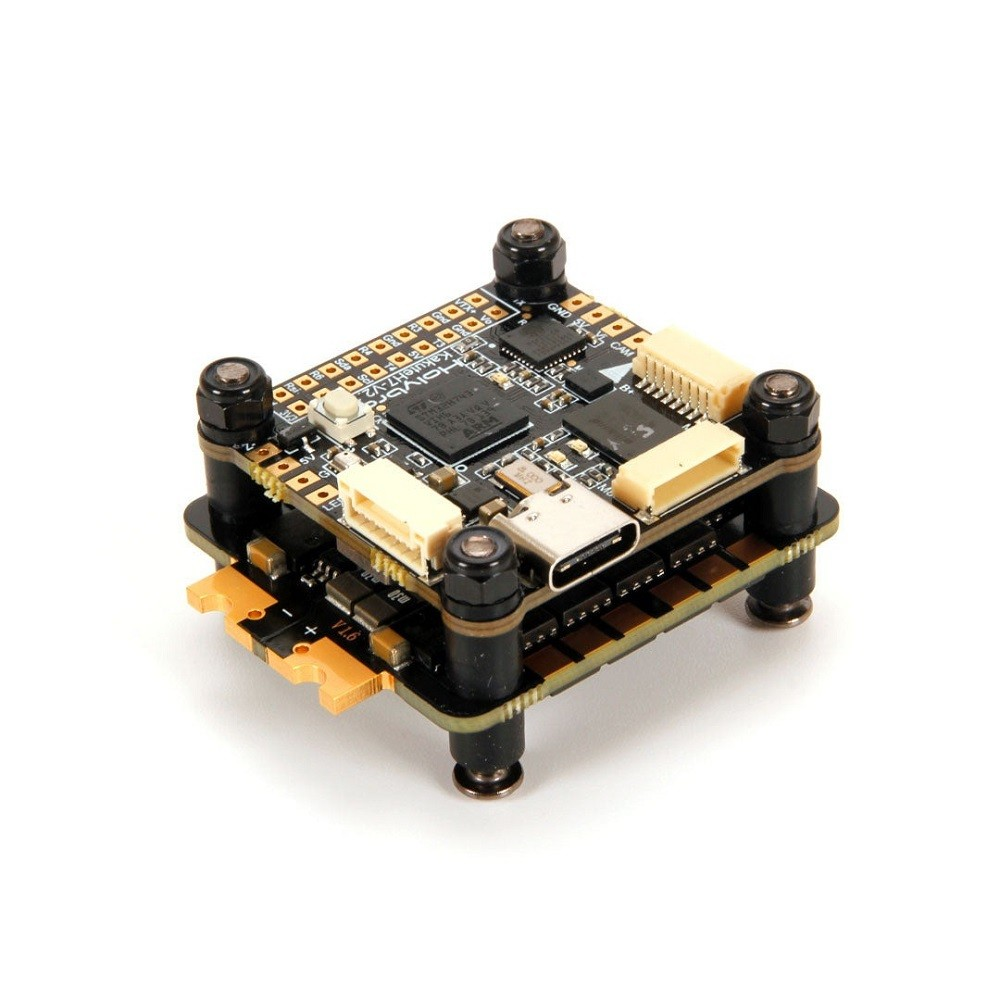

Holybro Kakute H7 V2 FC & Tekko32 F4 4in1 ESC Stack Overview
The Holybro Kakute H7 V2 FC & Tekko32 F4 4in1 ESC Stack combines the powerful Kakute H7 V2 flight controller with a Tekko32 F4 four-in-one ESC module. Designed for high-performance racing and freestyle drones, this stack streamlines installation and delivers reliable power distribution, advanced logging, and wireless setup.
Key Features of Holybro Kakute H7 V2 FC & Tekko32 F4 4in1 ESC Stack
- High-Speed Processor & IMU: STM32H743 CPU at 480 MHz paired with an MPU6000 gyro for precise flight control.
- Onboard Bluetooth: ESP32-C3 module enables wireless tuning and firmware updates via SpeedyBee App.
- Integrated OSD & Logging: AT7456E on-screen display plus 128 MB Flash for Blackbox data capture.
- Dual 4in1 ESC Ports: Tekko32 F4 ESC supports up to four motors with efficient F4 control and robust MOSFETs.
- Multiple BEC Outputs: 5 V and 9 V regulated supplies, plus a 9 V VTX ON/OFF pit switch for camera and video transmitter power.
- Fast Shipping from Zbotic: Genuine Holybro stack dispatched within 24 hours across India.
Applications and Use Cases
- FPV racing builds requiring minimal wiring and maximum performance.
- Freestyle drones with on-board logging and instant wireless tuning.
- Cinewhoop and micro quads utilizing 5 V/9 V outputs for cameras and VTX.
- Long-range UAVs demanding reliable ESC power delivery and data logging.
- DJI HD FPV setups via plug-and-play HD camera port and 9 V regulator.
How to Use Holybro Kakute H7 V2 FC & Tekko32 F4 4in1 ESC Stack
Mount the ESC stack to your drone frame, solder the main battery leads and motor wires to the Tekko32 F4 pads, then solder signal wires between the flight controller and ESC ports. Connect your camera and VTX to the HD plug and 9 V output, power up, and link via Bluetooth using the SpeedyBee App for Betaflight configuration and Blackbox setup. Perform gyro calibration and ESC motor calibration before your first flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I configure the Kakute H7 V2 FC wirelessly?
Yes. The onboard ESP32-C3 Bluetooth chip lets you connect via SpeedyBee on Android or iOS for firmware flashing, PID tuning, and real-time telemetry without a USB cable.
Which voltage outputs are available for peripherals?
The stack provides a 5 V BEC for flight controllers and peripherals, plus a 9 V BEC and an ON/OFF pit switch dedicated to powering your VTX and HD camera.
How much logging capacity does the flight controller have?
The Kakute H7 V2 includes 128 MB of onboard flash memory for Blackbox logging, allowing extended flight data recording without an external microSD card.
How to Build an Agriculture Spray Drone (DIY Guide)
An agriculture spray drone can cover one acre in under 10 minutes, reduce chemical usage by 30–40% through...
Read More →
FPV Goggles Buying Guide India: Analog vs Digital
Table of Contents Understanding FPV Goggles Buying Guide India Key Components and Requirements Step-by-Step Setup Guide Configuration and...
Read More →
Drone Regulations India 2026: DGCA Rules for Hobbyists
Drone Regulations India 2026: Complete DGCA Rules Guide for Hobbyists Flying a drone in India in 2026 is...
Read More →Technical Specifications
| Brand | Holybro |
|---|---|
| SKU | AI6056 |
| Availability | Out of Stock |
Applications & Use Cases
The (DISCONTINUE) Holybro Kakute H7 V2 FC &Tekko32 F4 4in1 ESC Stack is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
