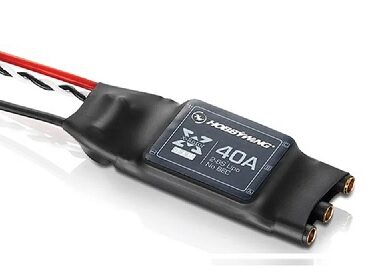

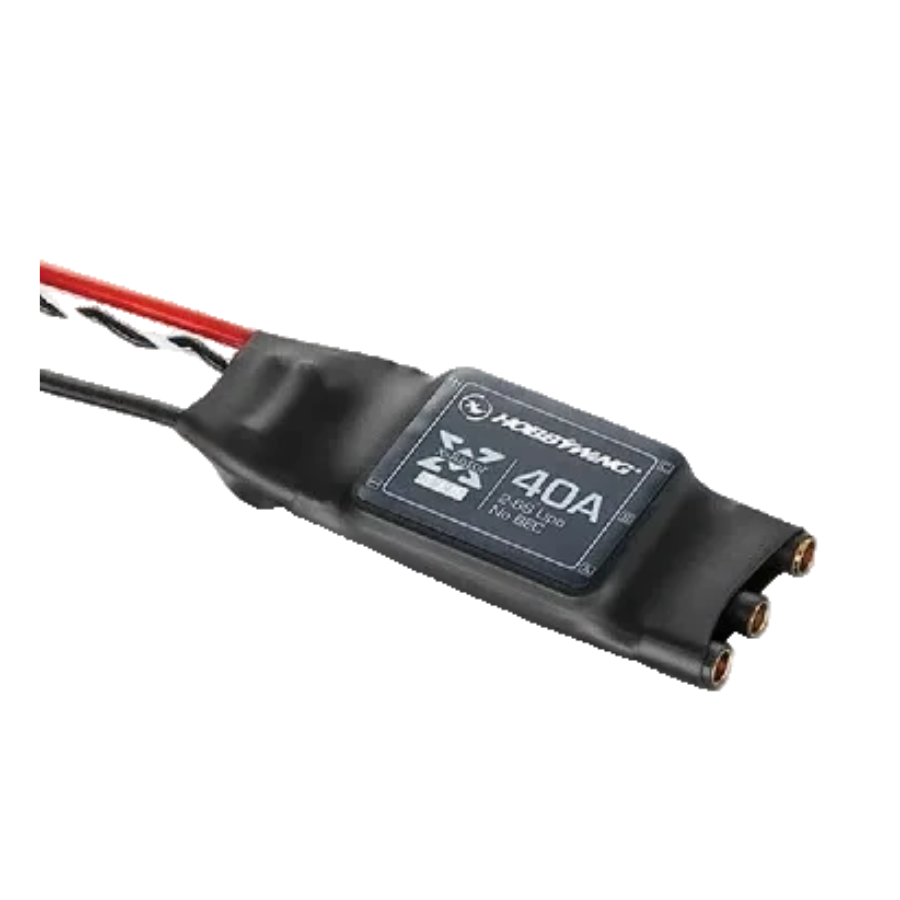

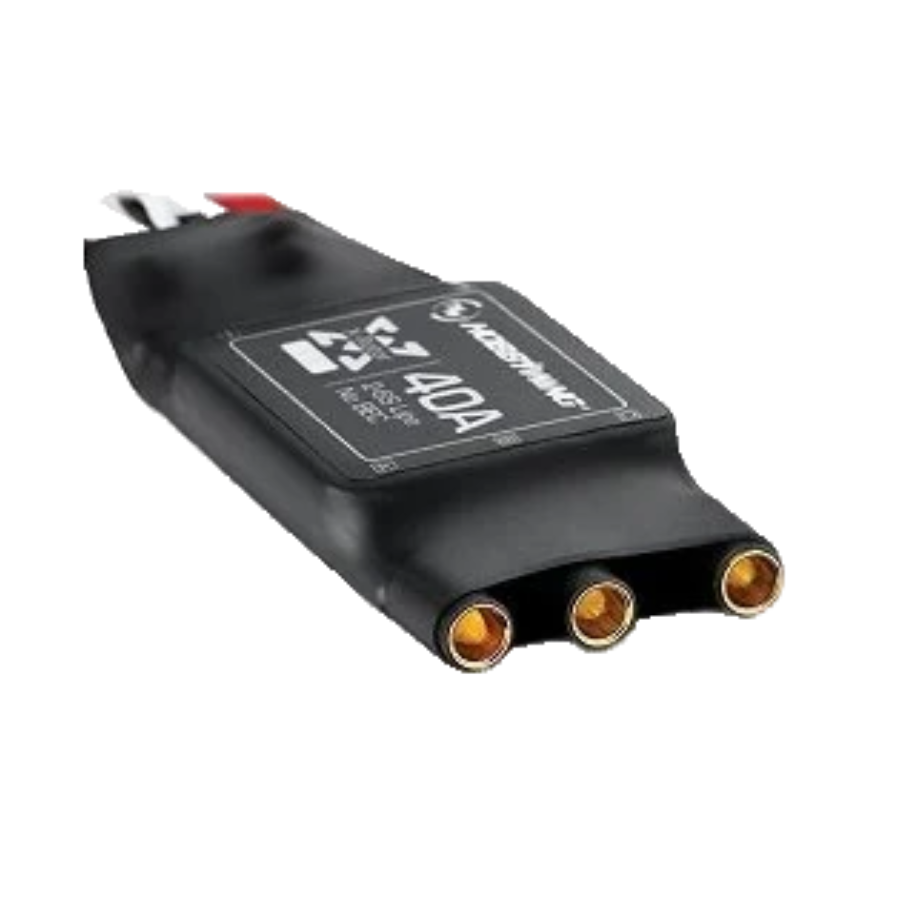

Hobbywing Xrotor-40A 2-6S ESC
The Hobbywing XRotor 40A APAC Brushless ESC (2-6S) is designed specifically for RC multicopters and features a specialized program that delivers rapid throttle responses, surpassing various open-source software options. Its firmware is optimized for disc motors, ensuring excellent compatibility. This ESC is highly intelligent with robust adaptive capabilities and offers adjustable timing settings (high/middle) for user convenience.
The throttle signal line uses twisted wiring to minimize crosstalk from the copper transmission signal, promoting a more stable flight experience. It supports throttle signal refresh rates of up to 621Hz and is compatible with a wide range of flight controllers.
Features:
- Using a Multintegrated circuitopter special program, fast throttle response surpasses all kinds of open source software.
- Firmware was optimized to specify integrated circuitously for disc motor, and it has very good compatibility.
- Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing, easy to use.
- A throttle signal line is a twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight.
- Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signals)
- Using MOSFET special driver integrated circuit, its performance and stability far surpass the driving circuit with discrete components built.
- Ultra-low resistance MOSFET, strong flow capacity.
Specification:
| Model | Hobbywing Xrotor 40A |
|---|---|
| BEC | NO |
| Color | Black |
| Dimensions (mm) LxWxH | 72 x 26 x 6 |
| Weight (gm) | 26 |
| Continuous Current (A) | 40 |
| Operating Voltage (VDC) | 2~6S lipo |
| Supports Software | Hobbywing Xrotor |
| Shipping Weight | 0.04 kg |
| Shipping Dimensions | 8 × 5 × 2 cm |
Package Includes:
1 x Hobbywing Xrotor-40A 2-6S ESC
Hobbywing Xrotor-40A 2-6S ESC Overview
The Hobbywing Xrotor-40A 2-6S ESC is a brushless speed controller designed specifically for RC multicopters running on 2S to 6S LiPo batteries. With a continuous current rating of 40A and a 10-second burst capacity of 60A, it delivers rapid throttle response and stable performance for demanding aerial applications.
Key Features of Hobbywing Xrotor-40A 2-6S ESC
- Continuous current of 40A with 60A burst current for short-duration power spikes
- Supports 2S–6S LiPo battery configurations for versatile voltage options
- No onboard BEC simplifies installation in custom power distribution setups
- Adjustable motor timing (High/Middle) to fine-tune performance and efficiency
- Specialized firmware for multicopter disc motors ensures precise throttle control
- Twisted throttle signal wiring and up to 621 Hz refresh rate for minimal crosstalk and stable response
- Fast shipping across India when ordered from Zbotic
Applications and Use Cases
- High-speed FPV racing quads requiring instant throttle response
- Professional aerial photography platforms that demand smooth power delivery
- Hexacopters and octocopters for heavy-lift industrial inspections
- DIY educational drone kits used in robotics and engineering projects
- Mapping and surveying multicopters operating with variable payloads
- Long-range endurance drones needing efficient current management
How to Use Hobbywing Xrotor-40A 2-6S ESC
Mount the ESC on your drone’s frame with vibration-damping pads, then connect the three motor phases and the 2–6S LiPo battery leads to the power distribution board. Plug the twisted throttle signal wire into your flight controller’s receiver port, calibrate throttle endpoints, and select the preferred timing mode (High or Middle) via the programming card or compatible transmitter. Conduct a bench test to verify motor rotation and responsiveness before flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Does the Xrotor-40A ESC include a built-in BEC?
No, the Xrotor-40A does not feature an onboard BEC. You’ll need to supply a separate 5V or 12V regulator if your flight controller and receiver require regulated power.
How do I change the timing setting on this ESC?
You can adjust timing to High or Middle using the optional Hobbywing programming card or via compatible flight controller software that supports ESC signal programming.
Is the Xrotor-40A compatible with all brushless disc motors?
Yes, its firmware is optimized for disc-style multicopter motors. Ensure your motor’s current draw stays within the 40A continuous and 60A burst ratings for reliable operation.
Drone Build Troubleshooting: Common First-Build Mistakes
Every drone builder faces setbacks during their first build, and effective drone build troubleshooting is a skill that...
Read More →
Drone ESC Calibration: Get All Motors Running Synchronized
Table of Contents What Is ESC Calibration and Why Does It Matter? Understanding ESC Signal Types Tools and...
Read More →
How to Build a 7-Inch Long Range FPV Drone (India Parts Guide 2026)
How to Build a 7-Inch Long Range FPV Drone (India Parts Guide 2026) The 7-inch long range FPV...
Read More →Technical Specifications
| Brand | Hobbywing |
|---|---|
| Current Rating | 40A |
| Cell Configuration | 6S |
| SKU | AI1207 |
| Weight | 0.05395 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Hobbywing Xrotor-40A 2-6S ESC is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
