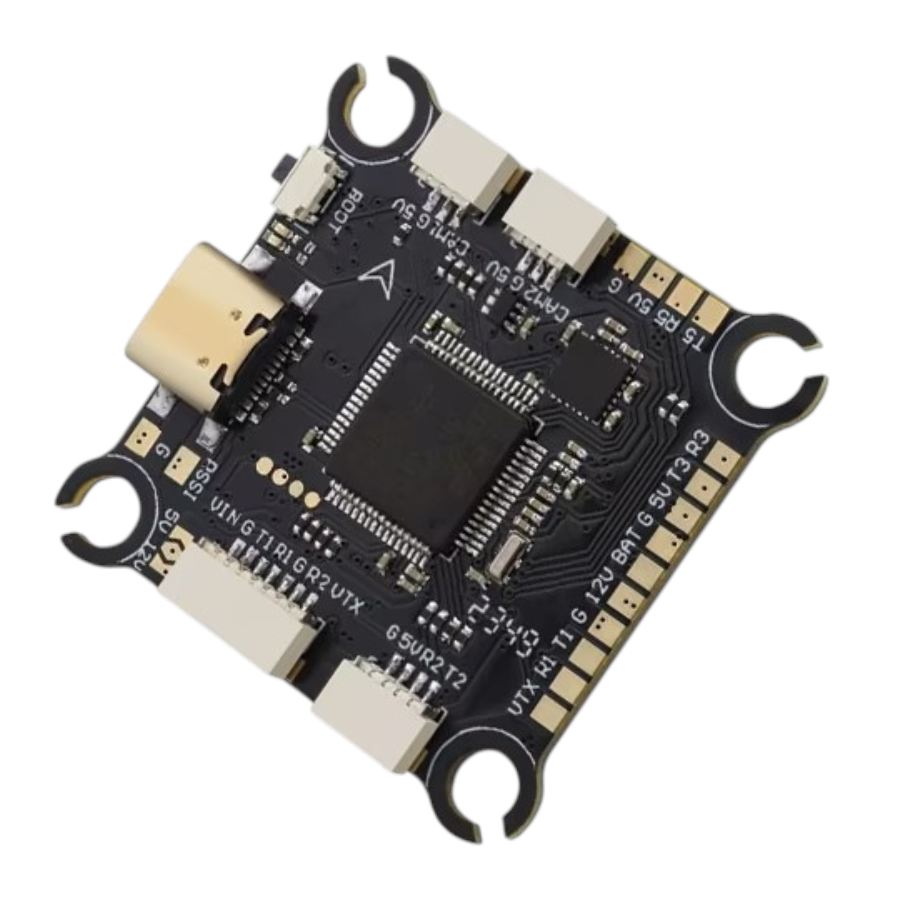

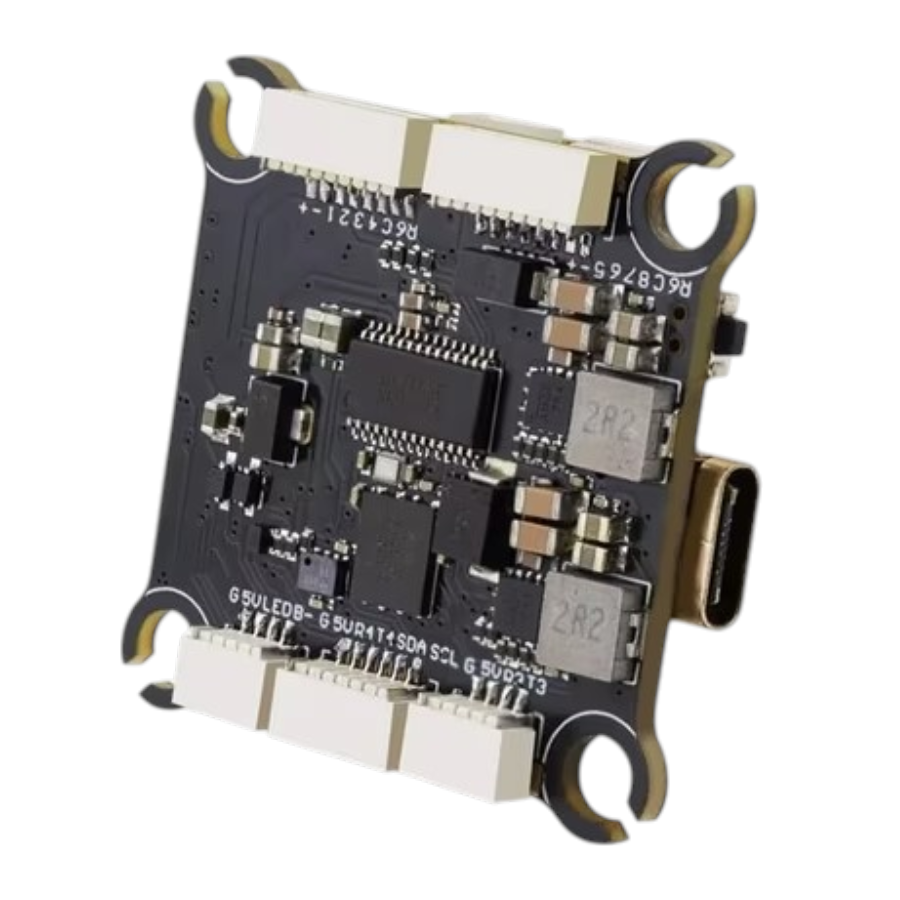

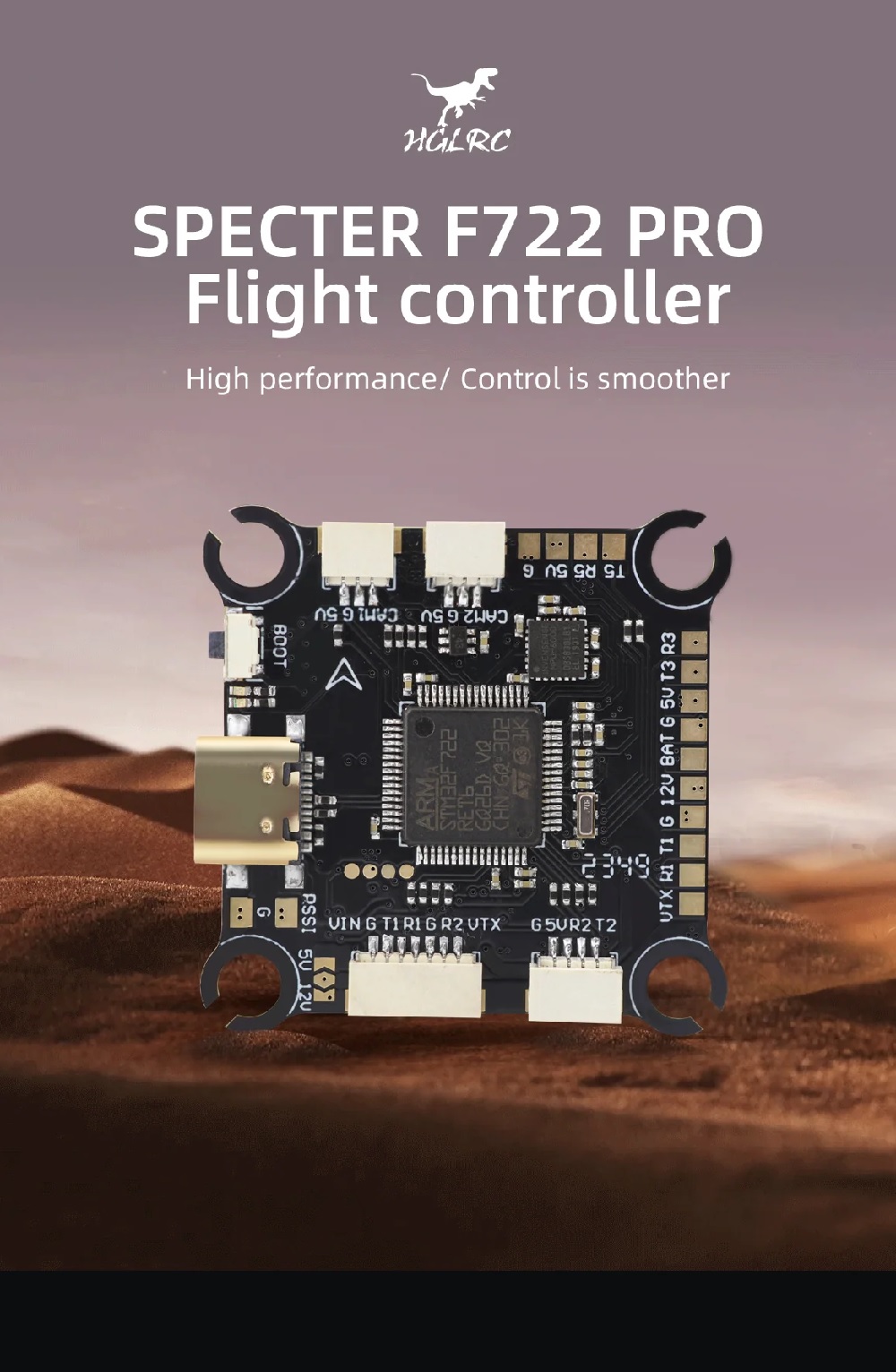

HGLRC SPECTER F722 Pro Flight Controller
Description:
Features:
1. The main control adopts STM32F722 high-performance processor, with a computing speed of up to 216 MHz, providing smoother control, better hand feel, and faster response speed. 2. The flight control gyroscope uses high-performance MPU6000 to improve the stability of use 3. Full module direct plug-in connection, plug and play, no soldering pads required, achieving modularity. 4. 16MB large-capacity black box to ensure adequate recording of flight data. 5. Equipped with two sets of camera signal outputs, the front and rear cameras can be switched through the Betaflightsetting mode.

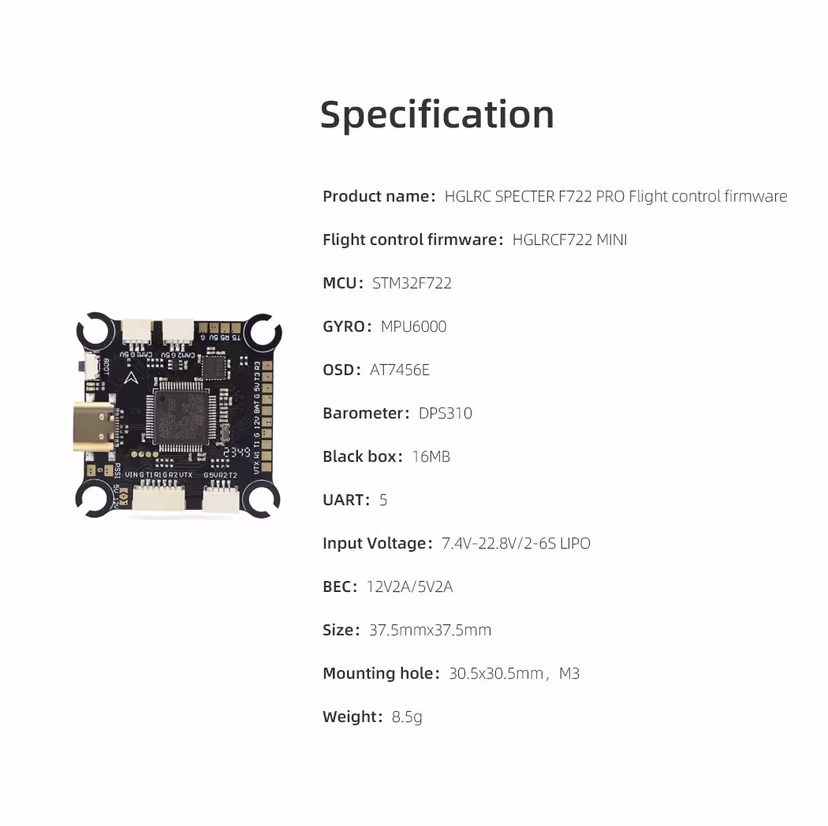

Specifications:
- Flight controller : HGLRC-SPECTER F722 PRO flight controller
- Flight control firmware: HGLRCF722 MINI
- MCU: STM32F722
- GYRO：MPU6000
- OSD:AT7456E
- Barometer: DPS310
- Black box: 16MB
- UARTS: 5
- BEC: 10V2A/5V2.5A

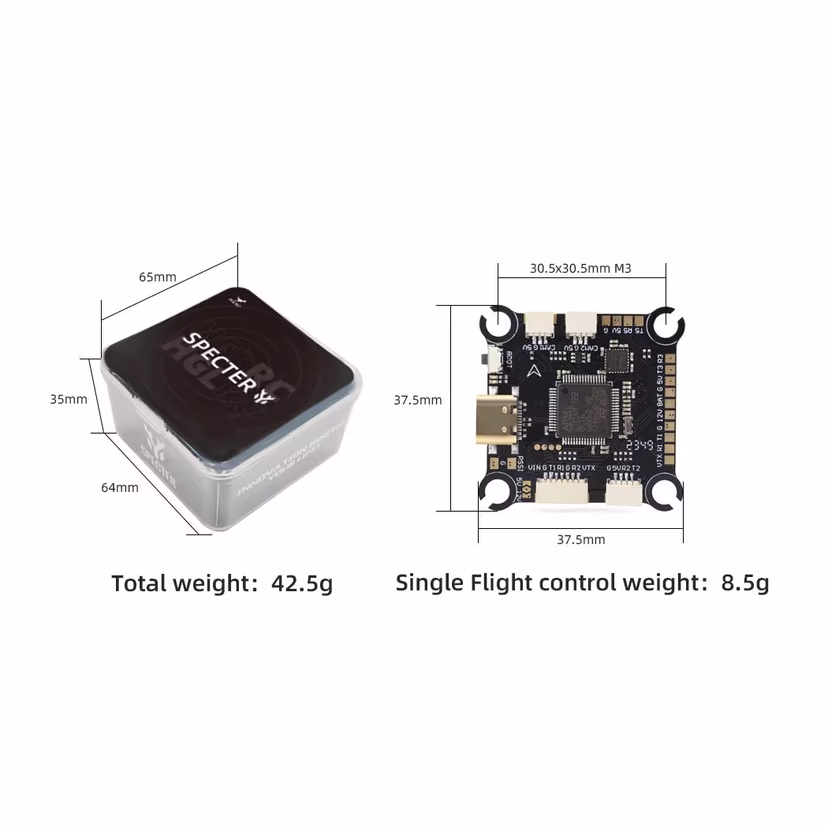

- Flight control size: 37mmx34mmx9.8mm
- Installation hole position: 30.5×30.5mm, M3
- Weight：8.5g

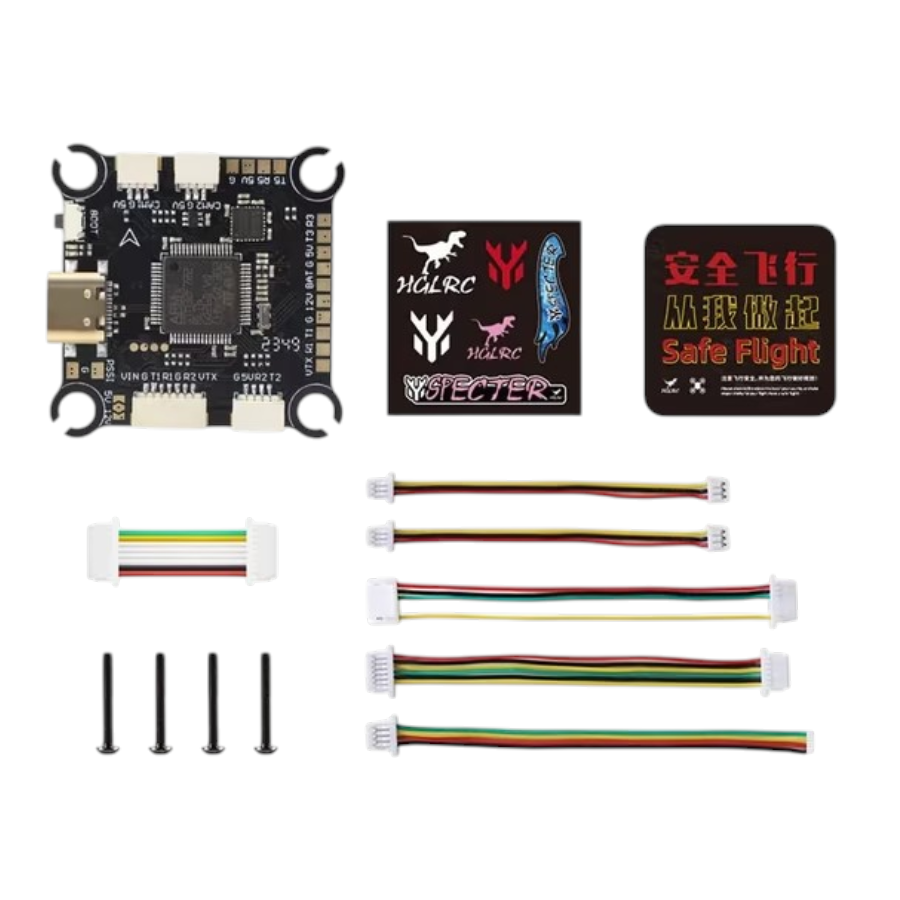

Package Includes:
1 x HGLRC SPECTER F722 PRO flight controller 1 x 30AWG 25mm double-ended SH1.0-8P cable 1 x 30AWG 70mm single-head SH1.0-7P/single-head SH1.0-6P DJI cable 1 x 30AWG 70mm single-head SH1.0-7P/single-head GH1.25-6P VTX cable 2 x 30AWG 60mm single-head SH1.0-3P/single-head 1.25-3P camera cable 1 x 30AWG 100mm single-head SH1.0-4P receiver cable 4 x M3*22 hexagon socket screws
Drone Swarm Basics: Coordinate Multiple UAVs with ArduPilot
Table of Contents What Is a Drone Swarm? ArduPilot Swarm Architecture Hardware Requirements for Each UAV Telemetry &...
Read More →
Custom Flight Controller Build with STM32
Building a custom flight controller with STM32 is the ultimate drone electronics project. You design the PCB, select...
Read More →
How to Flash Betaflight Firmware: Complete Beginner Guide
Table of Contents What is Betaflight and Why Flash It? Before You Begin: What You Need Step 1:...
Read More →Technical Specifications
| Brand | HGLRC |
|---|---|
| SKU | AI8180 |
| Weight | 0.05 kg |
| Availability | Out of Stock |
Applications & Use Cases
The HGLRC SPECTER F722 Pro Flight Controller is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine HGLRC product sourced from authorized channels
