HGLRC SPECTER F722 40A 6 in 1 High-Performance AIO
Description:

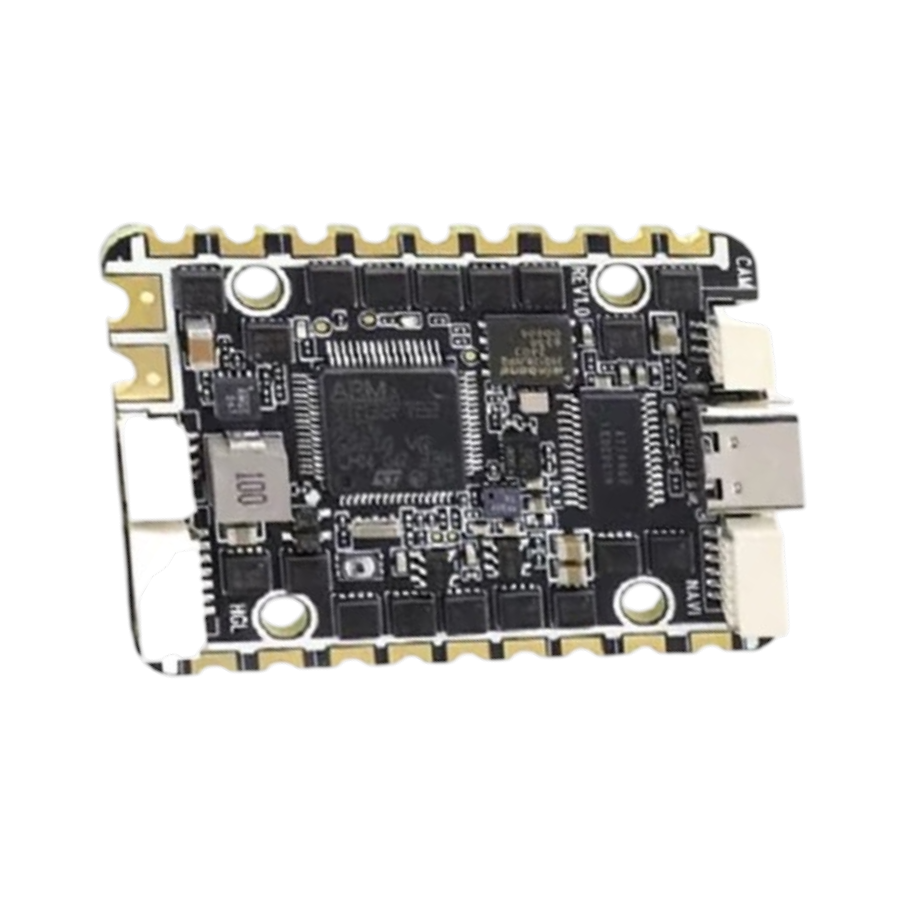

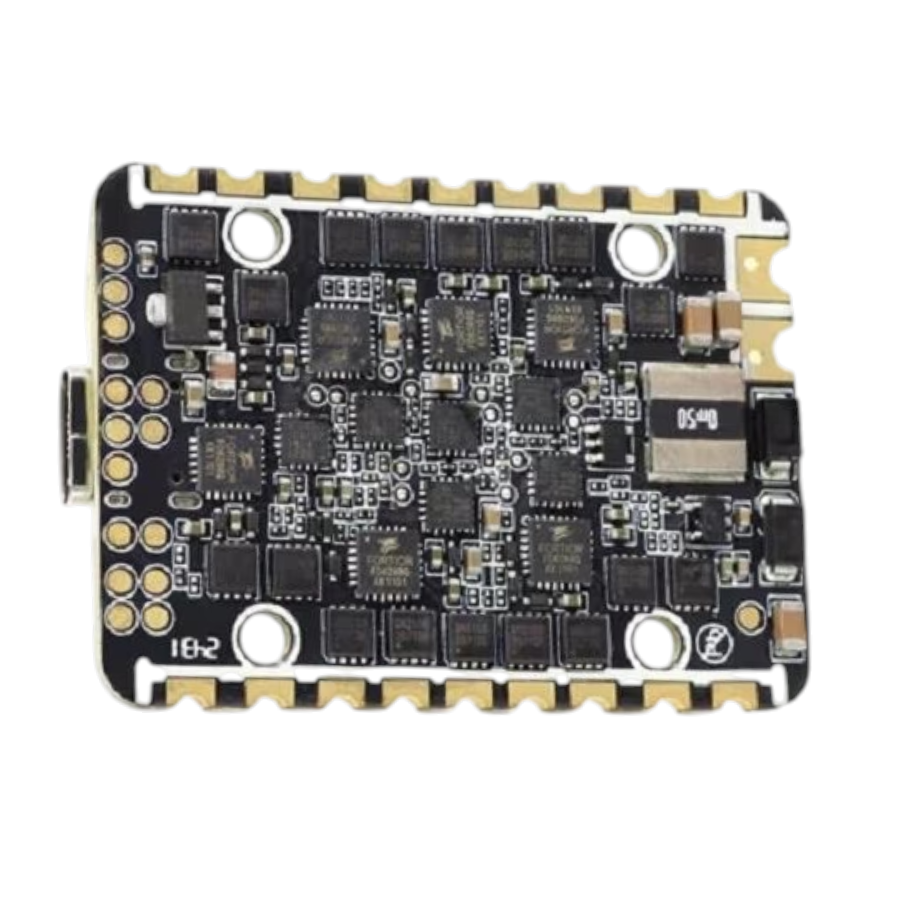

The HGLRC SPECTER F722 40A 6 in 1 High-Performance AIO is a compact yet powerful flight controller designed for demanding drone builds. This all-in-one board integrates an F722 flight controller, a 40A 4-in-1 ESC, a barometer, an OSD, a current sensor, and a 5V/10V BEC, simplifying wiring and reducing build complexity. Its robust design and high current handling capabilities make it suitable for various drone types, from freestyle to racing. The SPECTER F722 AIO aims to provide a reliable and efficient solution for pilots seeking a clean and high-performance setup.
Features:
- Small size, flight control and ESC two-in-one, no complicated wiring required;
- 6 channel ESC output, supports Y6, six-axis and other mixed control types;
- Single-channel current can withstand up to 40A current, providing the best performance for flight
- Support HD VTX Air Unit or analog VTX terminal direct plug
- GyroscopeMaximum working current of single ESC: 40A
- Black box: 16MB
- UARTS: 3
Specifications:
| Item Type: | ESC |
| Voltage Rating: | 8.4V—26V |
| Rated Current (A): | 40 |
| Color | Black |
| Main control (MCU) | STM32F722 |
| Gyroscope | ICM42688P |
| Barometer | DPS310 |
| Firmware: | Flight control : HGLRCF722AIO_X6 4.4.3, ESC : F-H-40- Bluejay, 0.19, 48kHz |
| Mounting Hole (mm) | 25.5×25.5mm, M2 |
| Item Size | 34×48mm |

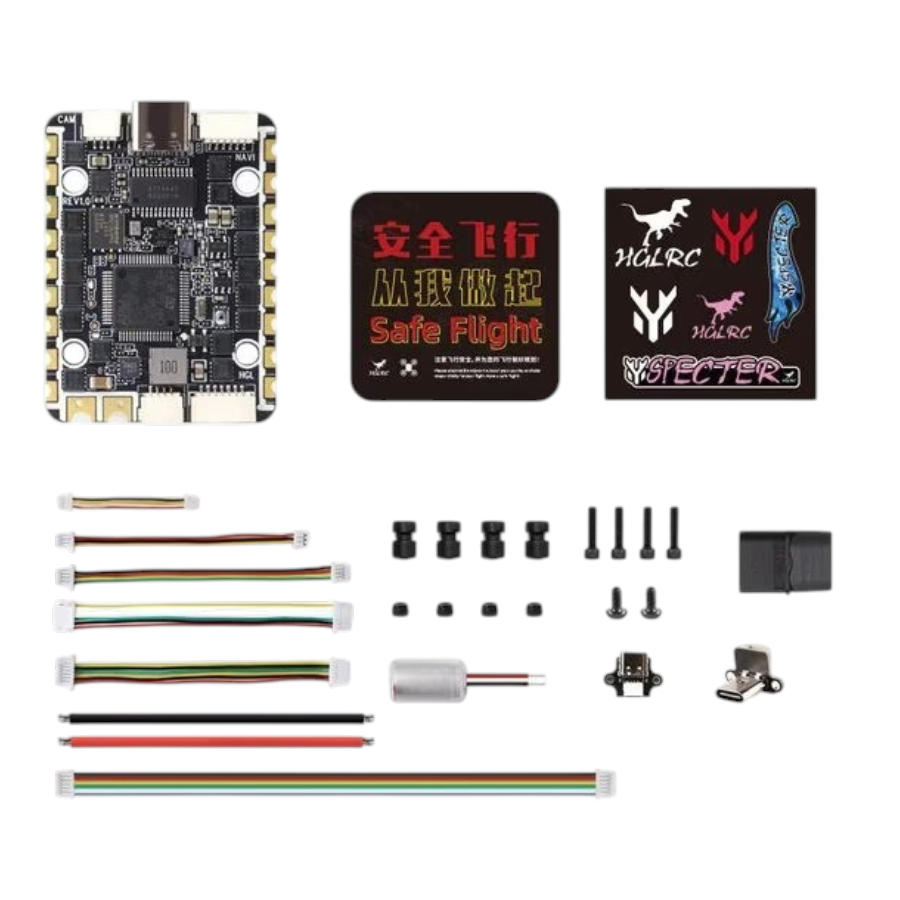

Package Includes:
1 x SPECTER F722 40A 4S-6S 6 channel AIO V2 flight controller 1 x 30AWG 70MM single-head SH1.0-7P/single-head SH1.0-6P DJI cable 1 x 30AWG cable length 70MM, single-head GH1.25-6P/single-head SH1.0-7P analog image transmission cable 1 x 30AWG cable length 140mm double-head SH1.0-6P GPS cable 1 x 30AWG cable length 70mm double-head SH1.0-4P receiver cable 1 x 30AWG cable length 60mm single-head SH1.0-3P/single-head SH1.25-3P camera cable 1 x 16AWG cable length 7mm red and black power cable 4 x M2*6.6 Shock-absorbing ball 4 x cup head hexagon socket M2*10 black nickel-plated screws 4 x anti-loosening self-locking M2 nuts 1 x type C male and female adapter module
Drone Arm Strength Test: Carbon Fiber vs Aluminum Trade-off
Table of Contents Why Arm Material Matters for Drone Performance Carbon Fiber: Properties and Performance Aluminium: Properties and...
Read More →
Best Drone Radio Transmitters in India 2026: RadioMaster vs FlySky Compared
Best Drone Radio Transmitters in India 2026: RadioMaster vs FlySky and More The radio transmitter (TX) is arguably...
Read More →
Betaflight Setup Guide: PID Tuning for Beginners
Table of ContentsWhat is Betaflight?What Are PIDs and Why Do They Matter?Tools You Need Before You StartStep 1:...
Read More →Technical Specifications
| Brand | HGLRC |
|---|---|
| Current Rating | 40A |
| SKU | AI8182 |
| Weight | 14 kg |
| Availability | Out of Stock |
Applications & Use Cases
The HGLRC SPECTER F722 40A 6 in 1 High-Performance AIO is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
