Looking for Holybro Pm02d Power Module High Voltage? Holybro PM02D Power Module High Voltage (2S -12S) is available at Zbotic with fast shipping across India.

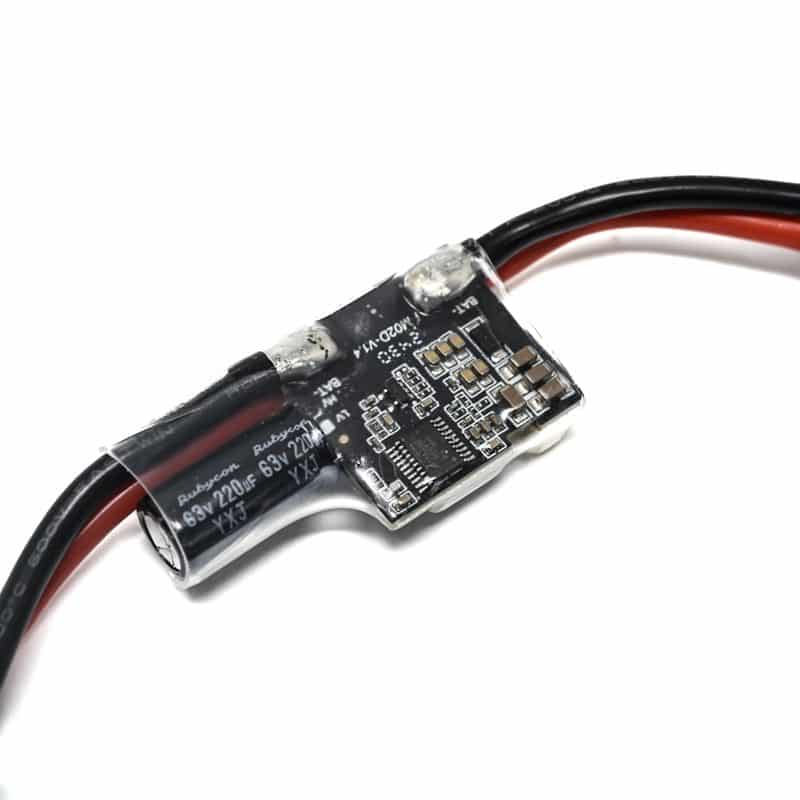

PM02D provides regulated power supply for your Pixhawk® 5X & 6X from the battery, as well as current consumption and battery voltage measurements, all through a 6pin cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from LiPo batteries up to 12S (HV). The Power Module comes completely assembled with XT60 connectors, wrapped in shrink tubing for physical damage protection.
It is not designed to power servos, please use your aircraft’s ESC/BEC for that. The Molex 2.00mm pitch CLIK-Mate Wire-to-Board connector is rated for 3.0A current per contact.
Note:
PM02D HV version is supported by PX4. For Ardupilot, it is supported in version 4.4 and later.This PM uses I2C digital signal data output, Compatible with Pixhawk 5X/6X Series.
NOT compatible with flight controller that uses analog PM such as the Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers.
Current Rating: The PM02D comes with XT60 plugs with 14 AWG silicone wires rated for 30A continuous current and 60A burst current (<1 minute).
Features:
-
- Regulated Output: 5.2V and 3A max for stable power supply
- Battery Compatibility: Supports LiPo batteries up to 12S (HV)
- Current Sensing: High-accuracy current sensing up to 327A for HV
- Monitoring Interface: I2C compatible interface for voltage and current monitoring
- Physical Protection: Wrapped in shrink tubing to prevent damage
- Connectors: Equipped with XT60 connectors for reliable connections
Specifications:
| Item Type: | Module |
|---|---|
| Input Voltage (V): | HV: 2S-12S |
| Max Current (A) | HV: 327A |
| Output | 5.2V and 3A max |
Package Includes:
1 x Holybro PM02D Power Module High Voltage (2S -12S)
Holybro PM02D Power Module High Voltage Overview
The Holybro PM02D Power Module High Voltage is a dedicated power distribution and sensing unit designed for Pixhawk® 5X and 6X flight controllers. It provides a regulated 5.2 V/3 A supply from 2S–12S LiPo batteries while delivering accurate voltage and current measurements over an I2C interface.
Key Features of Holybro PM02D Power Module High Voltage
- High-voltage input range: supports 2S to 12S LiPo batteries for large multirotors and UAVs.
- Accurate current sensing up to 327 A for real-time power monitoring and flight logging.
- On-board switching regulator outputs 5.2 V at up to 3 A to power Pixhawk 5X/6X series controllers.
- Molex CLIK-Mate 6-pin I2C connector delivers voltage/current data directly to the flight controller.
- Durable XT60 connectors with 14 AWG silicone wires and shrink tubing for reliable battery connections.
- Supported by PX4 firmware; fast shipping across India when ordered from Zbotic.
Applications and Use Cases
- Power distribution and telemetry for professional multirotor drones using Pixhawk 5X/6X.
- High-voltage fixed-wing UAVs requiring precise battery monitoring.
- Research platforms where accurate current draw data is critical for flight analysis.
- Industrial inspection drones that operate on 6S–12S battery packs.
- Custom unmanned vehicles integrating PX4 autopilot for extended-range missions.
How to Use Holybro PM02D Power Module High Voltage
Connect the battery’s XT60 plug to the module’s input side, then secure the module in a dry, vibration-free area. Plug the 6-pin Molex CLIK-Mate cable into the Pixhawk 5X/6X I2C port to enable voltage and current telemetry. Ensure your ESC or dedicated BEC powers servos and avoid drawing servo power from the PM02D output.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the PM02D compatible with older Pixhawk versions?
The PM02D is specifically designed for Pixhawk® 5X and 6X series and uses an I2C interface. It is not guaranteed to work with Pixhawk 4 or earlier models that expect PWM or analog power modules.
What is the maximum voltage and current it can handle?
The module supports a LiPo input voltage range from 2S up to 12S (up to 50.4 V nominal) and provides current sensing up to 327 A for comprehensive battery monitoring.
Can I power servos or other peripherals directly from the PM02D?
No. The PM02D’s 5.2 V/3 A output is intended only for the flight controller. Use your ESC’s built-in BEC or a dedicated power solution to drive servos and high-current peripherals.
